June 26, 2018: Areas of Flash Flooding & Three Brief Tornadoes, Including EF-1 in Manhattan, IL

Tornadoes:

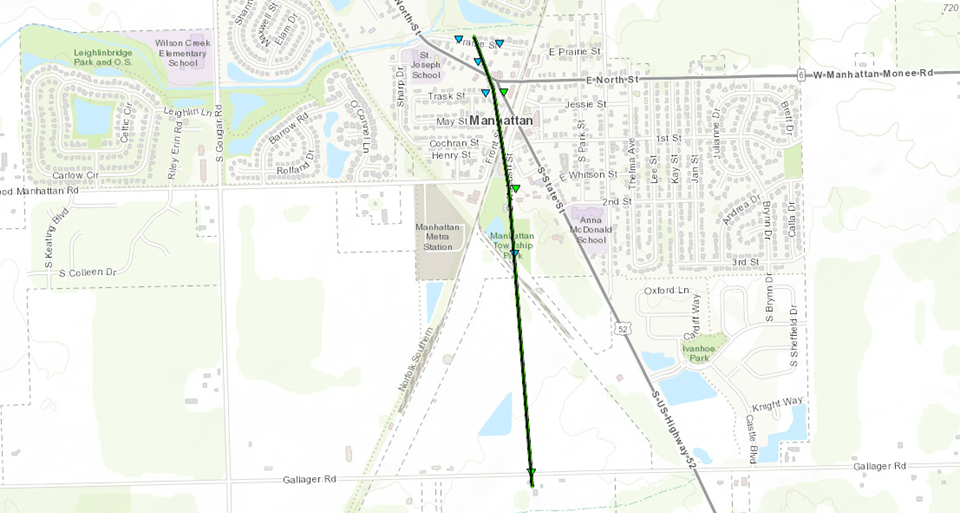

EF-1 Tornado in Manhattan, IL

Tornado - Manhattan, IL Will County Date 26 June 2018 Time (Local) 6:54-6:59 CDT EF Rating 1 Est. Peak Winds 95 mph Path Length 1.13 miles Max Width 100 yards Injuries/Deaths None Summary: Damage was first observed at a farm along Bruns Road. Two large trees lost limbs or portions of their trunk and numerous smaller branches were broken. The resident reported seeing a mass of wind and clouds upstream from this location but not a funnel. There was no damage observed in the crops upstream of this location, at least from what could be seen from the ground. There was debris in the field north of the farm, but no other damage was visible until the tornado entered Manhattan near the park. Damage in Manhattan consisted of numerous snapped branches of various size and at least two large (> 1ft diameter) trunks snapped. Damage in the park was about 100 yards wide. Several buildings in town received just minor damage, but the post office lost a portion of its roof covering, and a building next door had broken windows as well as shingle and roof damage.  The tornado dissipated near Prairie Street as it exited downtown. No damage was seen in the tree line north of Prairie Street. Track Map Downloadable KMZ File

• Two other very brief tornadoes were observed and filmed by trained spotters.
  • One was in Kane County, 4 miles SSE of Maple Park, IL.  A video showed a brief surface touchdown that kicked up some water in a field. The tornado only lasted a few seconds and produced no damage, so it was not surveyed, nor has an exact position been established.
  • The other was in Will County southeast of Manhattan, somewhere in the area between Wilton Center and the Green Garden Country Club.  No damage was reported with this tornado but this area was surveyed by the National Weather Service, and no damage was observed.  The exact location where spotter video indicated a touch down has not been established.

The Enhanced Fujita (EF) Scale classifies tornadoes into the following categories:

EF0 Weak 65-85 mph	EF1 Moderate 86-110 mph	EF2 Significant 111-135 mph	EF3 Severe 136-165 mph	EF4 Extreme 166-200 mph	EF5 Catastrophic 200+ mph

Flooding

Heavy rain led to numerous reports of flooding.

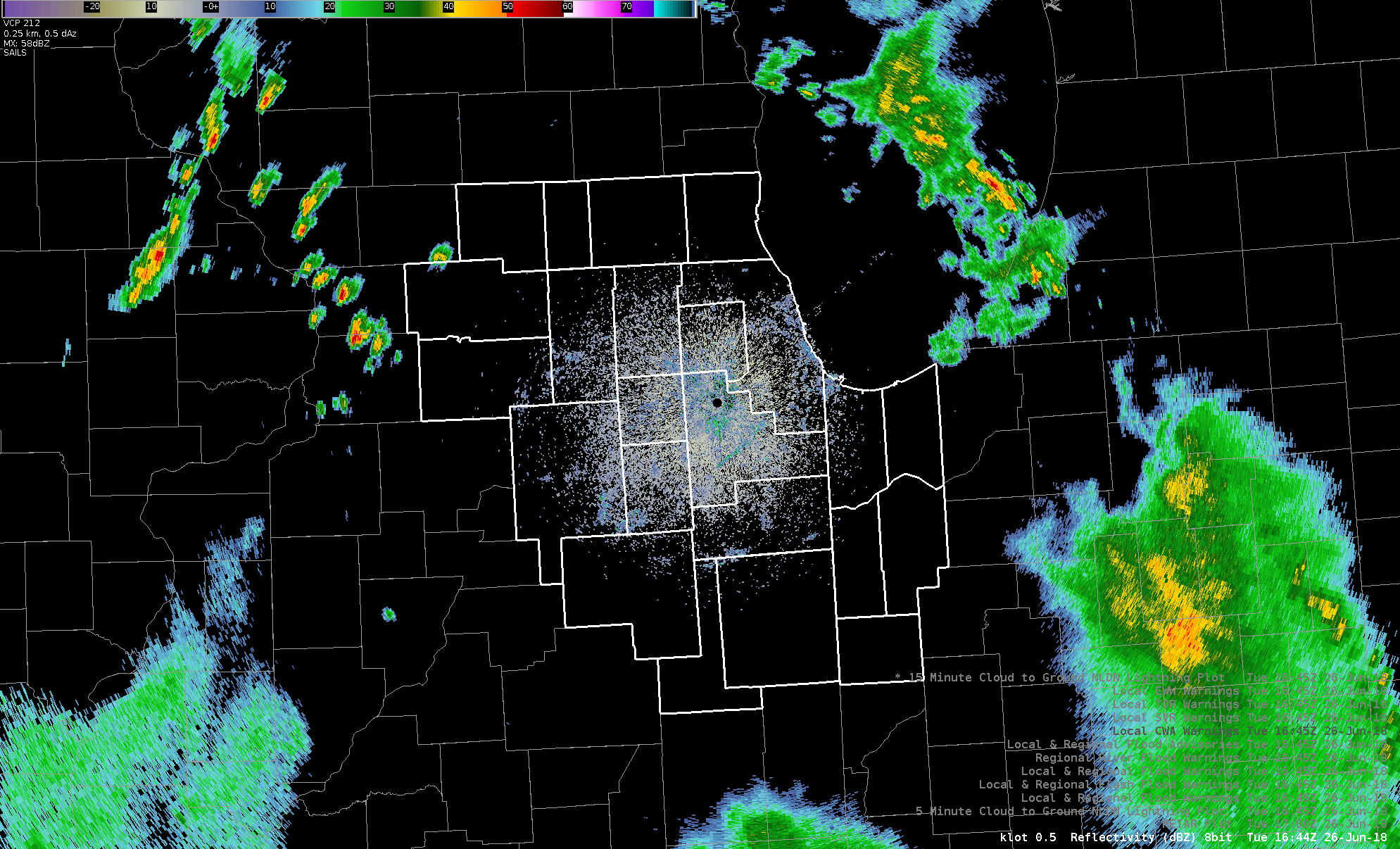

June 26, 2018 radar loop 11:44 AM to 830 PM CDT

Photos & Video:

Wilton Center, IL storm (Andrew Pritchard)	Hinckley, IL storm (Adam Lucio)

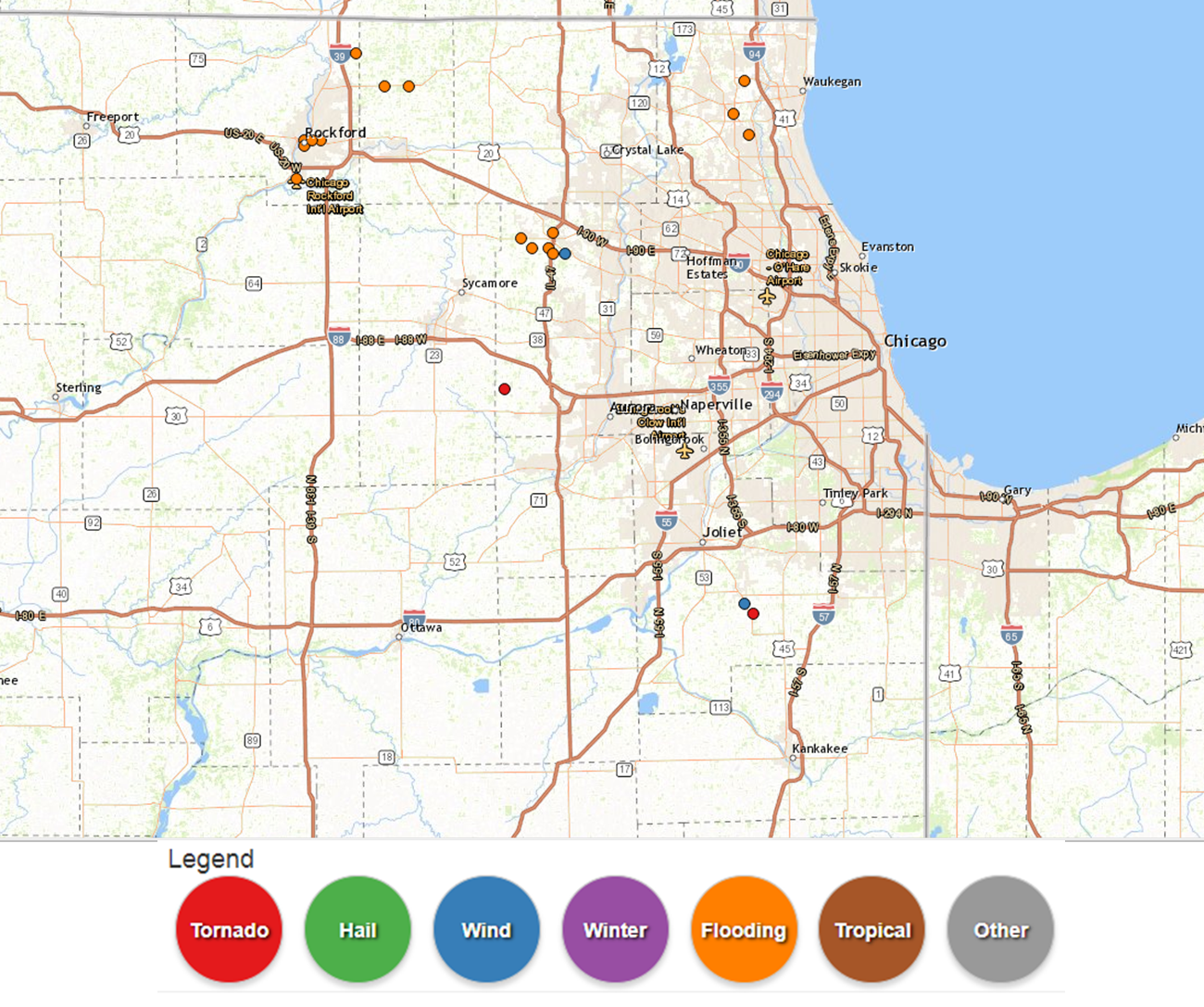

Storm Reports

PRELIMINARY LOCAL STORM REPORT...SUMMARY
NATIONAL WEATHER SERVICE CHICAGO/ROMEOVILLE IL
338 PM CDT WED JUN 27 2018

..TIME...   ...EVENT...      ...CITY LOCATION...     ...LAT.LON...
..DATE...   ....MAG....      ..COUNTY LOCATION..ST.. ...SOURCE....
            ..REMARKS..

0916 PM     HEAVY RAIN       1 E ROCKFORD            42.27N 89.04W
06/26/2018  M3.00 INCH       WINNEBAGO          IL   TRAINED SPOTTER

            STANDING WATER IN YARDS AND LOW LYING AREAS 6 INCHES TO A
            FOOT IN SPOTS. WATER STARTING TO RECEDE.

0732 PM     FLASH FLOOD      1 SW HAMPSHIRE          42.09N 88.54W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            ENTIRE INTERSECTION OF IL ROUTE 72 AND STATE STREET WITH
            12-15 INCHES OF WATER.

0658 PM     TSTM WND DMG     1 SSE MANHATTAN         41.41N 87.98W
06/26/2018                   WILL               IL   TRAINED SPOTTER

            SMALL PARTS OF A ROOF REMOVED AND SEVERAL TREES DOWN ON
            THE SOUTH SIDE OF MANHATTAN. WIRES ALSO DOWN ON BRUNS
            ROAD AND ROUTE 52. POSSIBLE TORNADO. REPORT RELAYED VIA
            TWITTER...WITH SUPPLEMENTAL INFORMATION VIA LAW
            ENFORCEMENT.

0654 PM     TORNADO          1 S MANHATTAN           41.41N 87.99W
06/26/2018                   WILL               IL   NWS STORM SURVEY

            EF-1 TORNADO WITH MAXIMUM WINDS UP TO 95 MPH...MAXIMUM
            PATH WIDTH UP TO 100 YARDS AND PATH LENGTH OF 1.13 MILES.
            THE TORNADO DISSIPATED JUST NORTH OF THE CENTER OF
            MANHATTAN AT ABOUT 659 PM.

0653 PM     TORNADO          3 SSE MANHATTAN         41.39N 87.96W
06/26/2018                   WILL               IL   TRAINED SPOTTER

            DELAYED REPORT. CONFIRMED TORNADO SIGHTING. APPROXIMATE
            LOCATION BASED OFF VIEWING PERSPECTIVE. NO KNOWN DAMAGE
            AS OF TUESDAY EVENING IN APPROXIMATE LOCATION OF TORNADO.
            TWO OTHER SPOTTERS IN THE AREA IN CONTACT WITH NWS
            CHICAGO ALSO REPORTED SEVERAL BRIEF TORNADO TOUCH DOWNS
            NEARBY.

0636 PM     FLASH FLOOD      4 SE HAMPSHIRE          42.06N 88.46W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            6 TO 7 INCHES OF FLOWING WATER ACROSS ROUTE 47 AT PLANK
            ROAD. RELAYED BY KANE COUNTY ARES.

0630 PM     FLASH FLOOD      1 W ROCKFORD            42.27N 89.08W
06/26/2018                   WINNEBAGO          IL   LAW ENFORCEMENT

            NORTH CENTRAL AVENUE WAS IMPASSABLE DUE TO FLOOD FROM
            RAINFALL FROM 530 TO 630.

0622 PM     FLASH FLOOD      3 W PINGREE GROVE       42.07N 88.47W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            IMPASSABLE STANDING WATER ON ROUTE 47. RELAYED VIA
            SPOTTER NETWORK.

0546 PM     FLOOD            3 SW GAGES LAKE         42.32N 88.01W
06/26/2018                   LAKE               IL   PUBLIC

            ABOUT 1 FOOT OF STANDING WATER ON IL ROUTE 137 AT THE
            INTERSECTION OF MIDLOTHIAN ROAD IN SOUTHEAST SECTION OF
            GRAYSLAKE.

0530 PM     HEAVY RAIN       2 W GURNEE              42.38N 87.98W
06/26/2018  M1.93 INCH       LAKE               IL   COCORAHS

            IN THE PAST HOUR UP TO REPORT TIME. MINOR FLOODING
            OBSERVED.

0528 PM     FLOOD            2 SSE HAMPSHIRE         42.07N 88.51W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            MOST ROADS IN AREA ACTIVELY FLOODING DUE TO FARM FIELD
            RUNOFF. RELAYED VIA SPOTTER NETWORK.

0528 PM     TORNADO          4 SSE MAPLE PARK        41.85N 88.57W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            VIDEO SHOWED A FEW VERY BRIEF SURFACE-BASED VORTICES THAT
            KICKED UP SOME WATER IN A FIELD SOUTHWEST OF THE PERRY
            ROAD AND MINER ROAD INTERSECTION. THESE ONLY LASTED A FEW
            SECONDS AND PRODUCED NO DAMAGE. DELAYED REPORT. TIME
            ESTIMATED FROM RADAR.

0527 PM     FUNNEL CLOUD     4 NE HINCKLEY           41.81N 88.58W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            FUNNEL CLOUD CLOSE TO HALF WAY DOWN SIGHTED BY MULTIPLE
            SPOTTERS AND CHASERS FROM 527 TO 532-533 PM. LAW
            ENFORCEMENT AND CHASER/SPOTTER REPORTS CONFIRMED THERE
            WAS NO TOUCH DOWN.

0526 PM     FLOOD            LIBERTYVILLE            42.28N 87.97W
06/26/2018                   LAKE               IL   EMERGENCY MNGR

            ALL LOCAL ROADS WITH SEVERAL INCHES OF STANDING
            WATER...SOME WITH FLOWING WATER. 0.56 INCHES OF RAIN
            OCCURRED BETWEEN 503PM AND 513PM AT THE LAKE COUNTY EOC
            NEAR WINCHESTER ROAD AND ROUTE 21...WITH AFTERNOON TOTAL
            OF 1.10 INCHES.

0440 PM     FLOOD            N POPLAR GROVE          42.37N 88.82W
06/26/2018                   BOONE              IL   EMERGENCY MNGR

            ABOUT 6 INCHES OF STANDING WATER ON ROUTE 173.

0431 PM     FLOOD            3 W POPLAR GROVE        42.37N 88.88W
06/26/2018                   BOONE              IL   EMERGENCY MNGR

            APPROXIMATELY 6 INCHES OF STANDING WATER ON ROUTE 173
            EAST OF WYMAN SCHOOL ROAD. SAME REPORT ALSO RELAYED BY
            TRAINED SPOTTER VIA TWITTER.

0414 PM     FLOOD            3 E HAMPSHIRE           42.10N 88.46W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            WATER OVER DITCH INTO EAST BOUND LANE OF TRAFFIC.

0325 PM     HEAVY RAIN       3 ENE ROSCOE            42.43N 88.95W
06/26/2018  M1.63 INCH       WINNEBAGO          IL   TRAINED SPOTTER

            RAINFALL TOTAL SO FAR TODAY IS 1.63 INCHES. 1.5 INCHES OF
            THAT FELL FROM 2PM TO 3PM.

0319 PM     TSTM WND DMG     3 N CAPRON              42.44N 88.75W
06/26/2018                   BOONE              IL   EMERGENCY MNGR

            DELAYED REPORT. TREES DOWN AT CAPRON ROAD AND BLAINE
            ROAD. TIME ESTIMATED BY RADAR.

0314 PM     TSTM WND DMG     1 SW PINGREE GROVE      42.06N 88.43W
06/26/2018                   KANE               IL   TRAINED SPOTTER

            LARGE TREE BLOWN DOWN PARTIALLY BLOCKING ROUTE 47
            APPROXIMATELY 1.5 MILES SOUTH OF ROUTE 20. OTHER SMALL
            TREE LIMBS BLOWN DOWN.

0310 PM     TSTM WND DMG     1 NE CAPRON             42.40N 88.74W
06/26/2018                   BOONE              IL   EMERGENCY MNGR

            DELAYED REPORT. TREE DOWN ON POWERLINES. TIME ESTIMATED
            BY RADAR.

0238 PM     HEAVY RAIN       1 E ROCKFORD            42.27N 89.04W
06/26/2018  M1.90 INCH       WINNEBAGO          IL   TRAINED SPOTTER

            TOTAL TODAY AS OF REPORT TIME. 0.9 INCHES WITH MORNING
            ROUND AND 1 INCH WITH AFTERNOON ROUND. SOME MINOR LOW
            LYING FLOODING/PONDING...INCLUDING IN BACKYARDS AND ON
            SOME ROADS.

0230 PM     FLOOD            1 WSW ROCKFORD          42.26N 89.08W
06/26/2018                   WINNEBAGO          IL   BROADCAST MEDIA

            6 TO 10 INCHES OF STANDING WATER ON CHARLES STREET AND
            9TH STREET INTERSECTION. RELAYED VIA TWITTER.

0215 PM     HEAVY RAIN       ROCKFORD                42.27N 89.06W
06/26/2018  M0.91 INCH       WINNEBAGO          IL   BROADCAST MEDIA

            RAINFALL 0.91 INCHES AT WTVO THIS AFTERNOON.

0202 PM     TSTM WND DMG     2 SSW ROCKFORD          42.25N 89.08W
06/26/2018                   WINNEBAGO          IL   BROADCAST MEDIA

            DELAYED REPORT. TREE UPROOTED ON 1800 BLOCK OF SOUTH 8TH
            STREET...CAUSING DAMAGE TO ADJACENT HOUSE AND POWER
            LINES. TIME ESTIMATED BY RADAR.


&&

Rain Reports

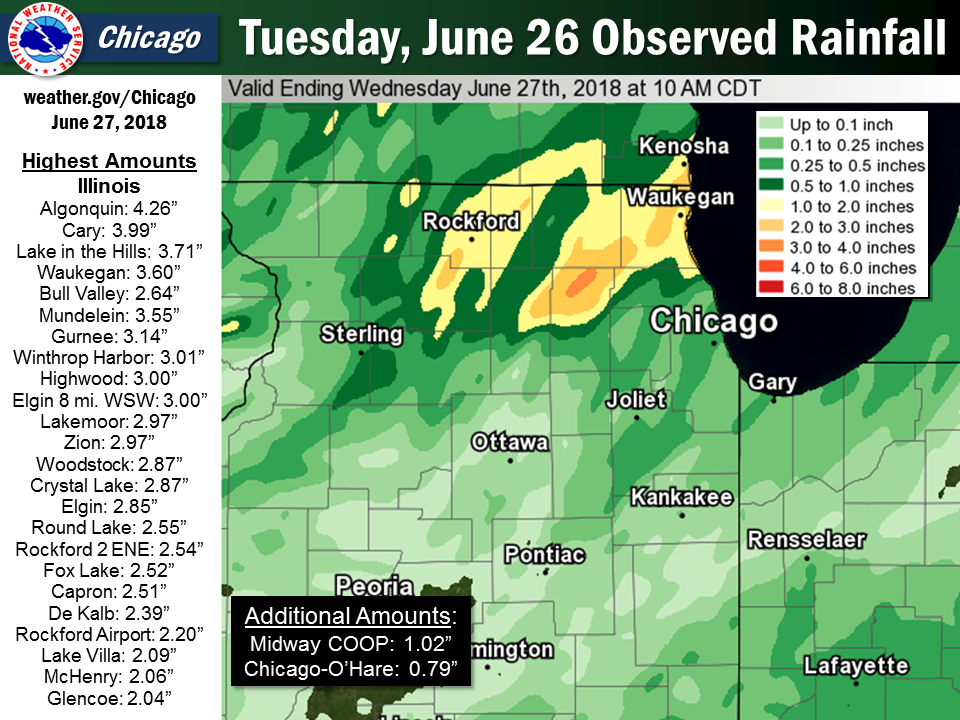

June 26, 2018 Observed Rainfall and Select Volunteer Observer Amounts

Public Information Statement
National Weather Service Chicago/Romeoville IL
1101 AM CDT Wed Jun 27 2018

...2-Day Rainfall Round-up...

The following are rainfall amounts for the previous 2 days
as measured in the morning by NWS Cooperative observers
and CoCoRaHS observers. Observations are usually
taken between 6 AM and 8 AM.

  2-day rain totals for Wednesday (06/27/18)
     as of 10:44 AM CDT

ILLINOIS                                 2-Day rainfall
  Location (County):                         Amt(inches) reports

  Algonquin 1N (McHenry).......................4.26     (1)
  Cary (McHenry)...............................3.99     (1)
  Lake In The Hills 1ESE (McHenry).............3.71     (1)
  Waukegan 2E (Lake)...........................3.60     (1)
  Bull Valley 2WNW (McHenry)...................3.57     (2)
  Mundelein 2WNW (Lake)........................3.55     (1)
  Lake in the Hills 2.5W (McHenry).............3.50     (2)
  Cary (McHenry)...............................3.35     (1)
  Gurnee 2W (Lake).............................3.14     (1)
  Winthrop Harbor 1SSW (Lake)..................3.01     (1)
  Highwood 1S (Lake)...........................3.00     (1)
  Elgin 8WSW (Kane)............................3.00     (1)
  Mundelein (Lake).............................2.98     (1)
  Lakemoor 2SE (Lake)..........................2.97     (1)
  Zion (Lake)..................................2.97     (1)
  Woodstock 1SSW (McHenry).....................2.87     (1)
  Crystal Lake (McHenry).......................2.87     (1)
  Elgin 2W (Kane)..............................2.85     (2)
  Elgin (Kane).................................2.72     (1)
  Woodstock 4SW (McHenry)......................2.66     (2)
  Crystal Lake 1WSW (McHenry)..................2.61     (1)
  Round Lake 2WNW (Lake).......................2.55     (1)
  Rockford 2ENE (Winnebago)....................2.54     (2)
  Waukegan (Lake)..............................2.52     (1)
  Fox Lake 2SE (Lake)..........................2.52     (2)
  Capron (Boone)...............................2.51     (2)
  Rockford 3NE (Winnebago).....................2.46     (2)
  Rockford 1NW (Winnebago).....................2.39     (2)
  De Kalb (De Kalb)............................2.39     (2)
  Elgin 1S (Kane)..............................2.33     (2)
  Elgin (Kane).................................2.33     (2)
  Waukegan 2N (Lake)...........................2.31     (1)
  Lake Bluff 1W (Lake).........................2.21     (1)
  Rockford (Winnebago).........................2.20     (2)
  De Kalb (De Kalb)............................2.15     (2)
  Lake Villa 2WSW (Lake).......................2.09     (1)
  McHenry (McHenry)............................2.06     (2)
  Botanic Gardens (Cook).......................2.04     (1)
  Roscoe 2se (Winnebago).......................2.01     (1)
  Roscoe 2ESE (Winnebago)......................2.01     (1)
  De Kalb 1SW (De Kalb)........................1.93     (2)
  Riverwoods (Lake)............................1.86     (1)
  Lake Zurich (Lake)...........................1.79     (1)
  South Beloit 2SE (Winnebago).................1.78     (1)
  Barrington (Lake)............................1.78     (2)
  Lake Zurich 1N (Lake)........................1.77     (1)
  Hoffman Estates 5W (Cook)....................1.77     (2)
  Bannockburn (Lake)...........................1.76     (1)
  St. Charles 6NW (Kane).......................1.68     (1)
  Lake Villa 1SSW (Lake).......................1.63     (1)
  Lincolnshire 1N (Lake).......................1.59     (1)
  Ashton (Lee).................................1.56     (2)
  Belvidere (Boone)............................1.55     (2)
  Genoa (De Kalb)..............................1.54     (2)
  Cortland (De Kalb)...........................1.53     (1)
  New Lenox 3ENE (Will)........................1.49     (1)
  New Lenox 3E (Will)..........................1.47     (1)
  Harvard (McHenry)............................1.47     (2)
  Wheeling (Cook)..............................1.45     (2)
  Dekalb (De Kalb).............................1.43     (2)
  Buffalo Grove 2N (Lake)......................1.42     (1)
  Lily Lake 2E (Kane)..........................1.37     (1)
  Palos Park 1SW (Cook)........................1.36     (1)
  Lombard 1NNW (Du Page).......................1.31     (2)
  Oregon (Ogle)................................1.30     (2)
  Hebron (McHenry).............................1.26     (1)
  Streamwood 1W (Cook).........................1.25     (2)
  Woodstock 5nw (McHenry)......................1.21     (2)
  Long Grove 1NNE (Lake).......................1.21     (1)
  Monee (Will).................................1.20     (2)
  Manhattan 2SE (Will).........................1.20     (2)
  Arlington Heights 1SW (Cook).................1.14     (1)
  Arlington Heights 3SSW (Cook)................1.13     (2)
  Elk Grove Village 1ESE (Cook)................1.07     (1)
  Dixon (Lee)..................................1.07     (1)
  Carbon Hill 3.1N (Grundy)....................1.05     (2)
  Coal City 4NNW (Grundy)......................1.05     (2)
  Chicago 6NNE (Cook)..........................1.04     (1)
  Kingston 2WNW (De Kalb)......................1.03     (1)
  Midway Coop (Cook)...........................1.02     (1)
  Midway (Cook)................................1.00     (1)
  Winnebago 1SE (Winnebago)....................1.00     (1)
  Byron 3N (Ogle)..............................1.00     (2)
  New Lenox 2SE (Will).........................0.96     (2)
  Arlington Heights 1SW (Cook).................0.94     (1)
  Chicago 6ESE (Cook)..........................0.90     (1)
  Oswego 5SSE (Kendall)........................0.89     (2)
  Manhattan 1ESE (Will)........................0.87     (1)
  Lansing (Cook)...............................0.87     (1)
  North Aurora 2NE (Kane)......................0.86     (2)
  Oak Lawn 1N (Cook)...........................0.86     (1)
  Morris 6ESE (Grundy).........................0.83     (2)
  Glen Ellyn 1NNW (Du Page)....................0.82     (2)
  Lisle Morton Arb (Du Page)...................0.81     (2)
  Elburn (Kane)................................0.80     (1)
  Glen Ellyn 1WSW (Du Page)....................0.80     (2)
  Chicago Ridge (Cook).........................0.80     (1)
  Elburn (Kane)................................0.80     (1)
  Ohare (Cook).................................0.79     (1)
  Lansing (Cook)...............................0.77     (2)
  Wilmington 6NW (Will)........................0.77     (2)
  Palatine 1NNE (Cook).........................0.77     (1)
  Schaumburg 2E (Cook).........................0.77     (1)
  Wheaton 2NNE (Du Page).......................0.75     (1)
  Oak Park 1NNE (Cook).........................0.75     (1)
  Oak Park 1SW (Cook)..........................0.75     (1)
  Worth (Cook).................................0.75     (1)

INDIANA                                    2-Day rainfall
  Location (County):                         Amt(inches) reports

  Dyer 1WNW (Lake).............................0.97     (1)
  Griffith 1N (Lake)...........................0.74     (1)
  Winfield 1NE (Lake)..........................0.70     (1)
  Schererville 1E (Lake).......................0.69     (1)
  Valparaiso 2N (Porter).......................0.68     (1)
  Portage 1ESE (Porter)........................0.63     (1)
  Valparaiso 1SE (Porter)......................0.63     (1)
  Kentland 2SSE (Newton).......................0.63     (1)
  Schererville 1E (Lake).......................0.61     (1)
  St. John (Lake)..............................0.61     (1)
  Chesterton 4E (Porter).......................0.56     (1)
  Valparaiso (Porter)..........................0.50     (1)
  Valparaiso 7WSW (Porter).....................0.50     (1)
  Hobart 2E (Lake).............................0.50     (1)
  Wheatfield 5W (Jasper).......................0.50     (1)

$$
