June 13, 2014 Crook County Tornado

Tornado:

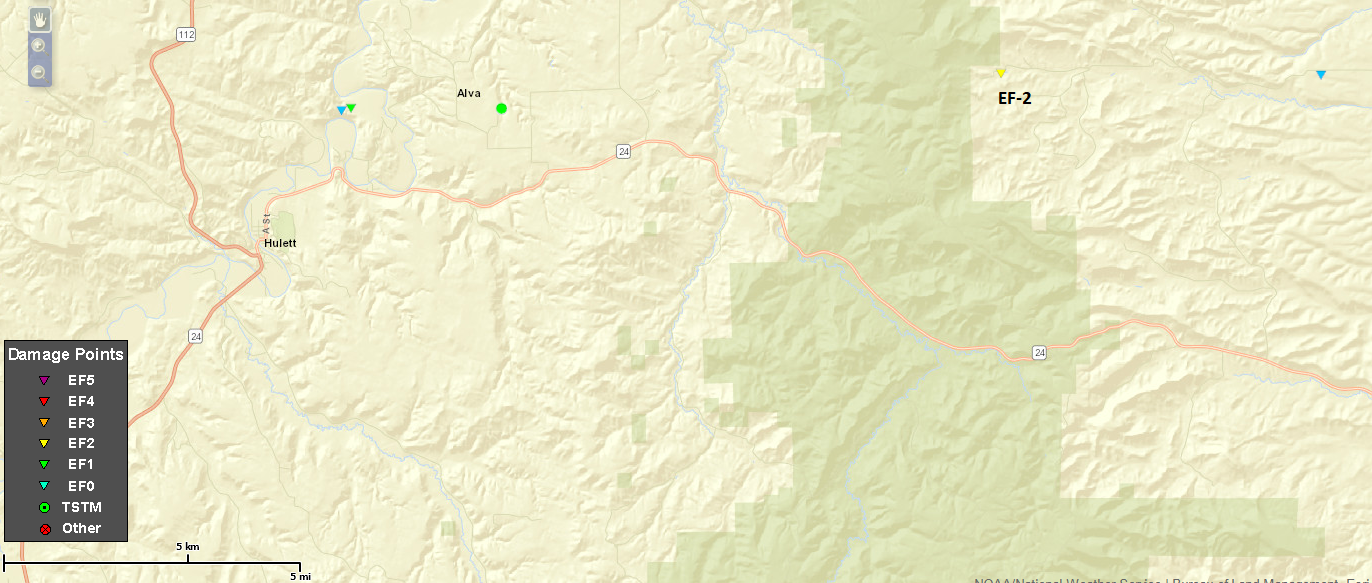

Tornado - Hulett to Aladdin, WY Crook County Date June 13, 2014 Time (Local) 4:41 to 5:12 pm EF Rating EF-2 Est. Peak Winds 120 mph Path Length Estimated 18.1 miles Max Width 600 yards Injuries/Deaths 1 Summary: Tornado uprooted and snapped a significant number of large ponderosa pine trees in the Bear Lodge Mountains. One mobile home was completely destroyed. Several outbuildings were damaged or destroyed. Also, there was evidence of strong straight-line winds along and south of the tornado track. Track Map

The Enhanced Fujita (EF) Scale classifies tornadoes into the following categories:

EF0 Weak 65-85 mph	EF1 Moderate 86-110 mph	EF2 Significant 111-135 mph	EF3 Severe 136-165 mph	EF4 Extreme 166-200 mph	EF5 Catastrophic 200+ mph

Damage Photos

The damage photos below were taken by NWS Rapid City during the storm damage survey.

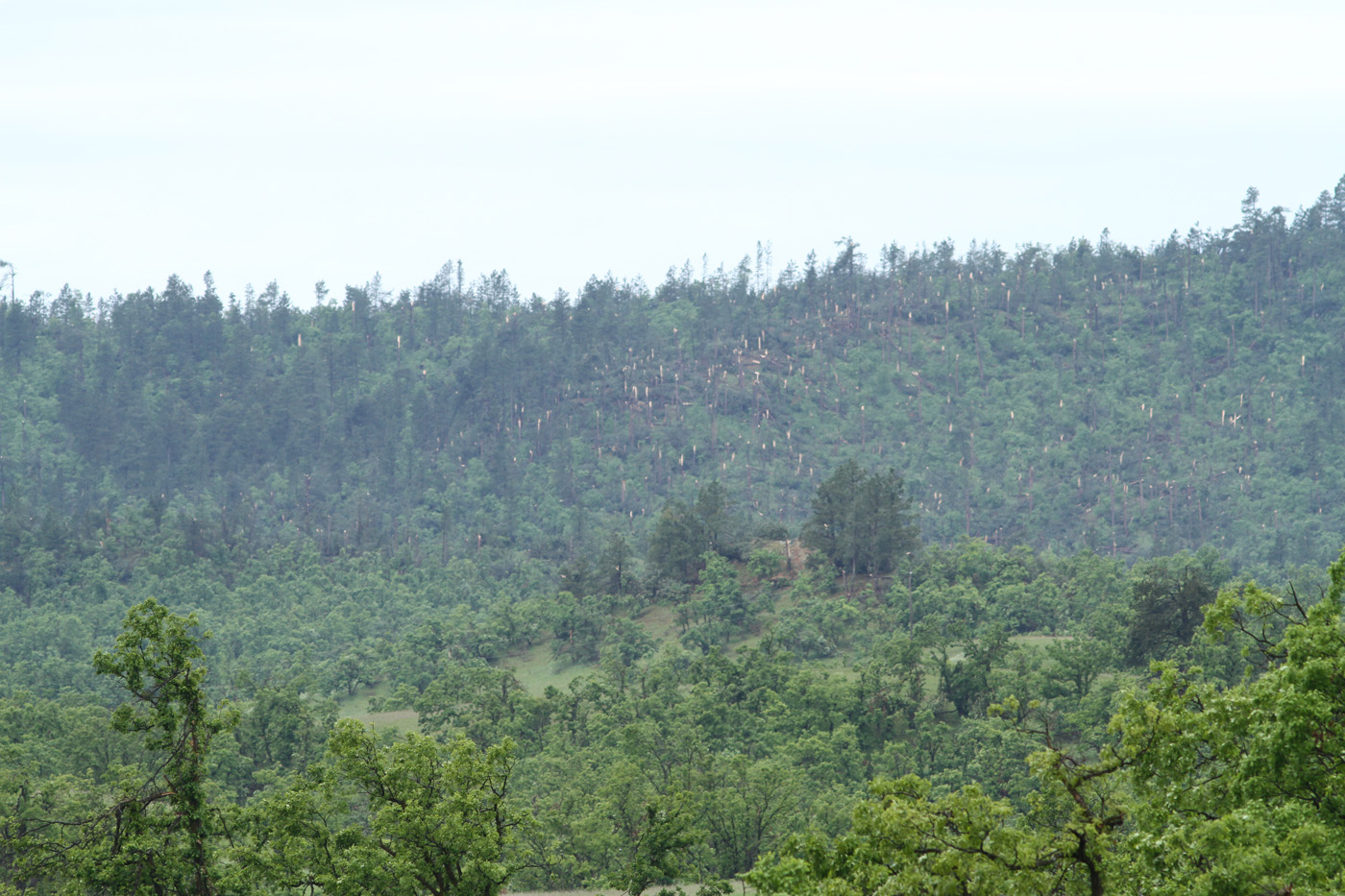

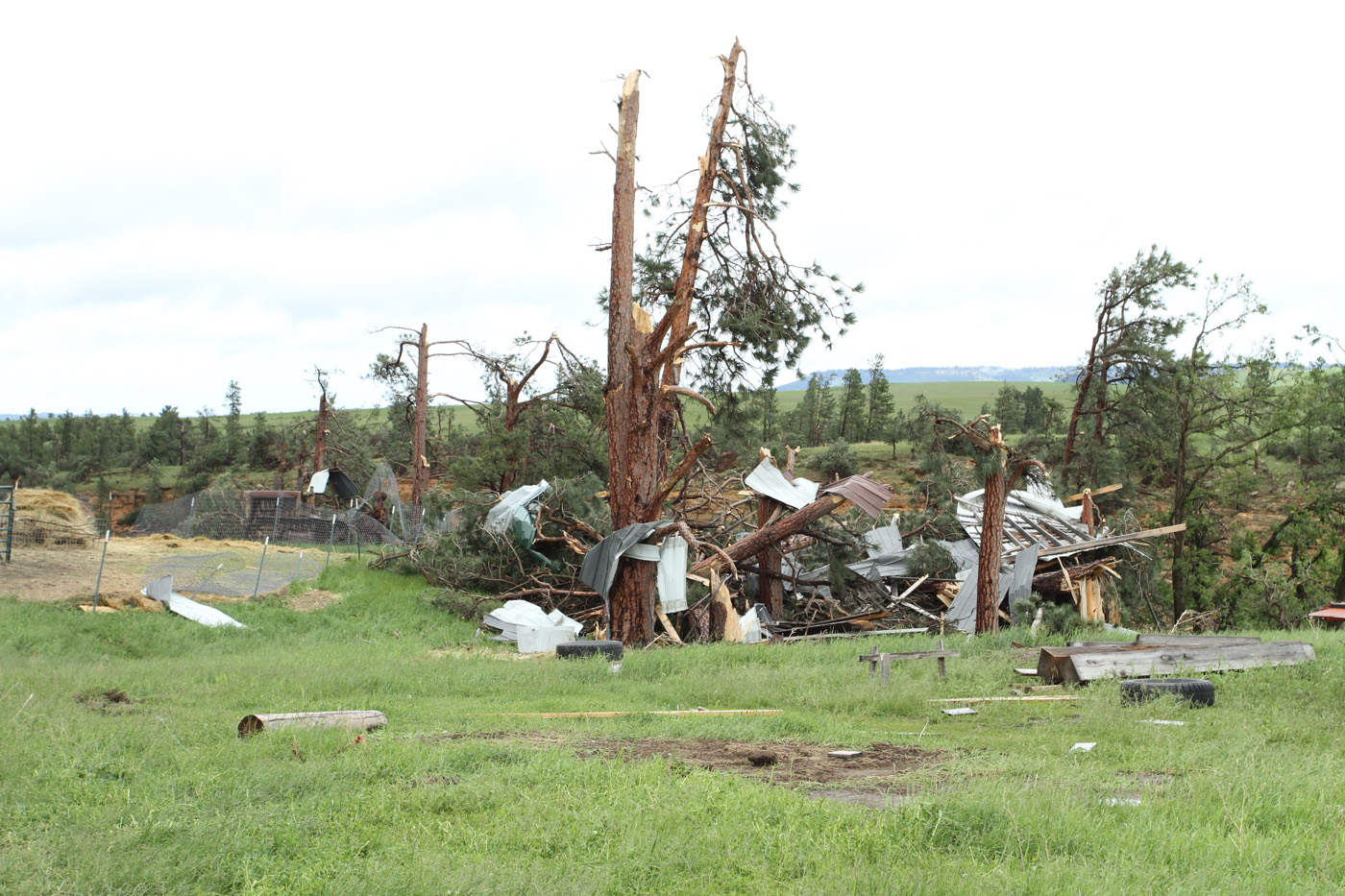

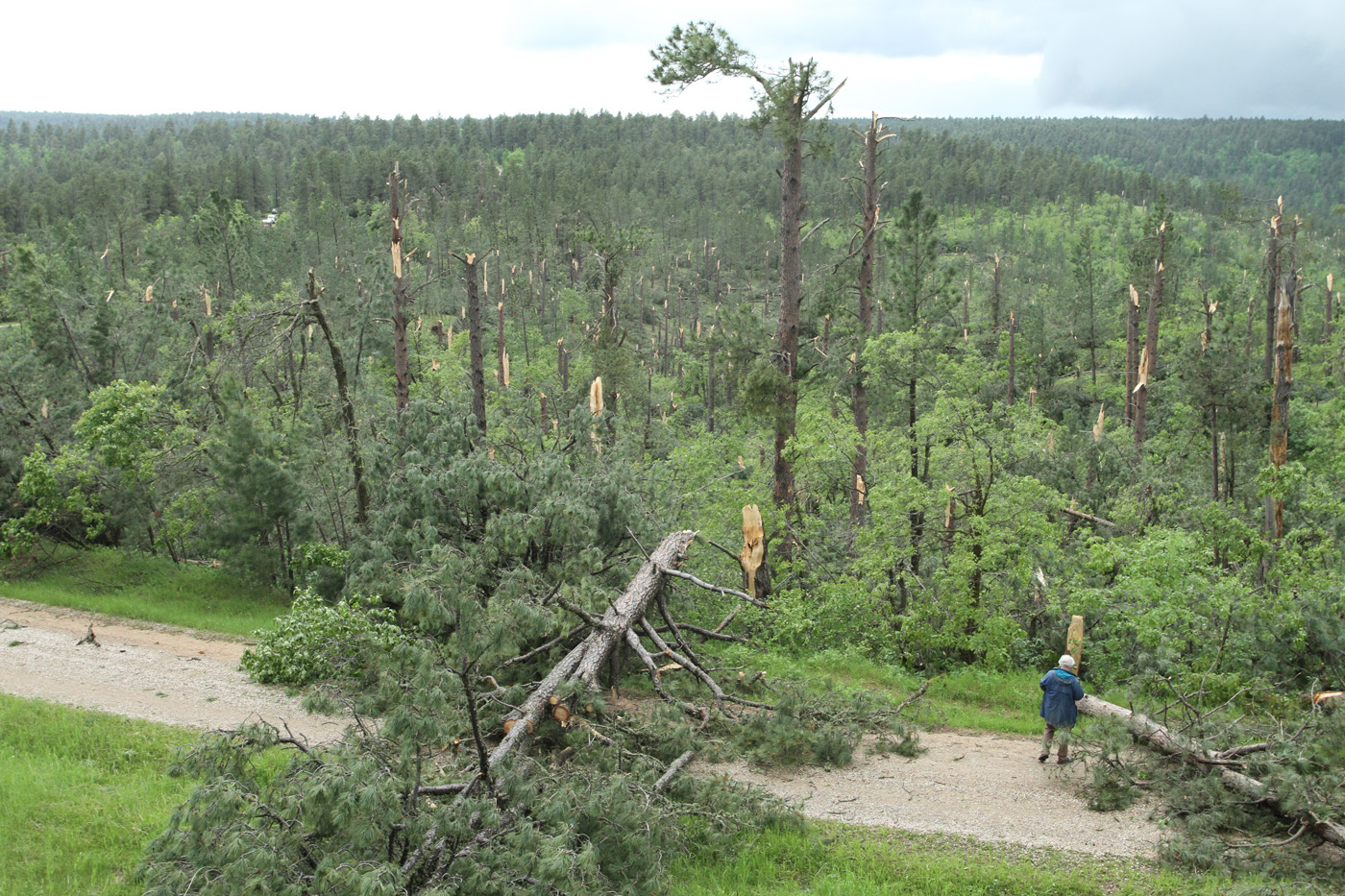

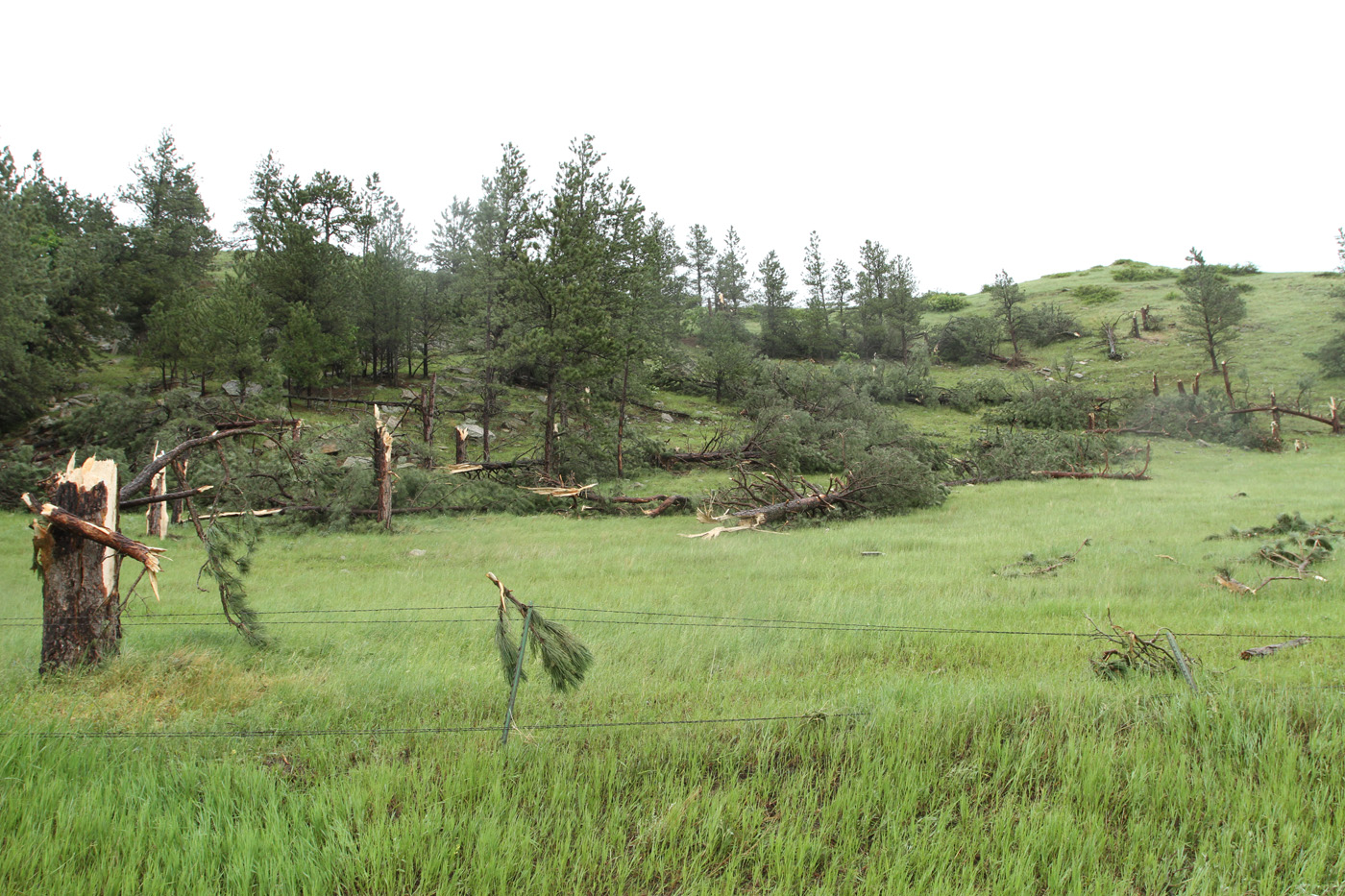

Sheet metal around a tree approximately 3 miles northeast of Hulett	Tree damage north of Alva	Snapped trees north of Alva as the tornado crossed the Bear Lodge Mountains	Damaged trees north of Alva

Radar

The tornado developed as a supercell thunderstorm moved across the northern Bear Lodge Mountains, and the tornado dissipated as the thunderstorm came off the mountains.

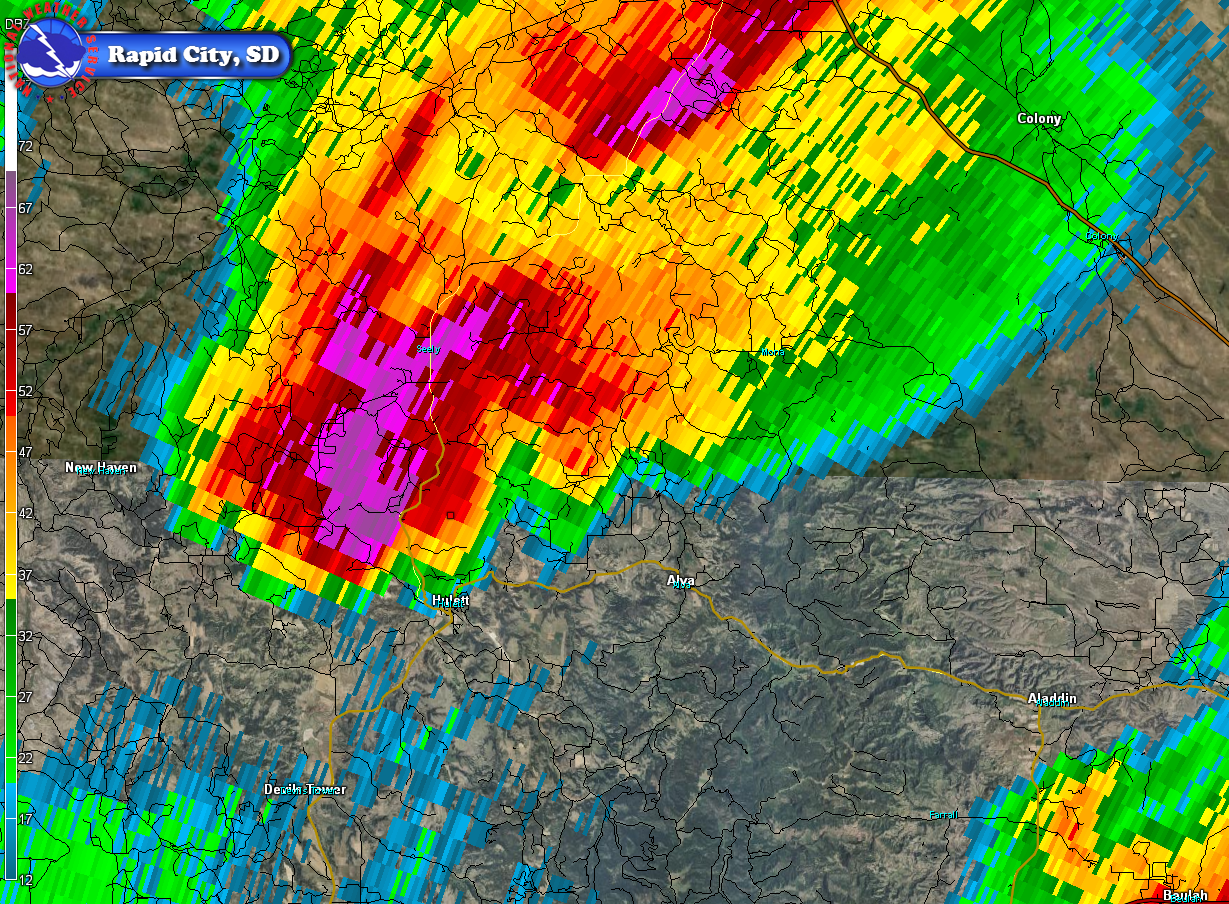

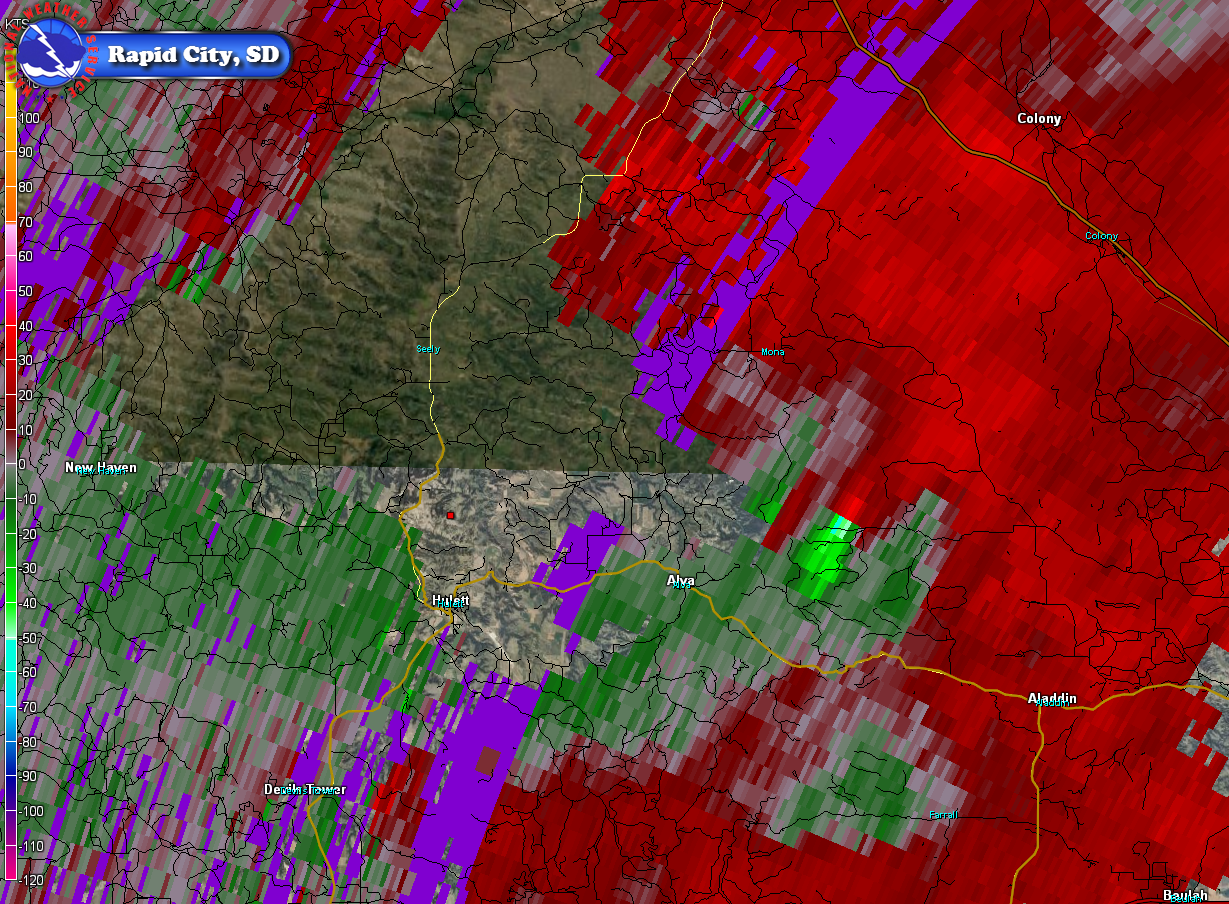

June 13, 2014 438 pm MDT reflectivity image	June 13, 2014 441 pm MDT storm-relative velocity image (note the strong couplet of reds/greens, which indicates the tornado cyclone)

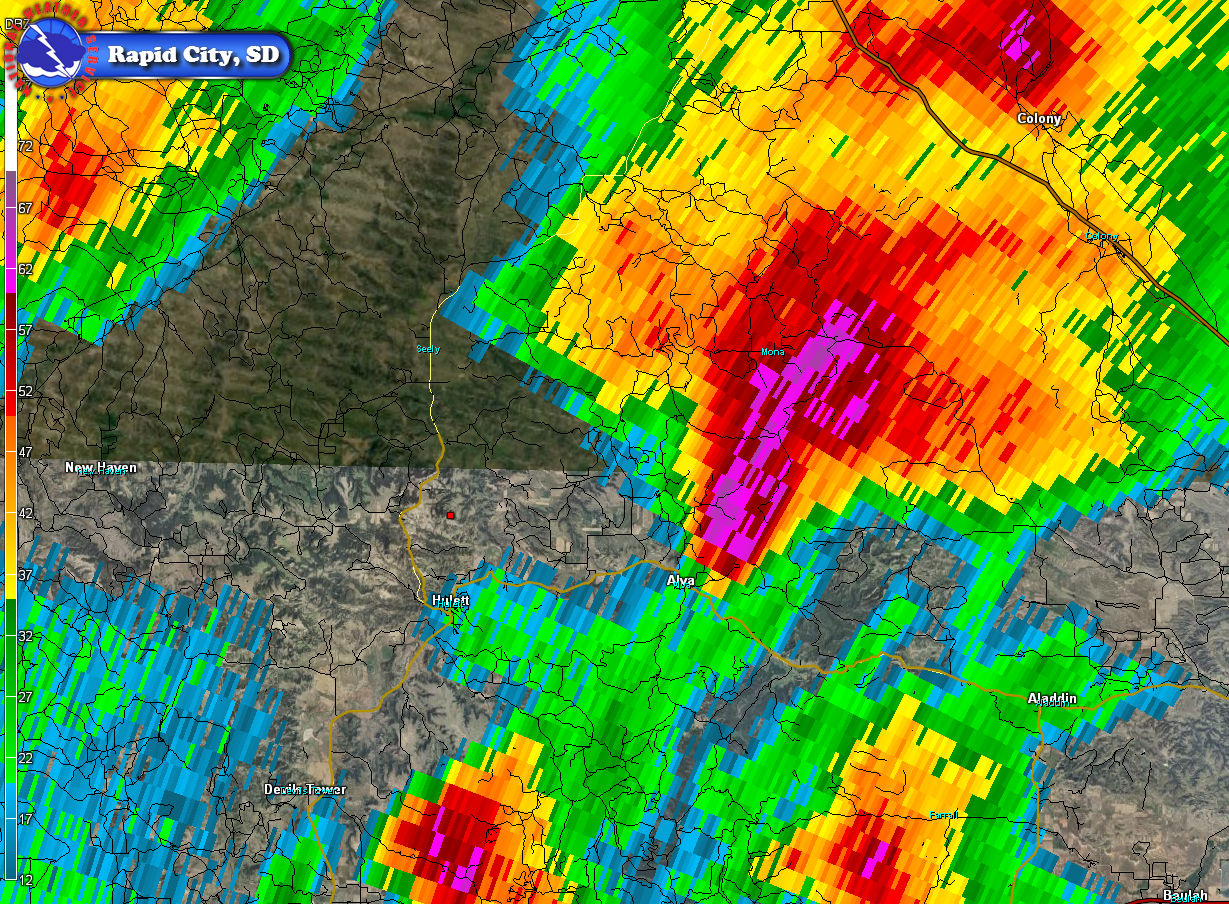

June 13, 2014 458 pm MDT reflectivity image	June 13, 2014 505 pm MDT storm-relative velocity image (note the strong couplet of reds/greens, which indicates the tornado cyclone)

Environment

NWS Rapid City balloon information showed an unstable air mass with moderate vertical wind shear. The surface map showed moist air streaming into northeastern Wyoming.

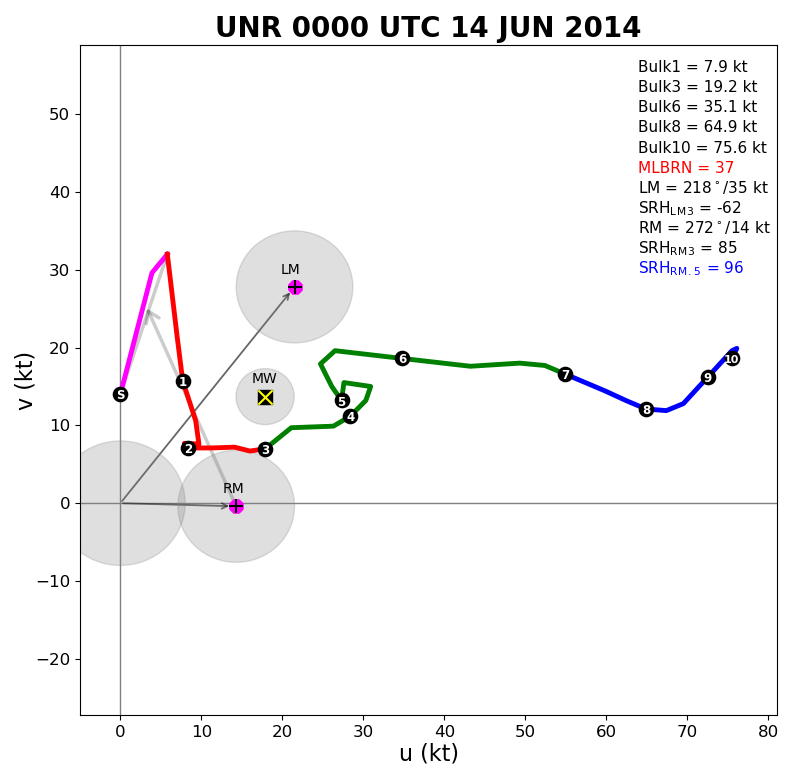

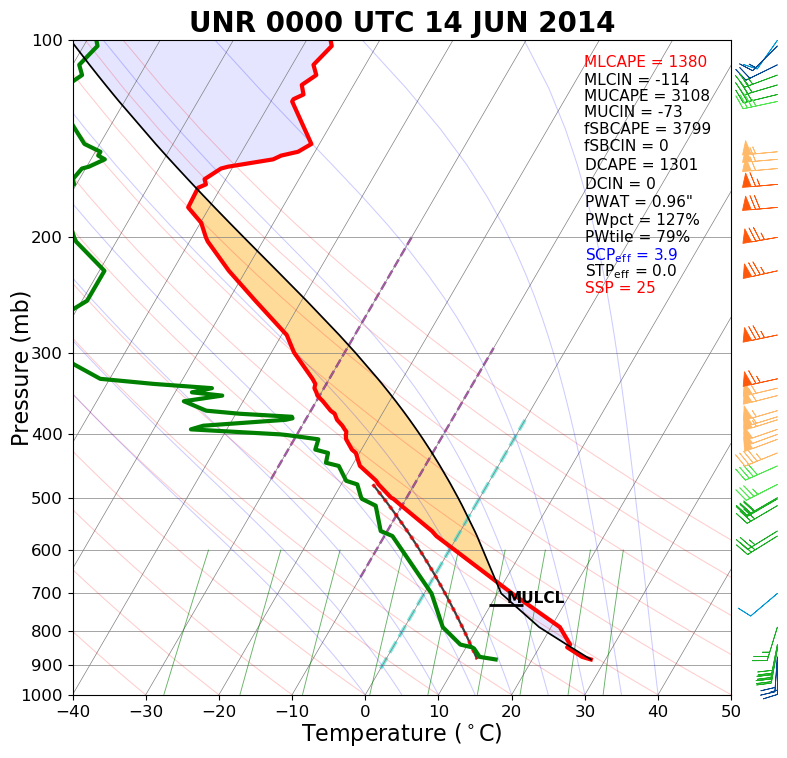

Sounding valid 6 pm MDT 13 June 2014 (00z the 14th)	Hodograph valid 6 pm MDT 13 June 2014 (00z the 14th)

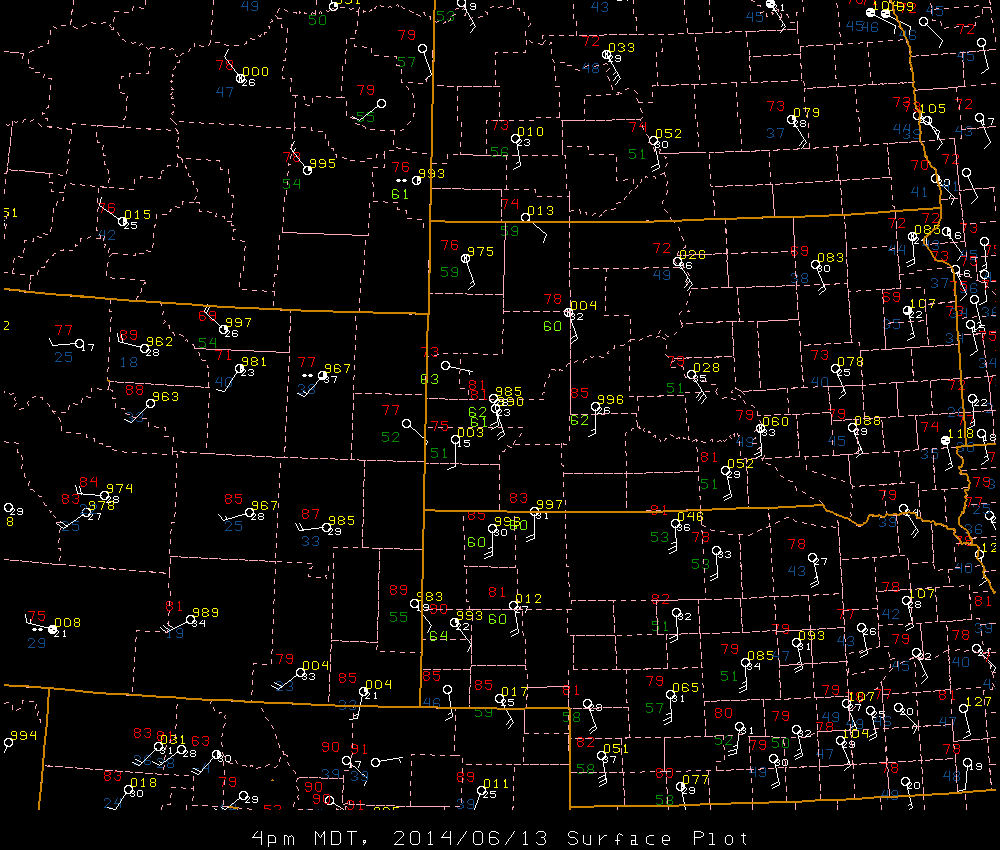

Surface map valid 4 pm MDT 13 June 2014
