Major Flooding Across Portions of Maricopa County
Tuesday August 19 2014


Updated: 3:00am Wednesday August 20 2014



Very heavy rainfall occurred over portions of the Phoenix metropolitan area during the day on Tuesday August 19. The heaviest rainfall began early Tuesday morning around 6 am around Carefree, Cave Creek, Anthem, and New River. Conditions deteriorated quickly as storms expanded and intensified, with numerous reports of flooded streets and underpasses by 7 am. Numerous swift-water rescues occurred later in the morning around New River, and portions of Interstate 17 were closed for a time as the northbound lanes were inundated by Skunk Creek. Additional storms and heavy rainfall moved through the metro area later in the afternoon. By the time showers had tapered off Tuesday evening, some locations had seen more than 4 inches of rainfall.

An upper level trough off the California coast, along with a strong northwest-southeast oriented moisture gradient, provided the necessary ingredients for an active day. Atmospheric moisture across southeast California and southwest Arizona was at or slightly below normal for mid-August. However, moisture from Maricopa County eastward was substantially above normal (approximately 1.75 times higher than normal for mid-August). The abundant moisture, combined with the approaching trough and mid-level southwesterly winds, provided an ideal setup for storm development and training (storms continuously re-developing over the same area). The southwesterly winds also provided substantial orographic lift as the moist atmosphere was forced to ascend the higher terrain north of Phoenix.

Satellite/KIWA Radar imagery: Click each image for a larger view
Water Vapor Imagery
KIWA Base Loop

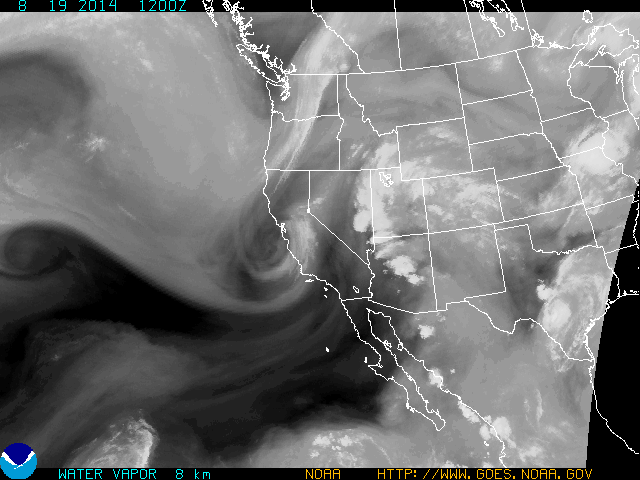

Water Vapor satellite imagery loop depicting the main upper level low pressure system off the California coast, with a weak shortwave trough moving through Arizona Tuesday morning. Times shown: 5am - 9am Tuesday

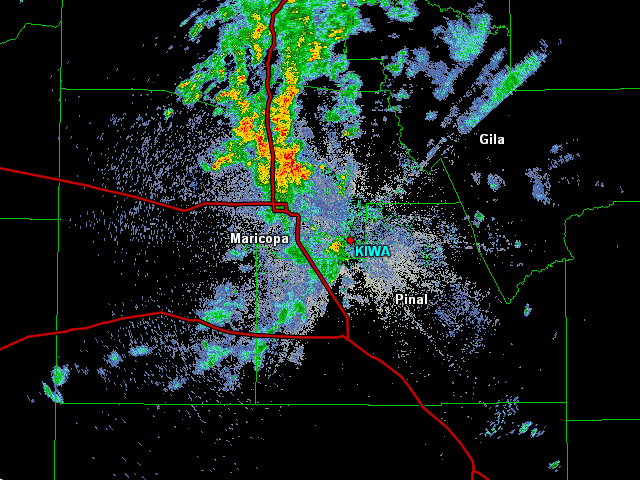

KIWA Base Reflectivity loop from approx 6:30am - 9:30am showing the heaviest rainfall across northern Maricopa County

Observed rainfall: Click each image for a larger view
FCDMC Rainfall Map
Storm Total Precip
Storm Total Precip Analysis

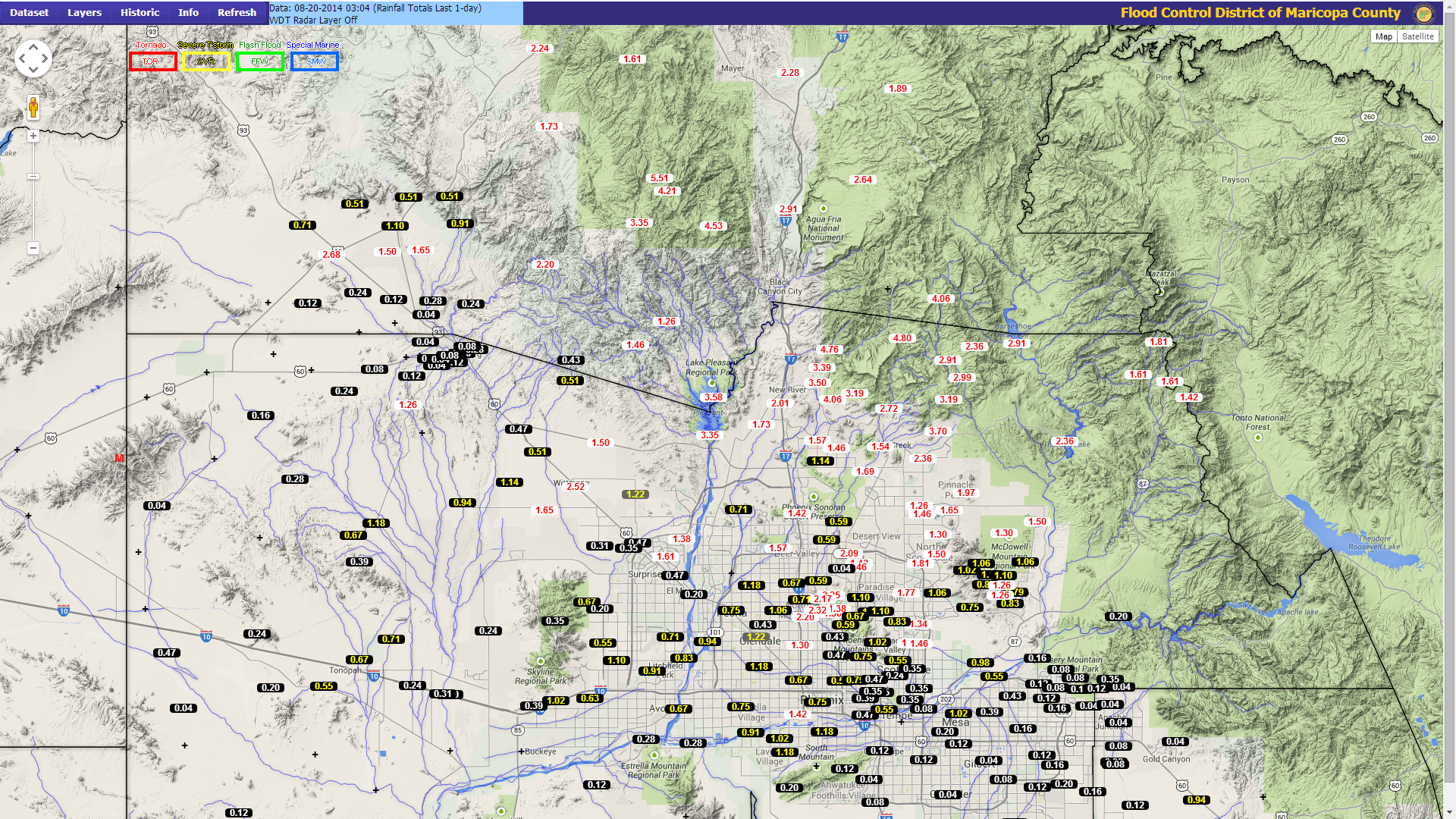

Observed Rainfall Tuesday Aug 19
Image courtesy Maricopa Co. Flood Control Dist.

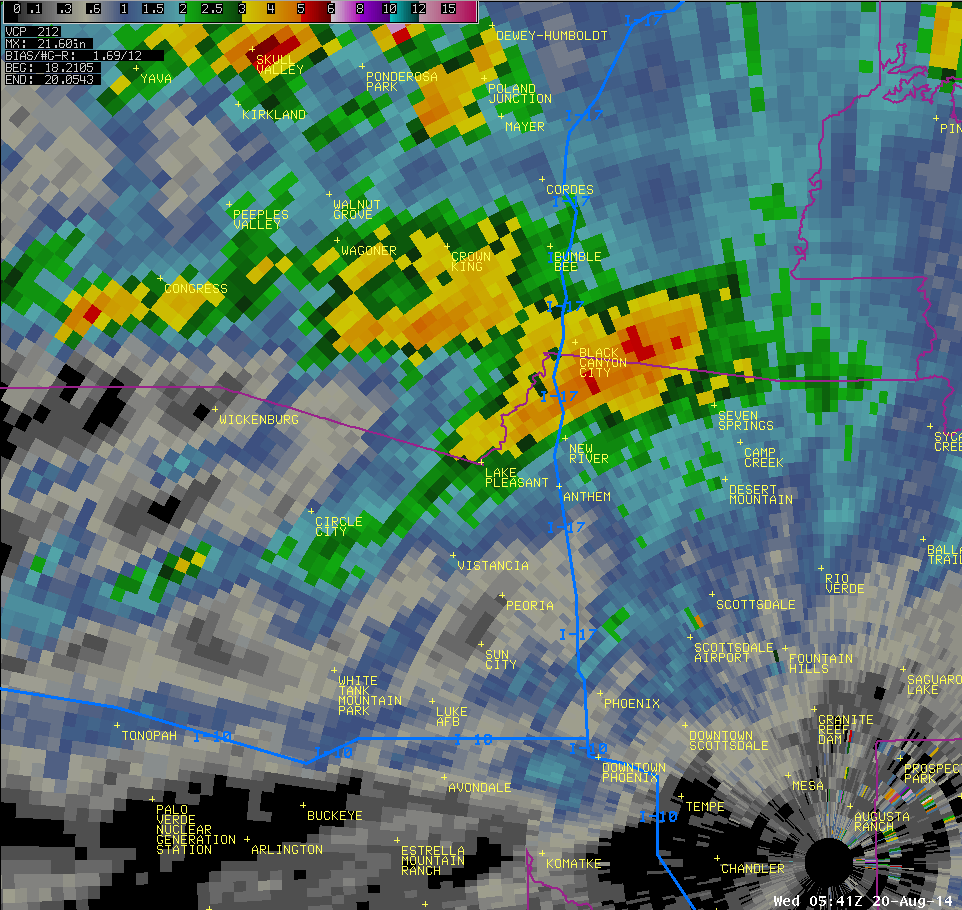

KIWA Radar Storm Total Rainfall product

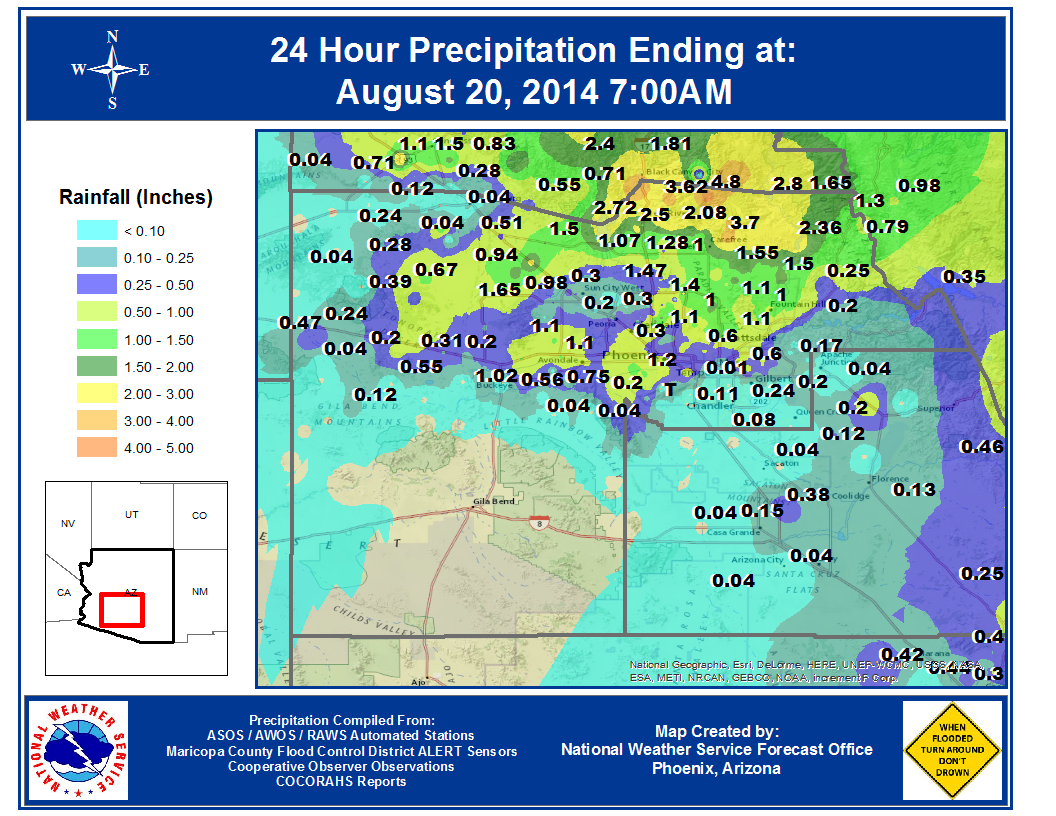

Preliminary Storm Total Rainfall analysis

Nearly every wash in the area saw substantial flow on Tuesday, with very rapid rises around New River and Cave Creek. A sampling of stream gages from the Maricopa County Flood Control District reveals a peak flow of 15181 cubic feet per second (cfs) at the New River Fire gage, 12927 cfs along Skunk Creek where it crosses I-17, 14974 cfs along Cave Creek a few miles south of Cave Creek, and over 26000 cfs along Cave Creek in the town of Cave Creek. A river gage along the Agua Fria River at Rock Springs reported a peak flow around 40000 cfs, which equates to a depth of approximately 24.84 feet at that location.

Agua Fria gage

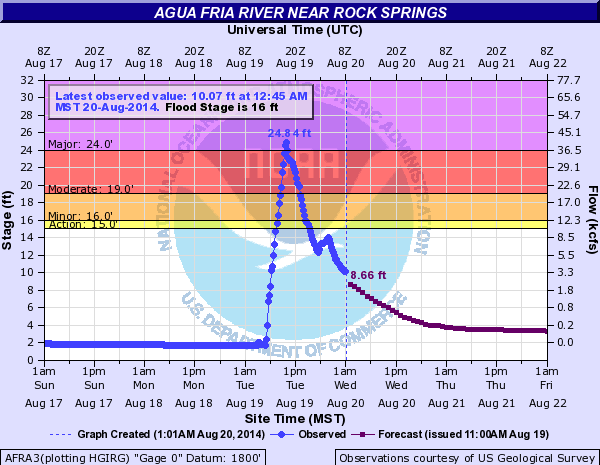

The Agua Fria River at Rock Springs crested at 24.84 feet Tuesday morning, which is classified as a "Major flood". This is the 4th highest crest on record at this site.
#1: 28.05ft - 1/21/2010
#2: 27.20ft - 12/18/1978
#3: 25.28ft - 1/8/1993
#4: 24.84ft - 8/19/2014

Flooding/High Water photos: Click each image for a larger view
Flooding
I-17 Flooding
Skunk Creek Flooding

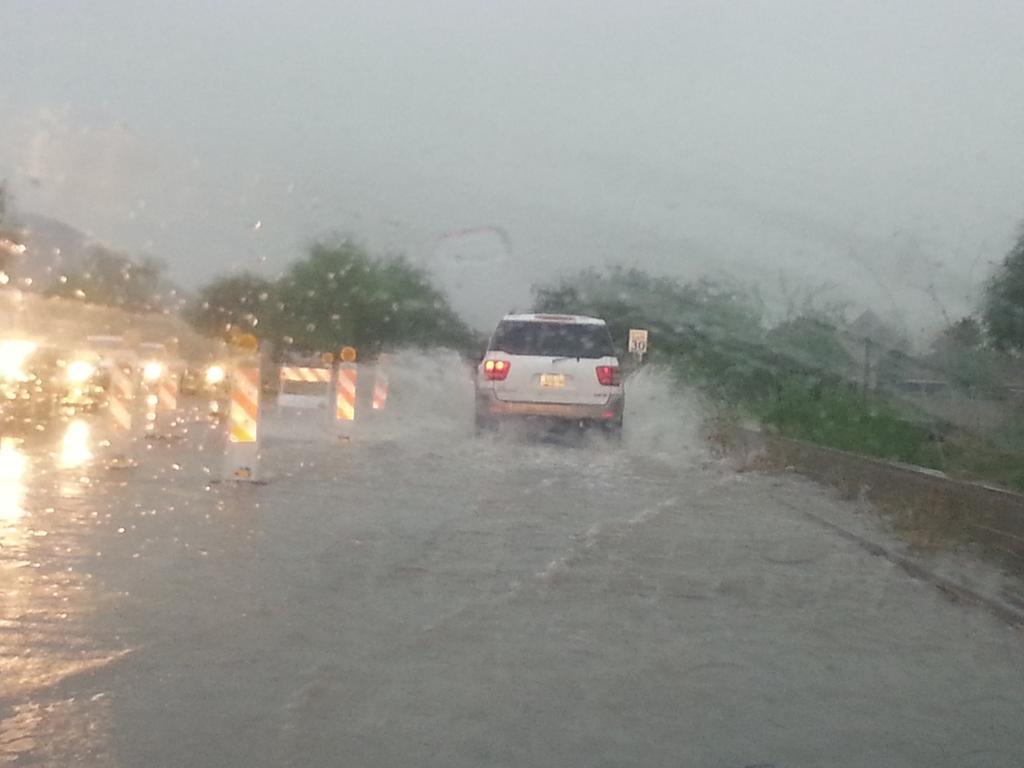

Flooding along 55th Ave &
Pinnacle Peak Rd
(Image courtesy Corban Jaeger via Facebook/Twitter)
Flooding along Interstate 17
(Image Courtesy Maricopa Co Flood Control Dist. via Twitter)

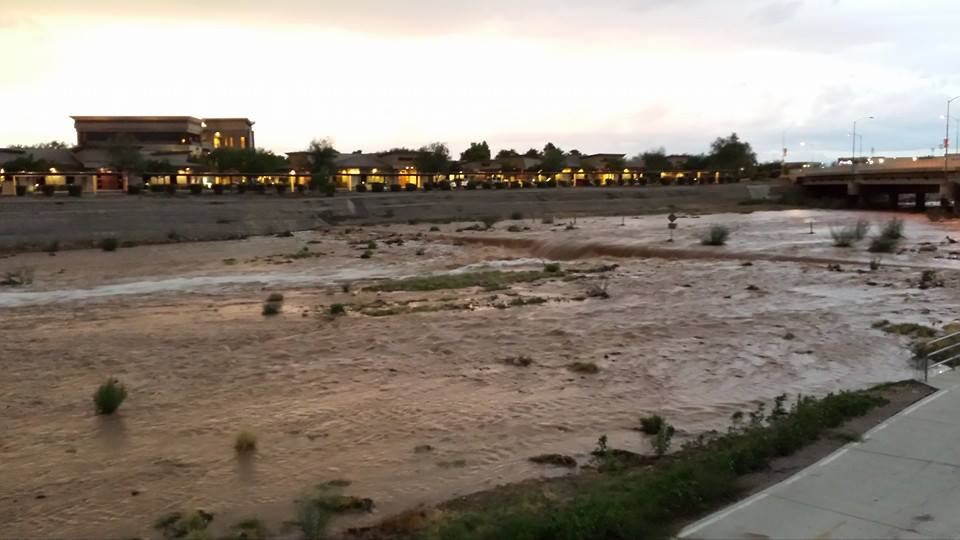

Flooding along Skunk Creek in Peoria
(Image Courtesy Megan Schwitzer via Facebook)
Flooding
Camelbacak Flooding
Hwy 71Flooding
Flooding in New River
(Image courtesy Mark Wienckowsk via Facebook)

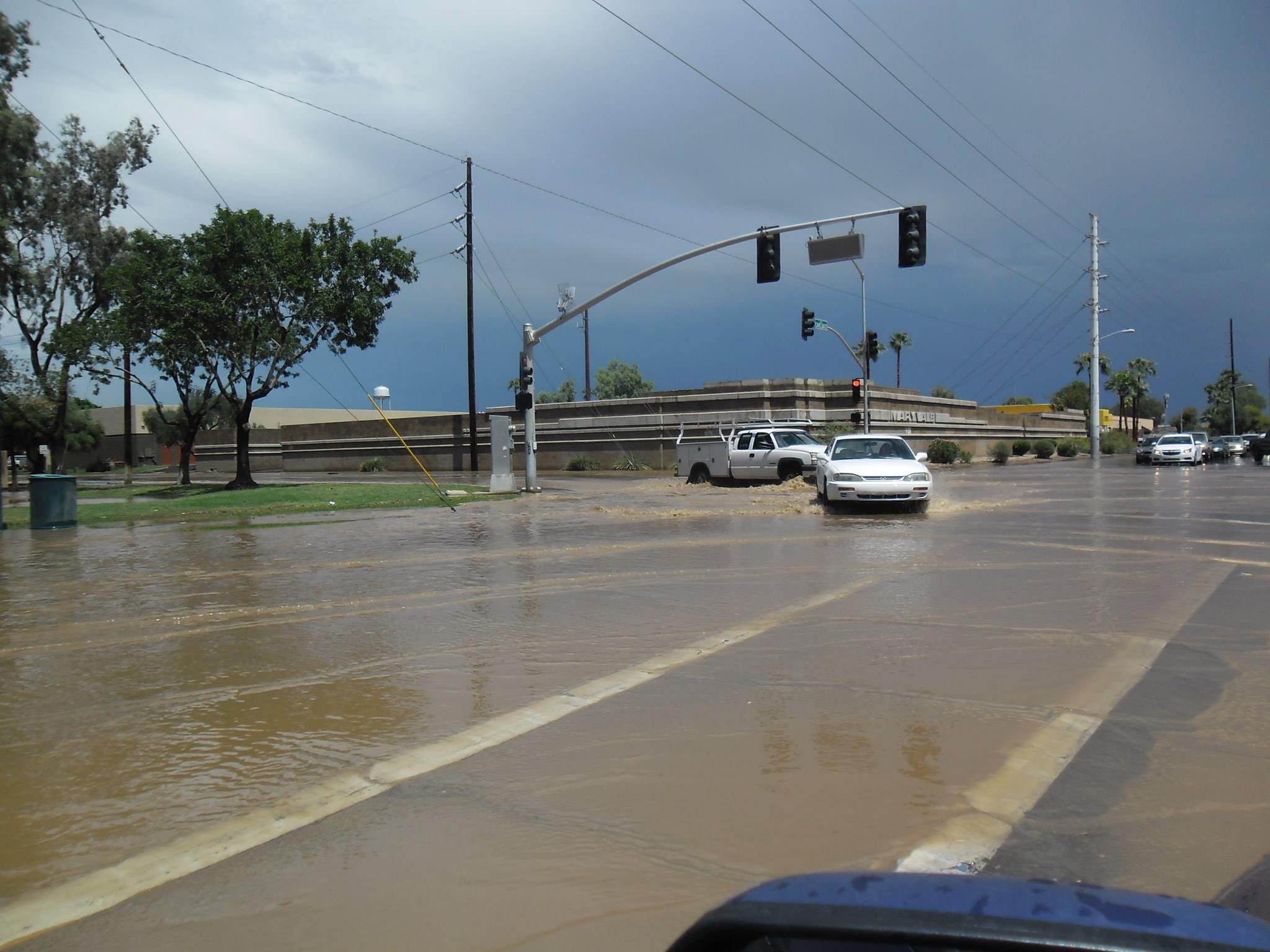

Flooding at 55th Ave and Camelback
(Image Courtesy Liz Skeens via Facebook)

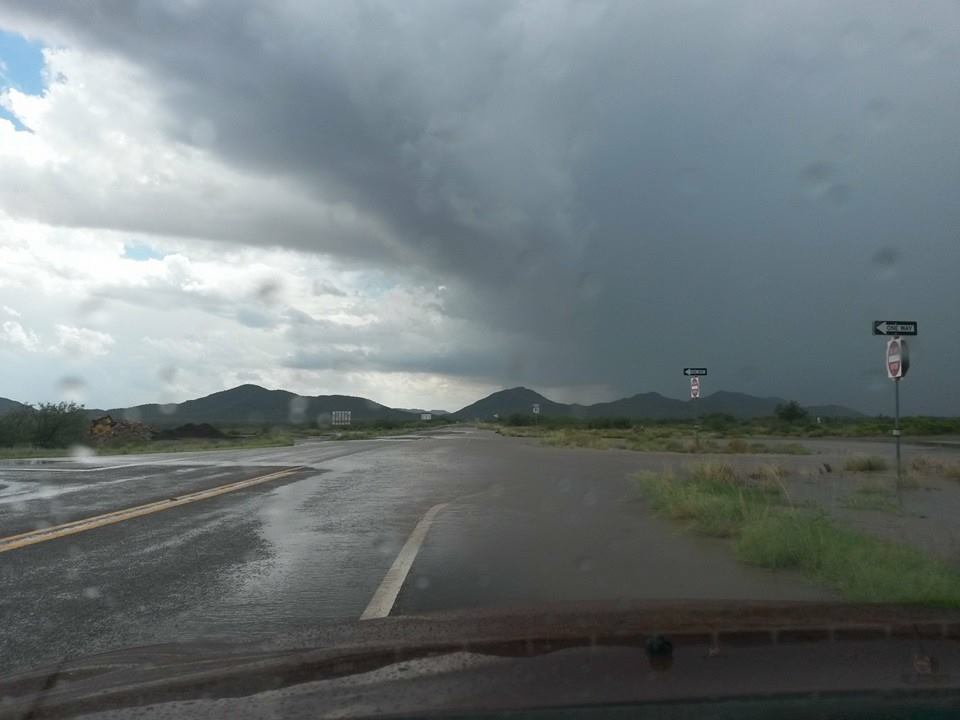

Flooding along Highway 71 near Wickenburg
(Image Courtesy Shris Scragg via Facebook)

Storm Reports: Tuesday August 19 2014
..TIME...   ...EVENT...      ...CITY LOCATION...     ...LAT.LON...
..DATE...   ....MAG....      ..COUNTY LOCATION..ST.. ...SOURCE....
            ..REMARKS..

0607 AM     HEAVY RAIN       2 SW GLENDALE SPORTS CO 33.51N 112.28W
08/19/2014  E0.25 INCH       MARICOPA           AZ   TRAINED SPOTTER

            0.25 OF RAIN ESTIMATED IN 15 MINUTES. STREET FLOODING.

0621 AM     HEAVY RAIN       2 NNE CASHION           33.47N 112.30W
08/19/2014  M0.32 INCH       MARICOPA           AZ   TRAINED SPOTTER

            HEAVY RAIN...0.32 INCH IN 20 MINUTES

0632 AM     HEAVY RAIN       3 WSW DESERT RIDGE MARK 33.66N 112.02W
08/19/2014  M0.30 INCH       MARICOPA           AZ   TRAINED SPOTTER

            0.30 INCH OF RAIN IN 20 MINUTES. CURRENTLY RAINING AT
            OVER 1 INCH PER HOUR.

0639 AM     FLASH FLOOD      3 WNW SOUTH MOUNTAIN PA 33.35N 112.14W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

0647 AM     HEAVY RAIN       2 NNE SUN CITY WEST     33.69N 112.36W
08/19/2014  E1.00 INCH       MARICOPA           AZ   TRAINED SPOTTER

            VERY HEAVY RAIN. OVER 1 INCH IN AN HOUR ESTIMATED.

0649 AM     HEAVY RAIN       2 E PEORIA              33.69N 112.20W
08/19/2014  M1.09 INCH       MARICOPA           AZ   TRAINED SPOTTER

            HEAVY RAIN...1.09 INCH IN 40 MINUTES...NOW TAPERING
            OFF.

0653 AM     HEAVY RAIN       3 WSW DESERT RIDGE MARK 33.65N 112.03W
08/19/2014  M1.00 INCH       MARICOPA           AZ   TRAINED SPOTTER

            1.00 INCH OF RAIN SINCE 630 AM

0658 AM     FLOOD            1 ENE LAVEEN            33.43N 112.11W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            ONE EIGHTH TO ONE QUARTER INCH OF WATER ON I-17 AT
            DURAGO CURVE

0703 AM     HEAVY RAIN       3 ESE PEORIA            33.67N 112.19W
08/19/2014  M1.75 INCH       MARICOPA           AZ   TRAINED SPOTTER

            HEAVY RAIN...1.75 INCH IN 45 MINUTES.

0704 AM     FLOOD            1 ENE NORTH MOUNTAIN PA 33.59N 112.05W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            CURB-TO-CURB FLOODING ON I-17 AND DAISY.

0705 AM     FLASH FLOOD      6 ENE PEORIA            33.72N 112.14W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

0712 AM     HEAVY RAIN       5 SW BEARDSLEY          33.63N 112.45W
08/19/2014  M1.38 INCH       MARICOPA           AZ   TRAINED SPOTTER

            1.38 INCHES OF RAIN IN 35 MINUTES. SIGNIFICANT PONDING
            ON ROADWAYS.

0714 AM     FLASH FLOOD      NEW RIVER               33.92N 112.13W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

0717 AM     FLOOD            3 N METRO CENTER        33.63N 112.12W
08/19/2014                   MARICOPA           AZ   BROADCAST MEDIA

            UNDERPASS FLOODED AT GREENWAY AND I-17

0722 AM     HEAVY RAIN       5 NNW DESERT RIDGE MARK 33.74N 111.99W
08/19/2014  M0.93 INCH       MARICOPA           AZ   TRAINED SPOTTER

            HEAVY RAIN...0.93 INCH ON 30 MINUTES. STREET FLOODING
            IN AREA.

0726 AM     FLASH FLOOD      3 NNW NORTH MOUNTAIN PA 33.63N 112.08W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            SPOTTER REPORTED VIA TEXT MESSAGE 3 FEET OF WATER IN
            CAVE CREEK WASH NEAR INTERSECTION OF 7TH AVE AND CORAL
            GABLES DR.

0729 AM     FLASH FLOOD      5 ESE NEW RIVER         33.89N 112.05W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

0730 AM     HEAVY RAIN       3 WSW DESERT RIDGE MARK 33.65N 112.03W
08/19/2014  M1.32 INCH       MARICOPA           AZ   TRAINED SPOTTER

            MEASURED RAINFALL BETWEEN 0630 AND 0730 MST.

0731 AM     FLOOD            5 WSW DESERT RIDGE MARK 33.65N 112.05W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            LOW WATER CROSSINGS FLOODED.

0731 AM     FLASH FLOOD      2 SSE CAVE CREEK        33.80N 111.95W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

0734 AM     HEAVY RAIN       3 NNE NORTH MOUNTAIN PA 33.62N 112.06W
08/19/2014  M0.75 INCH       MARICOPA           AZ   TRAINED SPOTTER

            AT LEAST 0.75 INCH OF RAIN IN 30 MINUTES.

0739 AM     FLASH FLOOD      5 W CAVE CREEK          33.81N 112.06W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

0752 AM     FLOOD            3 NW SOUTH MOUNTAIN PAR 33.36N 112.12W
08/19/2014                   MARICOPA           AZ   BROADCAST MEDIA

            BRAODCAST MEDIA REPORTS STREET FLOODING AT INTERSECTION
            OF 27TH AVE AND DOBBINS.

0813 AM     FLASH FLOOD      4 NNW DESERT RIDGE MARK 33.73N 112.01W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

1000 AM     FLASH FLOOD      8 N NEW RIVER           34.03N 112.14W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            ROCKSLIDE ON I-17

1000 AM     FLASH FLOOD      4 N NEW RIVER           33.98N 112.13W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            INTERSTATE 17 TOTALLY INUNDATED ENTIRE WIDTH. CARS
            STRANDED. RESCUES UNDERWAY.

1119 AM     FLASH FLOOD      2 SSE WITTMANN          33.75N 112.52W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            PHOENIX FIRE DEPARTMENT DISPATCHED TO ASSIST WITH
            ONGOING WATER RESCUE.

1131 AM     FLASH FLOOD      4 N BEARDSLEY           33.74N 112.39W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

1150 AM     FLASH FLOOD      2 NNW NEW RIVER         33.94N 112.14W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

1213 PM     FLASH FLOOD      2 NW ANTHEM             33.87N 112.16W
08/19/2014                   MARICOPA           AZ   FIRE DEPT/RESCUE

            WATER RESCUE CONDUCTED BY PHOENIX FIRE DEPARTMENT

1218 PM     FLASH FLOOD      4 S DESERT RIDGE MARKET 33.62N 111.98W
08/19/2014                   MARICOPA           AZ   TRAINED SPOTTER

            51 AND BELL ROAD REPORTS 1 INCH RAINFALL IN 14 MINUTES.

0130 PM     HEAVY RAIN       5 N DESERT RIDGE MARKET 33.75N 111.98W
08/19/2014  M1.99 INCH       MARICOPA           AZ   TRAINED SPOTTER

            MEASURED FROM 600AM TO 130PM

0638 PM     TSTM WND GST     5 W LUKE AFB            33.54N 112.45W
08/19/2014  M48 MPH          MARICOPA           AZ   TRAINED SPOTTER

            VSBY. 1 MI. TOWARDS THE WEST DUE TO A WALL OF RAIN
            APPROACHING FROM THE WEST.
