Overview
Microburst:
|
|
||||||||||
|
||||||||||
|

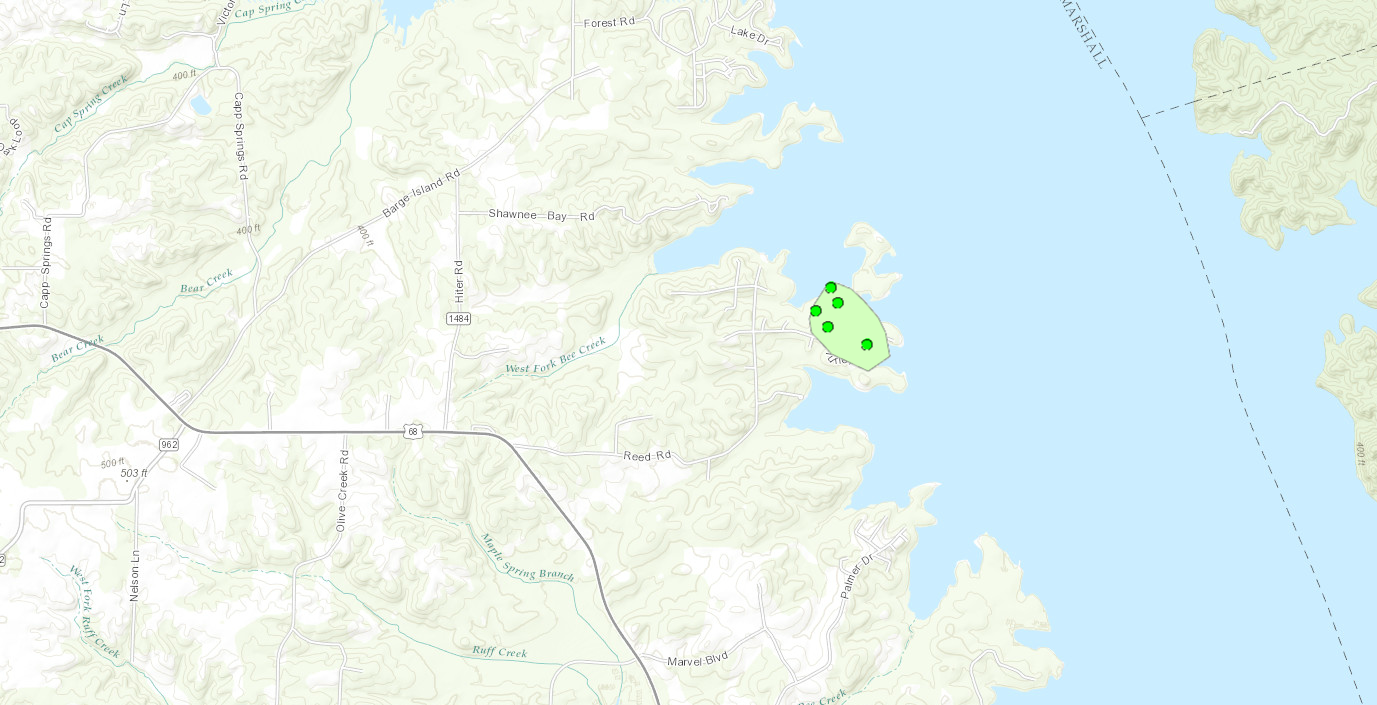

Microburst - 3 E of Fairdealing, KY
Track Map
|
||||||||||||||
Wind:
The third round of storms in about 24 hours complicated cleanup efforts from the previous two events. Widespread damaging winds on the 6th were followed by flash flooding on the night of the 6th. Although thunderstorm wind damage on the 7th was not as widespread in southwest Kentucky as on the 6th, there were pockets of winds up to 70 mph. Western Kentucky bore the brunt of all three rounds of storms. Southwest Indiana was affected most strongly by the third event.
The initial reports of wind damage began in southeast Missouri around noon, when mobile homes were damaged and trees were blown down in Scott County. Bollinger and Cape Girardeau Counties also reported some tree damage. As the line of storms progressed southeast, trees were blown down in Alexander and Saline Counties in southern Illinois. Some trees landed on homes in Galatia, IL.
Wind damage reports became more numerous as the storms moved east through western Kentucky and southwest Indiana during the afternoon. Wind gusts were measured at 60 mph in Evansville, where trees and limbs were blown down. Shingles were torn off roofs in the city. The strong winds continued east across Newburgh, Indiana to Spencer County, where strong winds blew shingles off roofs and damaged siding. In Western Kentucky, trees were blown down near Paducah, causing some new power outages. Wind gusts were estimated from 60 to 70 mph in the cities of Princeton, Madisonville, and Owensboro. Trees and power lines were down. Fallen trees and limbs blocked some roadways.
Radar signatures:
Below are some radar images from the Evansville radar as the storms produced damaging winds in southwest Indiana and northwest Kentucky. Note the strong velocities in the Evansville area at 1:48 P.M. and Owensboro area at 2:15 P.M. Click on image for larger size. Images from Gibson Ridge software.
 |
 |
 |
 |

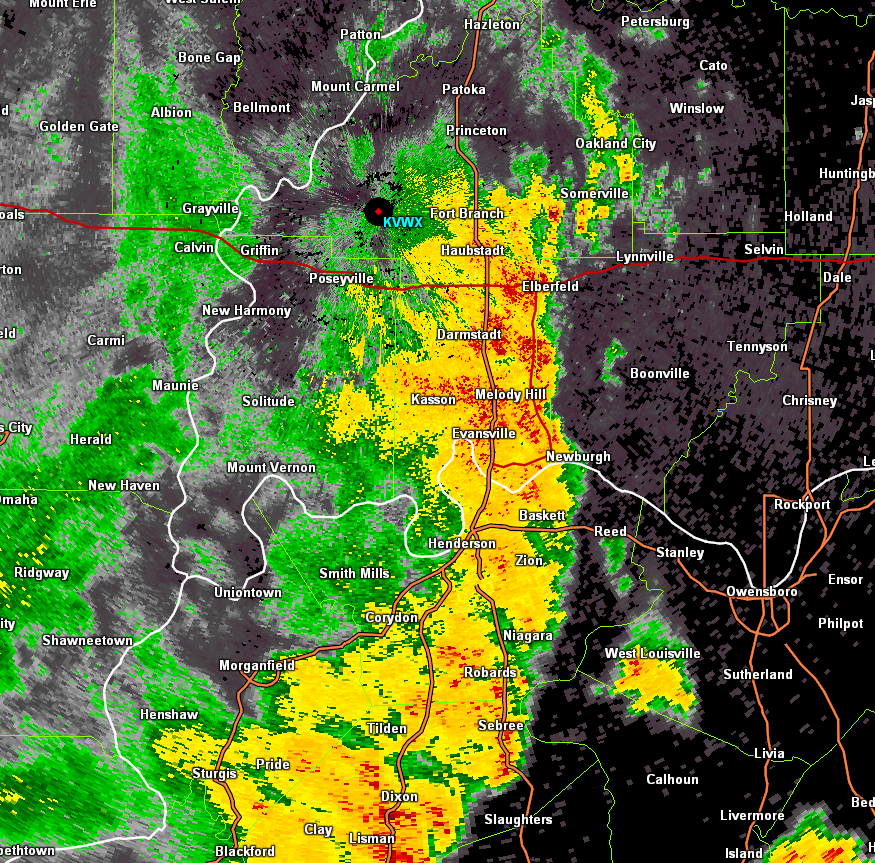

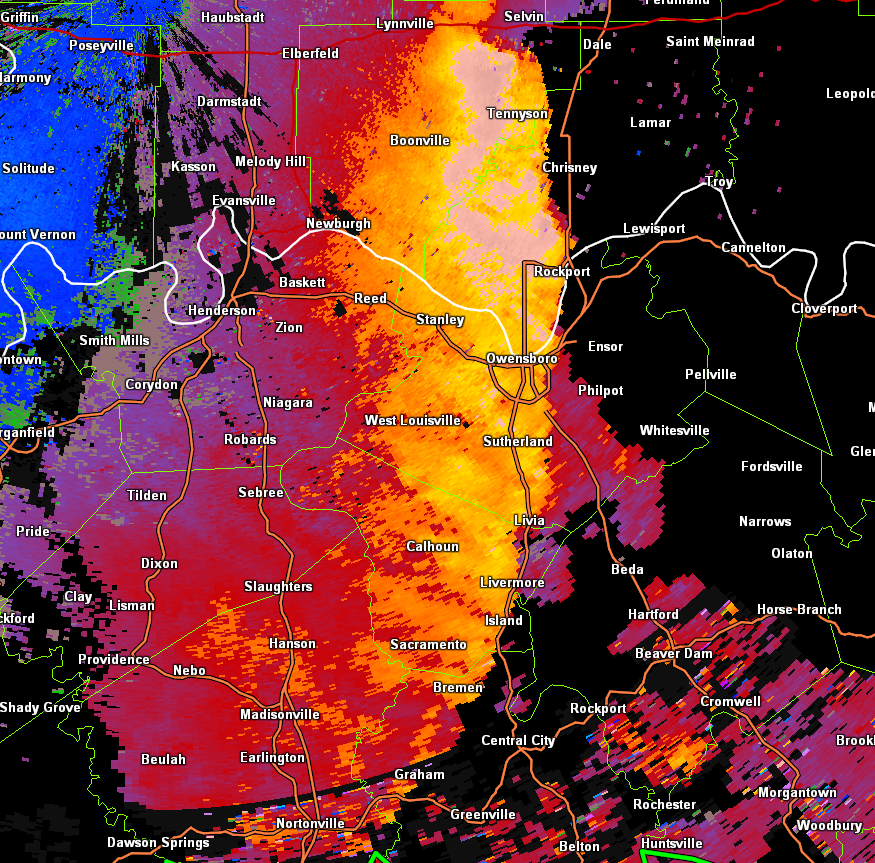

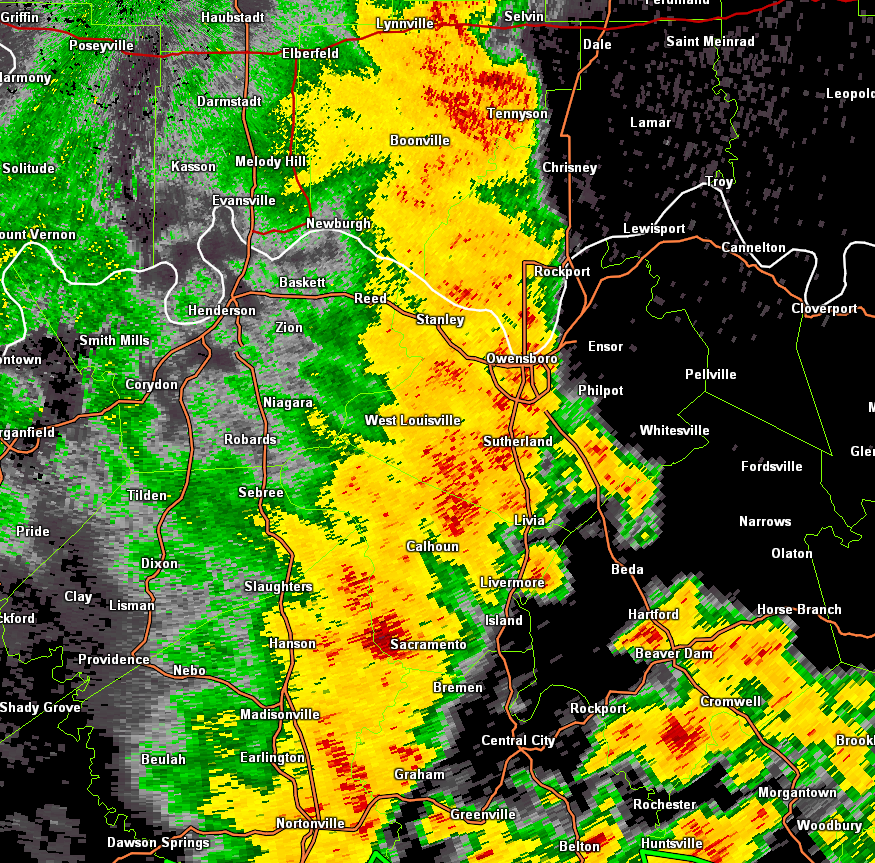

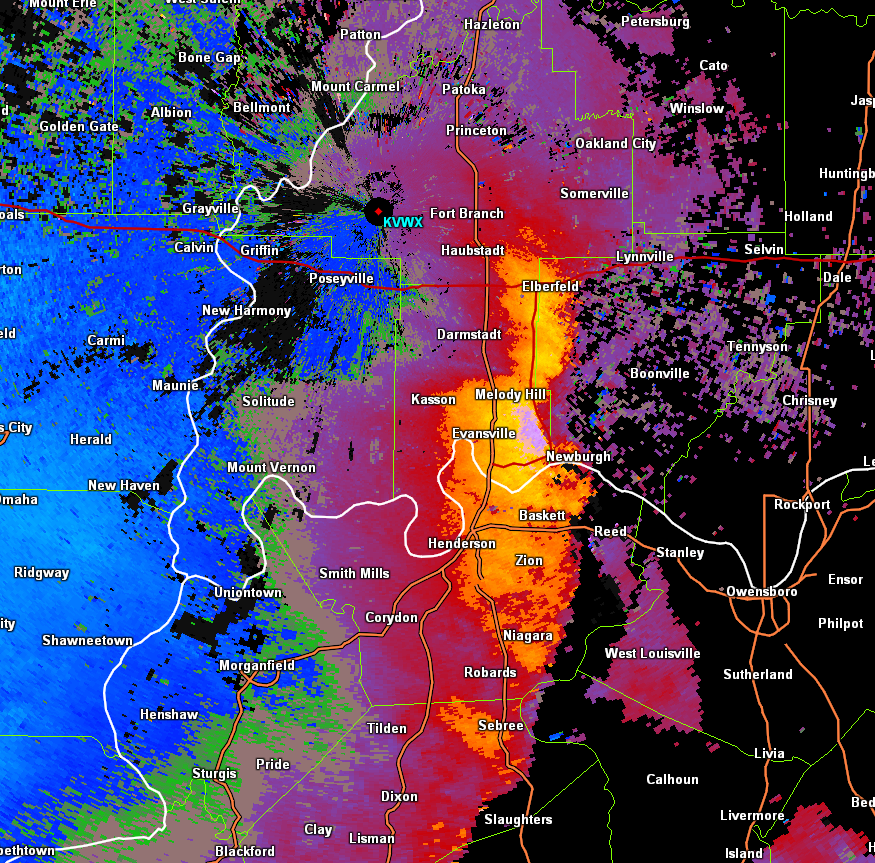

| Reflectivity at 1:48 P.M. CDT | Velocity at 1:48 P.M. CDT | Reflectivity at 2:15 P.M. CDT | Velocity at 2:15 P.M. |
Radar:
Click here for a radar loop of this event
Link above shows an animated radar loop from 10AM to 4 PM, in 15 minute intervals, on July 7th. A squall line moved across the area during the late morning and early afternoon hours. Ahead of the main line, scattered storms developed over western KY during the afternoon.

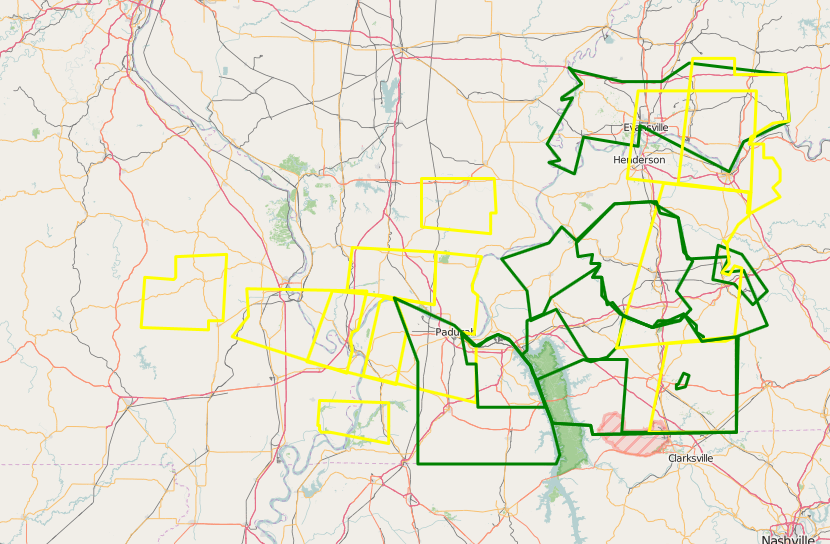

The graphic below shows the warning polygons from the event, overlayed on top of each other. Yellow are Severe Thunderstorm Warnings, while green show the Flash Flood Warnings.
​(Click on the image to enlarge it)

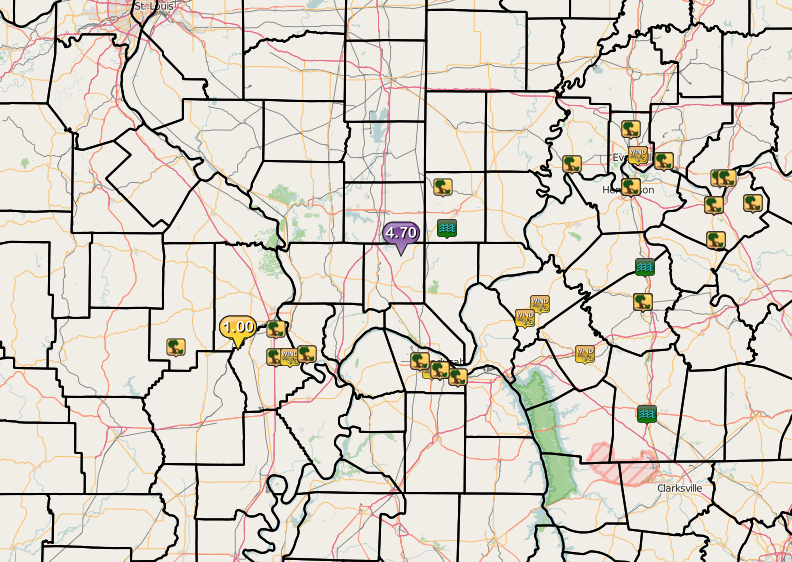

Storm Reports
1134 AM TSTM WND DMG ZALMA 37.14N 90.08W
07/07/2016 BOLLINGER MO LAW ENFORCEMENT
TREES DOWN ON HWY 51 NEAR ZALMA.
1200 PM TSTM WND DMG 1 ENE LAMBERT 37.10N 89.53W
07/07/2016 SCOTT MO EMERGENCY MNGR
LATE REPORT. INTERSECTION OF COUNTY HIGHWAYS
332 AND 333 TWO MOBILE HOMES DAMAGED. ONE
LOST A ROOF AND THE SECOND LOST FRONT PORCH.
CENTRAL PORTION OF THE COUNTY HAD 8 ROADS
BLOCK DUE TO DOWNED TREES.
1204 PM TSTM WND GST 4 S COMMERCE 37.10N 89.45W
07/07/2016 M65 MPH SCOTT MO TRAINED SPOTTER
WINDS ESTIMATED.
1204 PM TSTM WND DMG 4 S COMMERCE 37.10N 89.45W
07/07/2016 SCOTT MO TRAINED SPOTTER
TREES AND LIMBS DOWN. POWER OUTAGE. PERIODS
OF TORRENTIAL RAIN WITH THIS STORM. WIND
GUSTS ESTIMATED 65 MPH.
1210 PM HEAVY RAIN 1 NNW DELTA 37.21N 89.74W
07/07/2016 E1.00 INCH CAPE GIRARDEAU MO TRAINED SPOTTER
TORRENTIAL RAIN PRODUCED ABOUT 1 INCH OF
RAINFALL WITHIN ONE HALF HOUR.
1210 PM NON-TSTM WND GST 1 NNW DELTA 37.21N 89.74W
07/07/2016 M50 MPH CAPE GIRARDEAU MO TRAINED SPOTTER
WINDS ESTIMATED. TREE LIMBS DOWN AND
TORRENTIAL RAIN ASSOCIATED WITH THIS STORM.
1210 PM TSTM WND DMG 4 S OLIVE BRANCH 37.11N 89.36W
07/07/2016 ALEXANDER IL EMERGENCY MNGR
TREES DOWN ACROSS A FEW ROADS IN MILLER
CITY. A FEW TREE TOPS BLOWN OUT AT HORSESHOE
LAKE AREA.
1215 PM TSTM WND DMG SCOTT CITY 37.22N 89.53W
07/07/2016 SCOTT MO TRAINED SPOTTER
DOWNED TREES AND POWER LINES.
1226 PM TSTM WND DMG GALATIA 37.84N 88.61W
07/07/2016 SALINE IL EMERGENCY MNGR
LATE REPORT. TREES ON HOMES WITH DAMAGE
REPORTED. LOCAL POWER OUTAGES.
1230 PM FLASH FLOOD 3 SE CARRIERS MILLS 37.66N 88.59W
07/07/2016 SALINE IL EMERGENCY MNGR
WATER RESCUE OF KAYAKER ON SWOLLEN CREEK
NEAR BELFORD ROAD.
0108 PM TSTM WND DMG HENDRON 37.04N 88.63W
07/07/2016 MCCRACKEN KY EMERGENCY MNGR
LATE REPORT. TREE UPROOTED FROM STORM.
0114 PM TSTM WND GST 2 E LONE OAK 37.04N 88.63W
07/07/2016 E50 MPH MCCRACKEN KY PUBLIC
WINDS ESTIMATED 45 TO 50 MPH.
0115 PM TSTM WND GST LONE OAK 37.04N 88.67W
07/07/2016 E60 MPH MCCRACKEN KY TRAINED SPOTTER
MULTIPLE TREES DOWN WITH POWER OUTAGES
THROUGHOUT THE COMMUNITY.
0124 PM TSTM WND DMG REIDLAND 37.01N 88.53W
07/07/2016 MCCRACKEN KY TRAINED SPOTTER
POWER OUTAGES REPORTED THROUGHOUT THE
COMMUNITY.
0135 PM TSTM WND GST MARION 37.33N 88.08W
07/07/2016 M52 MPH CRITTENDEN KY AWOS
0135 PM TSTM WND GST 4 E SALEM 37.27N 88.16W
07/07/2016 M56 MPH CRITTENDEN KY TRAINED SPOTTER
0139 PM TSTM WND DMG 3 E HEATH 37.08N 88.74W
07/07/2016 MCCRACKEN KY EMERGENCY MNGR
LATE REPORT. LARGE TREES DOWN 2 MILES SOUTH
OF BARKLEY REGIONAL AIRPORT.
0141 PM TSTM WND DMG 2 E LONE OAK 37.04N 88.63W
07/07/2016 MCCRACKEN KY EMERGENCY MNGR
LATE REPORT. TREE UPROOTED FROM STORM.
0143 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M60 MPH VANDERBURGH IN TRAINED SPOTTER
EVENT OCCURRING ALONG THE WEST SIDE OF TOWN.
0143 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M60 MPH VANDERBURGH IN TRAINED SPOTTER
EVENT OCCURRING ALONG THE WEST SIDE OF TOWN.
0145 PM TSTM WND GST HENDERSON 37.84N 87.58W
07/07/2016 M50 MPH HENDERSON KY TRAINED SPOTTER
EVENT OCCURRING ALONG THE BYPASS.
0146 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M60 MPH VANDERBURGH IN TRAINED SPOTTER
MEASURED IN THE DOWNTOWN AREA. LARGE TREE
LIMBS FALLING. 50 MPH WINDS REPORTED ON
NORTH SIDE OF TOWN.
0146 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M60 MPH VANDERBURGH IN TRAINED SPOTTER
MEASURED IN THE DOWNTOWN AREA. LARGE TREE
LIMBS FALLING. 50 MPH WINDS REPORTED ON
NORTH SIDE OF TOWN.
0147 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M70 MPH VANDERBURGH IN TRAINED SPOTTER
WINDS ESTIMATED AT THE CIVIC CENTER TO BE 60
TO 70 MPH.
0147 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M70 MPH VANDERBURGH IN TRAINED SPOTTER
WINDS ESTIMATED AT THE CIVIC CENTER TO BE 60
TO 70 MPH.
0149 PM TSTM WND DMG EVANSVILLE 37.98N 87.54W
07/07/2016 VANDERBURGH IN TRAINED SPOTTER
4 TO 6 INCH DIAMETER TREE LIMBS DOWN NEAR
THE UNIVERSITY.
0149 PM TSTM WND DMG EVANSVILLE 37.98N 87.54W
07/07/2016 VANDERBURGH IN TRAINED SPOTTER
4 TO 6 INCH DIAMETER TREE LIMBS DOWN NEAR
THE UNIVERSITY.
0150 PM TSTM WND DMG DARMSTADT 38.09N 87.58W
07/07/2016 VANDERBURGH IN TRAINED SPOTTER
LATE REPORT. LARGE TREE DOWN PULLING UP
SIDEWALK AND ROADWAY.
0150 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M60 MPH VANDERBURGH IN TRAINED SPOTTER
MEASURED NEAR DECONESS HOSPITAL WITH SOME
SHINGLES BLOWN OFF OF NEARBY ROOFS.
0150 PM TSTM WND GST EVANSVILLE 37.98N 87.54W
07/07/2016 M60 MPH VANDERBURGH IN TRAINED SPOTTER
MEASURED NEAR DECONESS HOSPITAL WITH SOME
SHINGLES BLOWN OFF OF NEARBY ROOFS.
0154 PM TSTM WND GST NEWBURGH 37.95N 87.40W
07/07/2016 M60 MPH WARRICK IN TRAINED SPOTTER
WIND MEASURED ONE HALF MILE WEST OF SHARON
SCHOOL. TREE LIMBS DOWN. TORRENTIAL RAIN
REPORTED WITH THE STORM.
0155 PM TSTM WND DMG EVANSVILLE 37.98N 87.54W
07/07/2016 VANDERBURGH IN TRAINED SPOTTER
MUTIPLE TREES AND POWER LINES DOWN
THROUGHOUT THE COMMUNITY. EAST SIDE OF TOWN
WITHOUT POWER. WINDS ESTIMATED 60 MPH.
0155 PM TSTM WND DMG EVANSVILLE 37.98N 87.54W
07/07/2016 VANDERBURGH IN TRAINED SPOTTER
MUTIPLE TREES AND POWER LINES DOWN
THROUGHOUT THE COMMUNITY. EAST SIDE OF TOWN
WITHOUT POWER. WINDS ESTIMATED 60 MPH.
0159 PM TSTM WND GST 3 E PRINCETON 37.11N 87.83W
07/07/2016 M65 MPH CALDWELL KY TRAINED SPOTTER
0204 PM TSTM WND DMG HENDERSON 37.84N 87.58W
07/07/2016 HENDERSON KY BROADCAST MEDIA
LARGE TREE LIMBS DOWN.
0205 PM DOWNBURST 3 E FAIRDEALING 36.84N 88.17W 07/07/2016 MARSHALL KY NWS STORM SURVEY A MICROBURST WITH 85 MPH WINDS STRUCK AT CEMENTARY HILL LANE AND THEN CONTINUED SOUTH FOR APPROXIMATELY 0.4 MILES. A PRIVATELY OWNED BOAT DOCK AND PONTOON BOAT WERE BLOWN UPSIDE DOWN. A COUPLE DOZEN LARGE TREES WERE UPROOTED. 0205 PM TSTM WND GST MADISONVILLE 37.34N 87.51W 07/07/2016 E70 MPH HOPKINS KY TRAINED SPOTTER WINDS ESTIMATED 60 TO 70 MPH WITH DOWNED TREES AND POWERLINES REPORTED. 0205 PM TSTM WND GST MADISONVILLE 37.34N 87.51W 07/07/2016 E70 MPH HOPKINS KY TRAINED SPOTTER WINDS ESTIMATED 60 TO 70 MPH WITH DOWNED TREES AND POWERLINES REPORTED. 0211 PM TSTM WND DMG NEWBURGH 37.95N 87.40W 07/07/2016 WARRICK IN PUBLIC SHINGLES BLOWN OFF OF STORE ROOF. 0212 PM TSTM WND DMG OWENSBORO 37.76N 87.12W 07/07/2016 DAVIESS KY EMERGENCY MNGR TREES REPORTED DOWN THROUGHOUT THE COMMUNITY. 0212 PM TSTM WND DMG ROCKPORT 37.88N 87.05W 07/07/2016 SPENCER IN LAW ENFORCEMENT TREES DOWN COUNTYWIDE. TREE DOWN ACROSS THE RICHLAND POST OFFICE.
0212 PM TSTM WND DMG 2 W ROCKPORT 37.88N 87.09W
07/07/2016 SPENCER IN TRAINED SPOTTER
DOWNED TREES. ROOF AND SIDING DAMAGE TO HOMES. LARGE
PLAYHOUSE TURNED ON ITS SIDE. DAMAGE OCCURRED ON SR 66.
0212 PM TSTM WND DMG MADISONVILLE 37.34N 87.51W
07/07/2016 HOPKINS KY EMERGENCY MNGR
SEVERAL TREES DOWN, SIGNS DOWN, TELEPHONES
LEANING.
0212 PM TSTM WND DMG MADISONVILLE 37.34N 87.51W
07/07/2016 HOPKINS KY EMERGENCY MNGR
SEVERAL TREES DOWN, SIGNS DOWN, TELEPHONES
LEANING.
0215 PM TSTM WND DMG MOUNT VERNON 37.94N 87.90W
07/07/2016 POSEY IN TRAINED SPOTTER
GARAGE DOOR BOWED DUE TO HIGH WINDS.
0215 PM TSTM WND GST OWENSBORO 37.76N 87.12W
07/07/2016 E70 MPH DAVIESS KY TRAINED SPOTTER
WINDS ESTIMATED 65 TO 70 MPH OCCURRING ON
NORTHWEST SIDE OF THE COMMUNTIY.
0215 PM TSTM WND DMG UTICA 37.61N 87.11W
07/07/2016 DAVIESS KY EMERGENCY MNGR
TREES DOWN BLOCKING ROADWAYS. LIGHTNING STRUCK A POWER
POLE WHICH IS DOWN, ON FIRE, AND BLOCKING ROADWAY.
0223 PM TSTM WND DMG KNOTTSVILLE 37.77N 86.91W
07/07/2016 DAVIESS KY TRAINED SPOTTER
TREE LIMB ACROSS POWER POLE WHICH IS ON FIRE.
0245 PM HEAVY RAIN CREAL SPRINGS 37.62N 88.84W
07/07/2016 M4.70 INCH WILLIAMSON IL TRAINED SPOTTER
24 HOUR RAINFALL ACCUMULATION ON THE
SOUTHEAST END OF LAKE OF EGYPT.
0246 PM TSTM WND DMG 5 ENE PHILPOT 37.77N 86.91W
07/07/2016 DAVIESS KY TRAINED SPOTTER
TREE LIMB ACROSS POWER POLE WHICH IS ON
FIRE.
0246 PM TSTM WND DMG 1 NNE UTICA 37.61N 87.11W
07/07/2016 DAVIESS KY EMERGENCY MNGR
TREES DOWN BLOCKING ROADWAYS. LIGHTNING
STRUCK A POWER POLE WHICH IS DOWN, ON FIRE,
AND BLOCKING ROADWAY.
0312 PM FLASH FLOOD SLAUGHTERS 37.49N 87.50W
07/07/2016 WEBSTER KY TRAINED SPOTTER
WIDESPREAD MINOR STREET FLOODING OCCURRING
IN THE COMMUNITY.
Environment
The storms moved into a moist and very unstable environment. Mixed-layer capes around 4000 j/kg and surface dew points in the lower to mid 70's were supportive of strong convective updrafts. The line of storms intensified ahead of a 500 mb shortwave trough over the mid and upper Mississippi Valley. A west to southwest flow of very moist air at 850 mb averaged from 20 to 30 knots.
 |
 |
 |

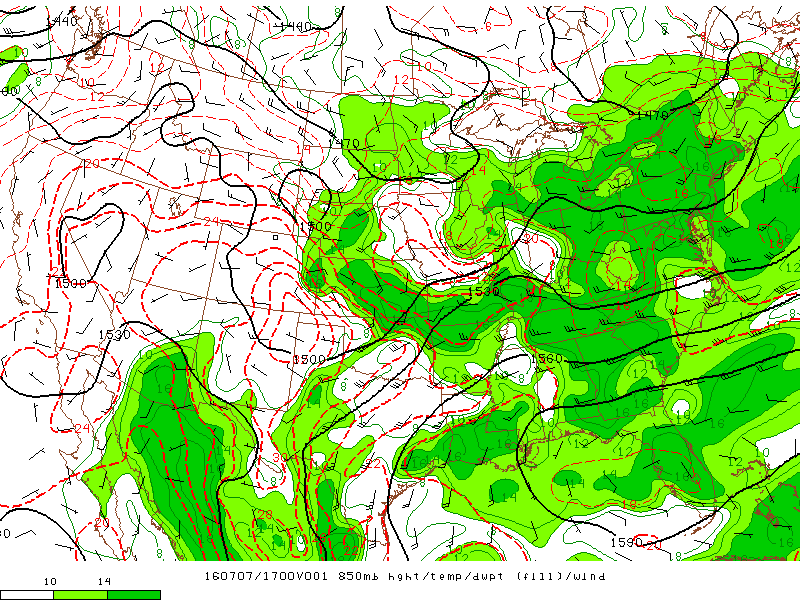

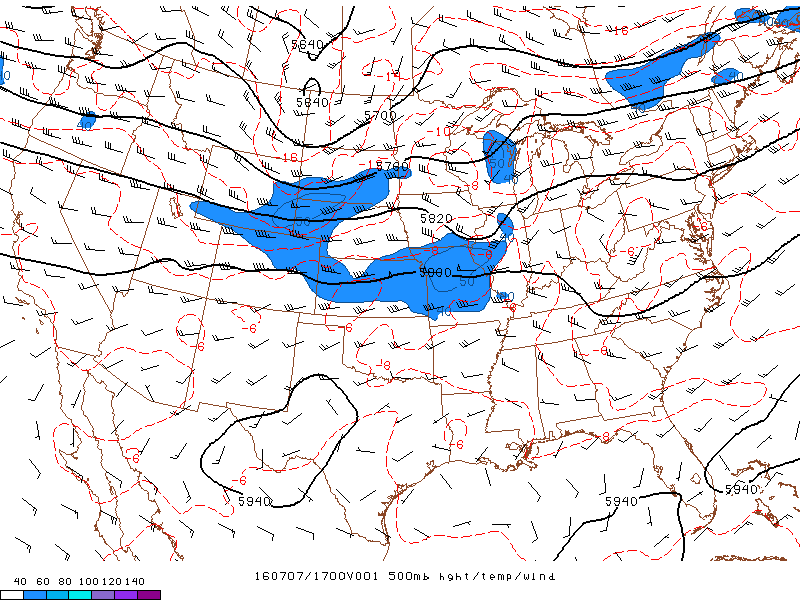

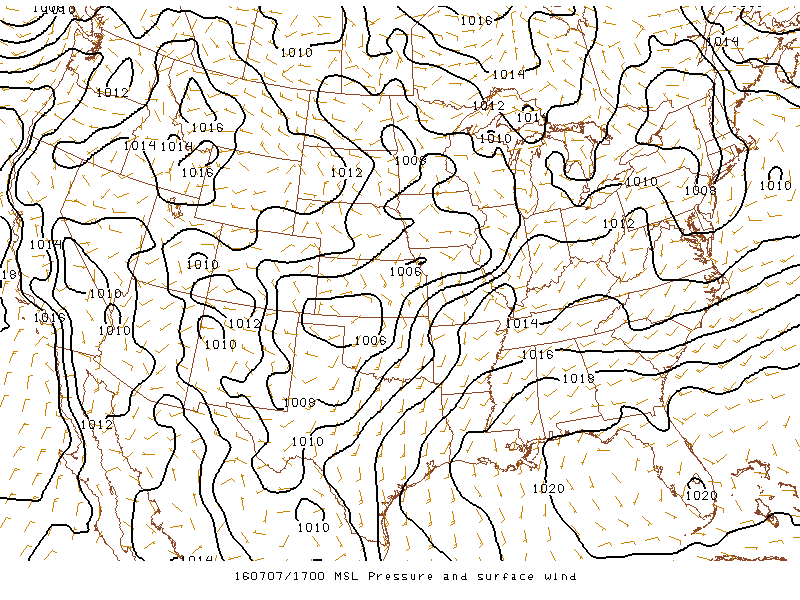

| Figure 1: 500 mb at noon CDT | Figure 2: 850 mb at noon CDT | Figure 3: Mean sea-level press at noon |
Thermodynamic environment summary...
 |
 |
 |

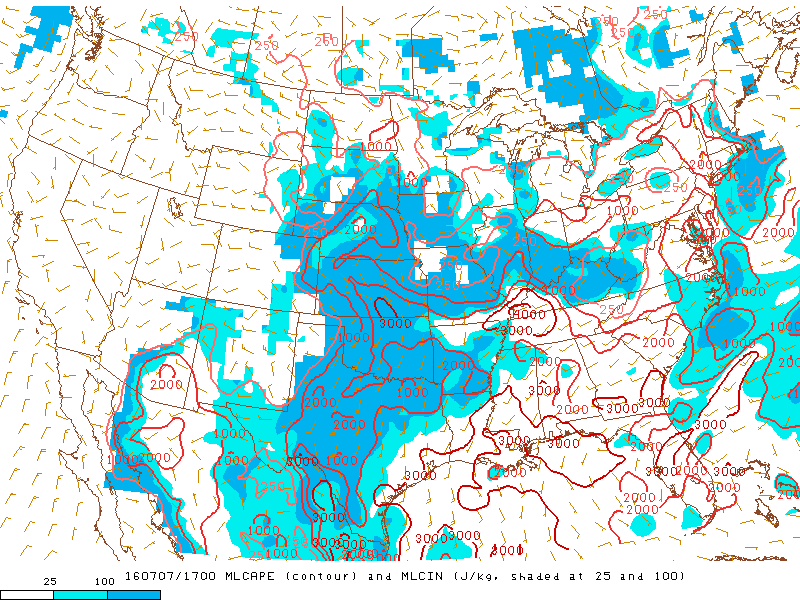

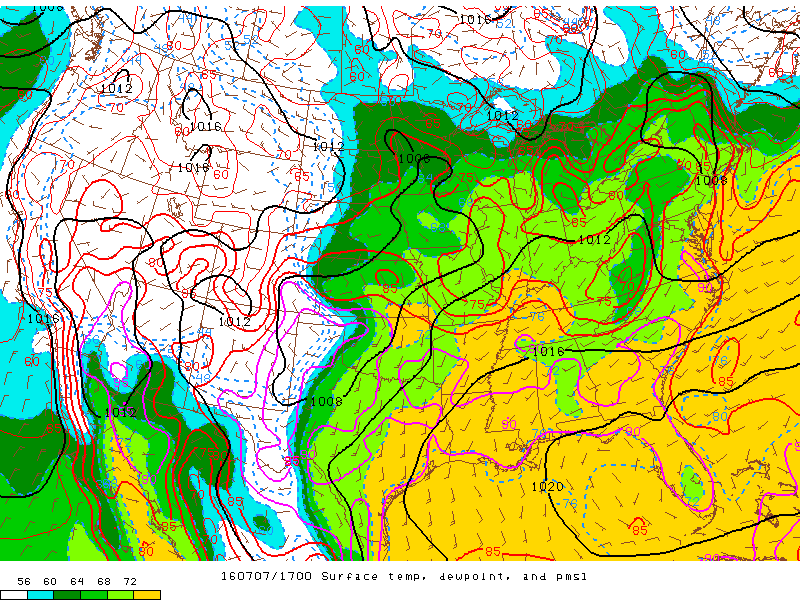

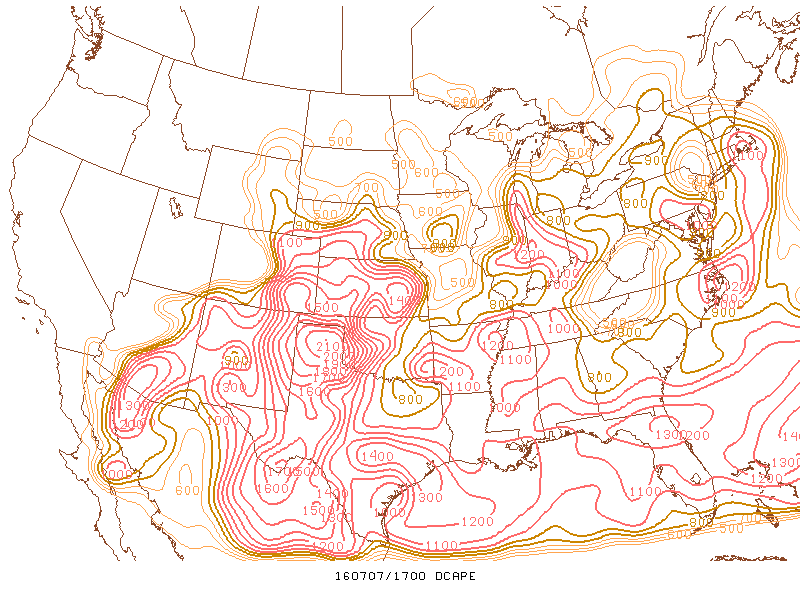

| Figure 4: Mixed-layer cape at noon | Figure 5: Downdraft cape at noon | Figure 6: Temps/dew points at noon |
.
 |
