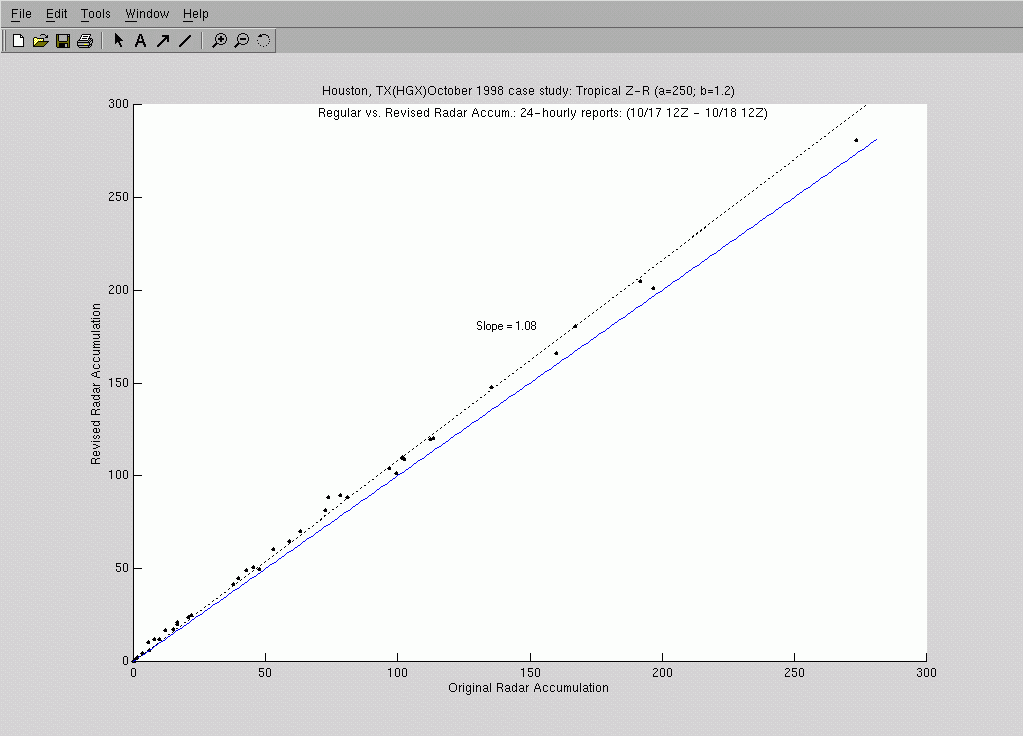

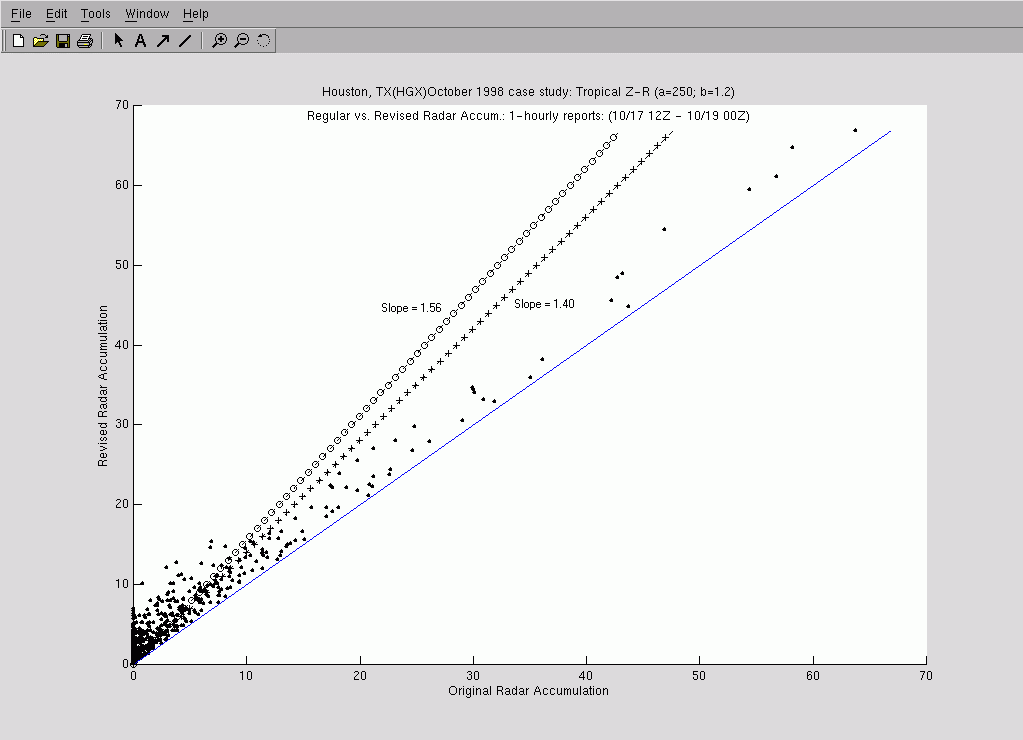

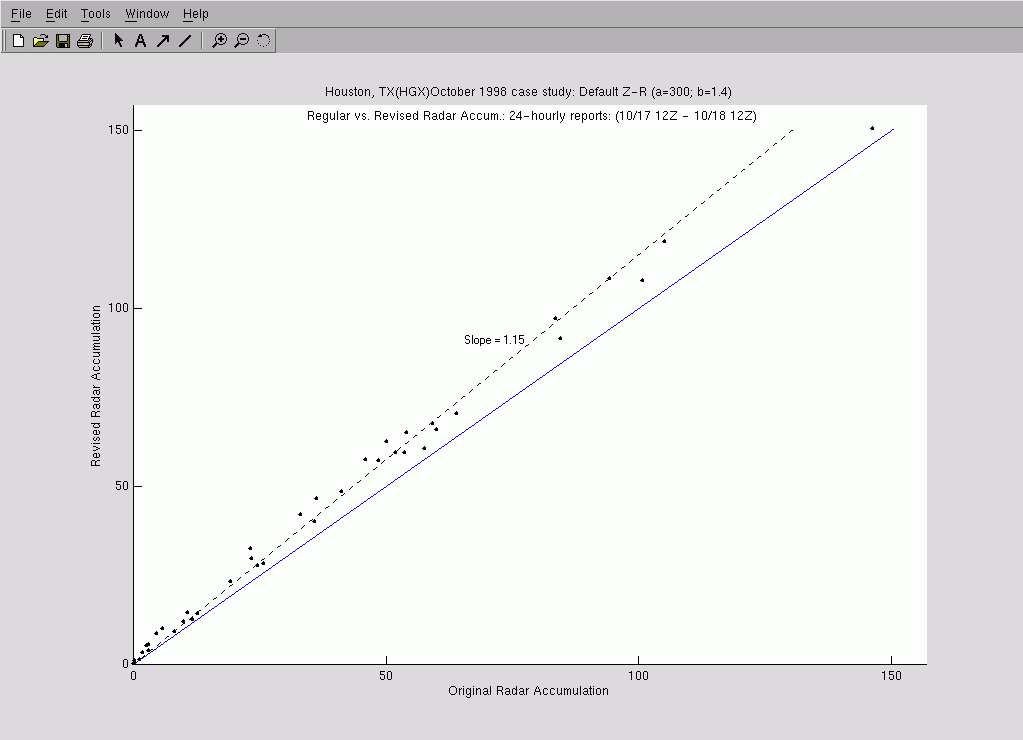

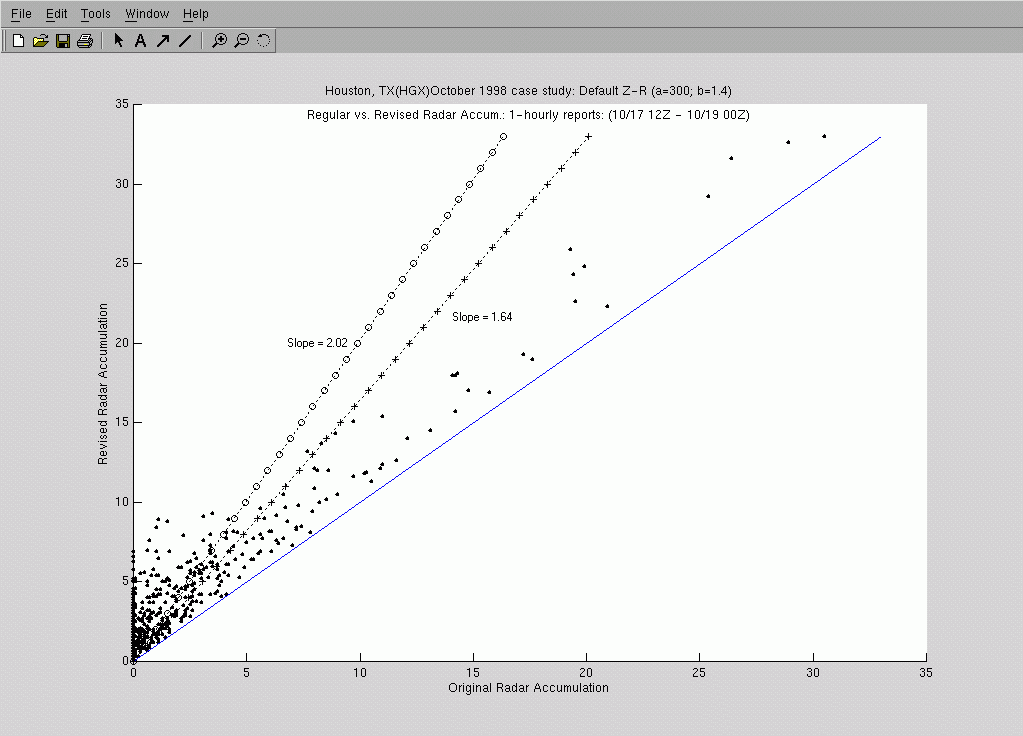

Fig. 3.5O: Scatter diagram of Radar vs. Radar accumulations for Original (X-axis) vs. Revised (Y-axis) algorithm simulations for October 17-19 '98 event. Upper left: Default Z-R parameters, One-hour accumulations; upper right: Default Z-R parameters, 24-hour accumulations; lower left: Tropical Z-R parameters, One-hour accumulations; lower right: Tropical Z-R parameter, 24-hour accumulations. Lines with circles: best fit lines including Gage-Radar Pairs with one member(i.e., accumulation from Original algorithm run) zero; lines with X's: best fit lines including only Gage-Radar Pairs with both members non-zero.
