Houston, TX(HGX) 08/21-24/98: Default Z-R; Default Hail Cap simulations
|
1-Hour Gage-Radar analyses |
24-Hour Gage-Radar analyses |
|
|
|
|
|
|
|
|
|

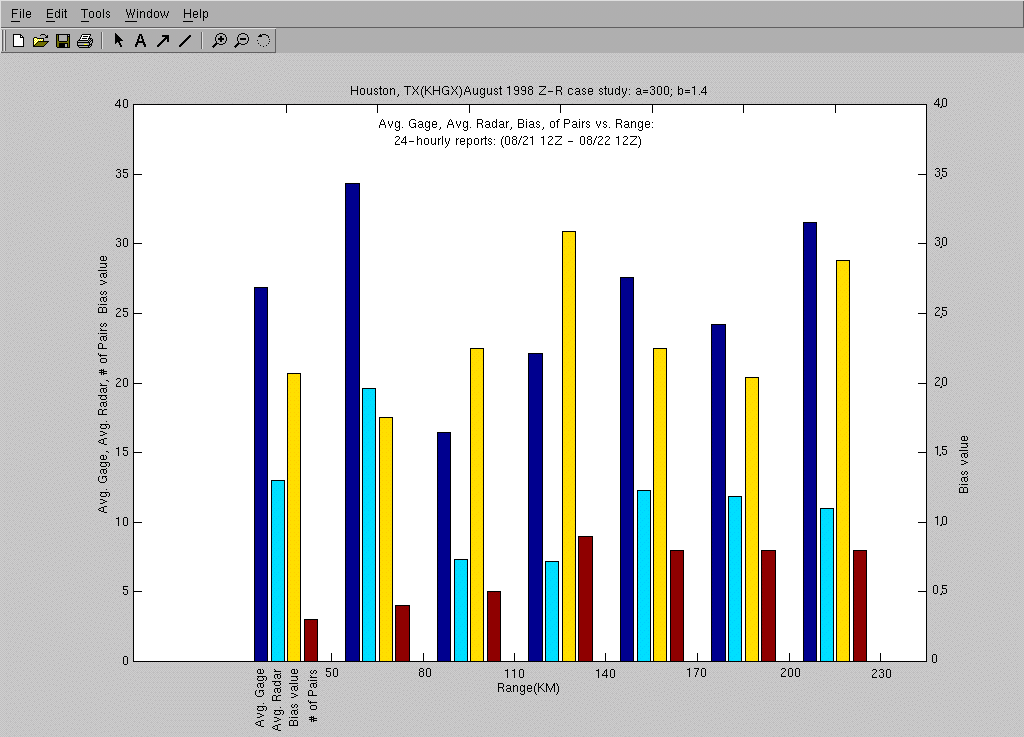

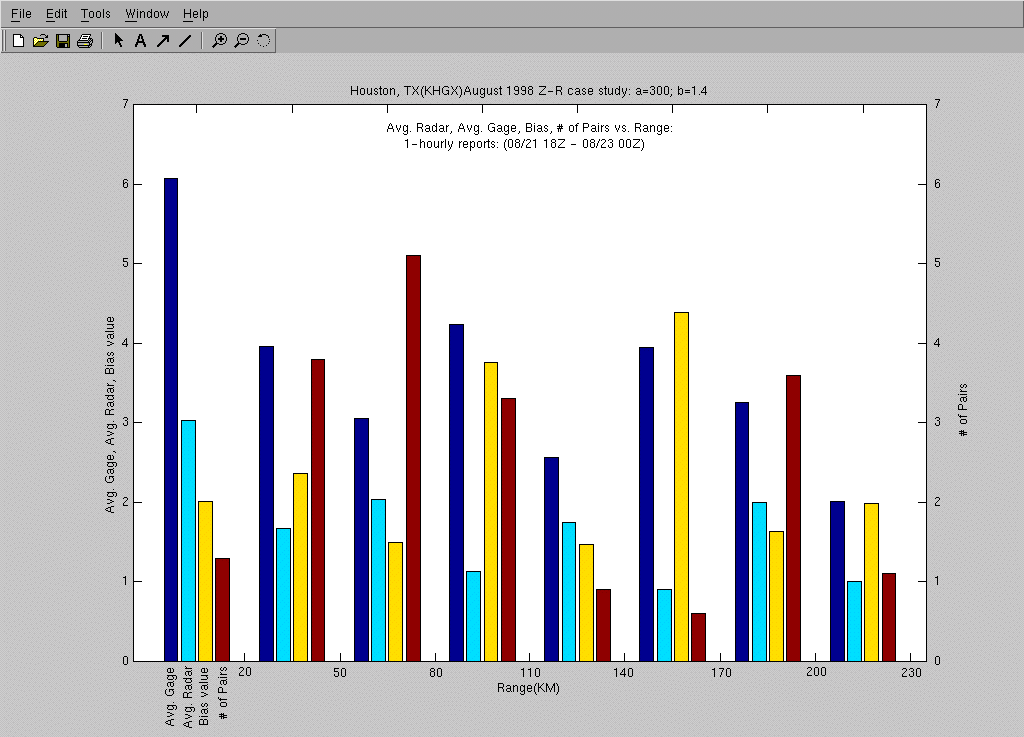

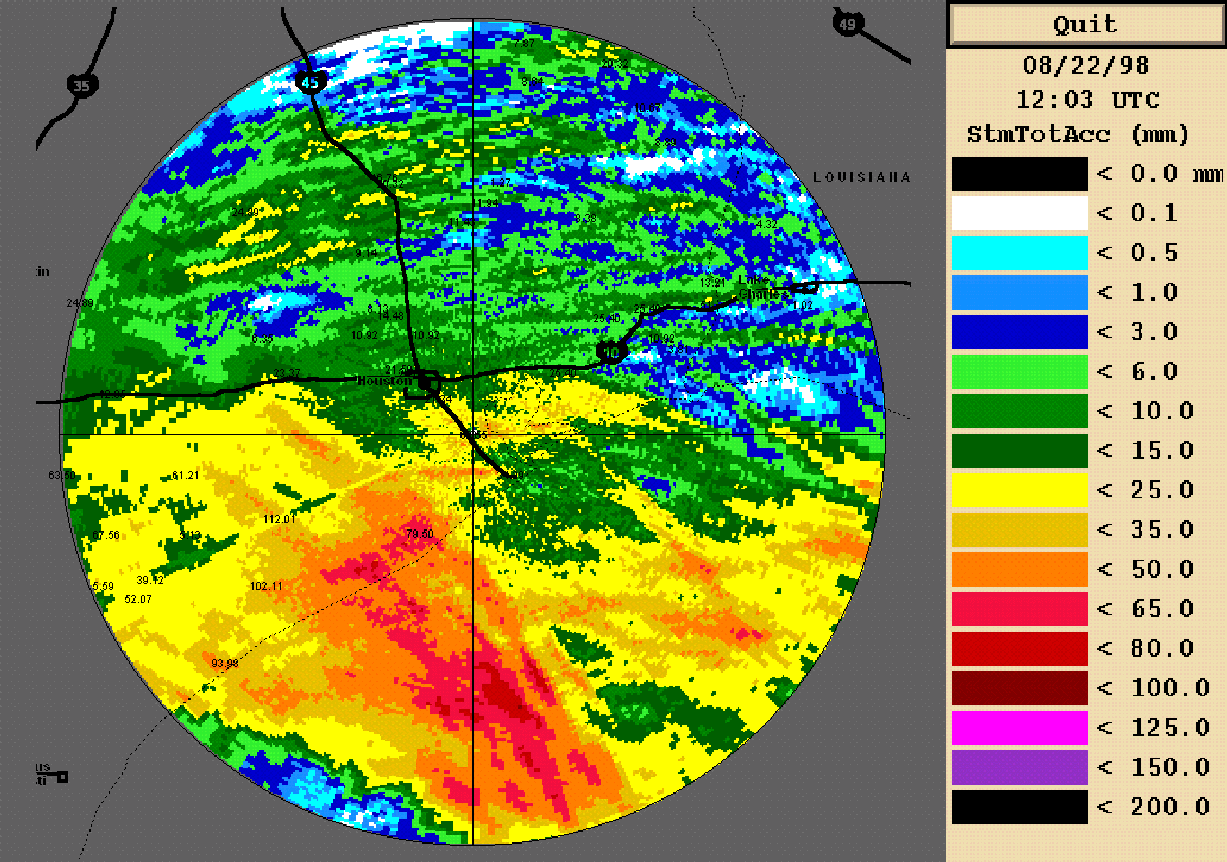

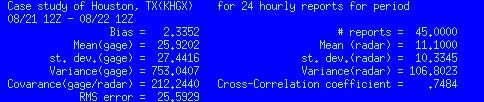

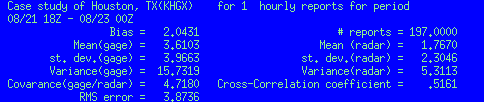

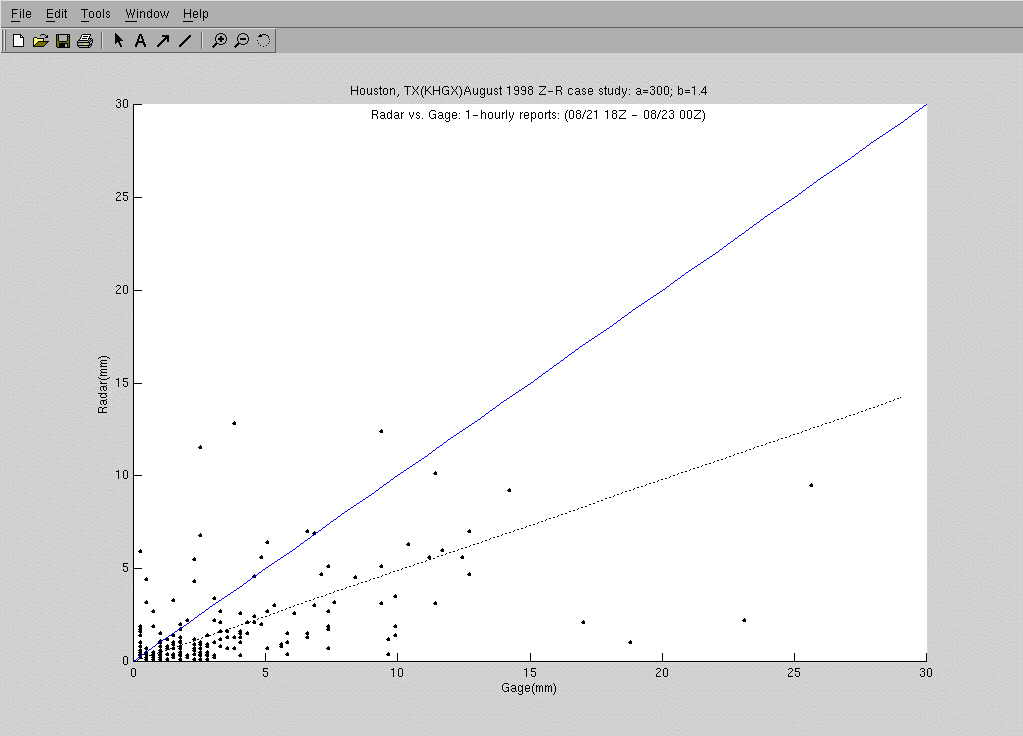

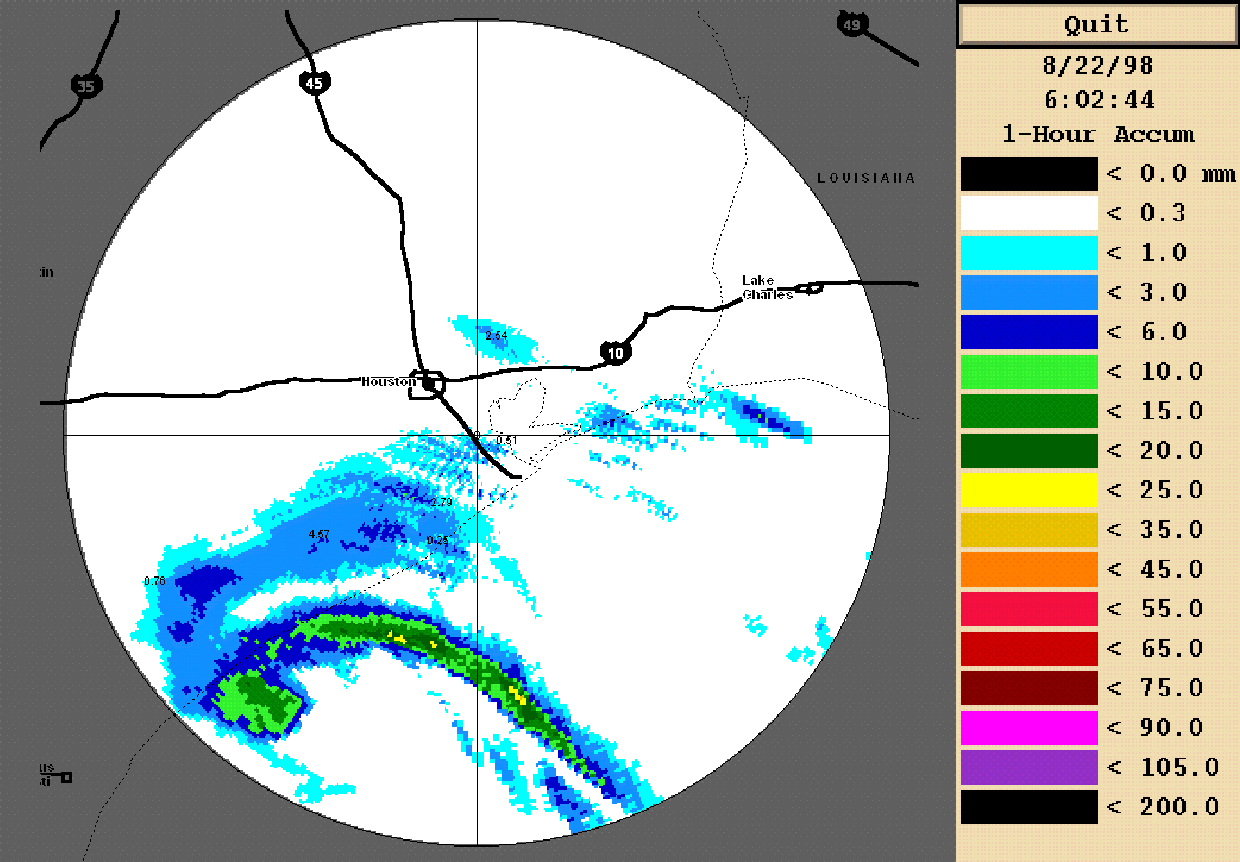

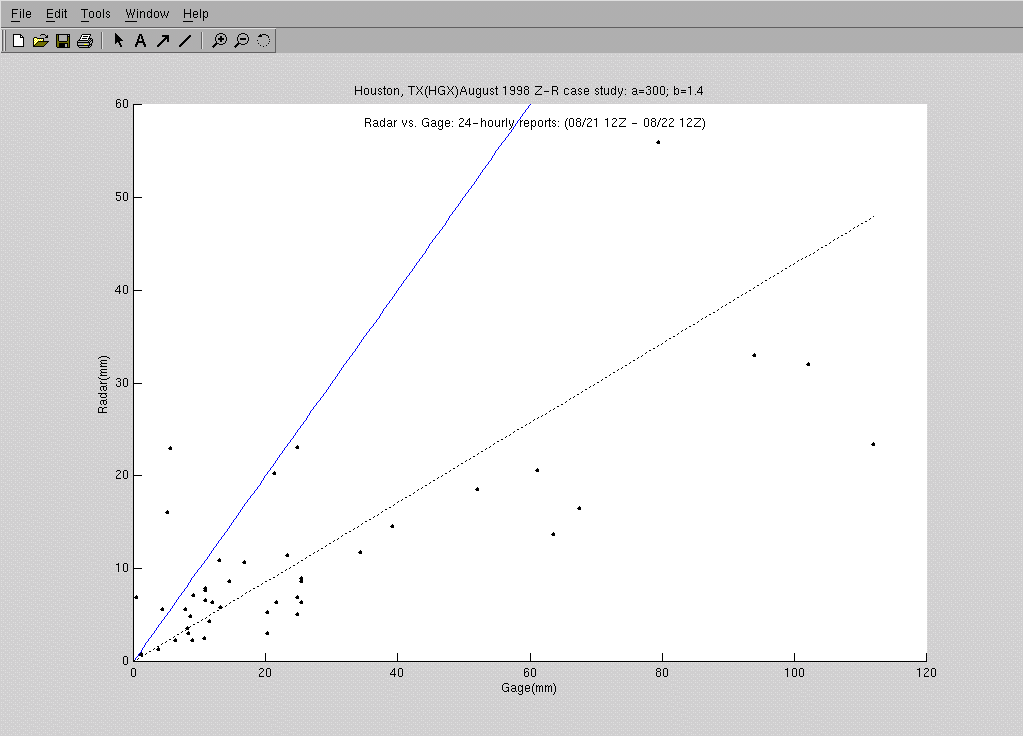

Fig. 2.4A.H: Overview of results from August 21-24 Houston(KHGX) simulation with Default Z-R (a=300; b=1.4) and Default Hail Cap threshold(103.8 mm/hr): Left column: analysis of all 1-hr G-R Pairs for duration of run (i.e., 08/21 18 UTC - 08/23 00 UTC); Right column: analysis of 24-hr G-R pairs ending 08/22 12 UTC. Top to bottom (both columns): Accumulation product with rain gage data for matching period superimposed (Left: OHP for indicative hour(i.e., ending 08/22/98 06 UTC); Right: STP for 24-hours); Gage (X) vs. Radar (Y) "Scatter Diagram"; Bias, Avg. Gage, Avg. Radar and # G-R Pairs vs. Range; Summary of Statistics for case. (all accum. units mm)
| |
|
