Radar Imagery from the Cedarville Tornado

May 14, 2014
Radar Imagery from the Cedarville Tornado

Back to the Cedarville tornado page

...TORNADO CONFIRMED NEAR CEDARVILLE IN GREENE COUNTY OHIO...

LOCATION...NEAR CEDARVILLE IN GREENE COUNTY OHIO
DATE...MAY 14 2014
ESTIMATED TIME...544 PM TO 603 PM EDT
MAXIMUM EF-SCALE RATING...EF3
ESTIMATED MAXIMUM WIND SPEED...145 MPH
MAXIMUM PATH WIDTH...400 YARDS
PATH LENGTH...9 MILES
BEGINNING LAT/LON...39.6808N / 83.8480W
ENDING LAT/LON...39.7753N / 83.7333W
* FATALITIES...0
* INJURIES...0

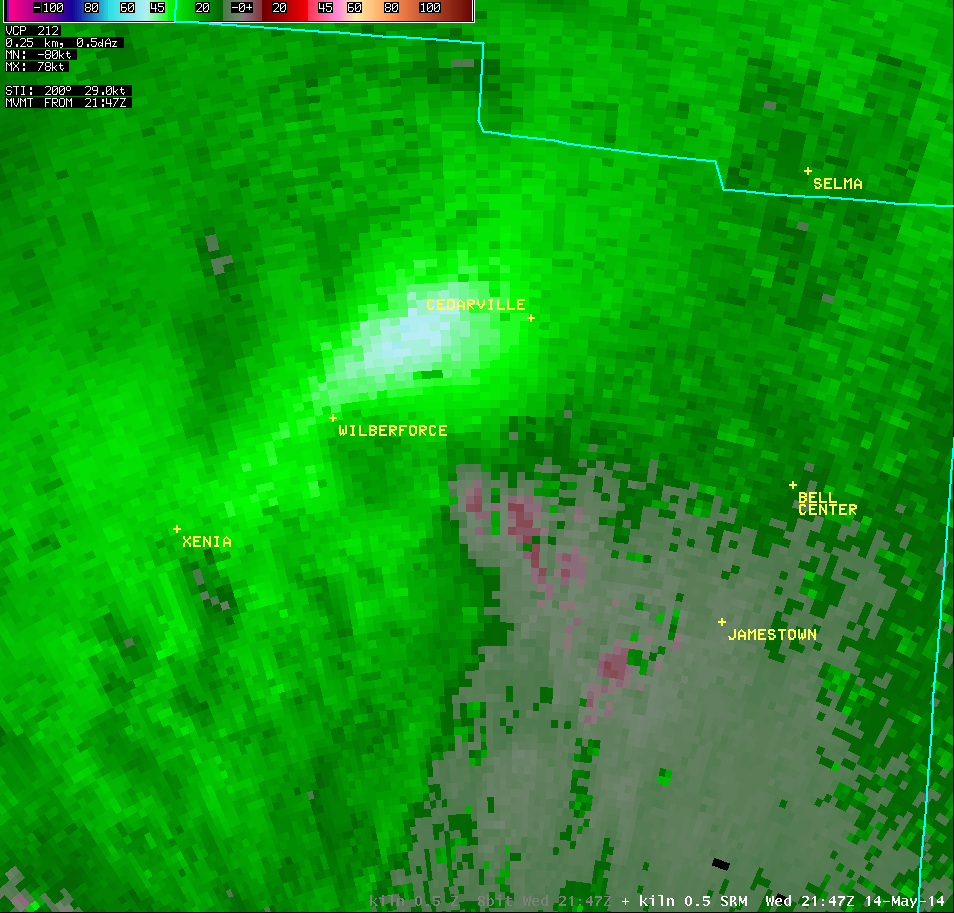

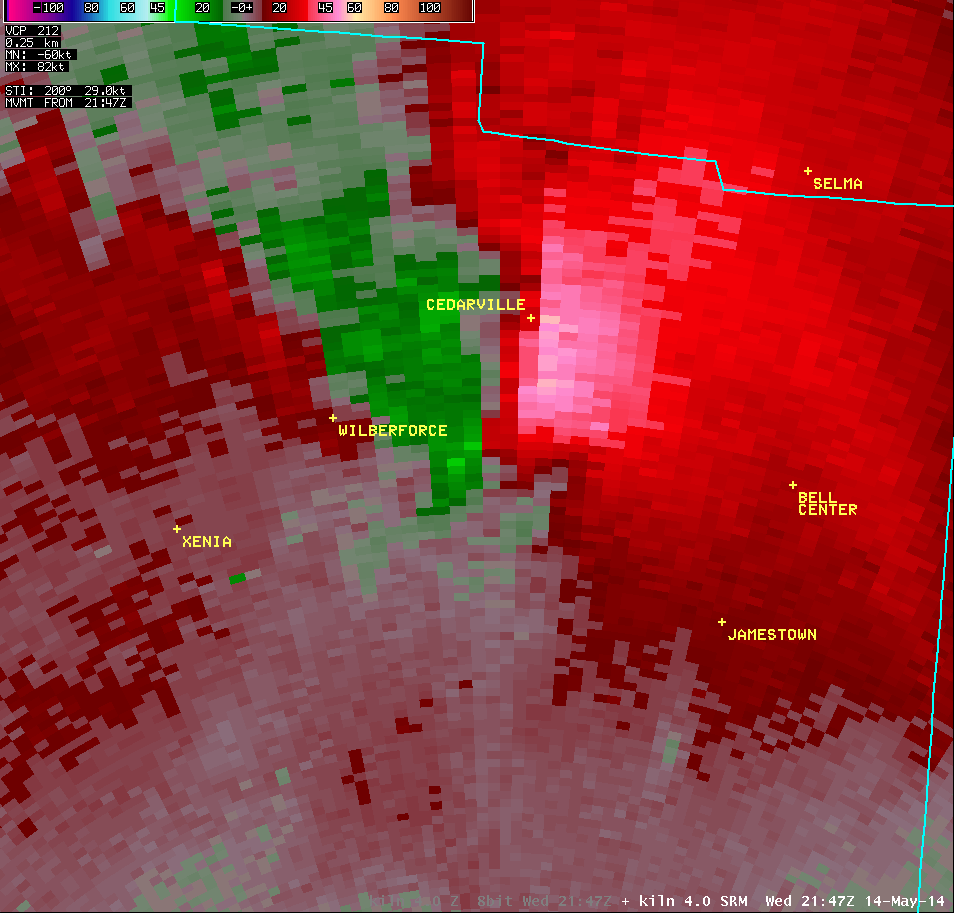

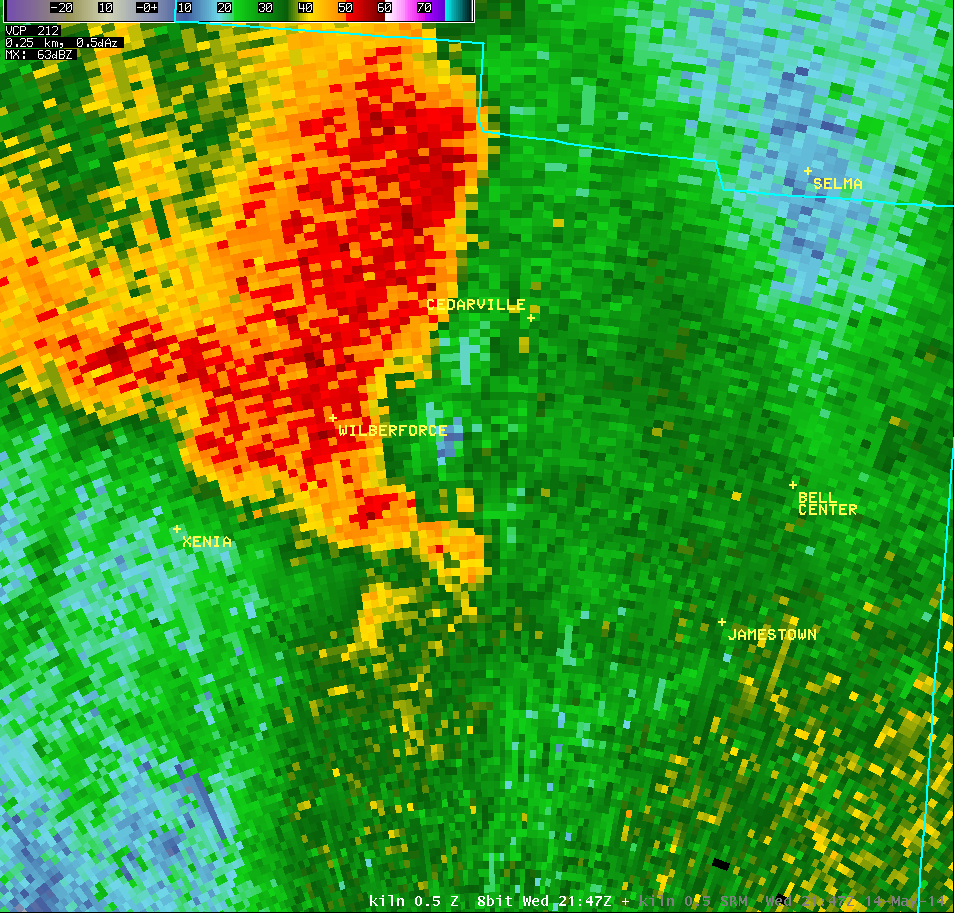

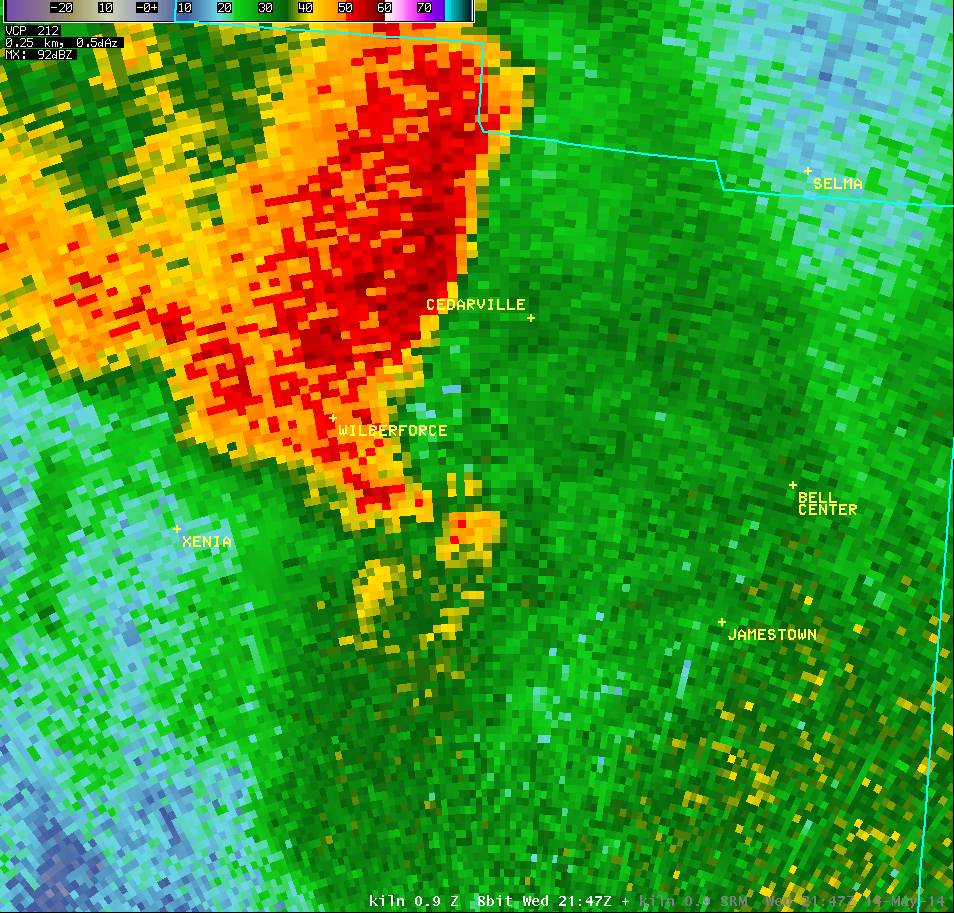

Vertical Loop of KILN Radar Imagery (5:47 PM)

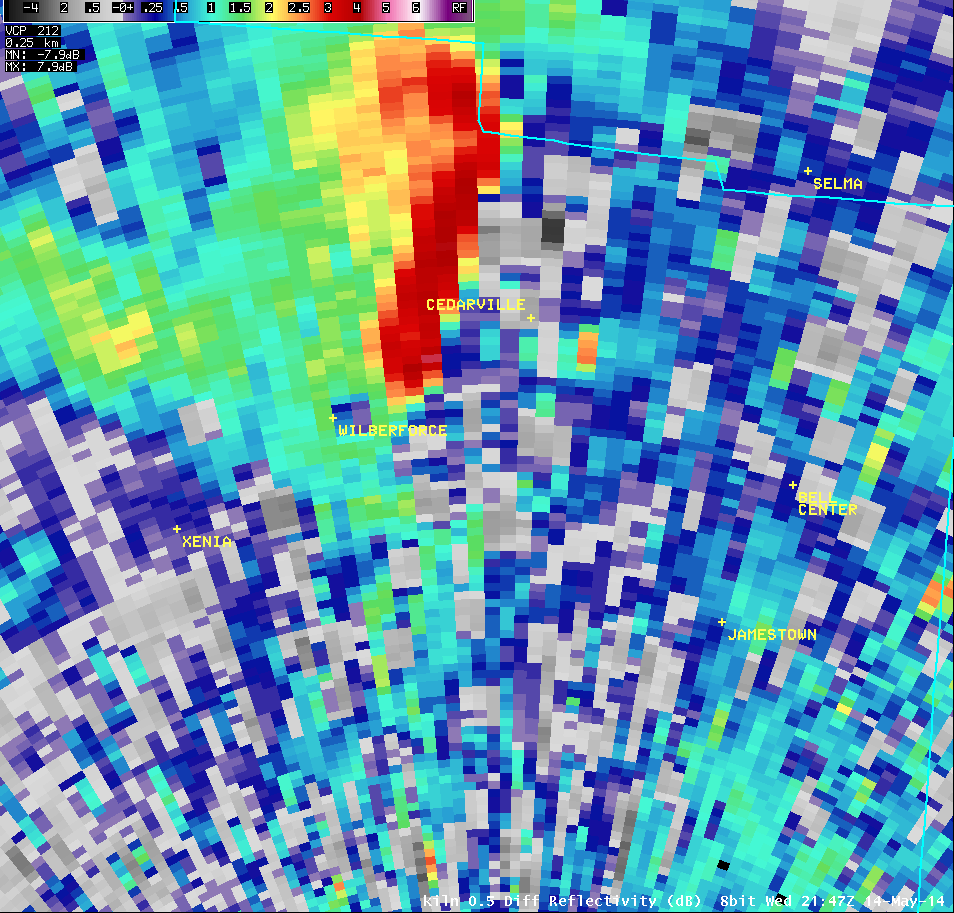

0.5° Reflectivity	0.5° Storm-Relative Motion	0.5° Correlation Coefficient	0.5° Differential Reflectivity

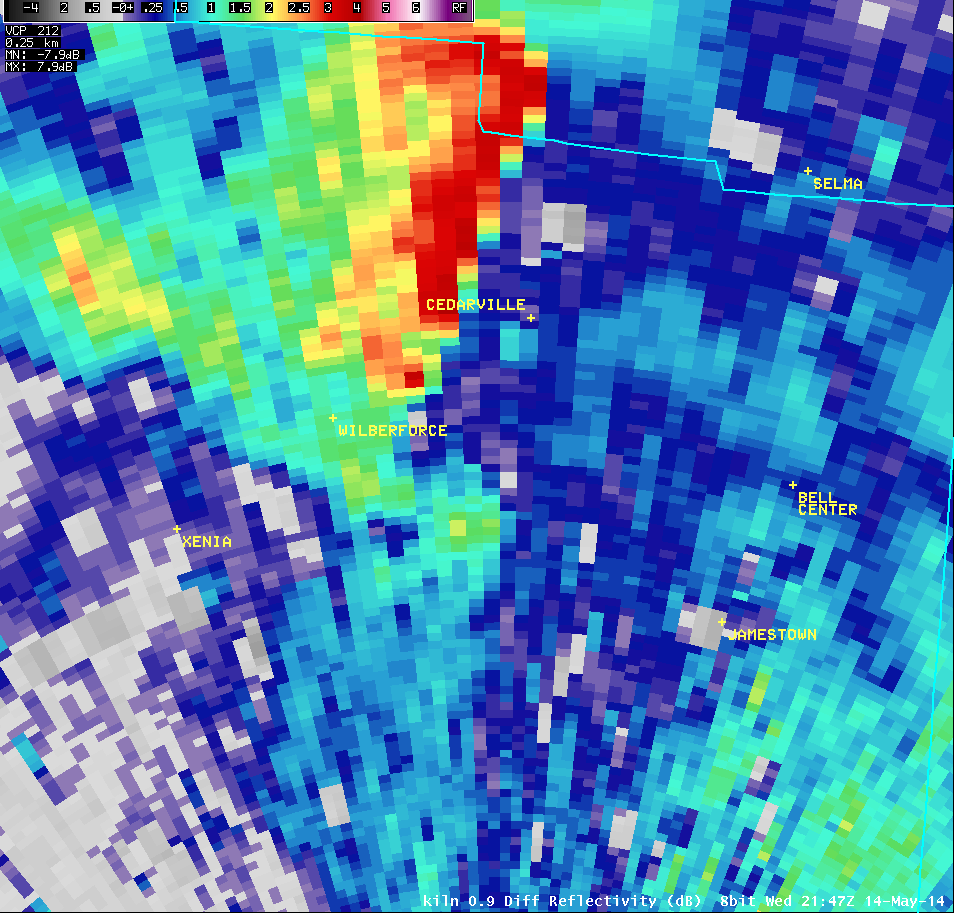

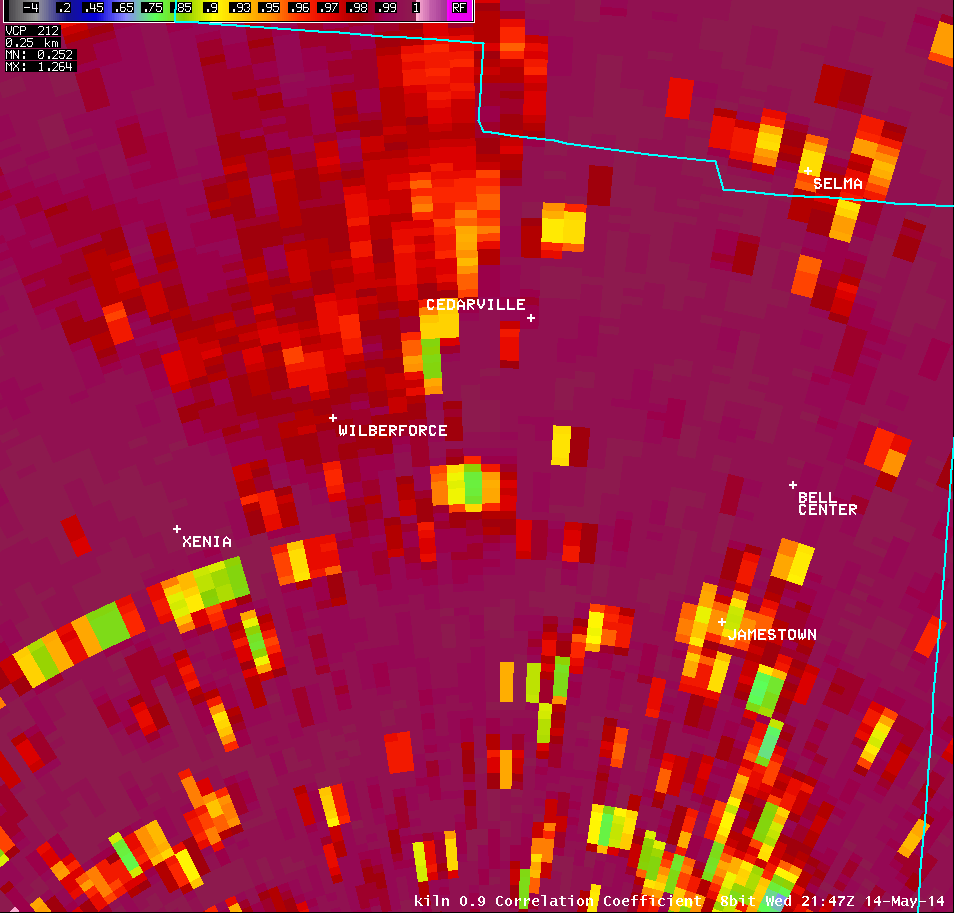

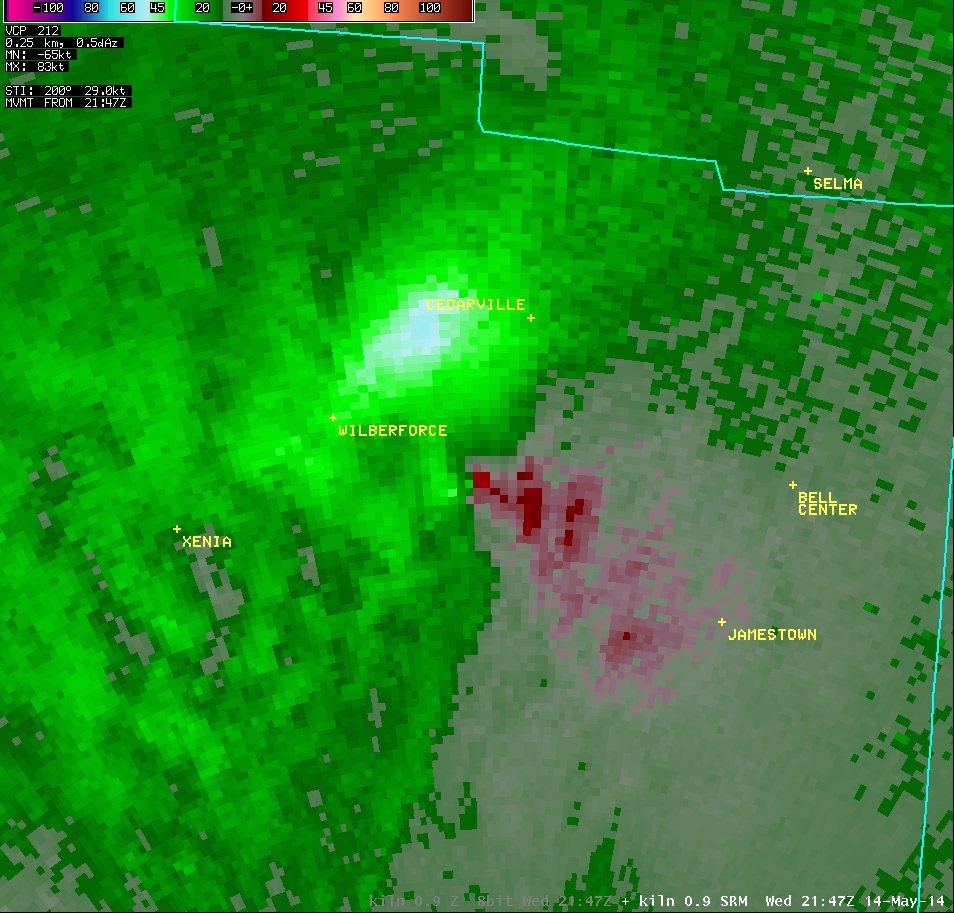

0.9° Reflectivity	0.9° Storm-Relative Motion	0.9° Correlation Coefficient	0.9° Differential Reflectivity

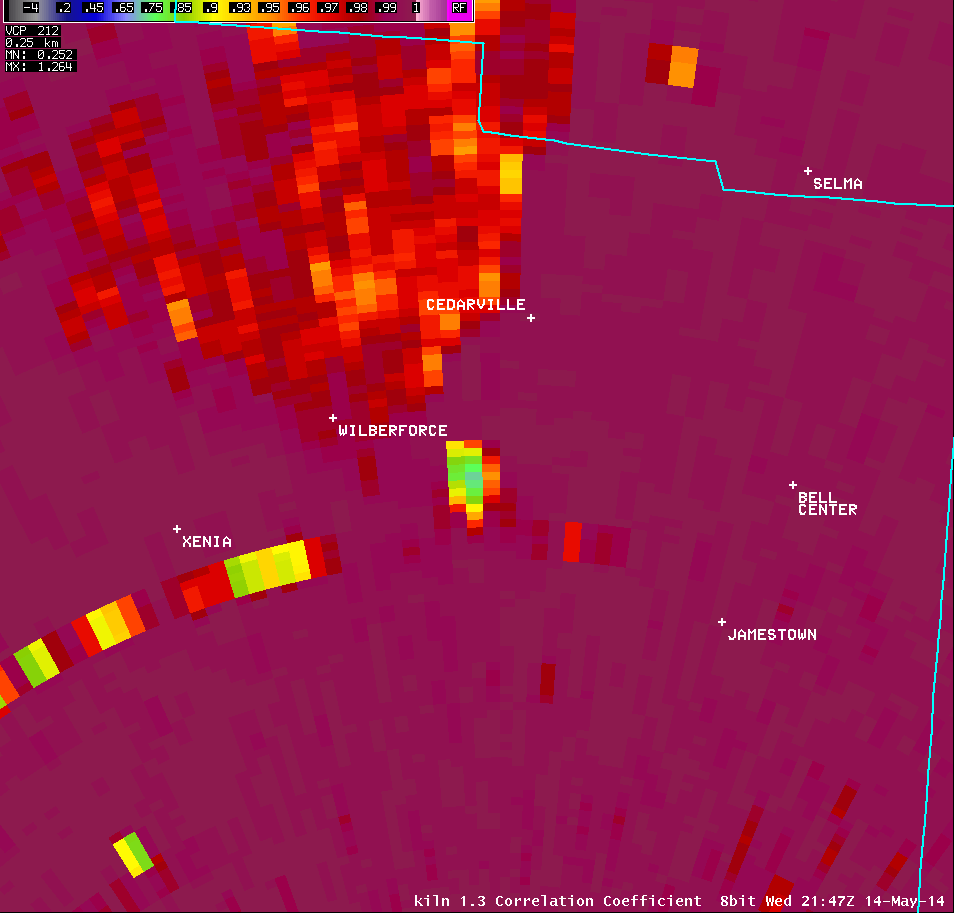

1.3° Reflectivity	1.3° Storm-Relative Motion	1.3° Correlation Coefficient	1.3° Differential Reflectivity

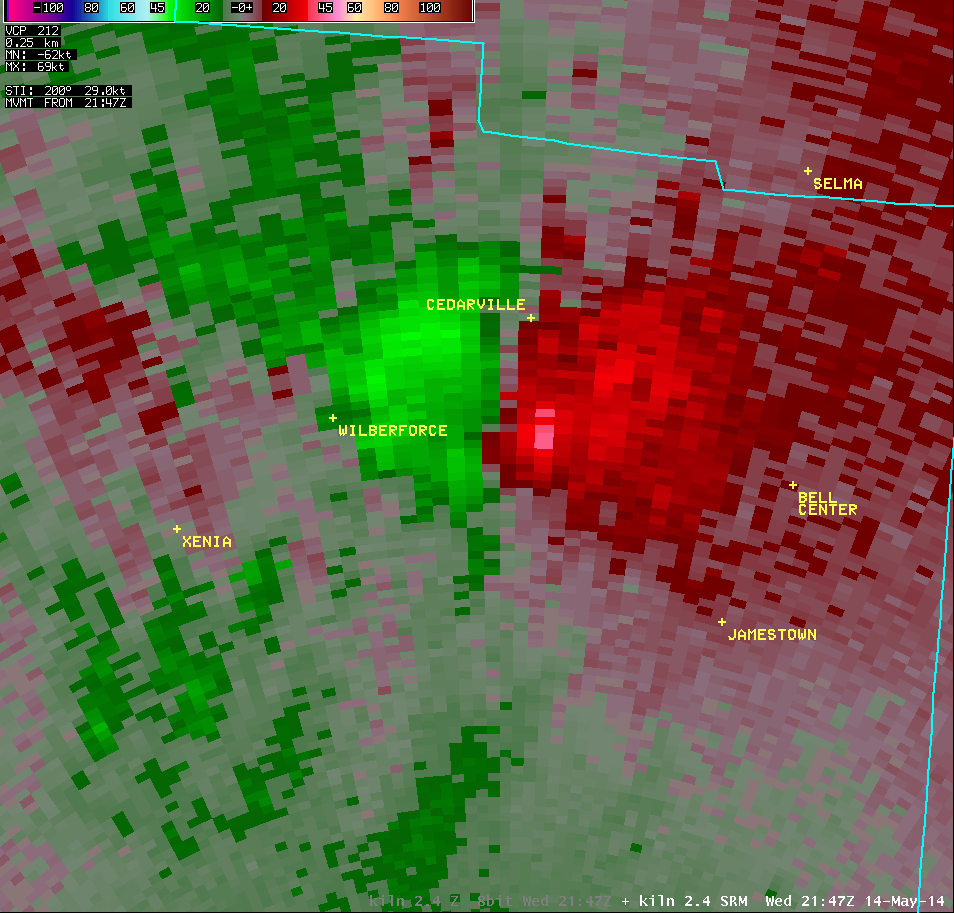

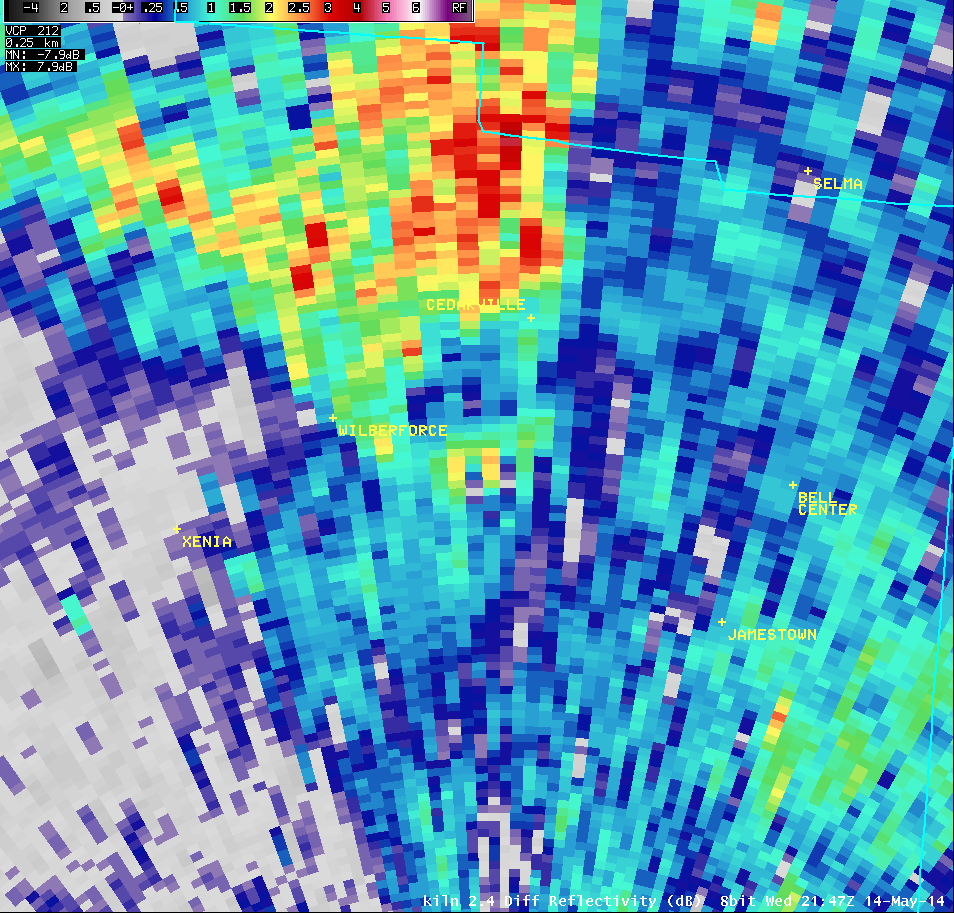

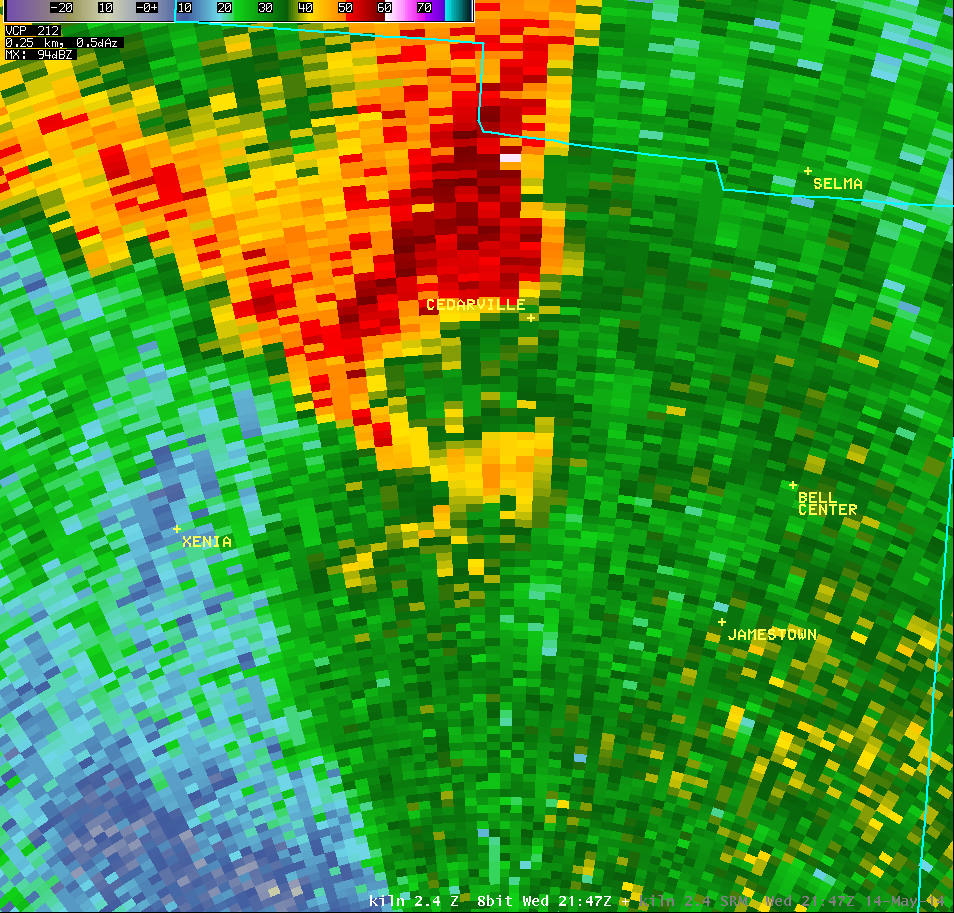

2.4° Reflectivity	2.4° Storm-Relative Motion	2.4° Correlation Coefficient	2.4° Differential Reflectivity

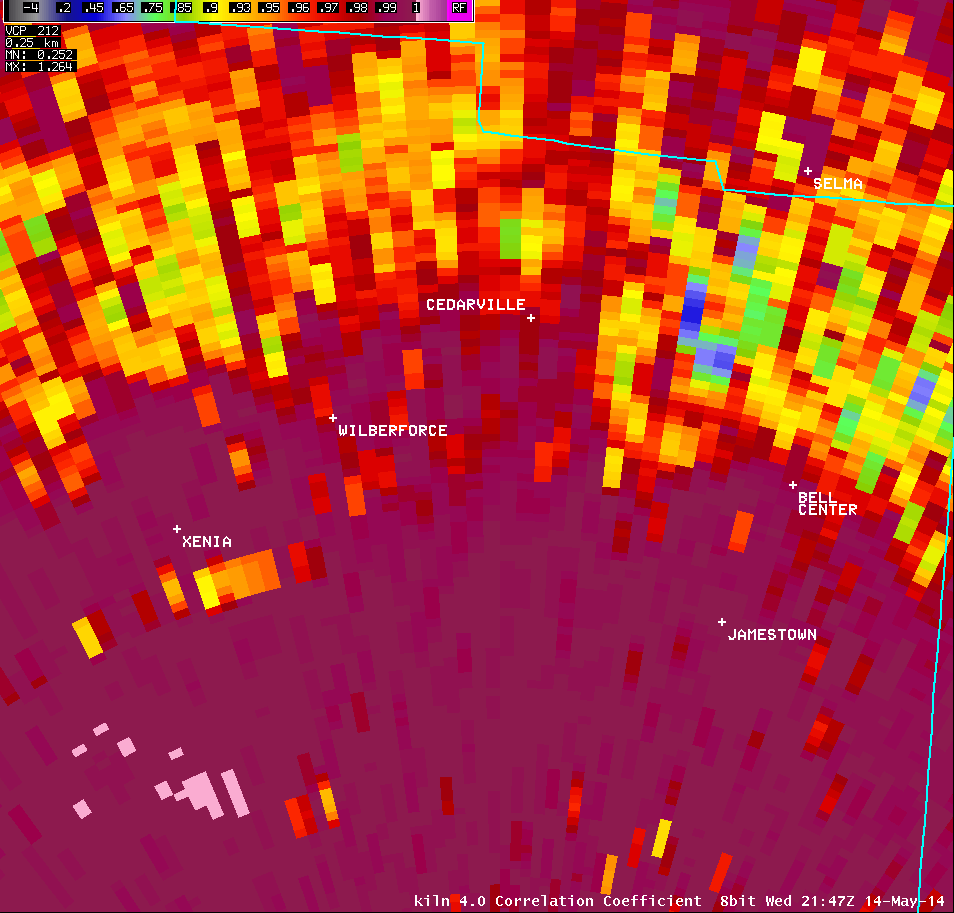

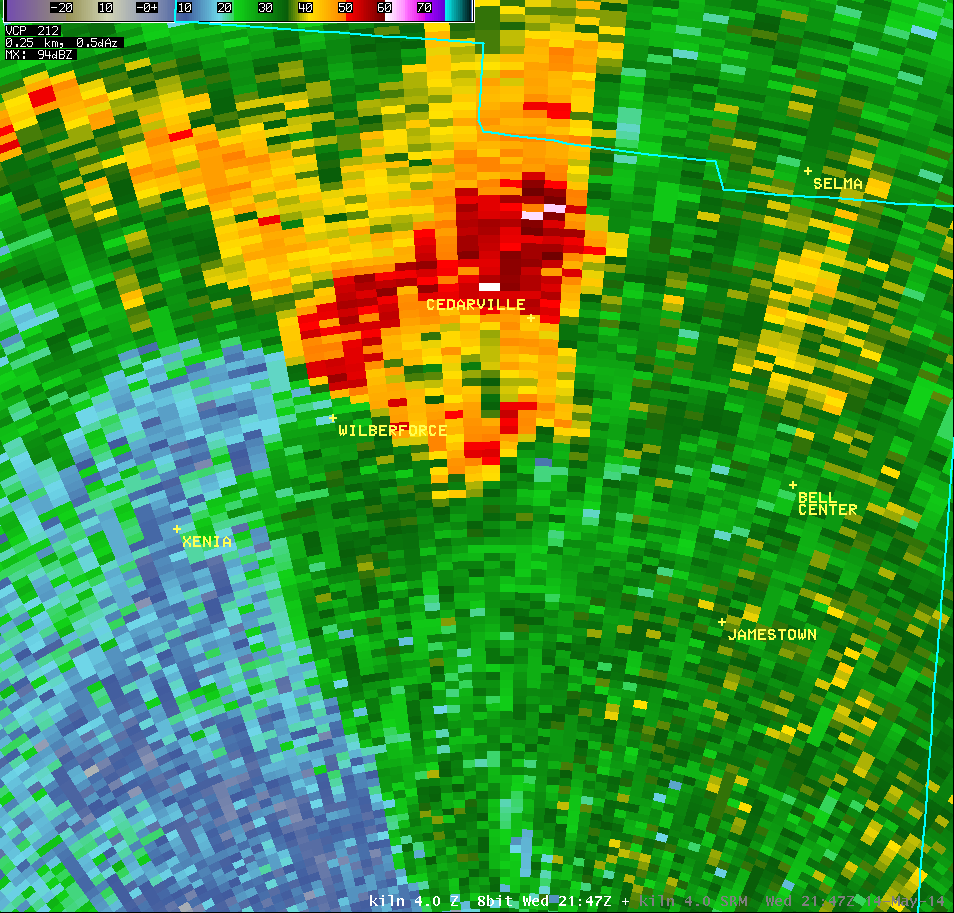

4.0° Reflectivity	4.0° Storm-Relative Motion	4.0° Correlation Coefficient

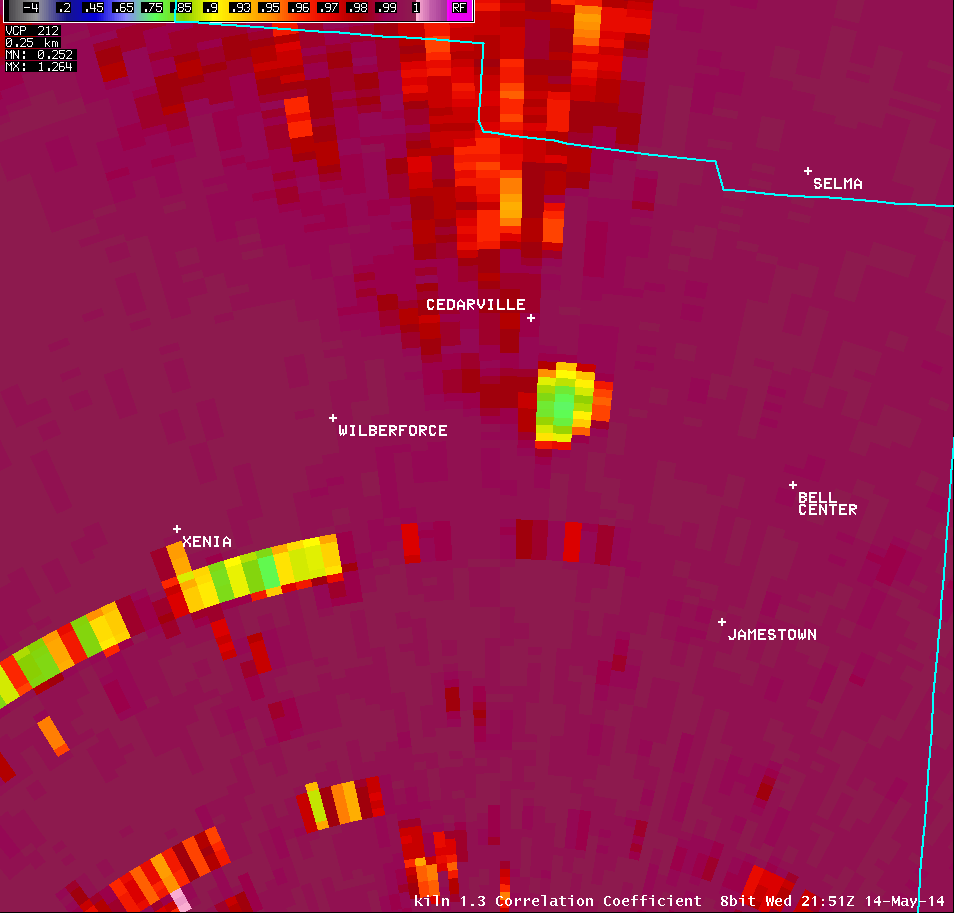

Vertical Loop of KILN Radar Imagery (5:51 PM)

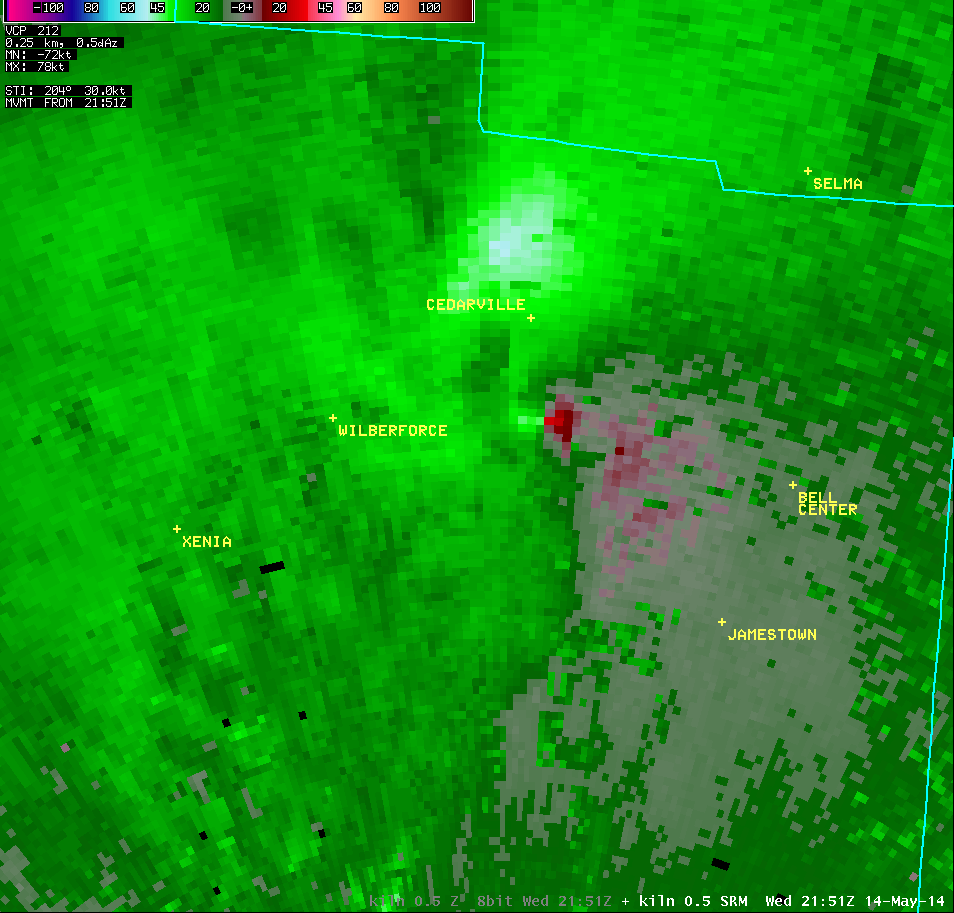

0.5° Reflectivity	0.5° Storm-Relative Motion	0.5° Correlation Coefficient	0.5° Differential Reflectivity

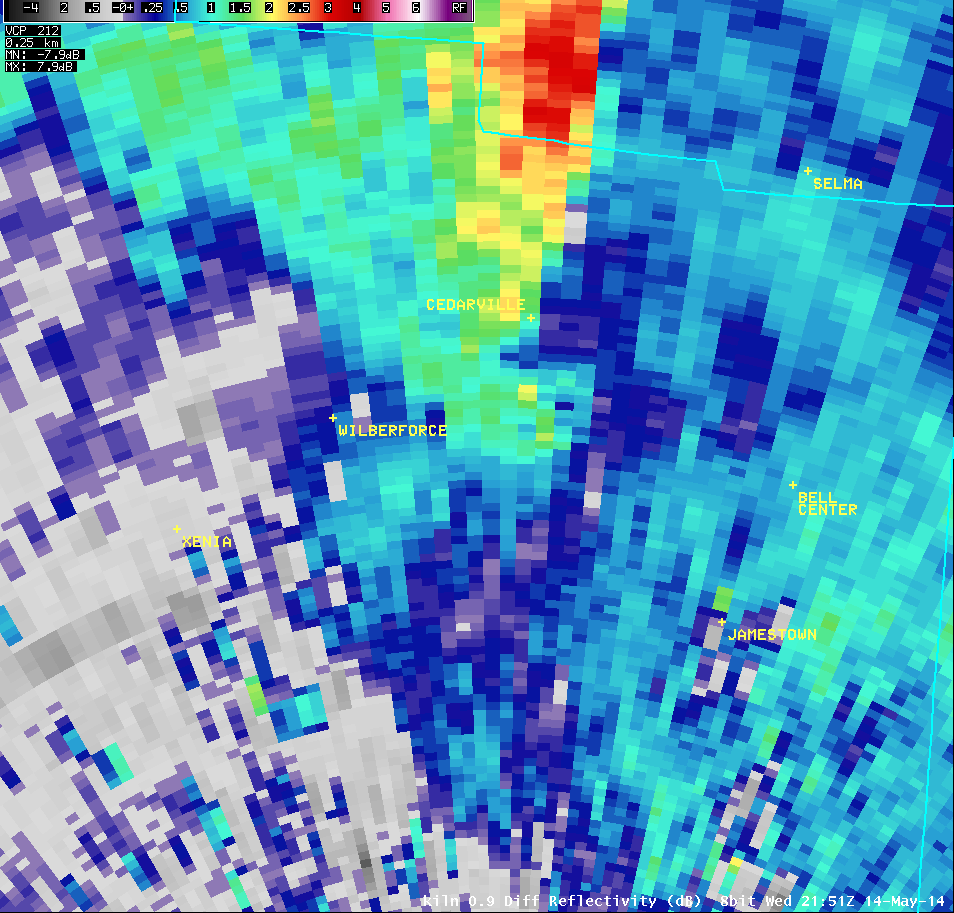

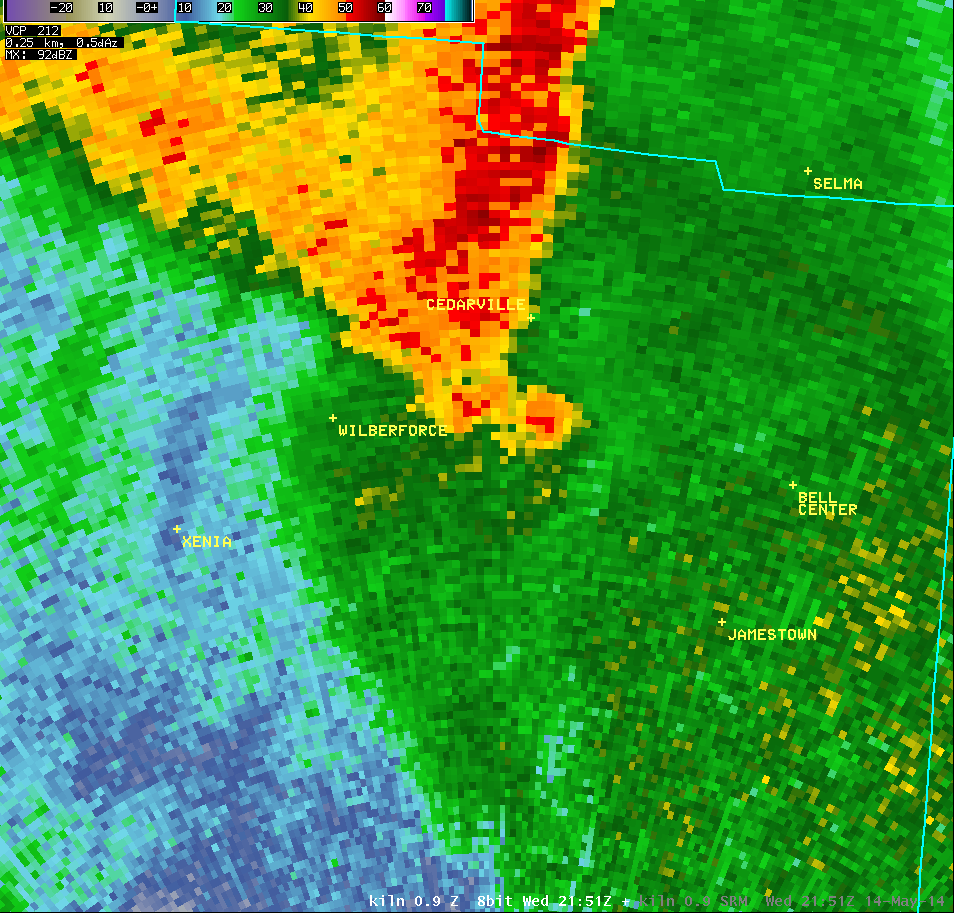

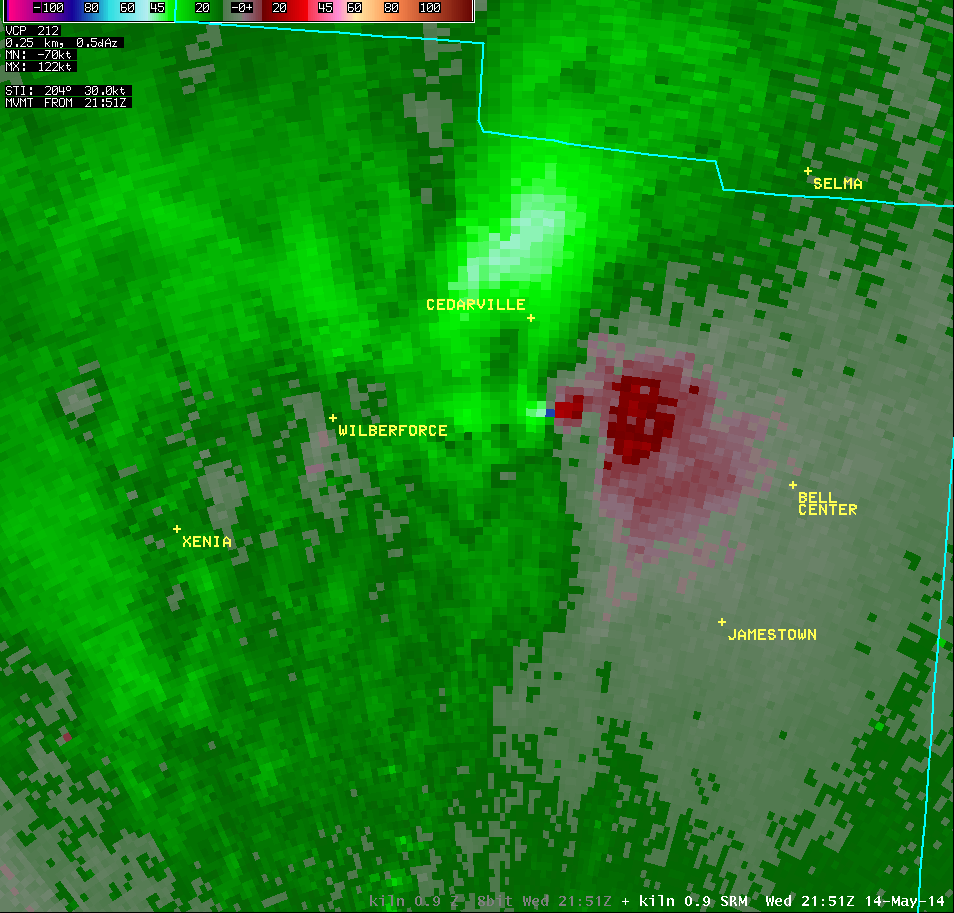

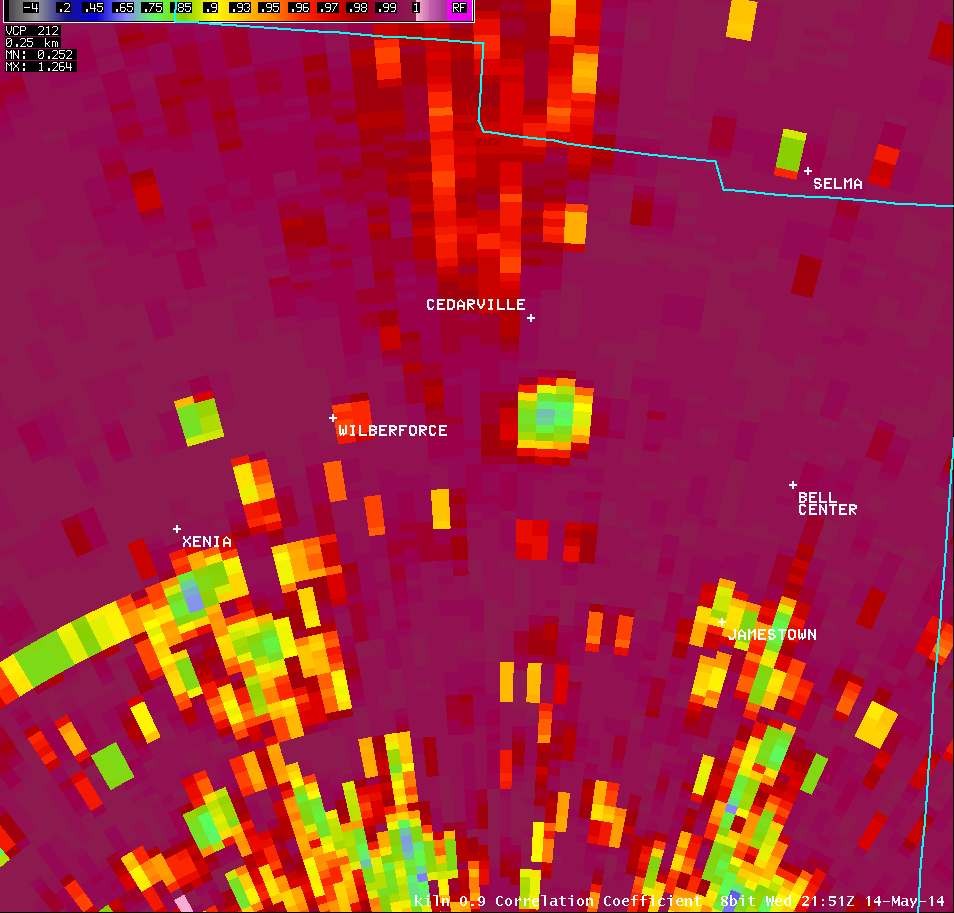

0.9° Reflectivity	0.9° Storm-Relative Motion	0.9° Correlation Coefficient	0.9° Differential Reflectivity

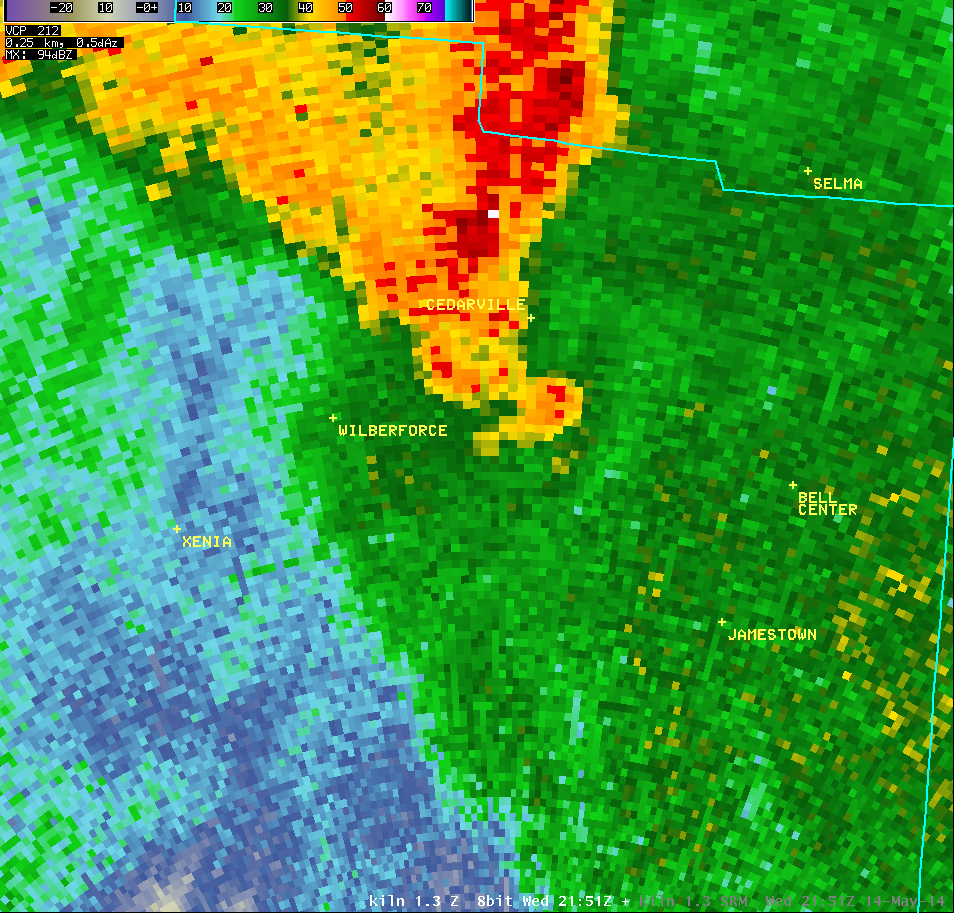

1.3° Reflectivity	1.3° Storm-Relative Motion	1.3° Correlation Coefficient	1.3° Differential Reflectivity

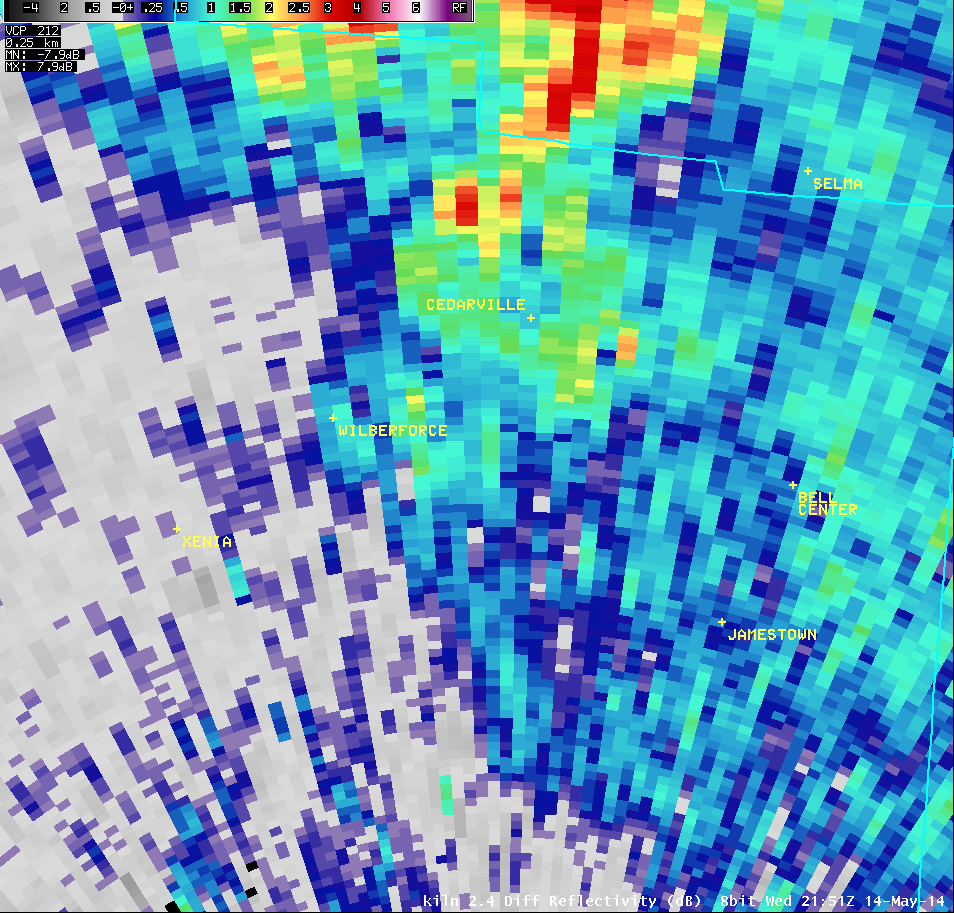

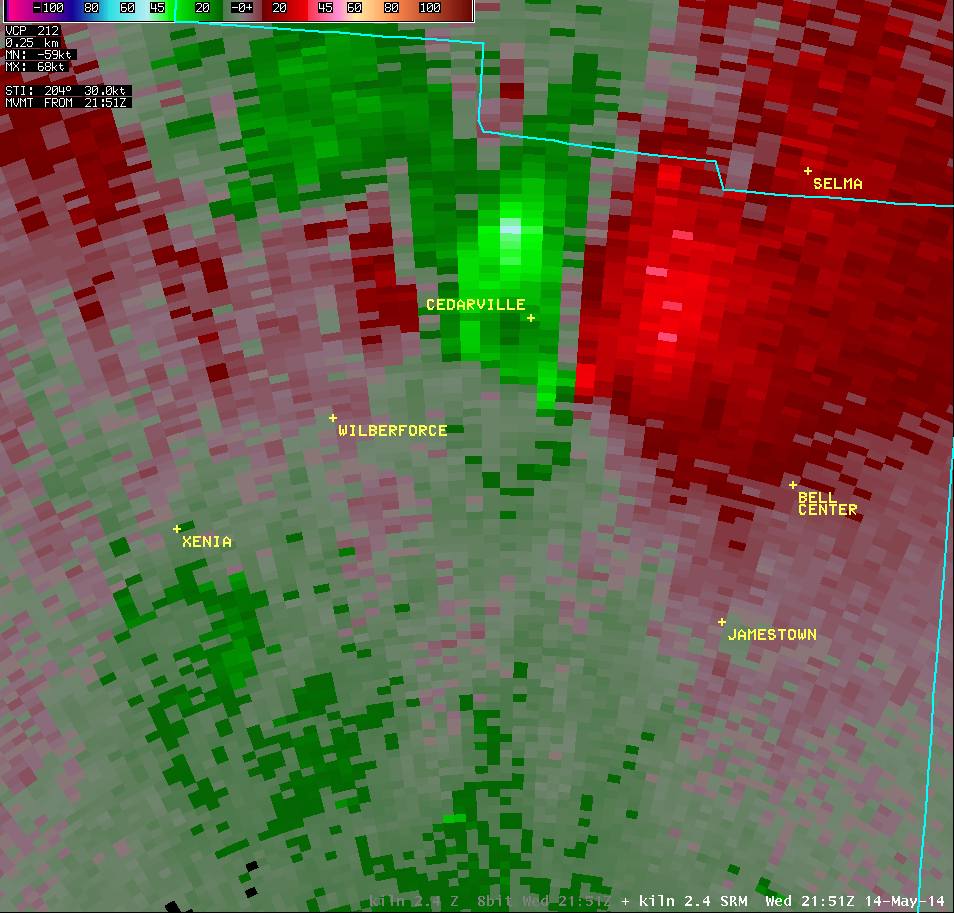

2.4° Reflectivity	2.4° Storm-Relative Motion	2.4° Correlation Coefficient	2.4° Differential Reflectivity

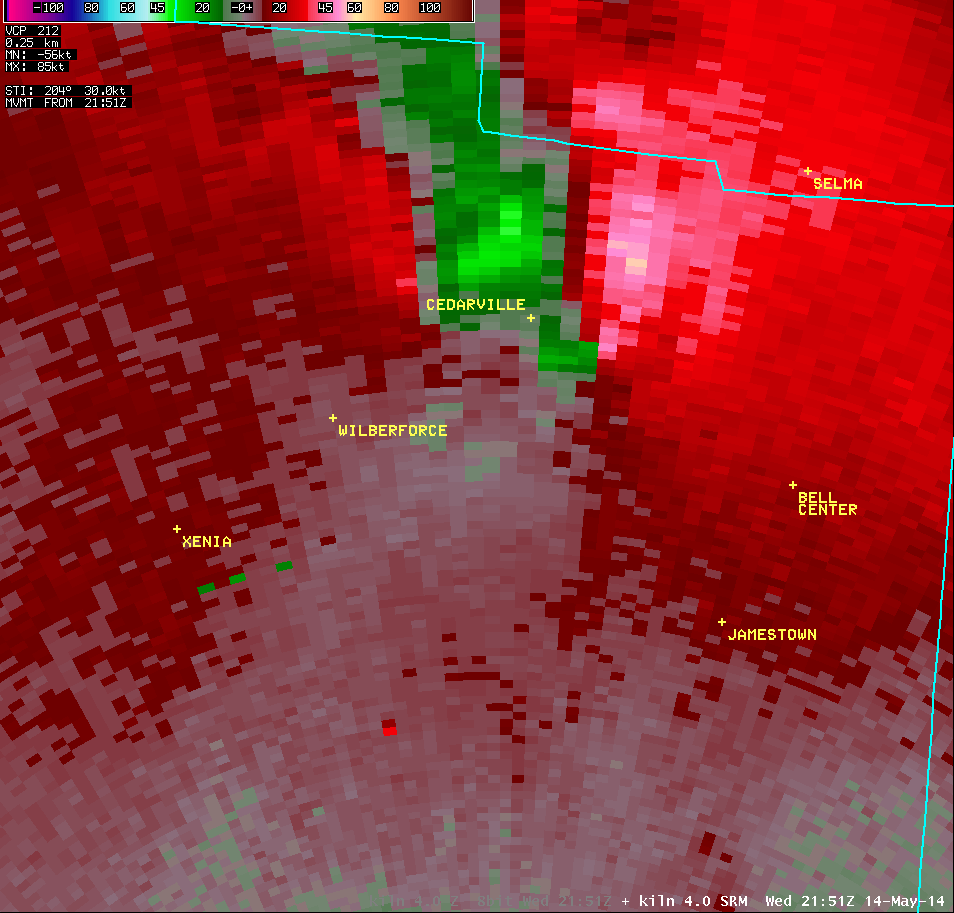

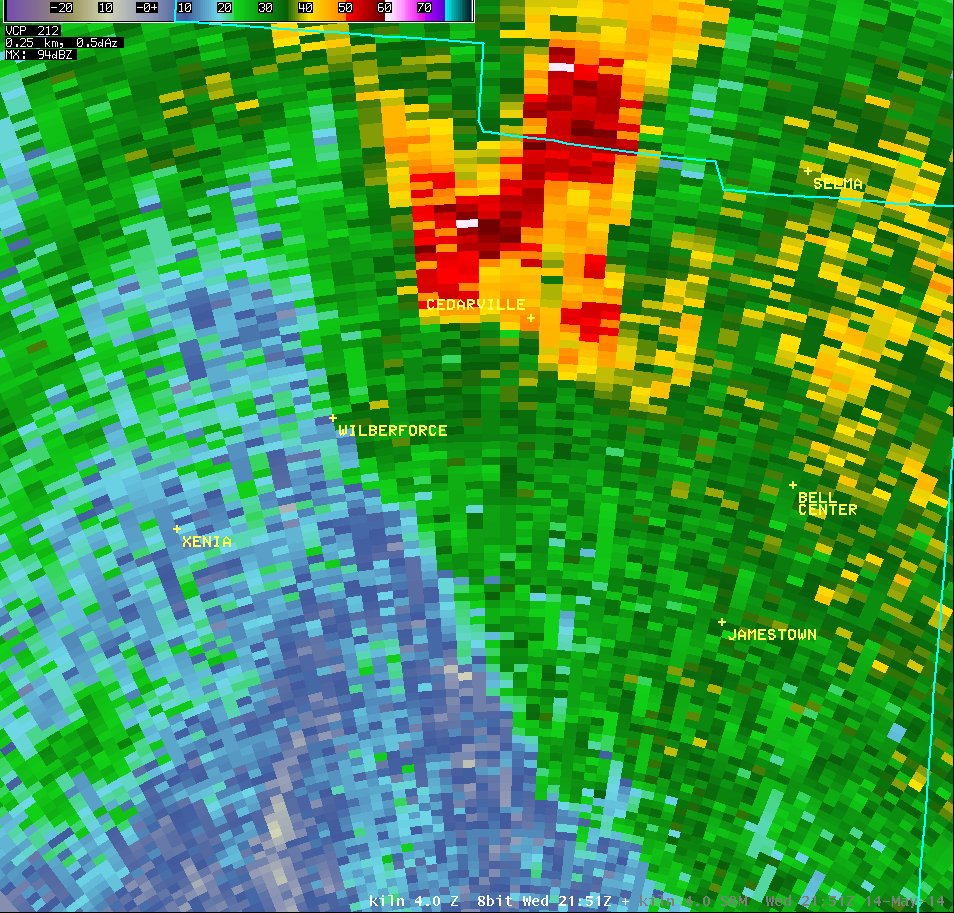

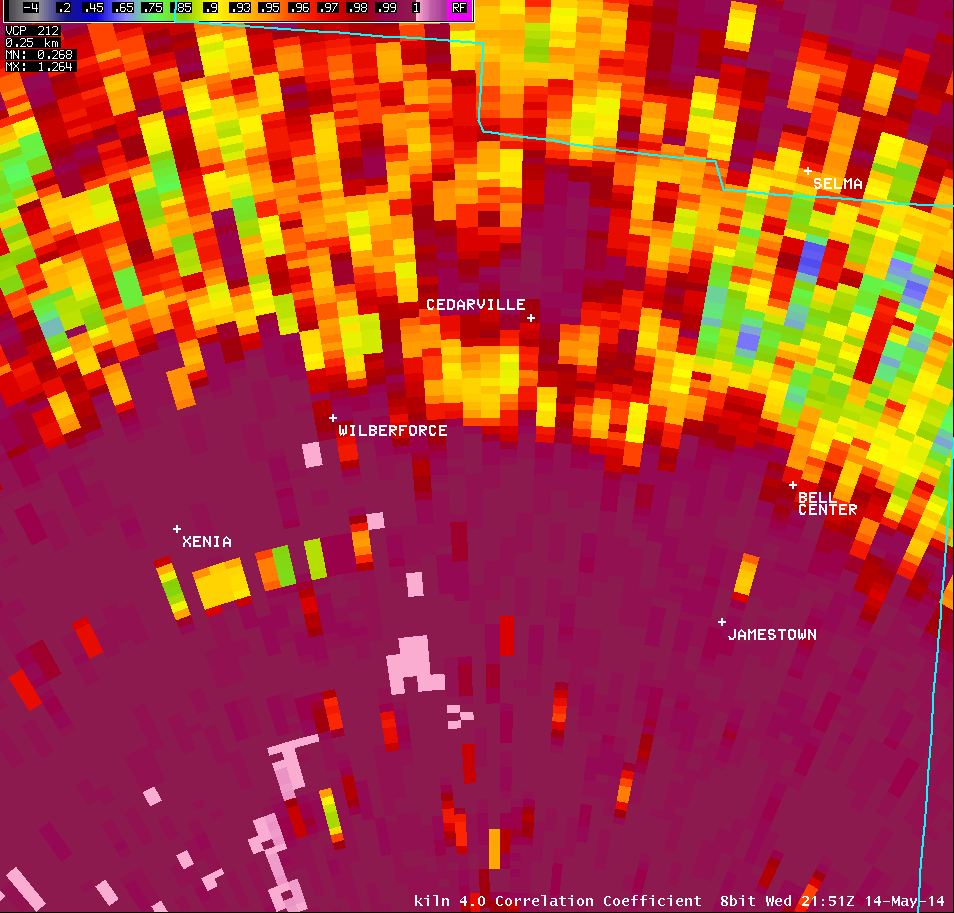

4.0° Reflectivity	4.0° Storm-Relative Motion	4.0° Correlation Coefficient

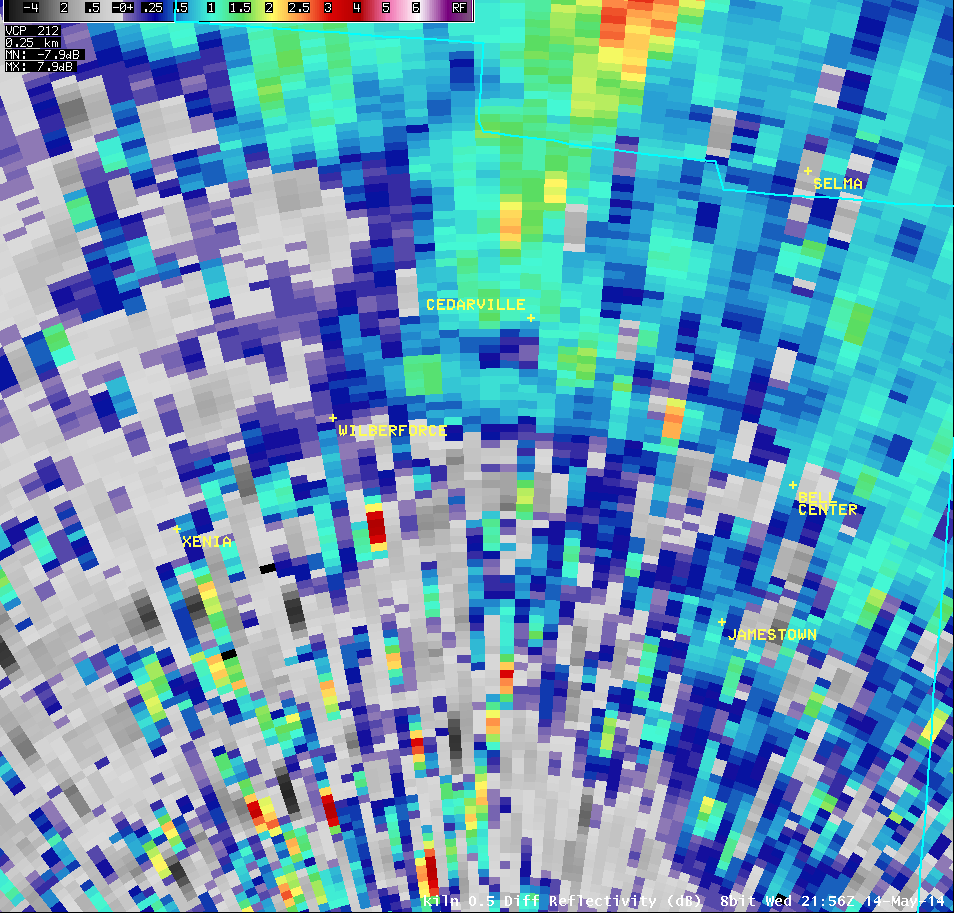

Vertical Loop of KILN Radar Imagery (5:56 PM)

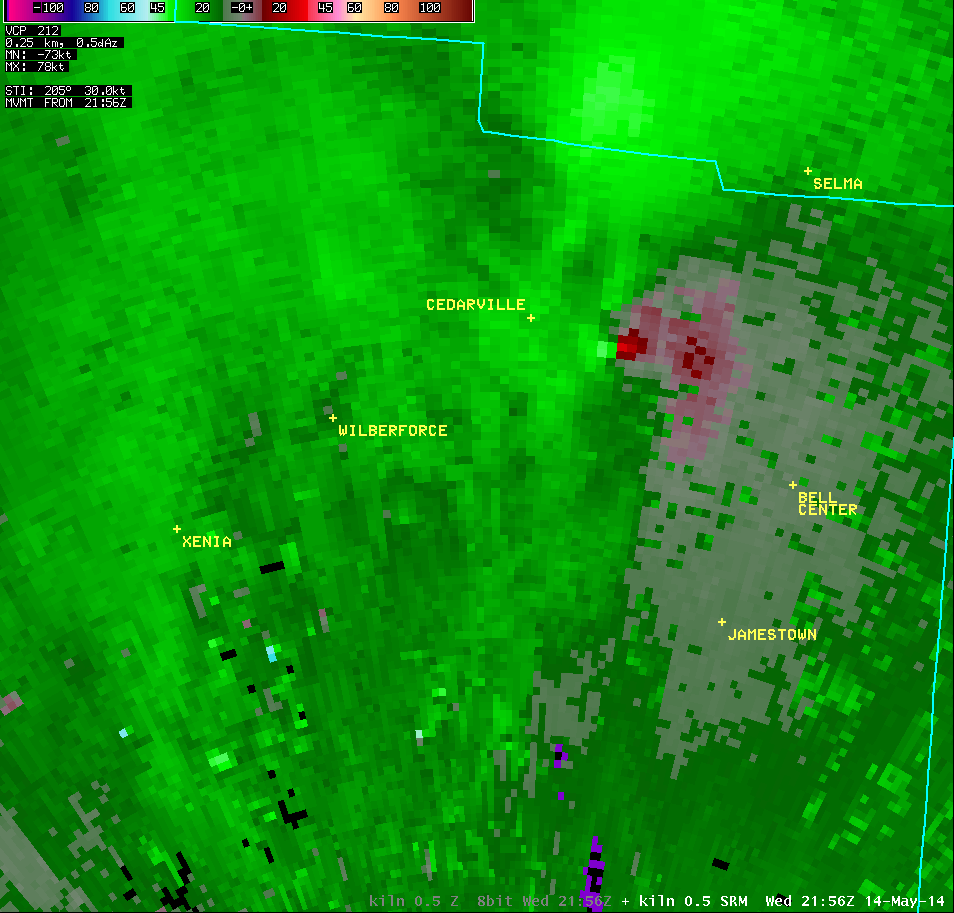

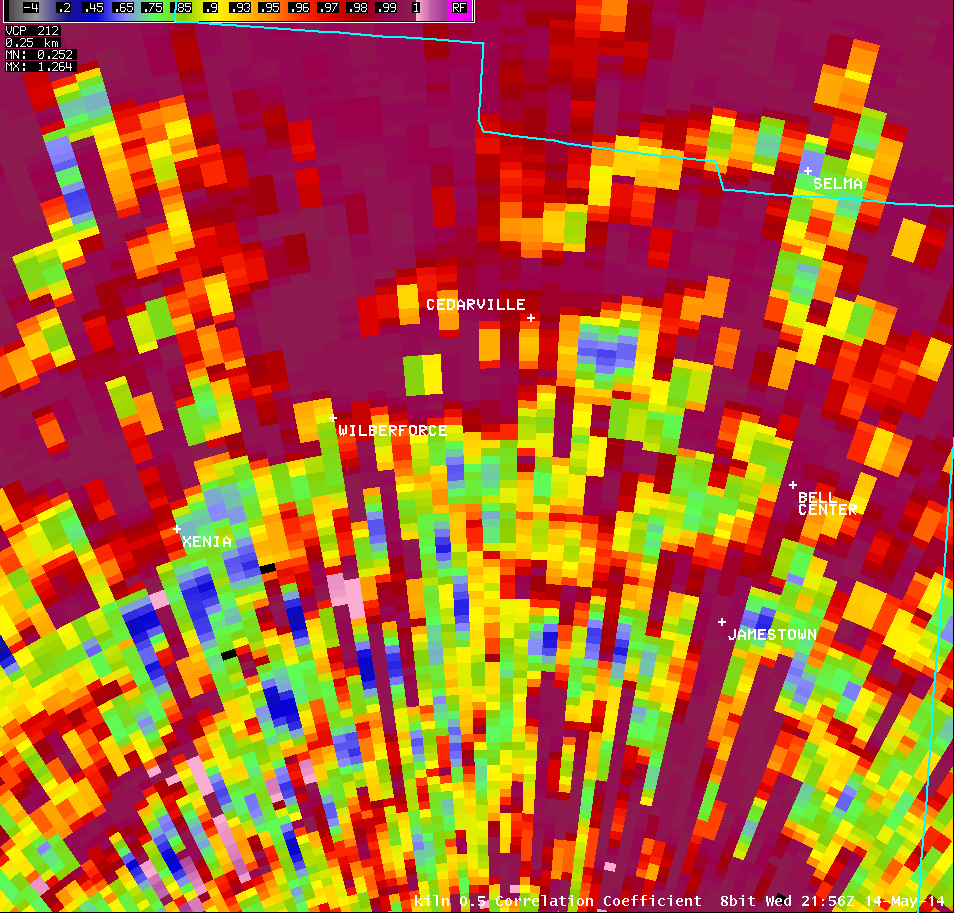

0.5° Reflectivity	0.5° Storm-Relative Motion	0.5° Correlation Coefficient	0.5° Differential Reflectivity

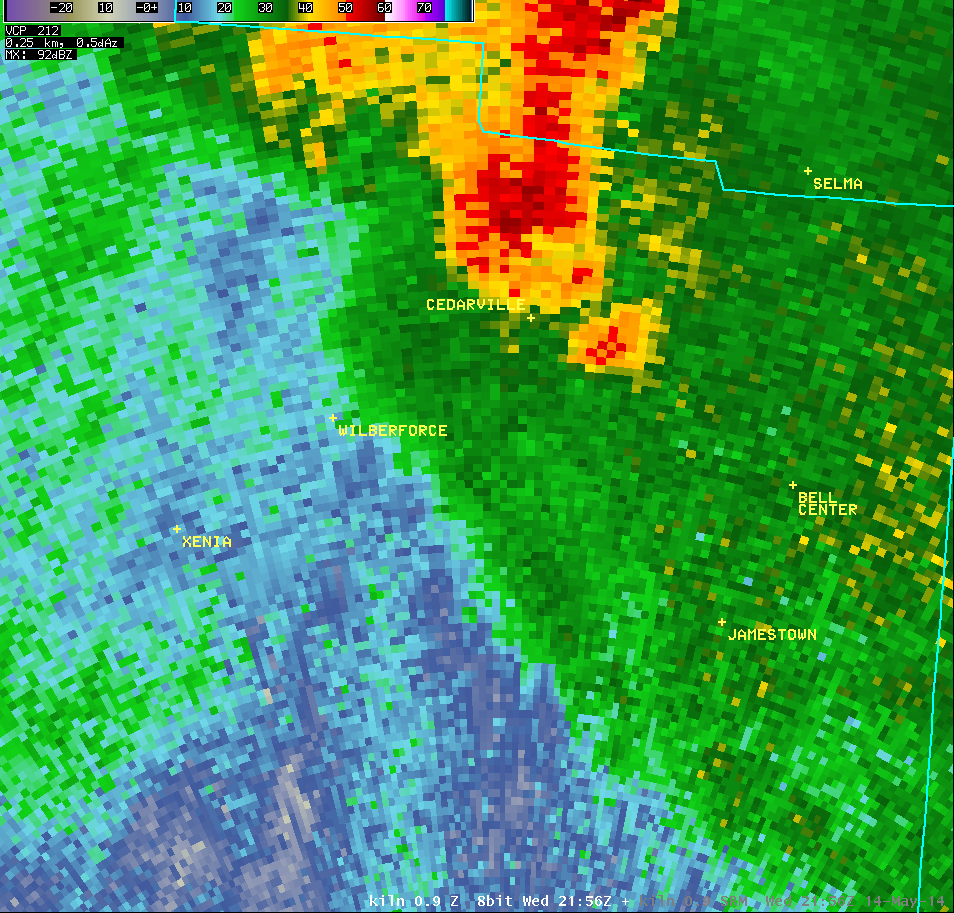

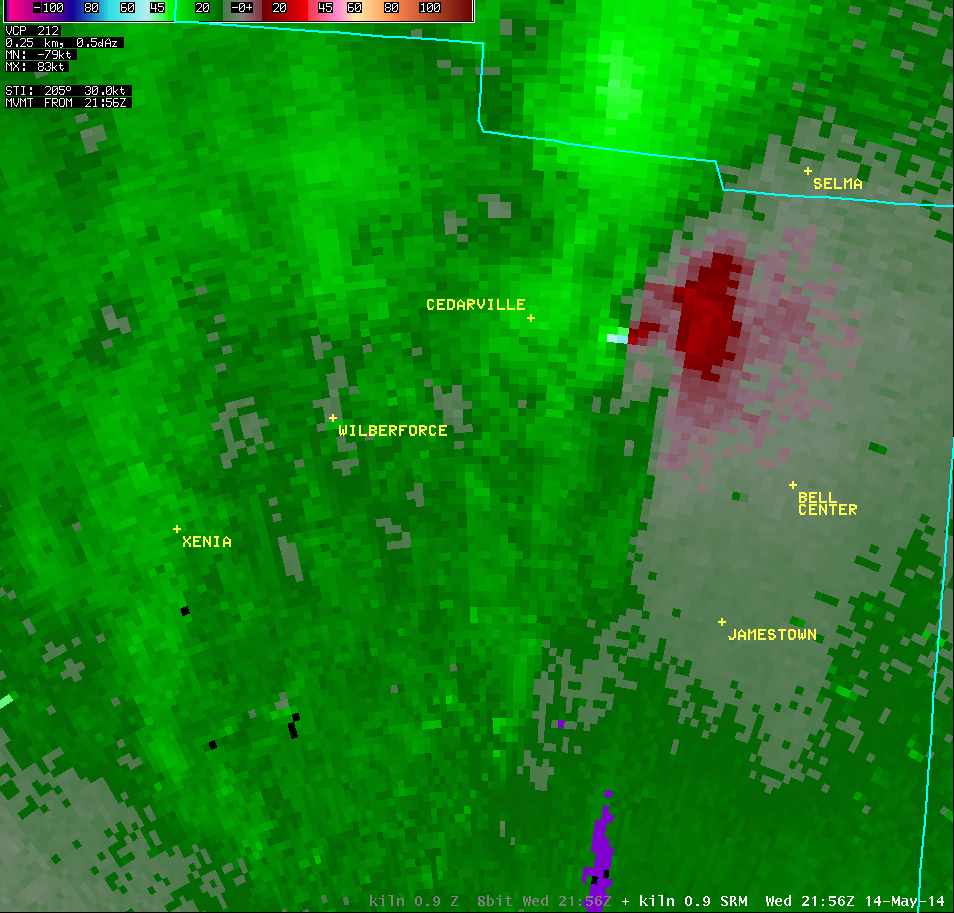

0.9° Reflectivity	0.9° Storm-Relative Motion	0.9° Correlation Coefficient	0.9° Differential Reflectivity

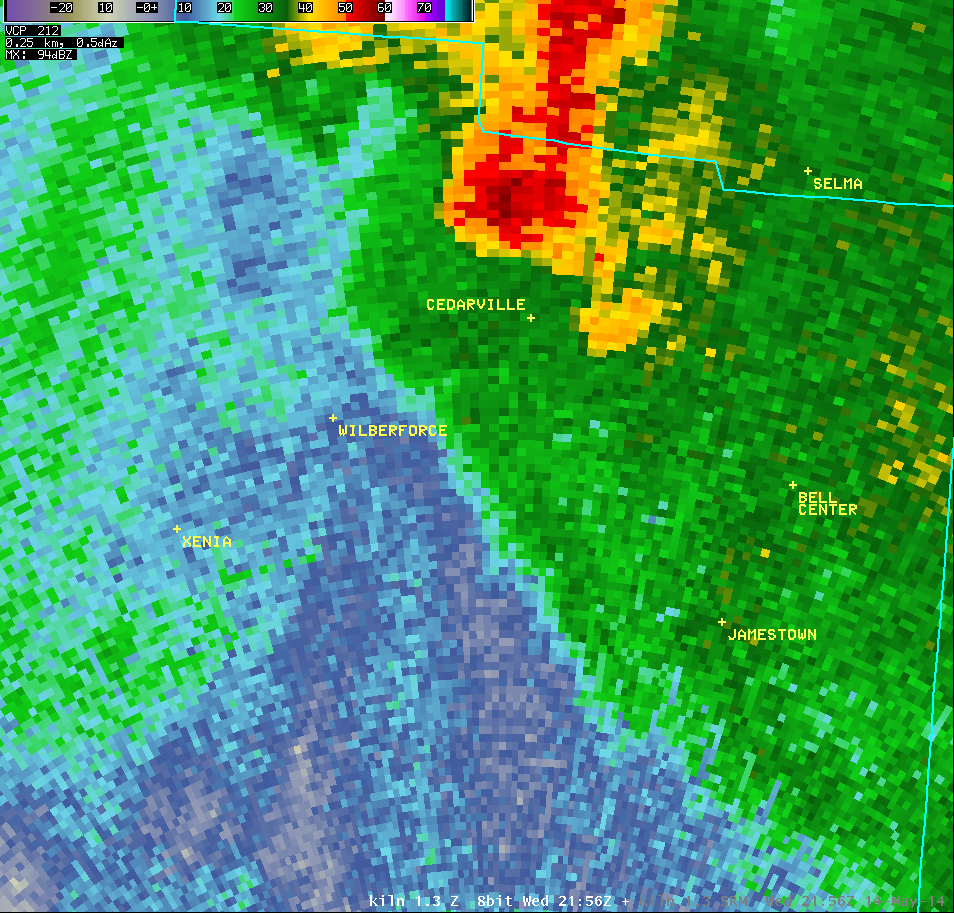

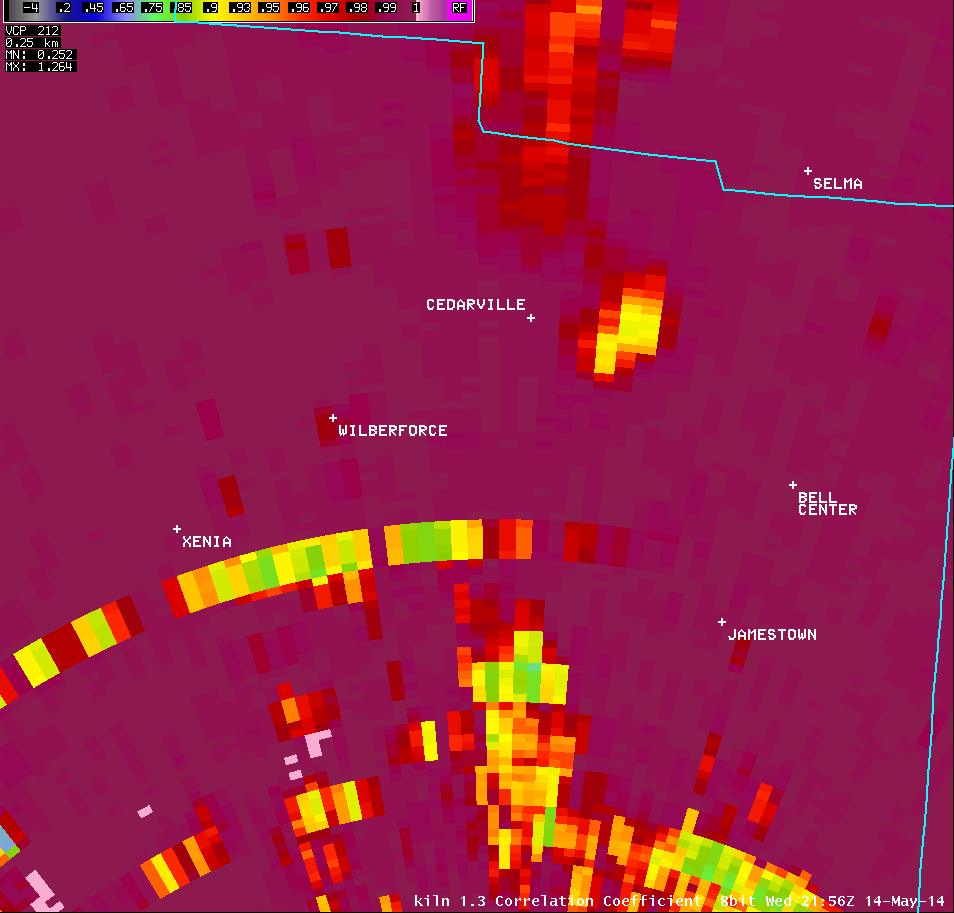

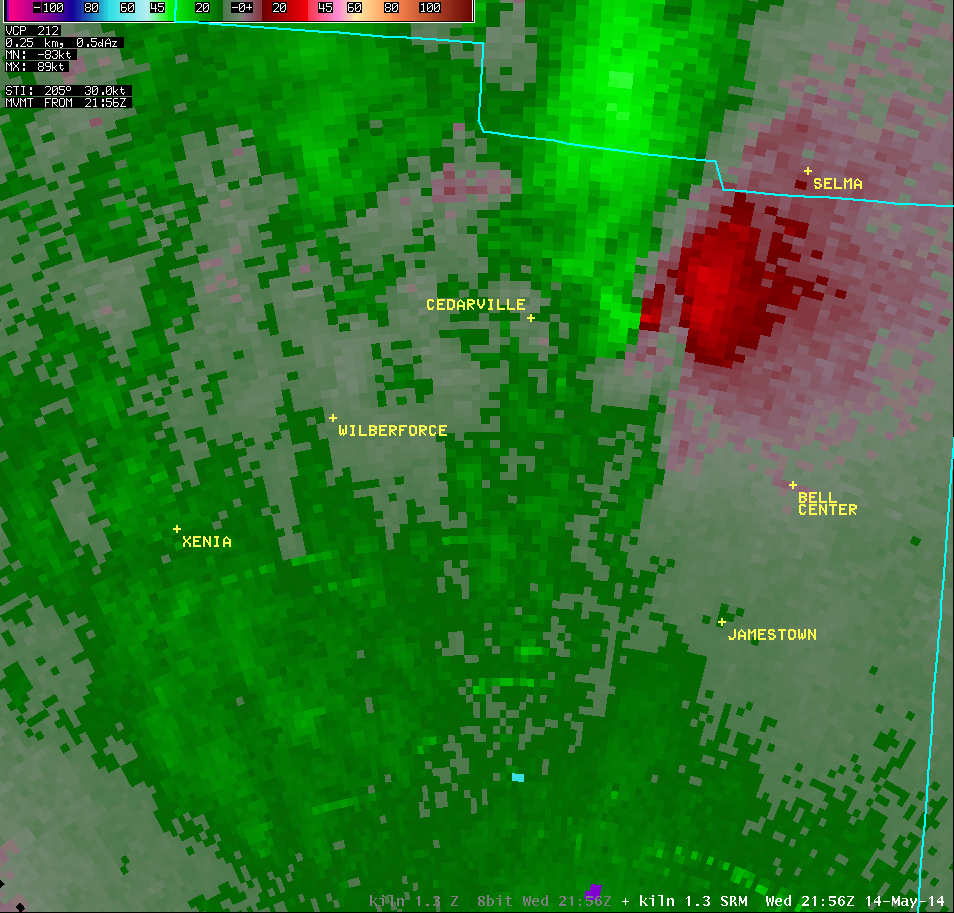

1.3° Reflectivity	1.3° Storm-Relative Motion	1.3° Correlation Coefficient	1.3° Differential Reflectivity

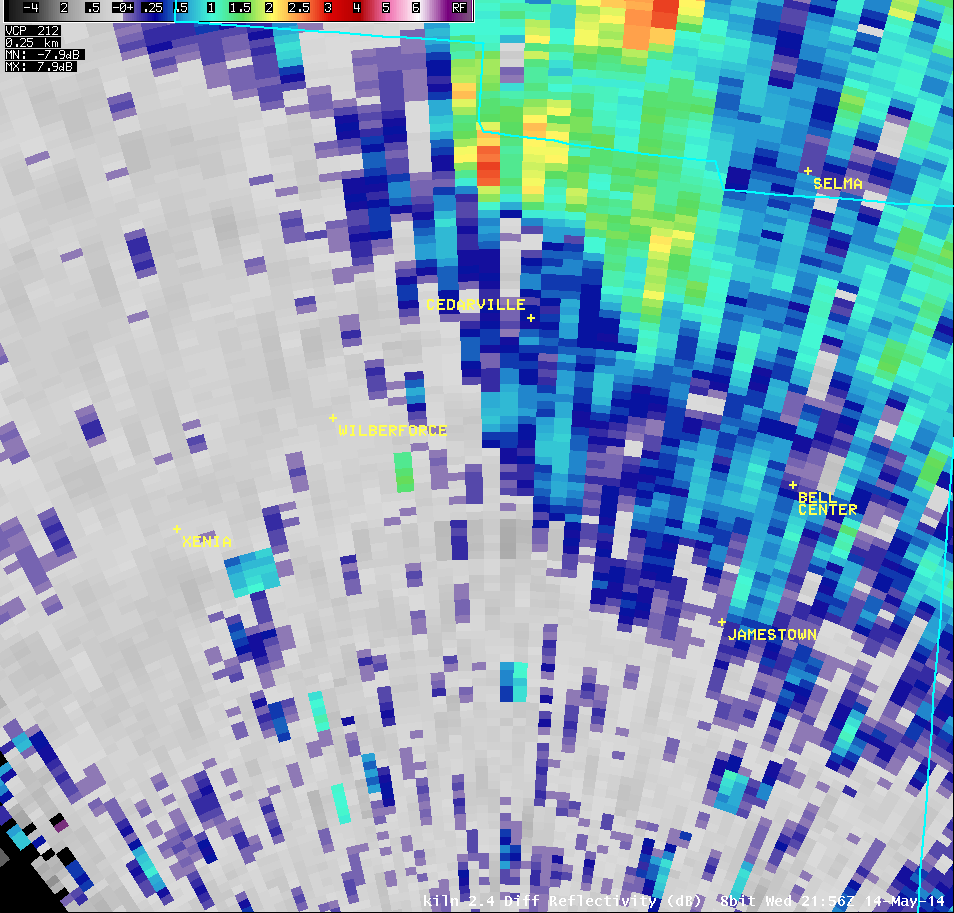

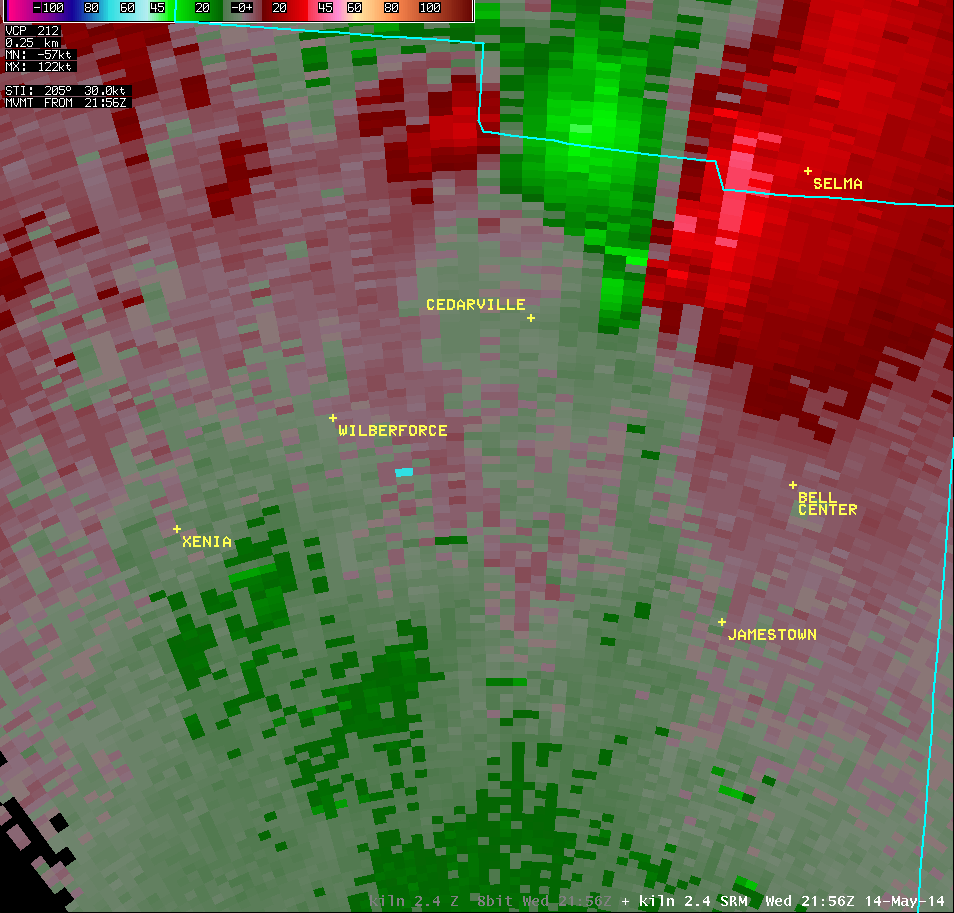

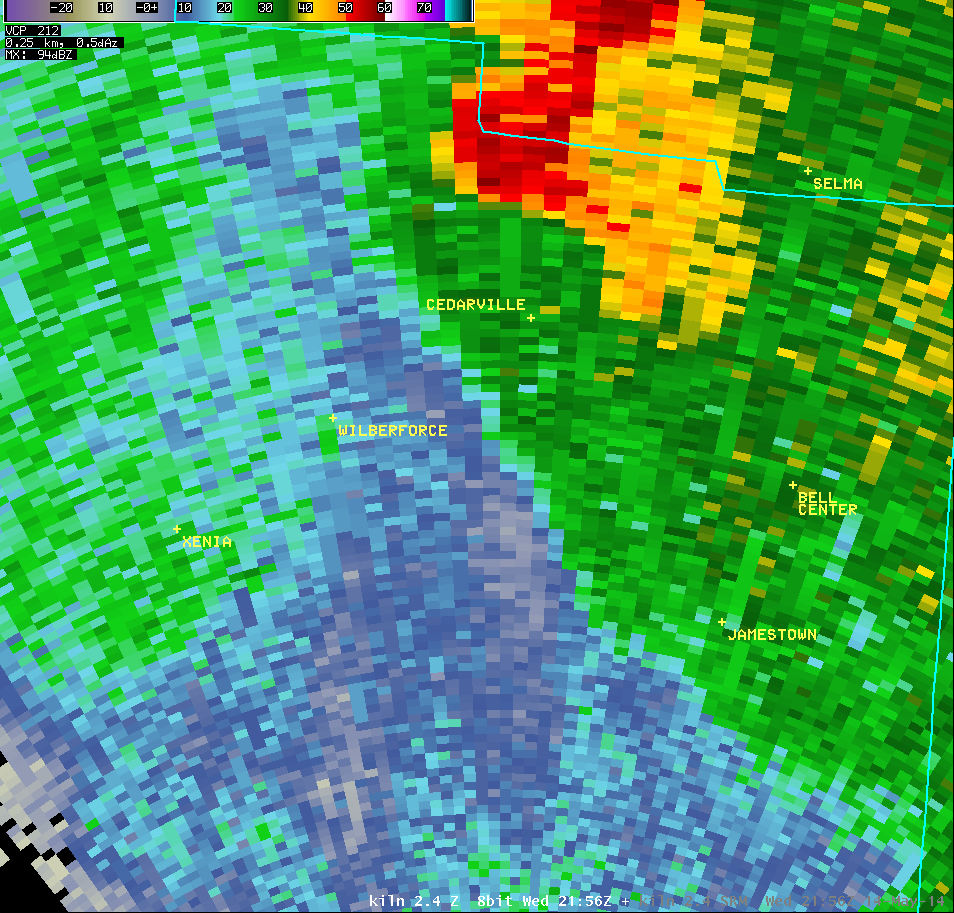

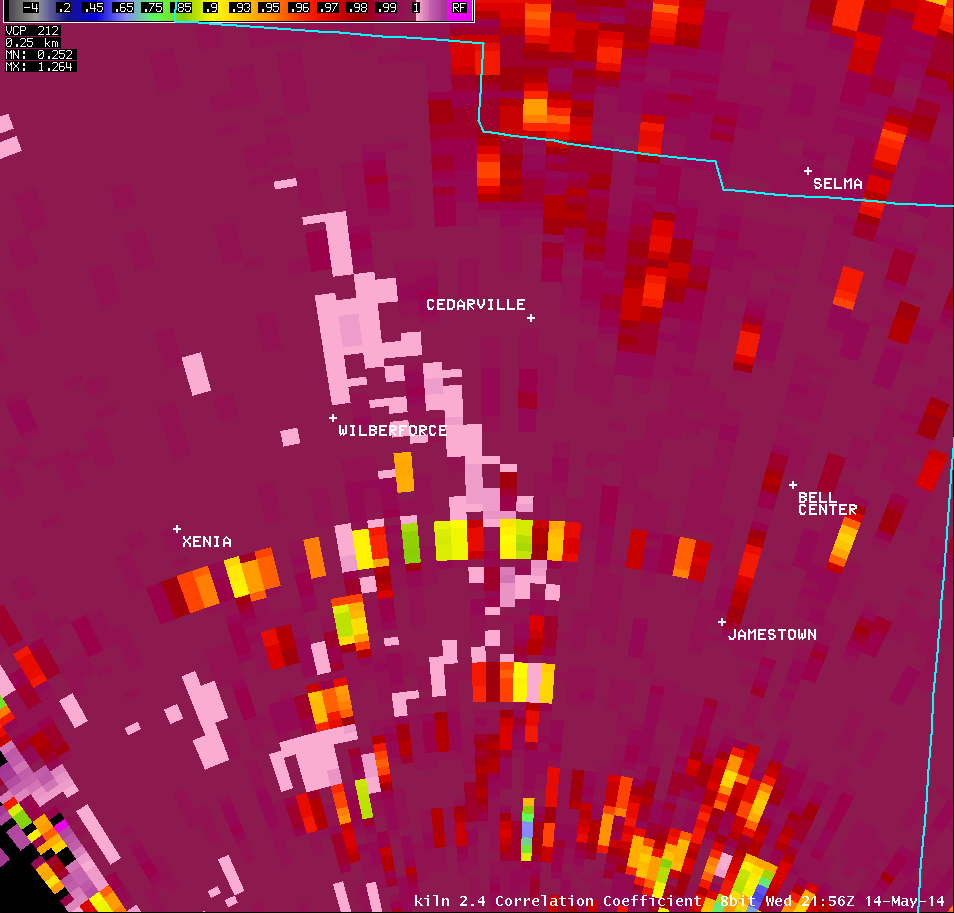

2.4° Reflectivity	2.4° Storm-Relative Motion	2.4° Correlation Coefficient	2.4° Differential Reflectivity

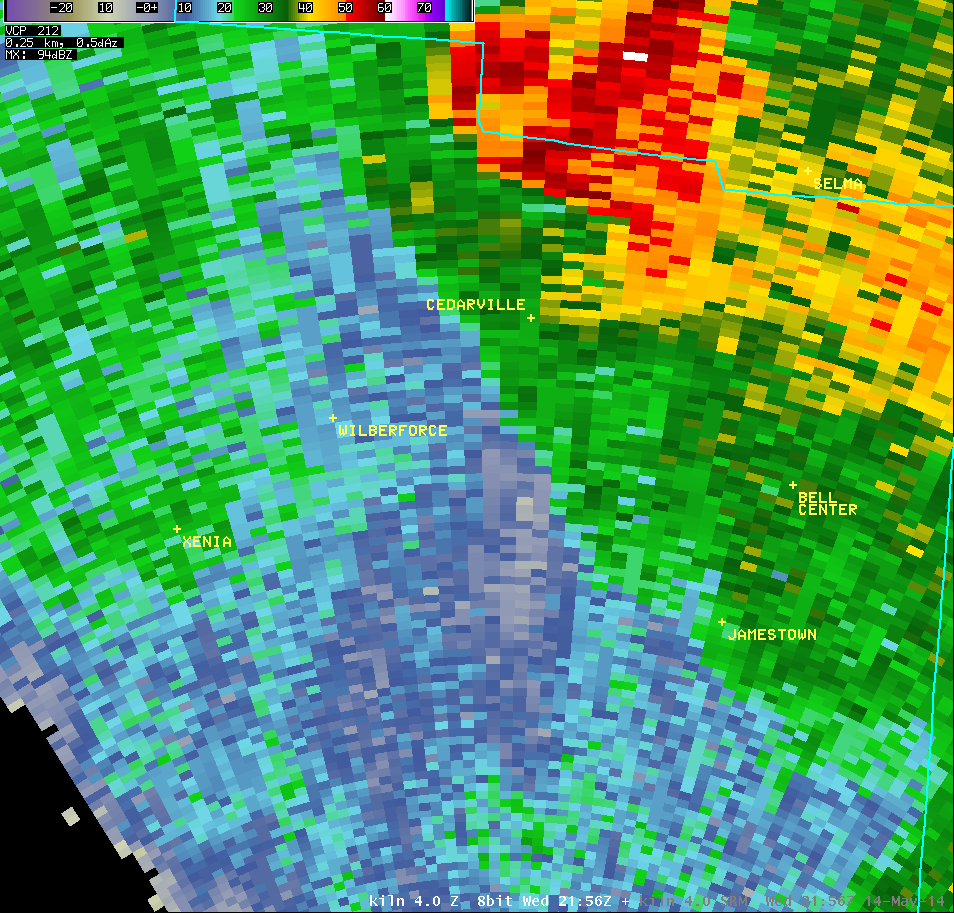

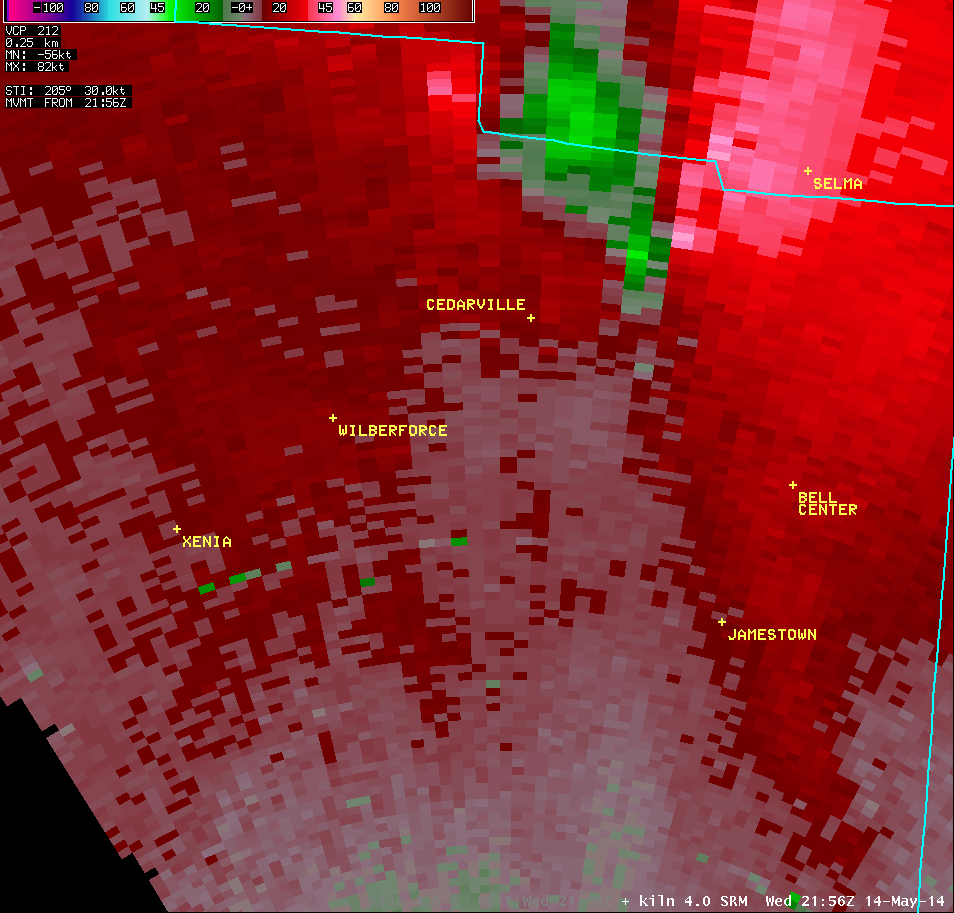

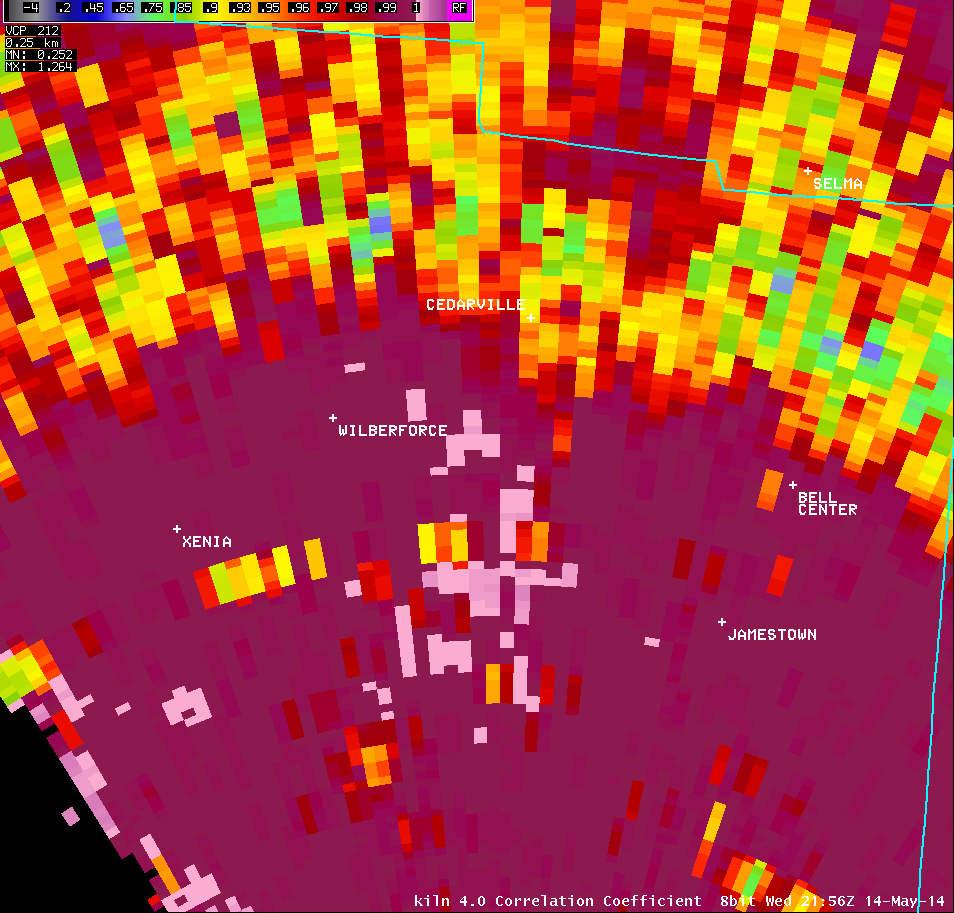

4.0° Reflectivity	4.0° Storm-Relative Motion	4.0° Correlation Coefficient

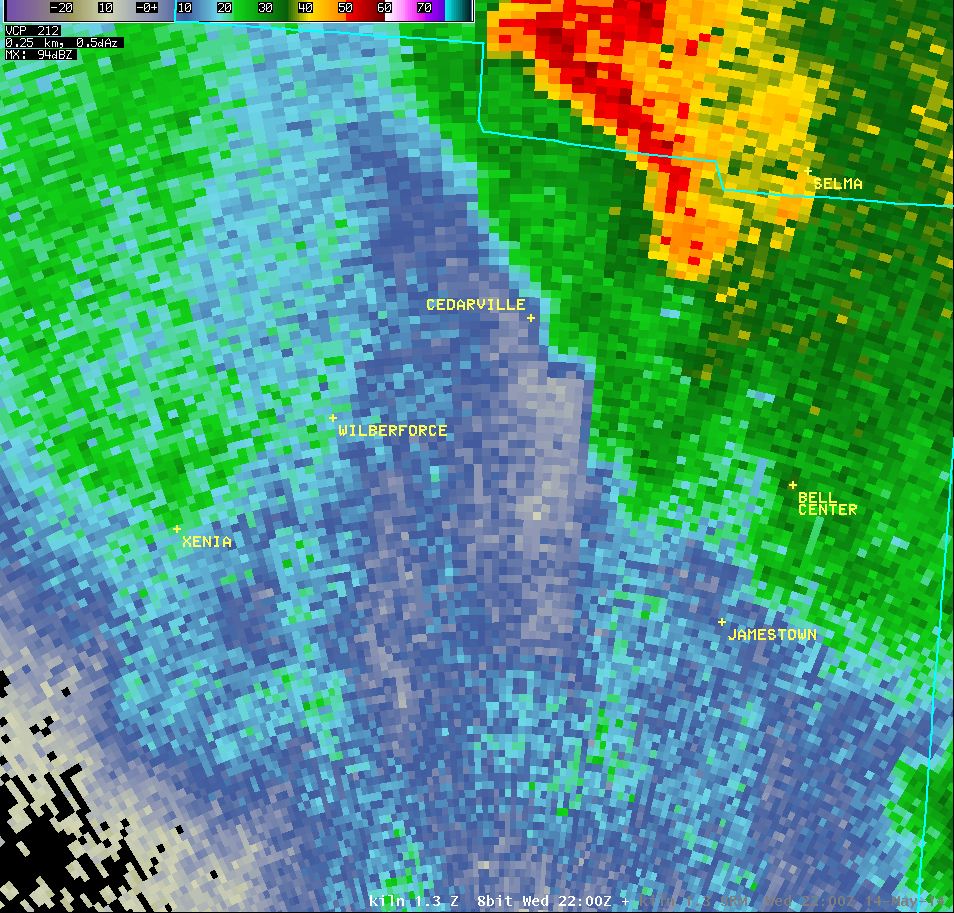

Vertical Loop of KILN Radar Imagery (6:00 PM)

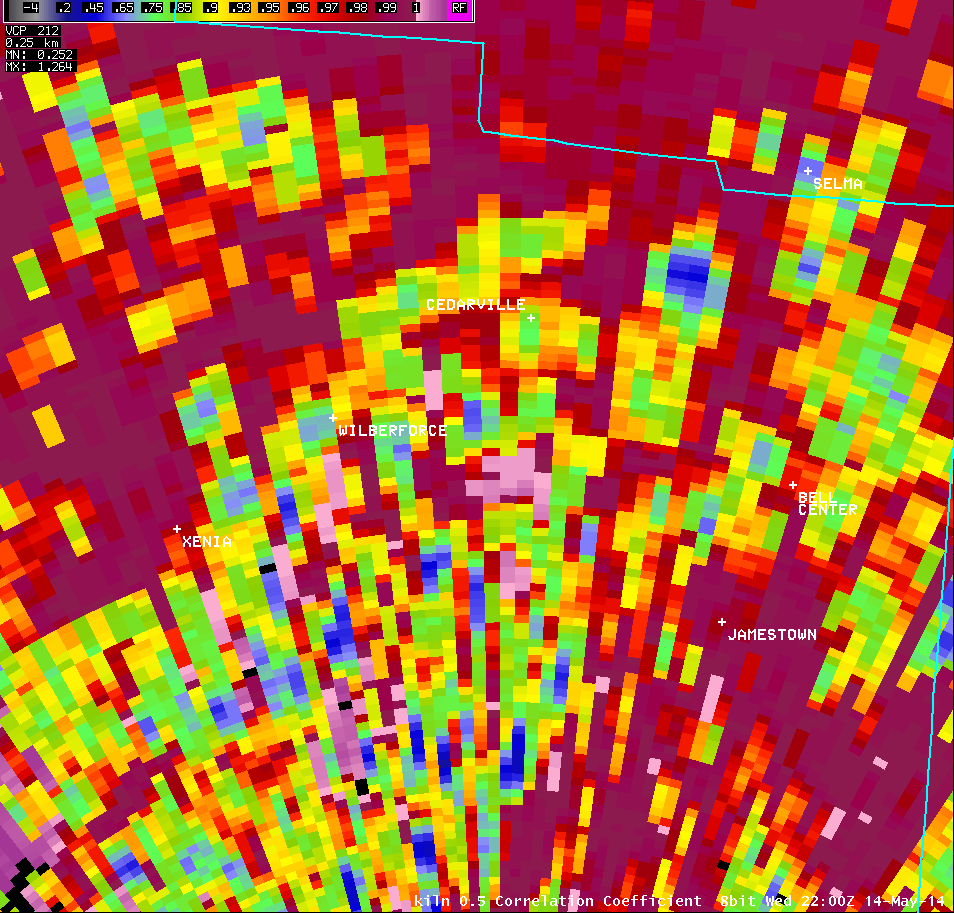

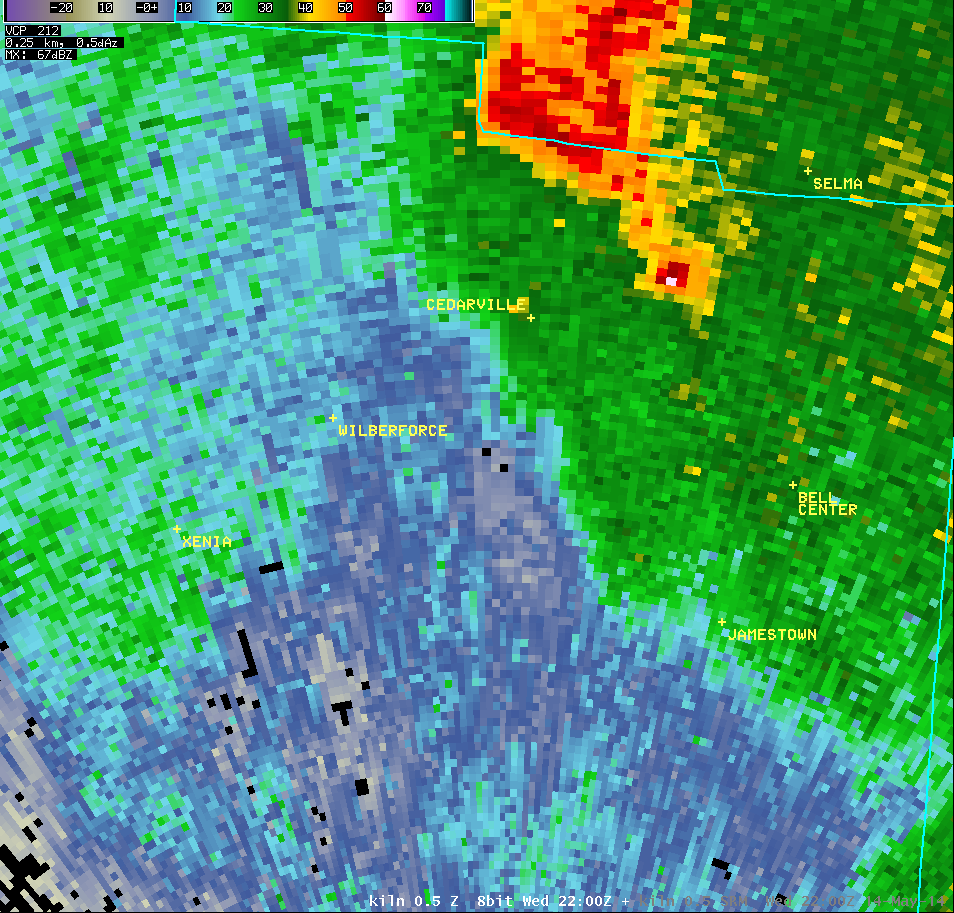

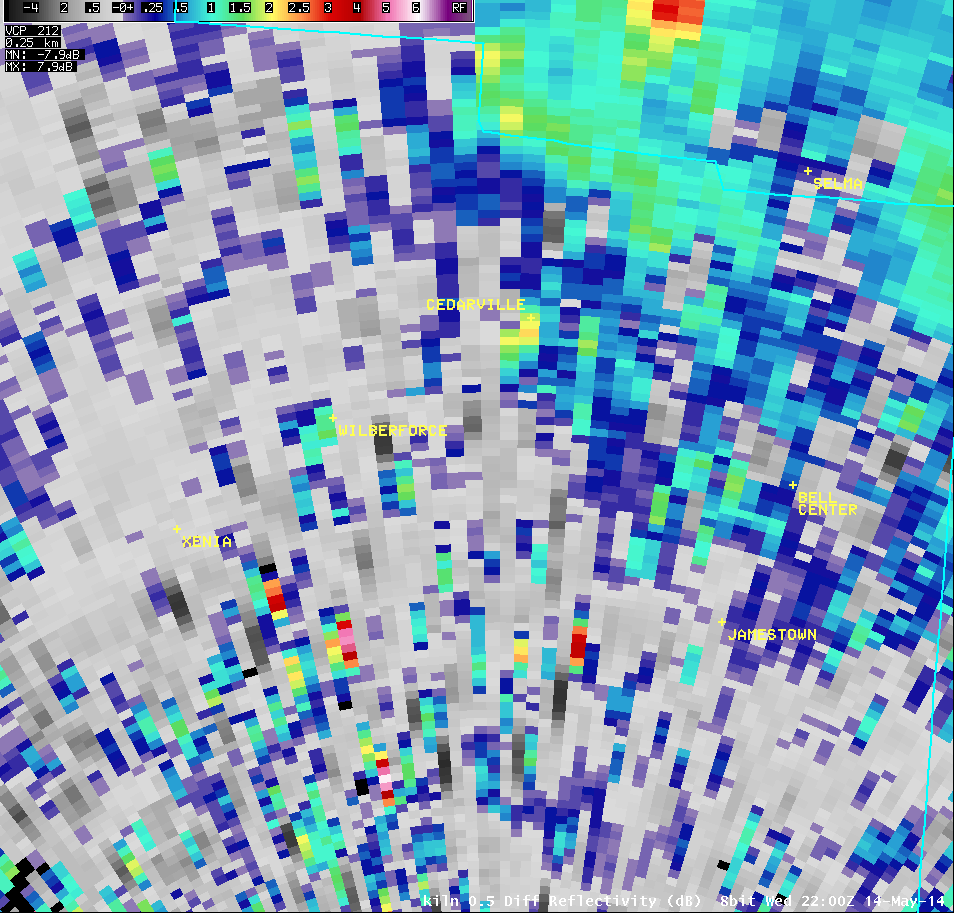

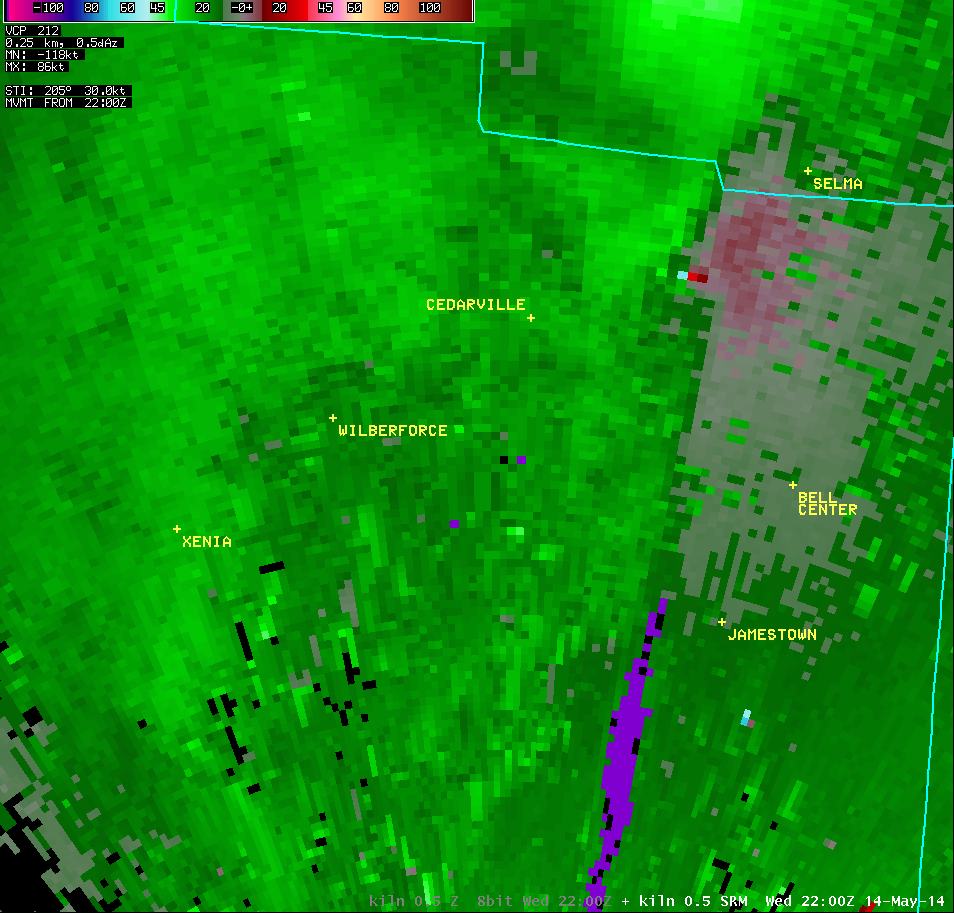

0.5° Reflectivity	0.5° Storm-Relative Motion	0.5° Correlation Coefficient	0.5° Differential Reflectivity

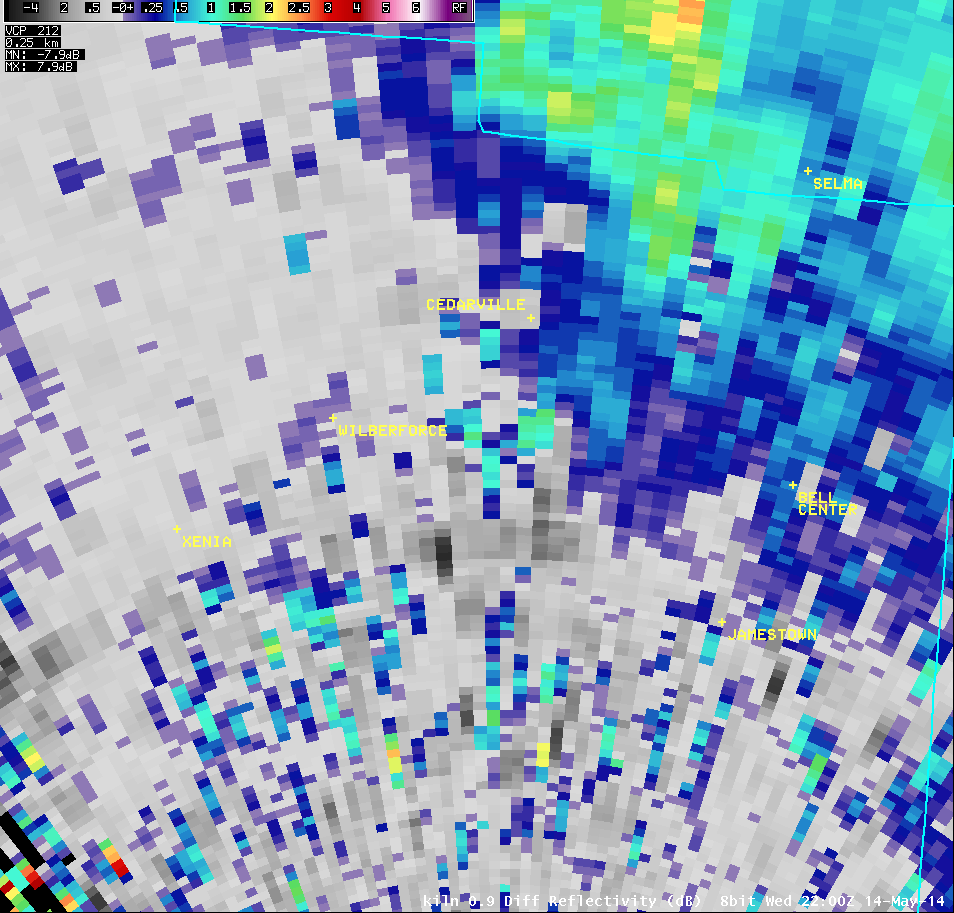

0.9° Reflectivity	0.9° Storm-Relative Motion	0.9° Correlation Coefficient	0.9° Differential Reflectivity

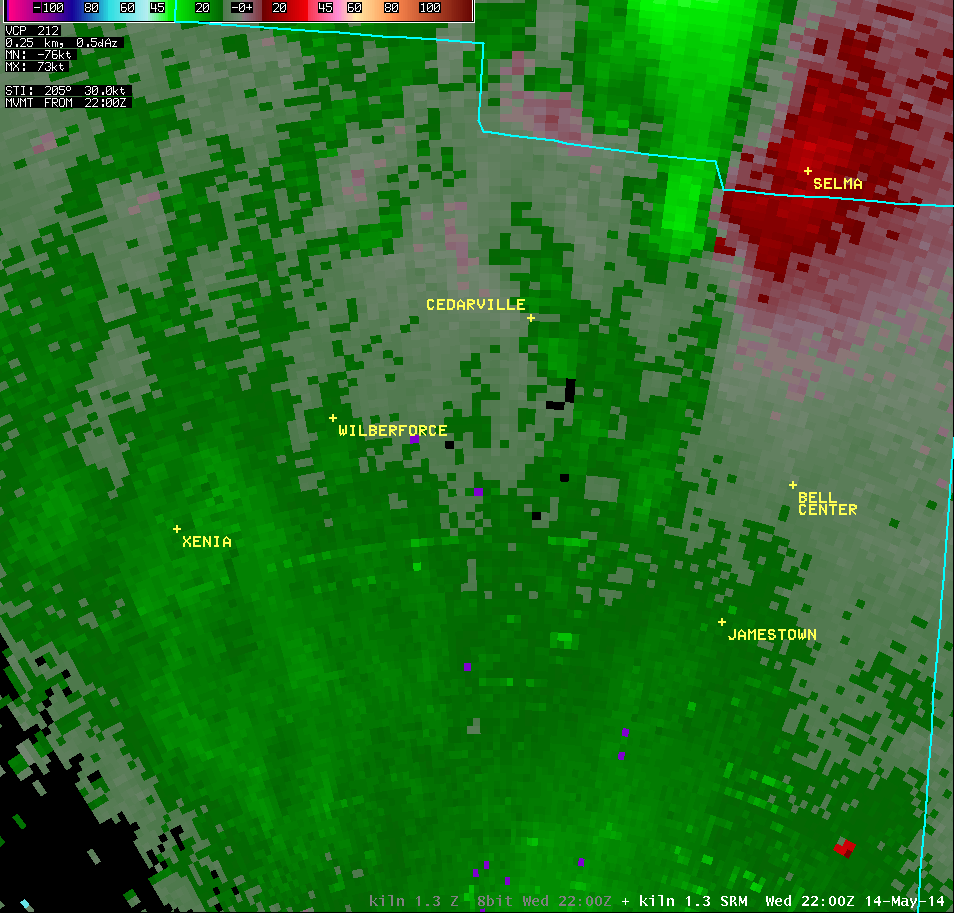

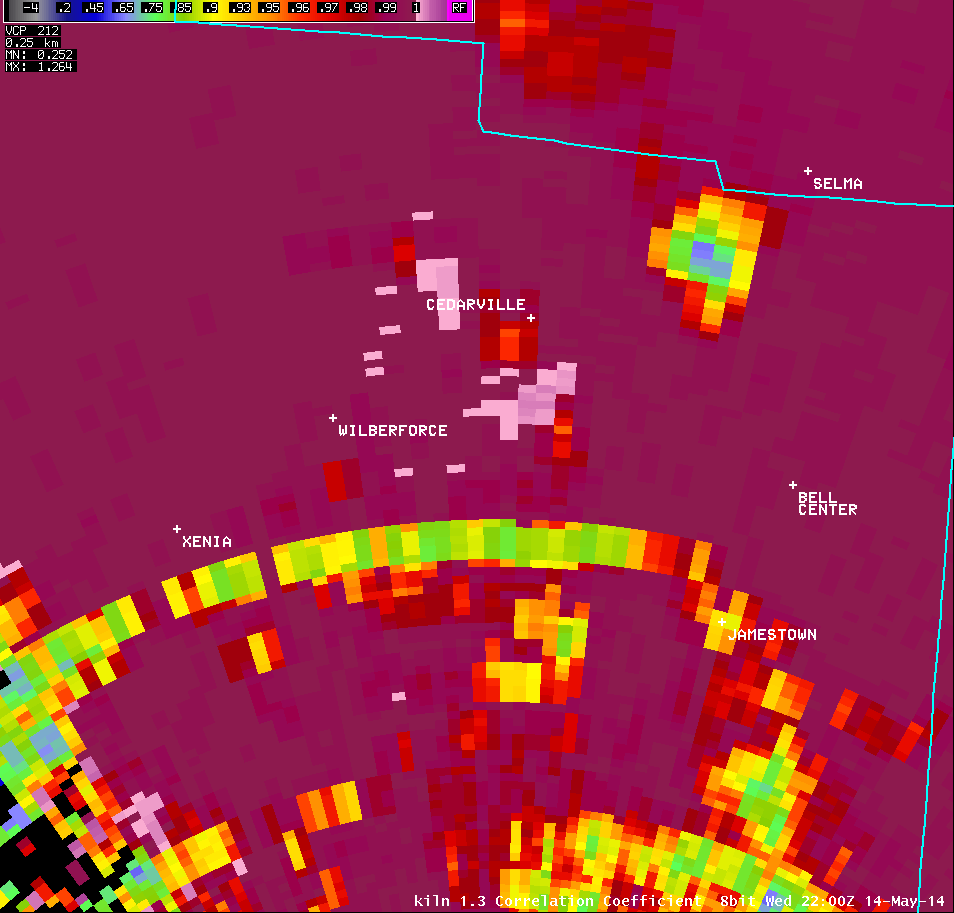

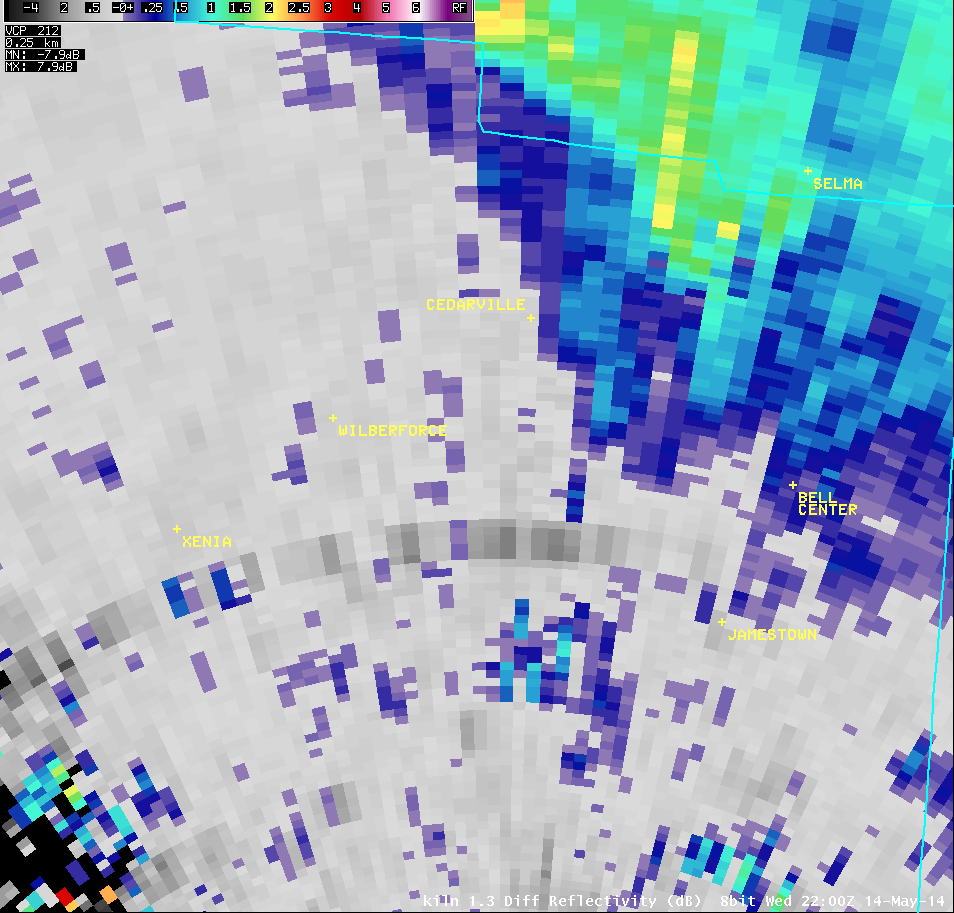

1.3° Reflectivity	1.3° Storm-Relative Motion	1.3° Correlation Coefficient	1.3° Differential Reflectivity

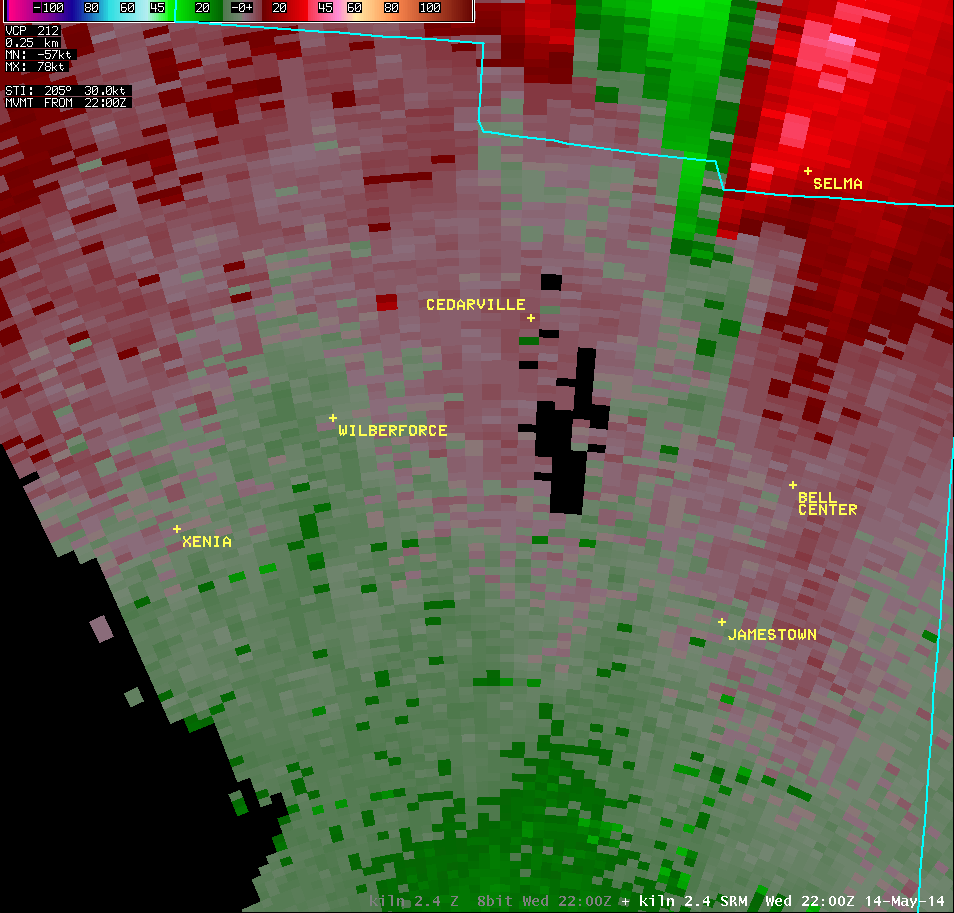

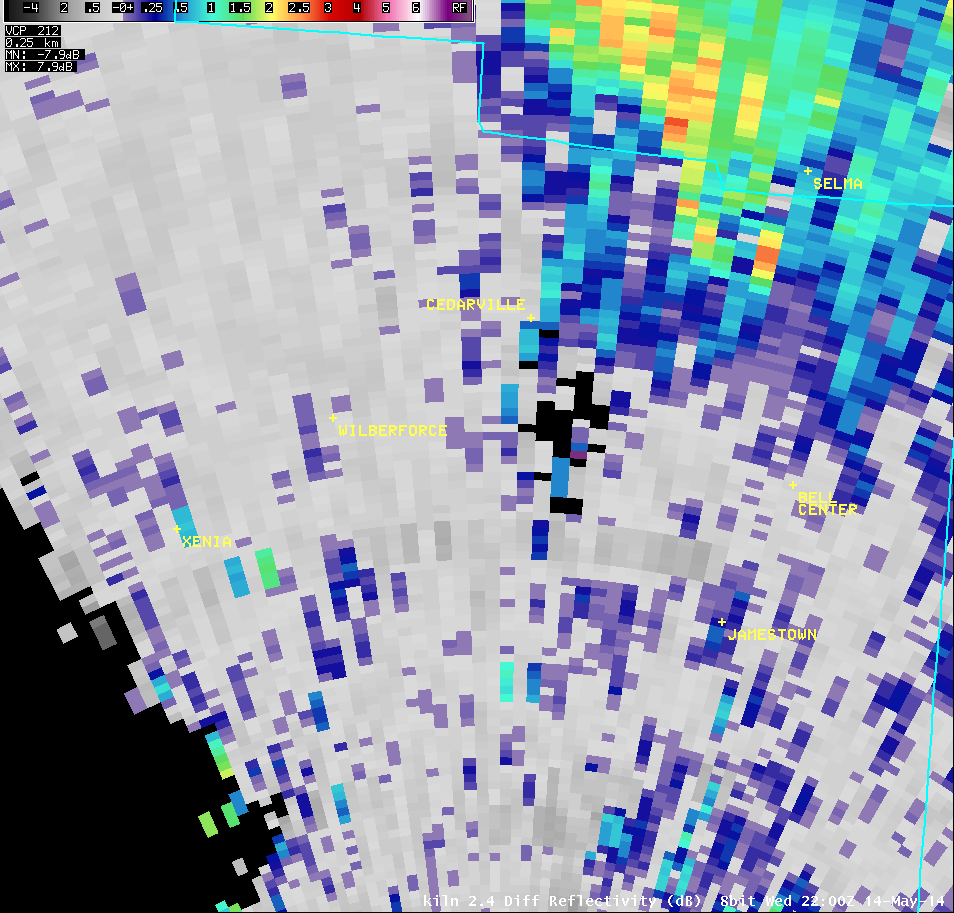

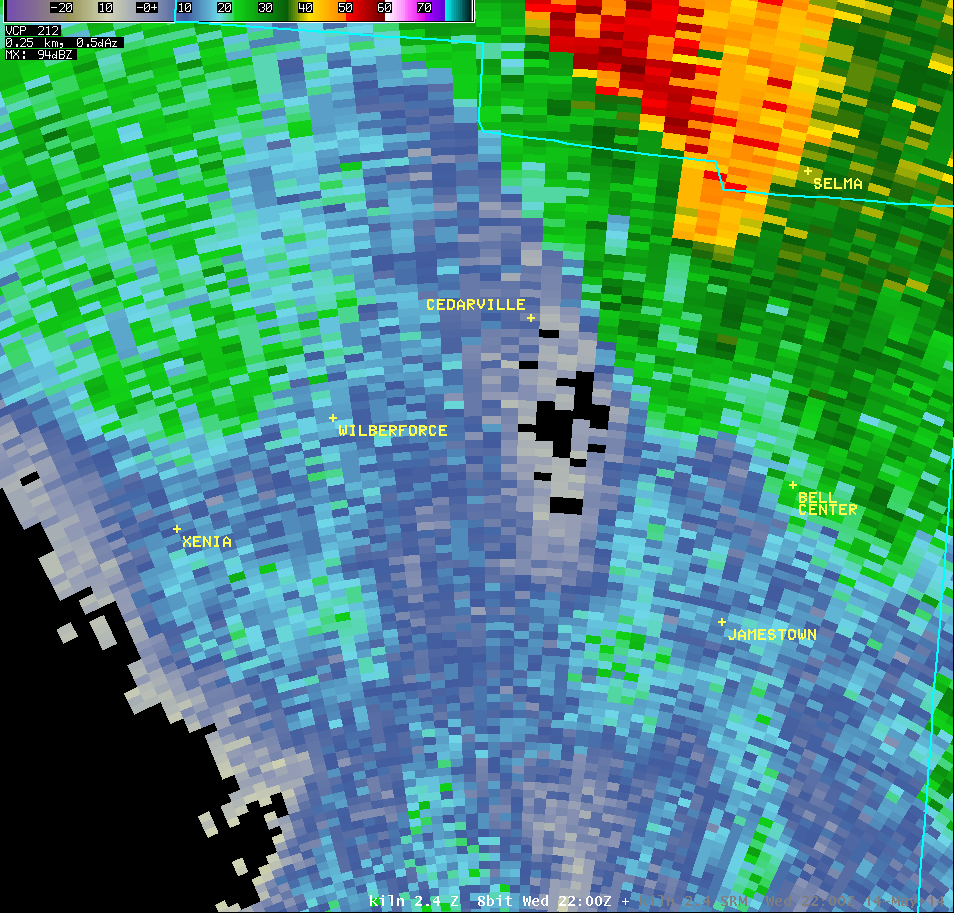

2.4° Reflectivity	2.4° Storm-Relative Motion	2.4° Correlation Coefficient	2.4° Differential Reflectivity

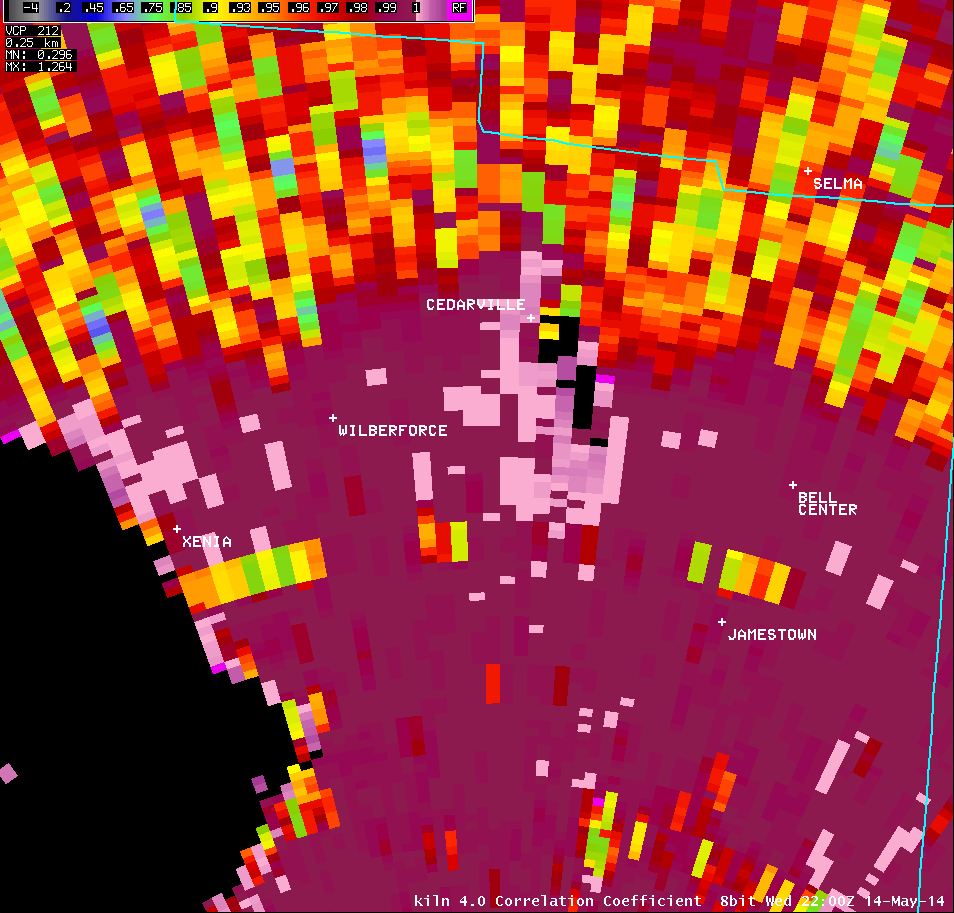

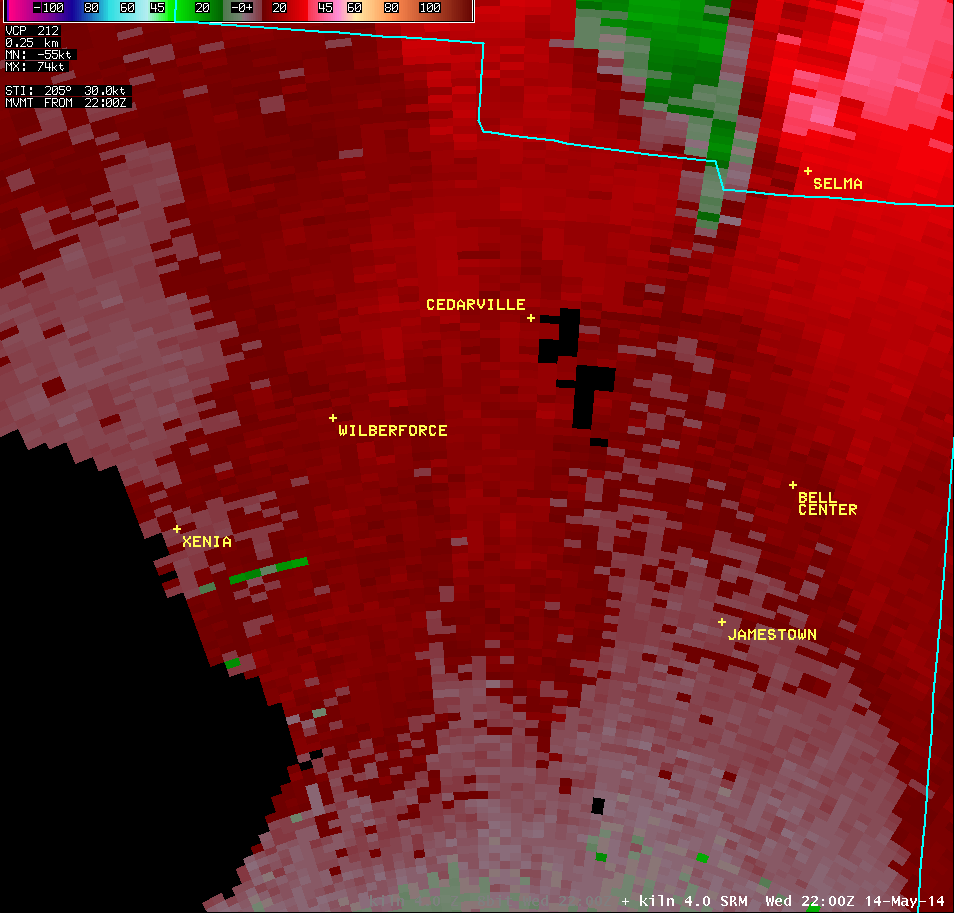

4.0° Reflectivity	4.0° Storm-Relative Motion	4.0° Correlation Coefficient

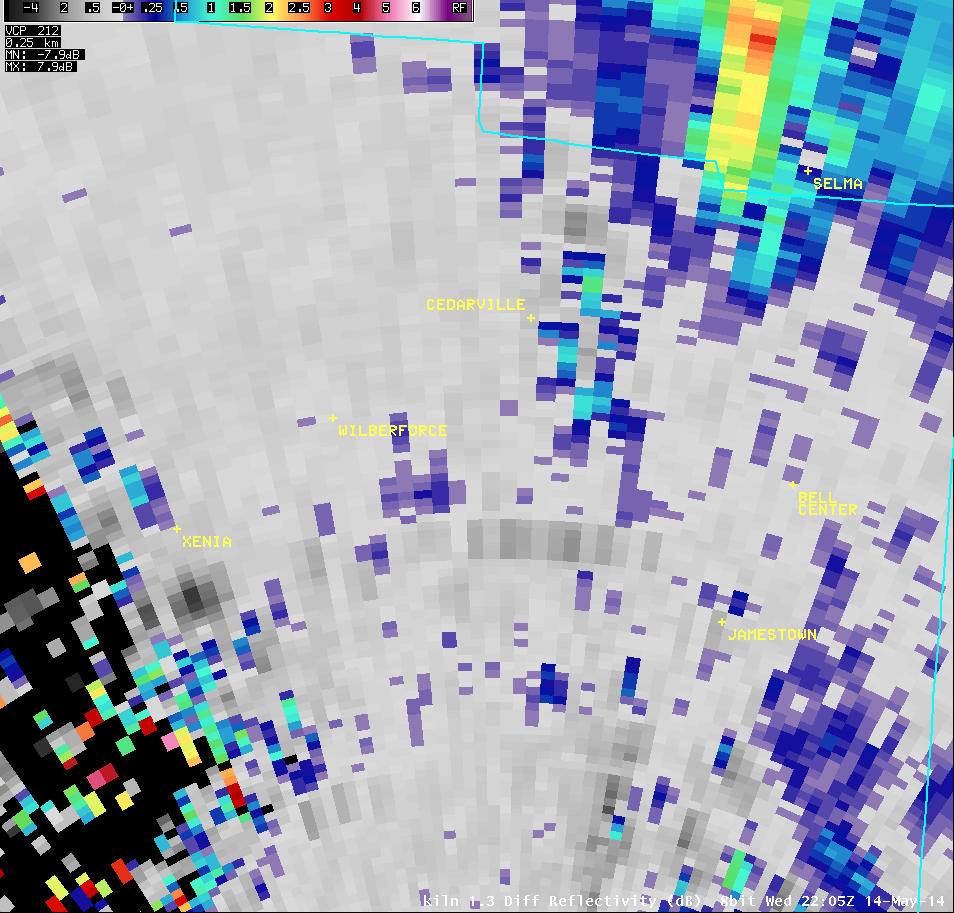

Vertical Loop of KILN Radar Imagery (6:05 PM)

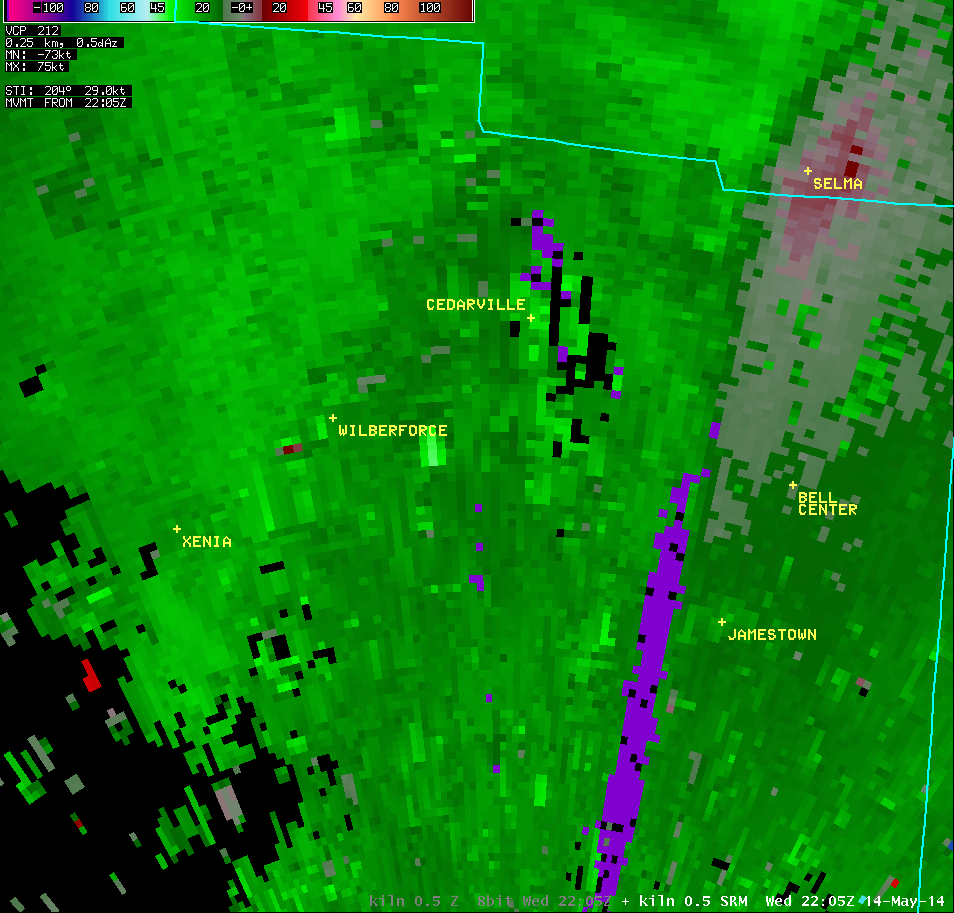

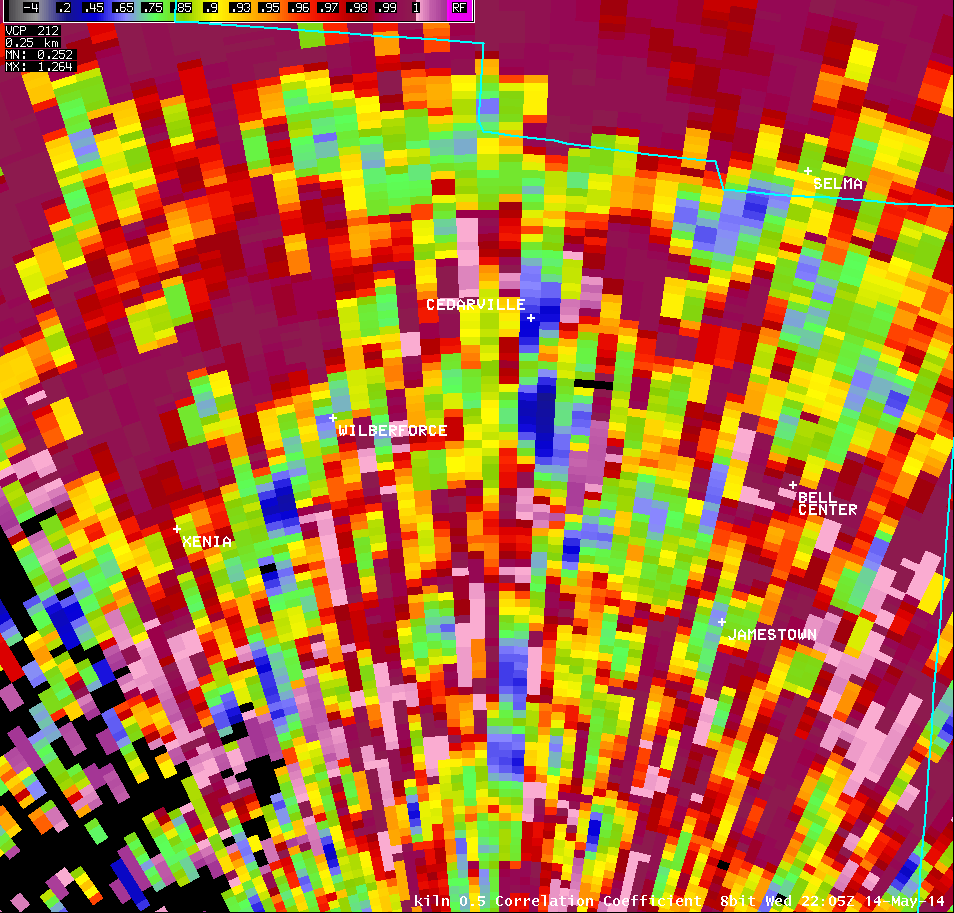

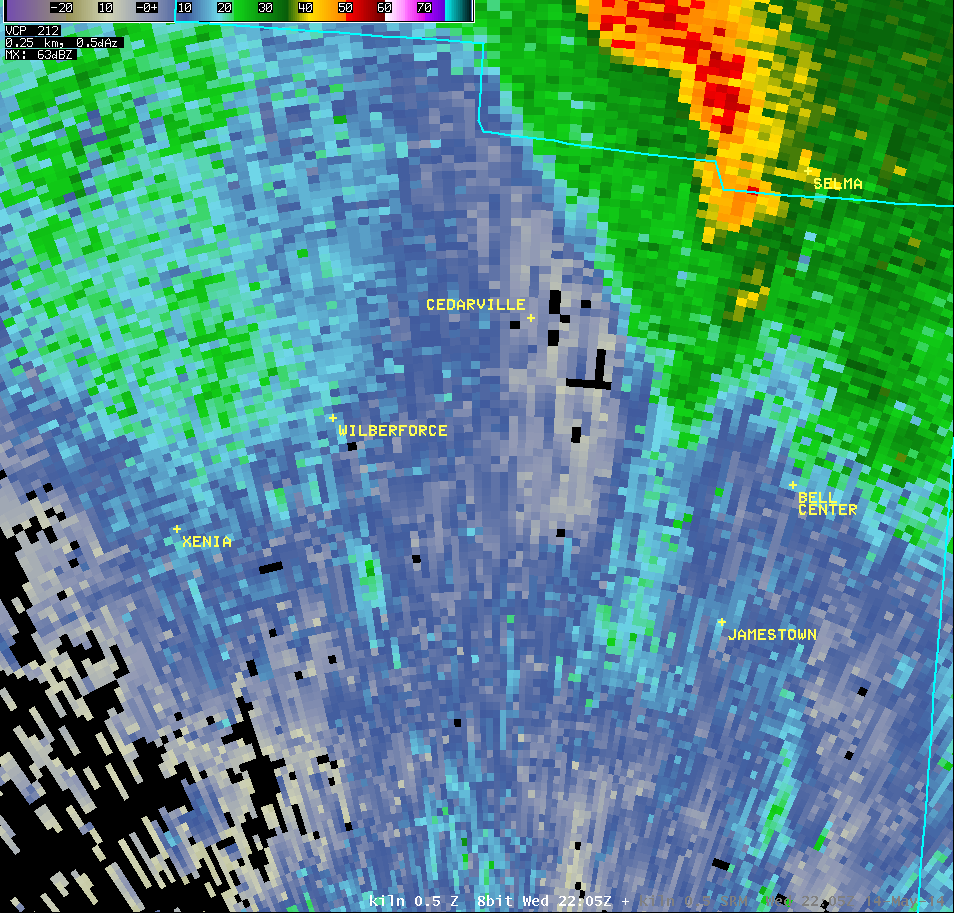

0.5° Reflectivity	0.5° Storm-Relative Motion	0.5° Correlation Coefficient	0.5° Differential Reflectivity

0.9° Reflectivity	0.9° Storm-Relative Motion	0.9° Correlation Coefficient	0.9° Differential Reflectivity

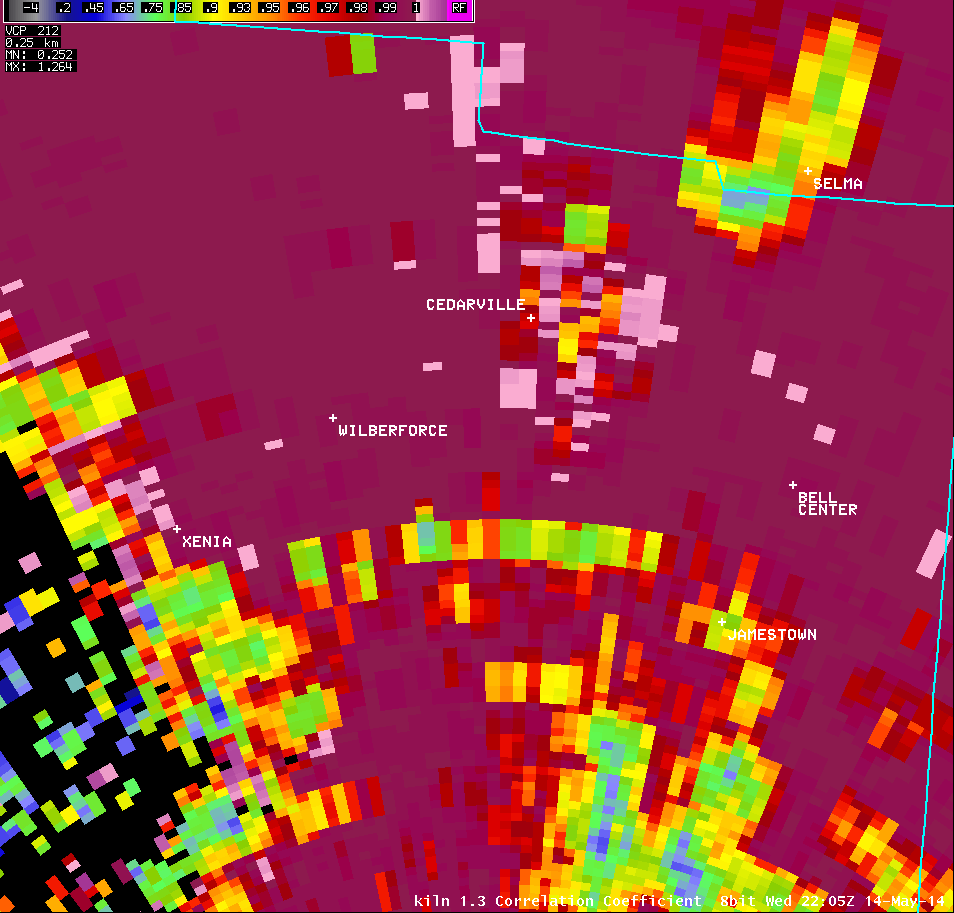

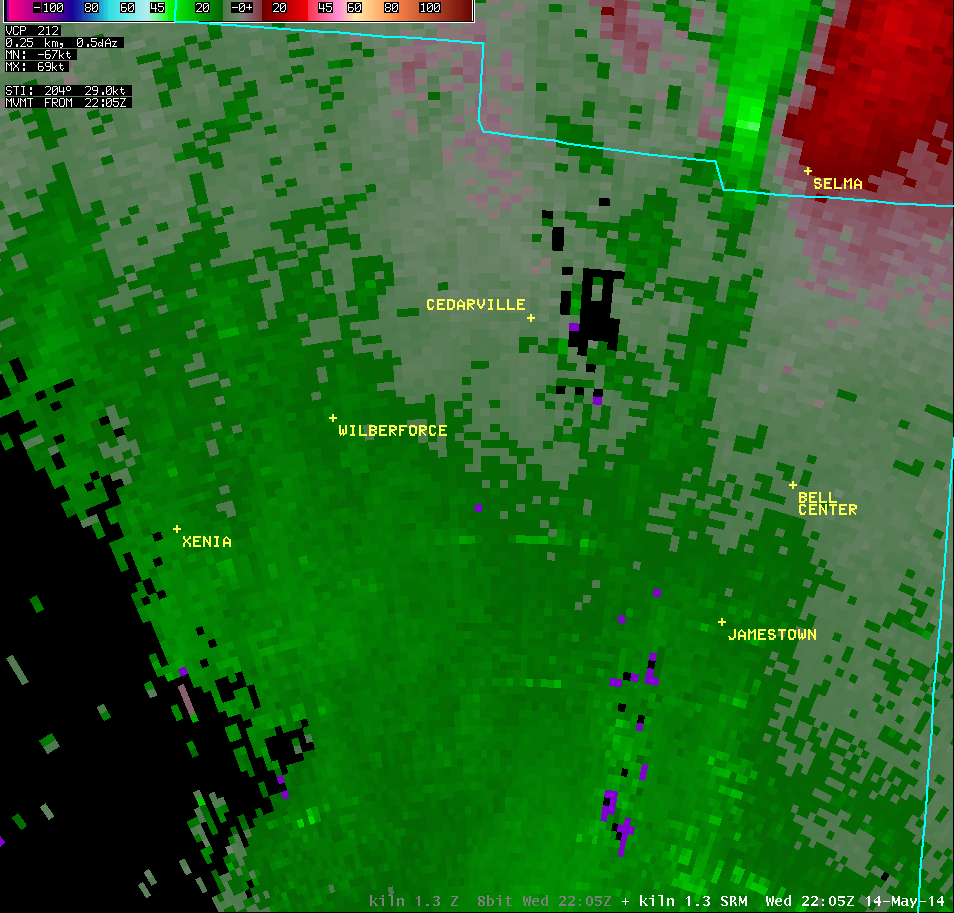

1.3° Reflectivity	1.3° Storm-Relative Motion	1.3° Correlation Coefficient	1.3° Differential Reflectivity

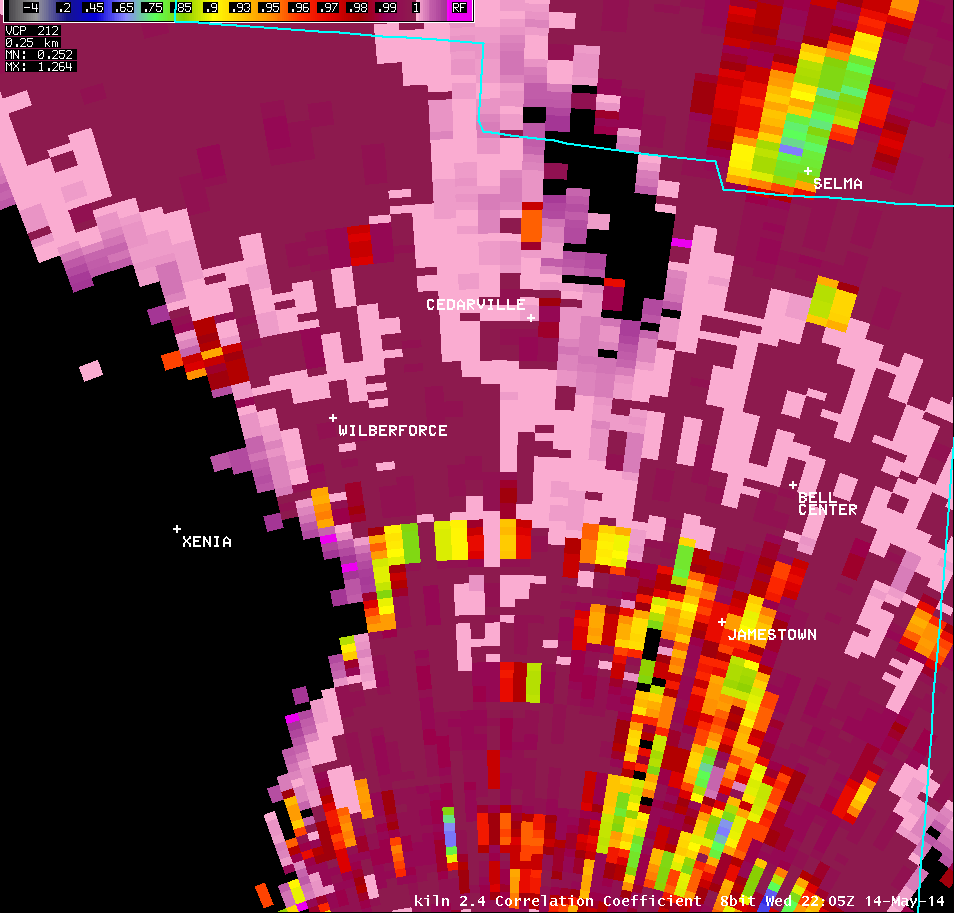

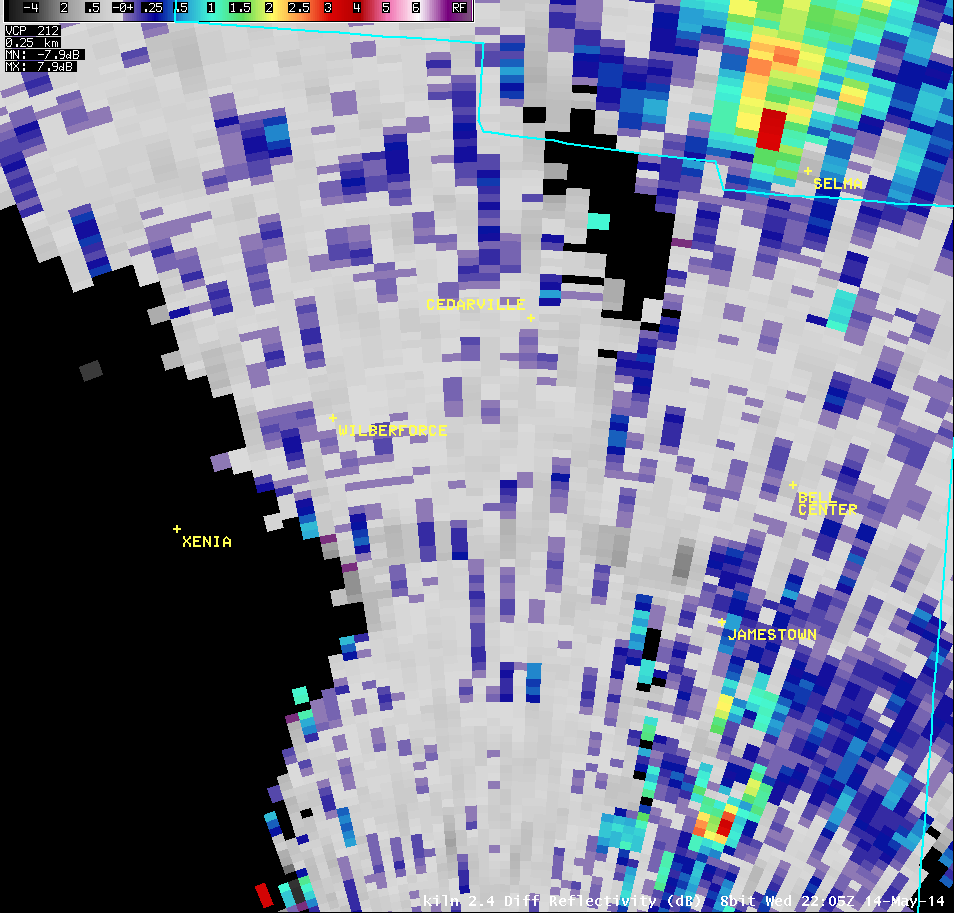

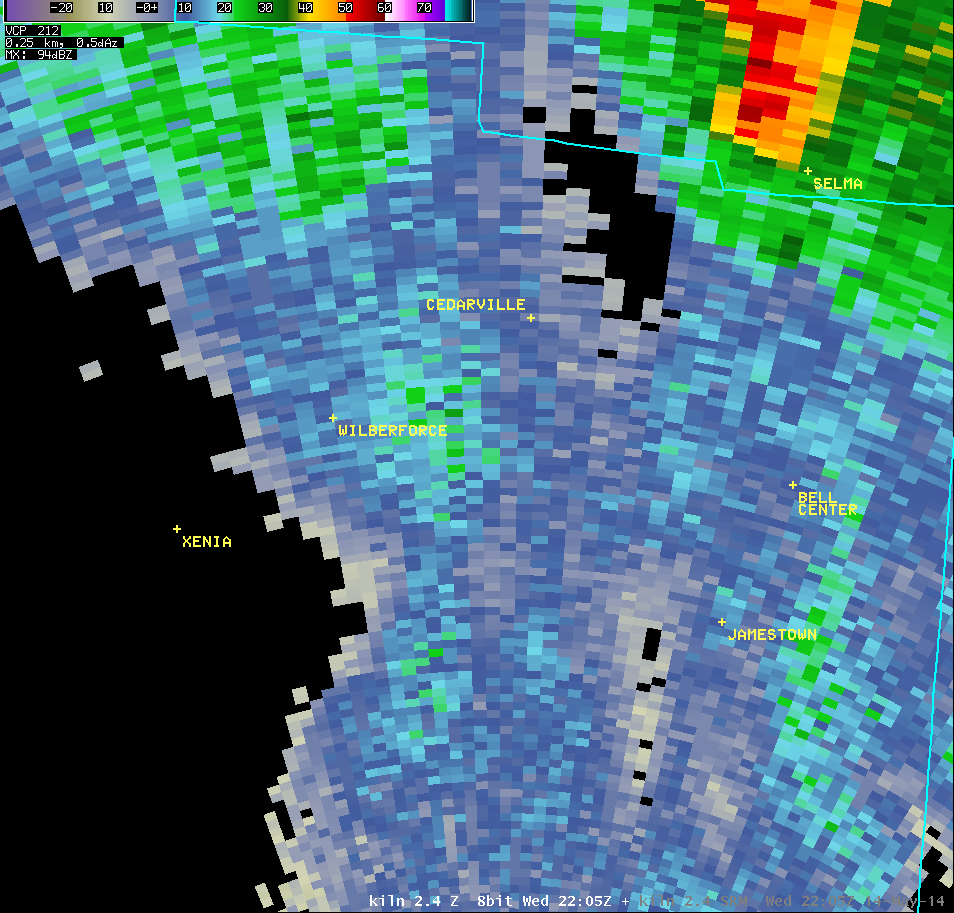

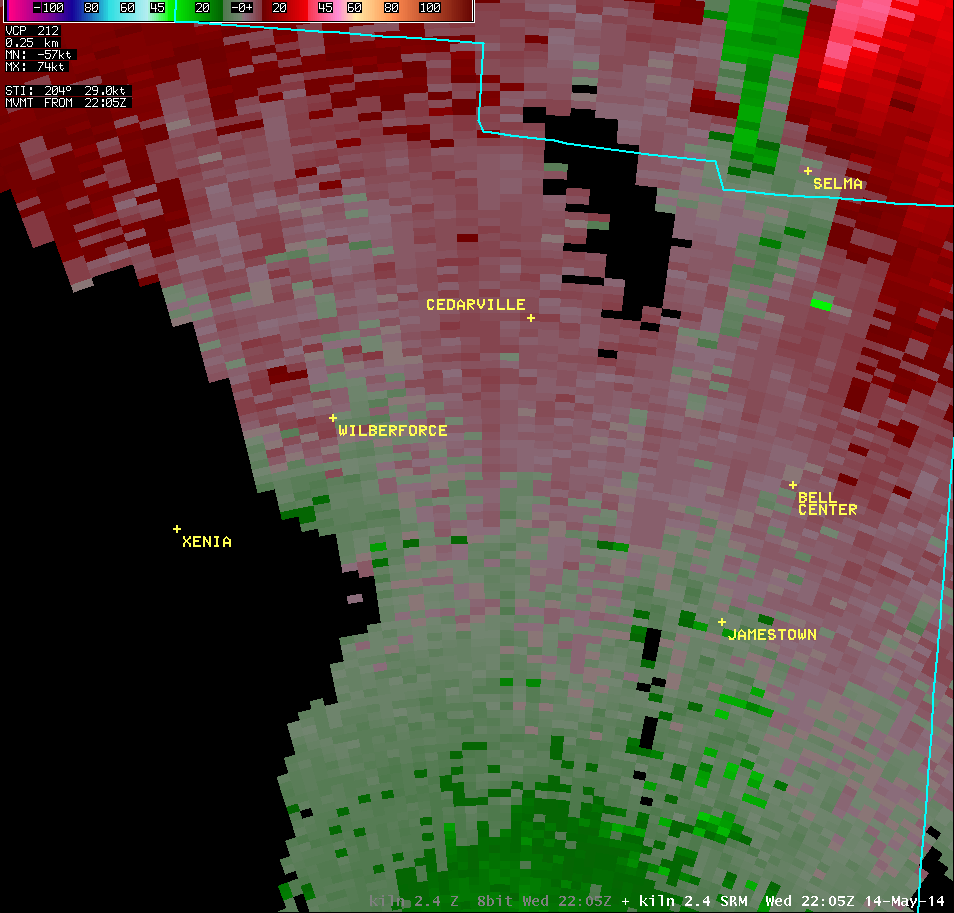

2.4° Reflectivity	2.4° Storm-Relative Motion	2.4° Correlation Coefficient	2.4° Differential Reflectivity

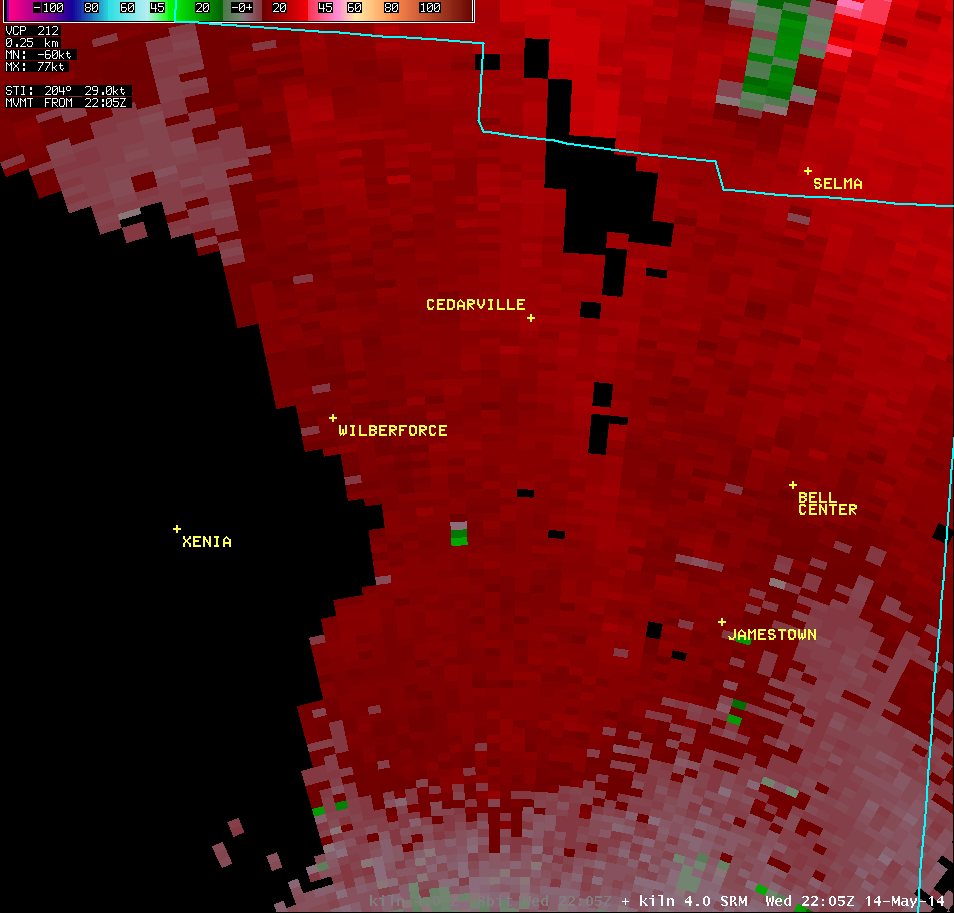

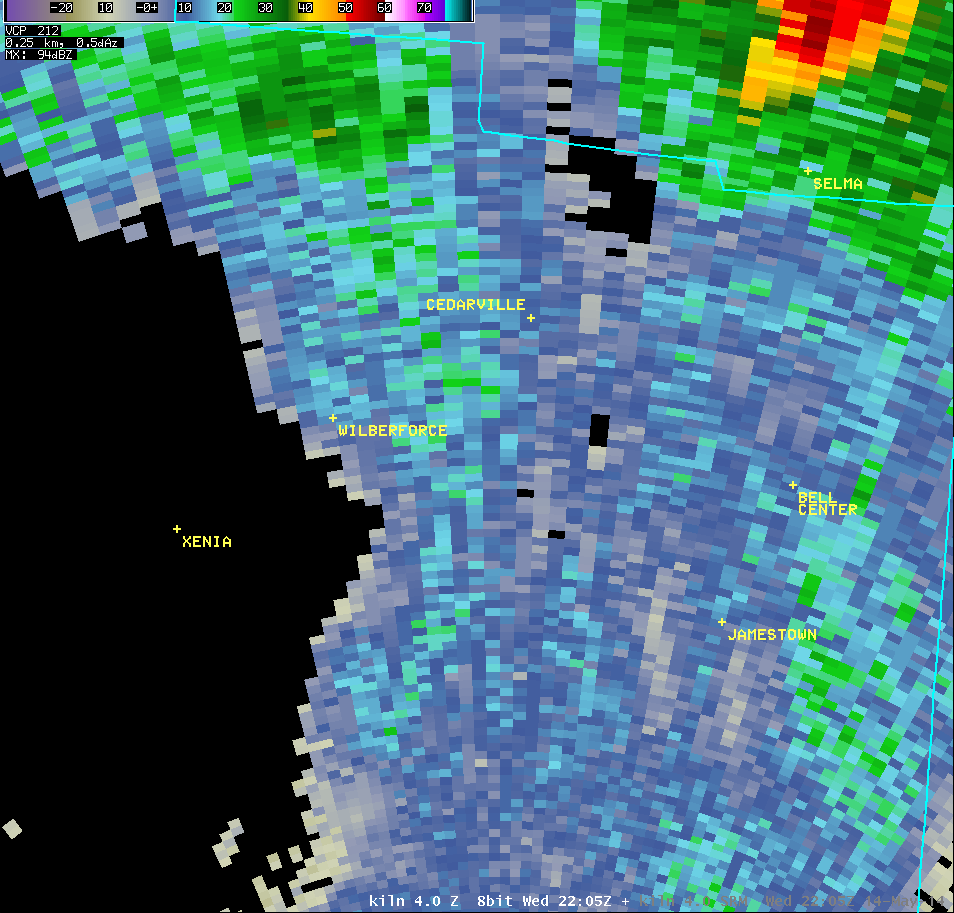

4.0° Reflectivity	4.0° Storm-Relative Motion	4.0° Correlation Coefficient

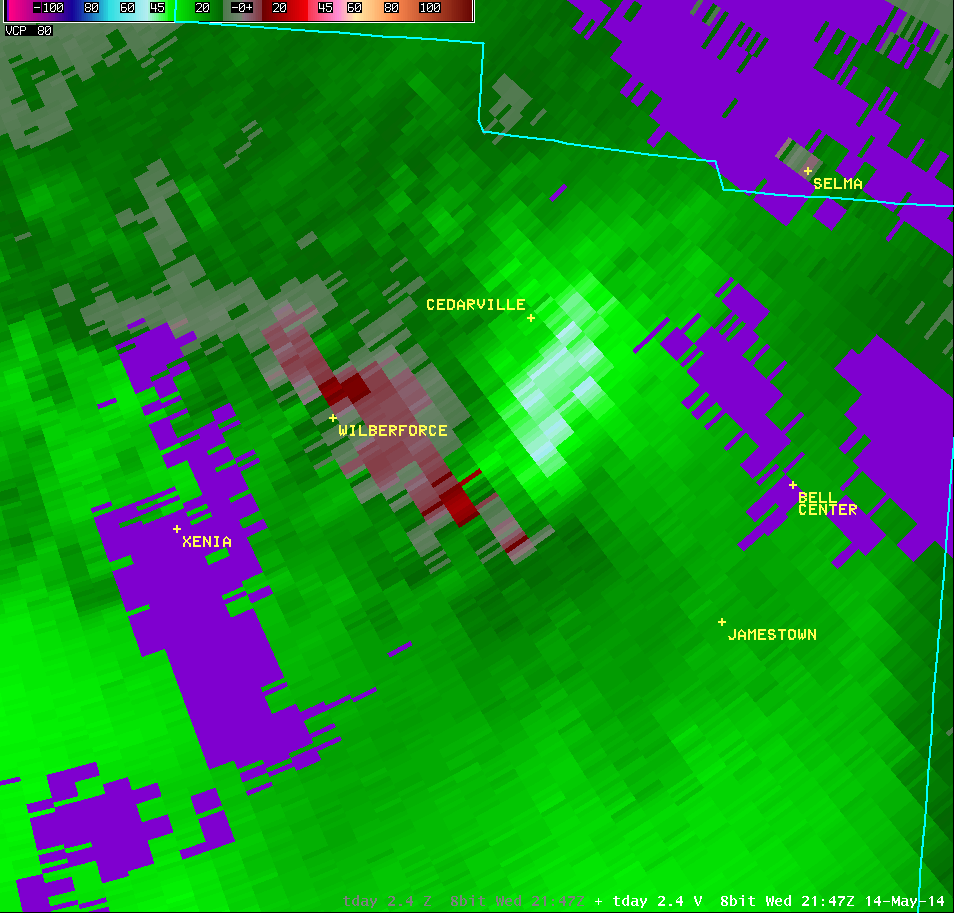

Vertical Loop of TDAY Radar Imagery (5:47 PM)

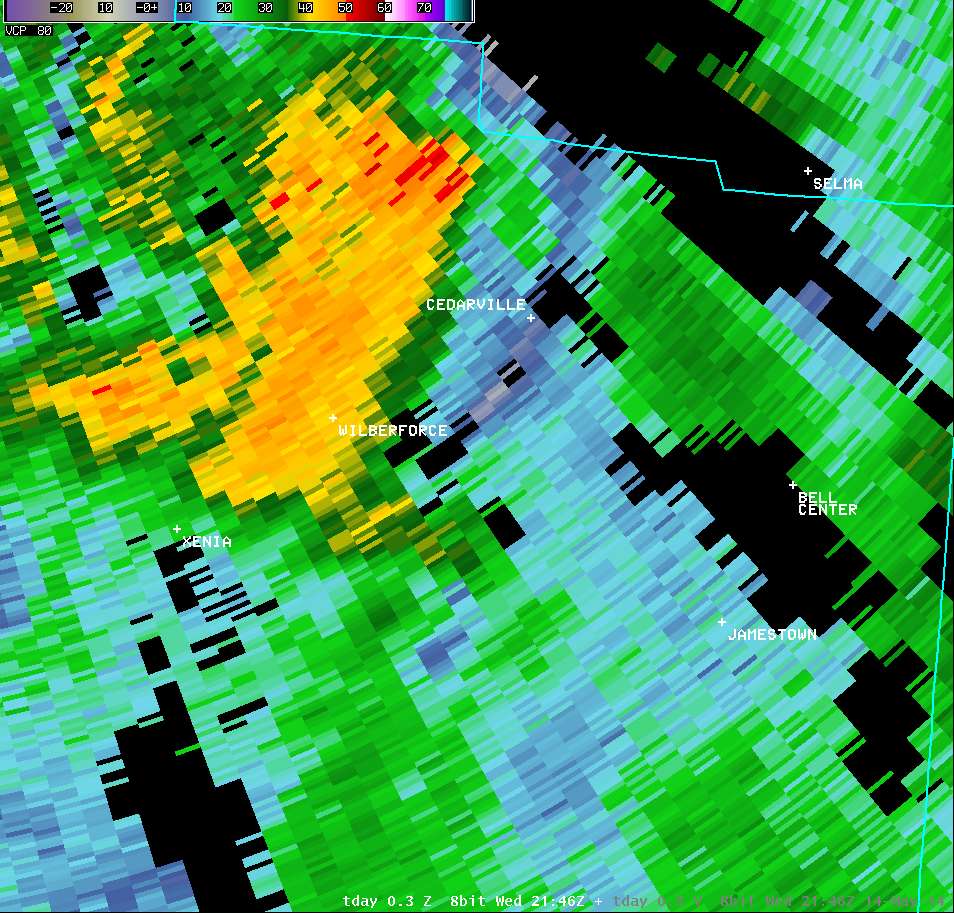

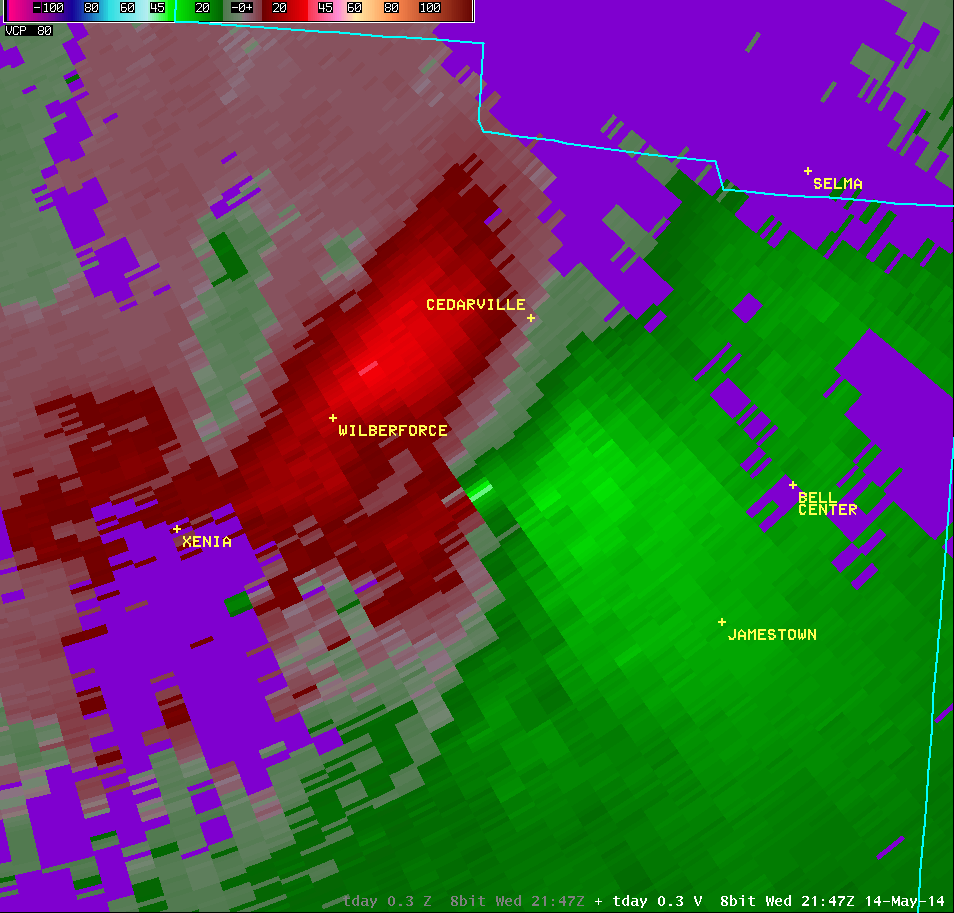

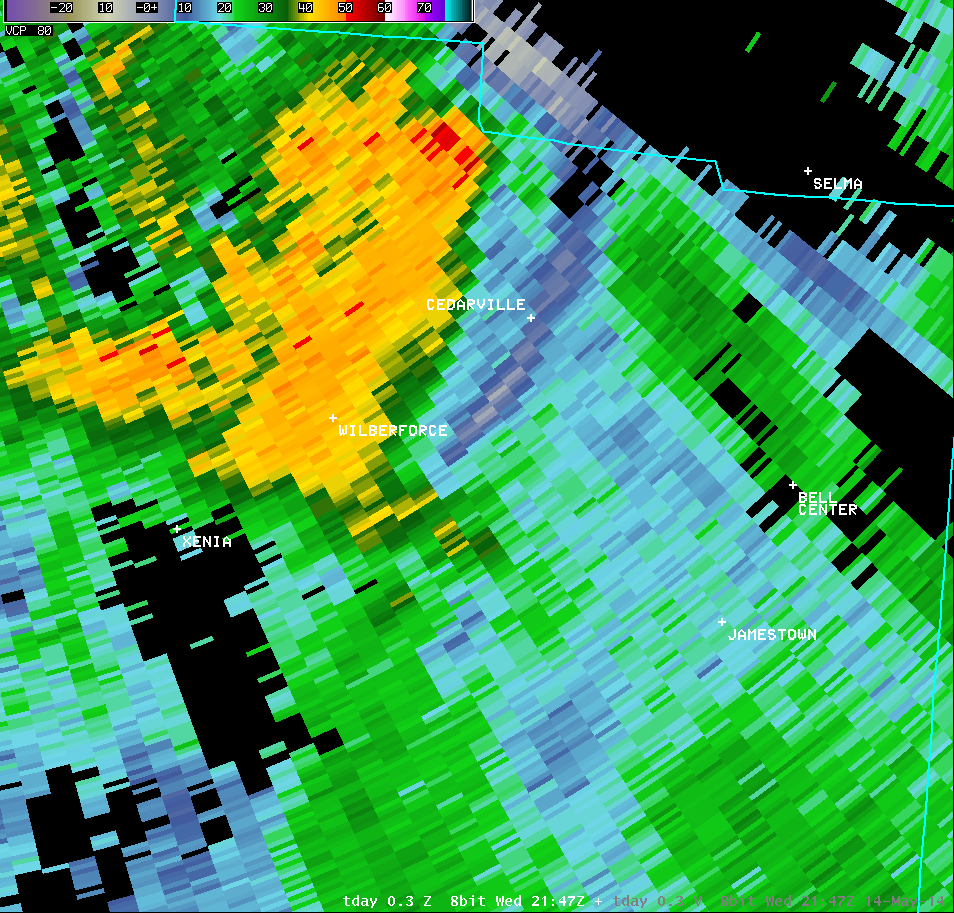

0.3° Reflectivity	0.3° Velocity

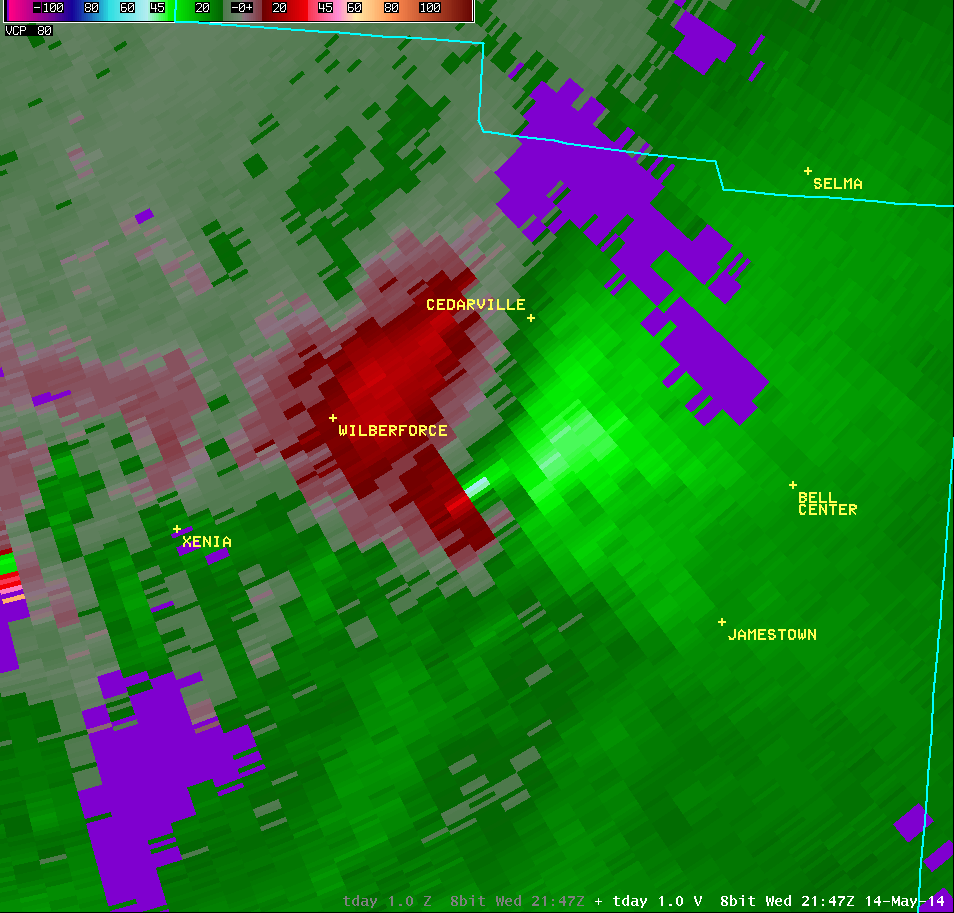

1.0° Reflectivity	1.0° Velocity

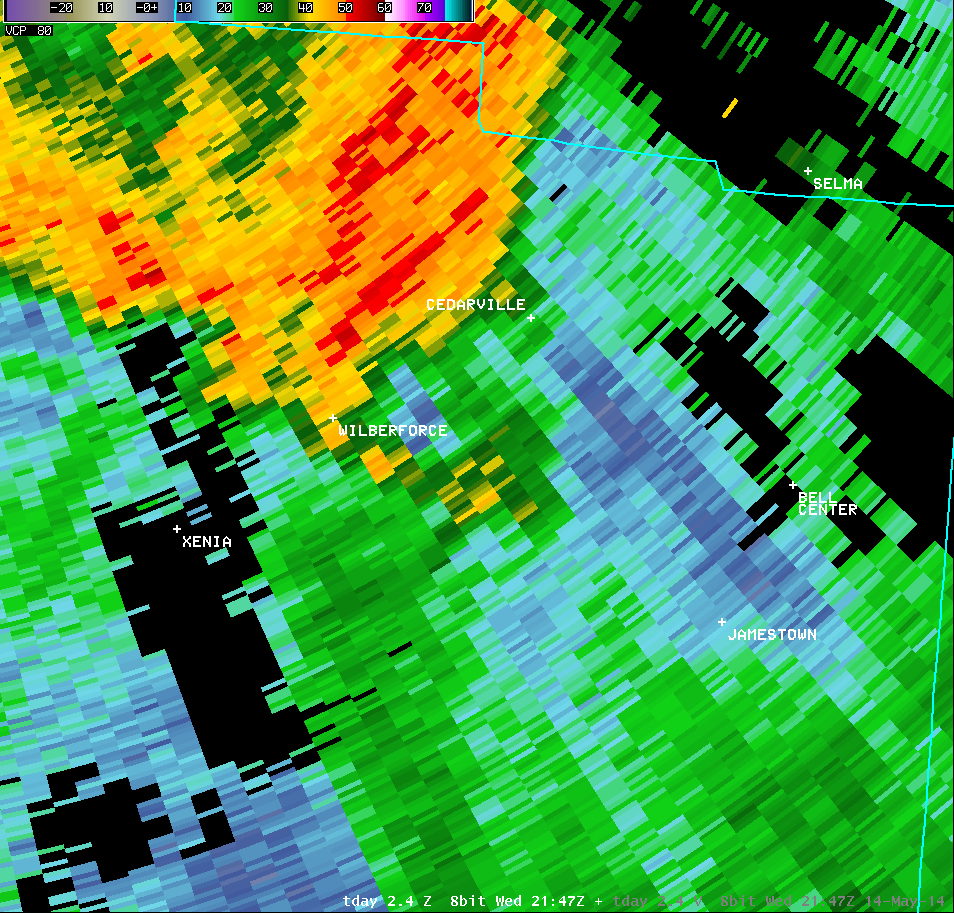

2.4° Reflectivity	2.4° Velocity

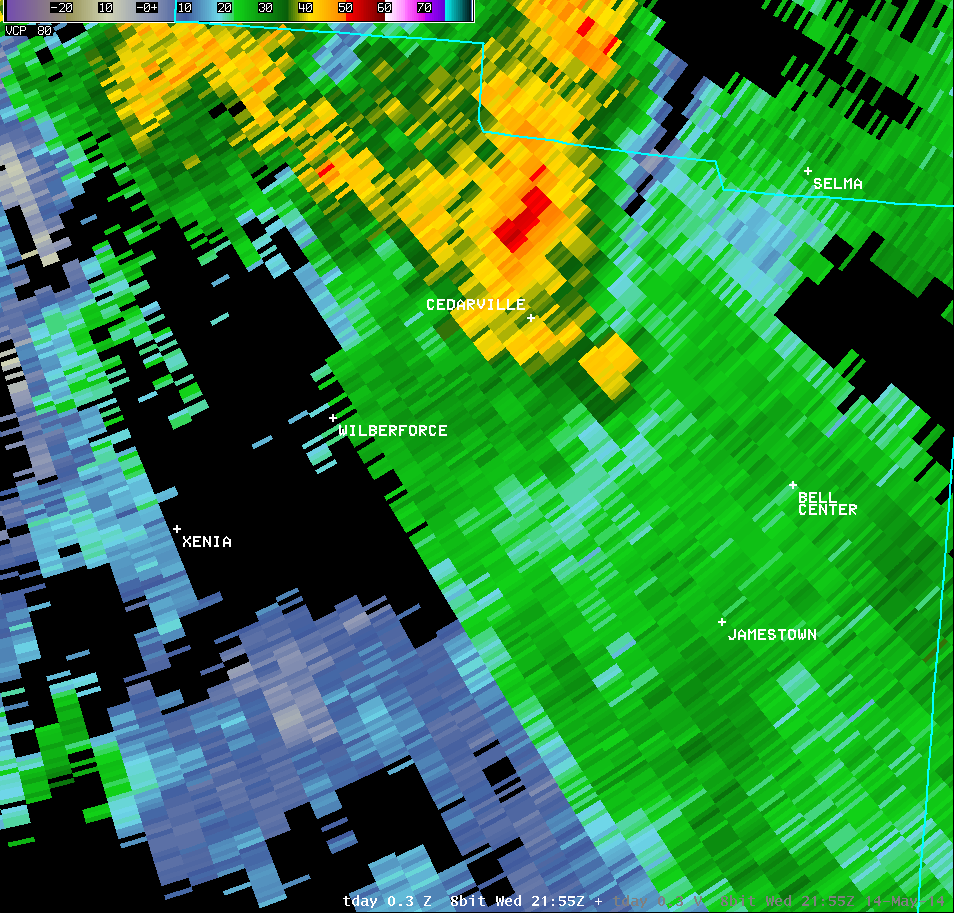

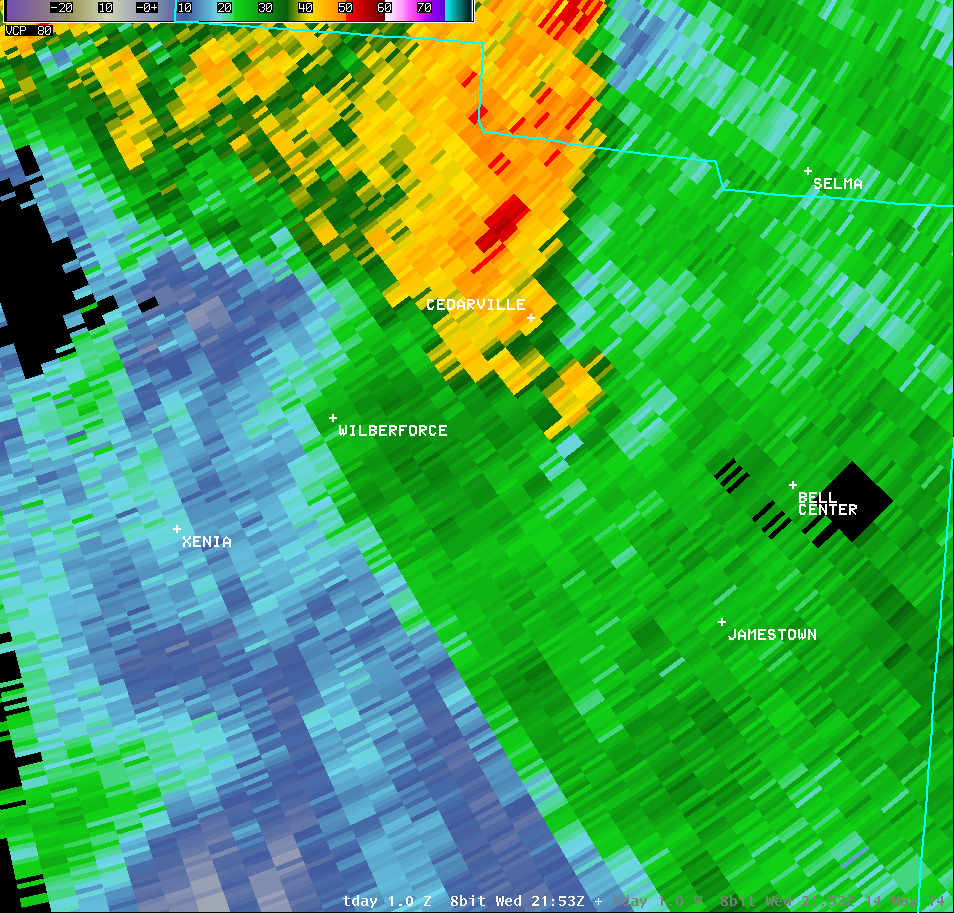

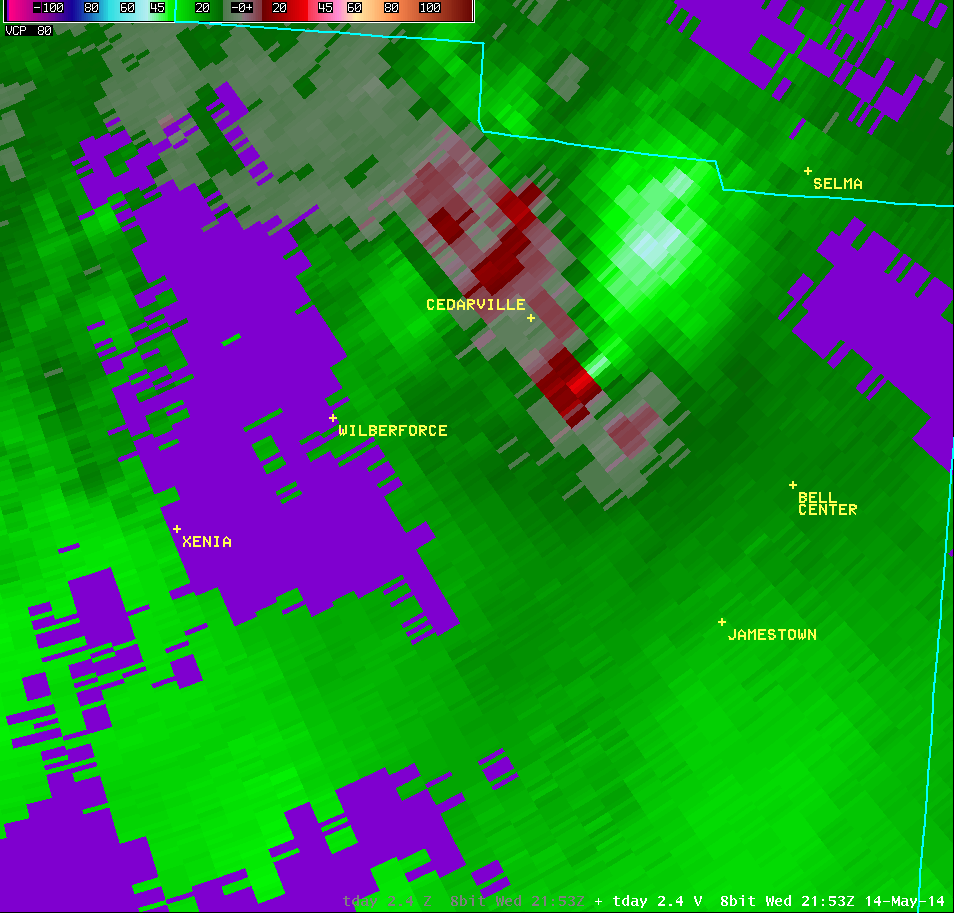

Vertical Loop of TDAY Radar Imagery (5:53 PM)

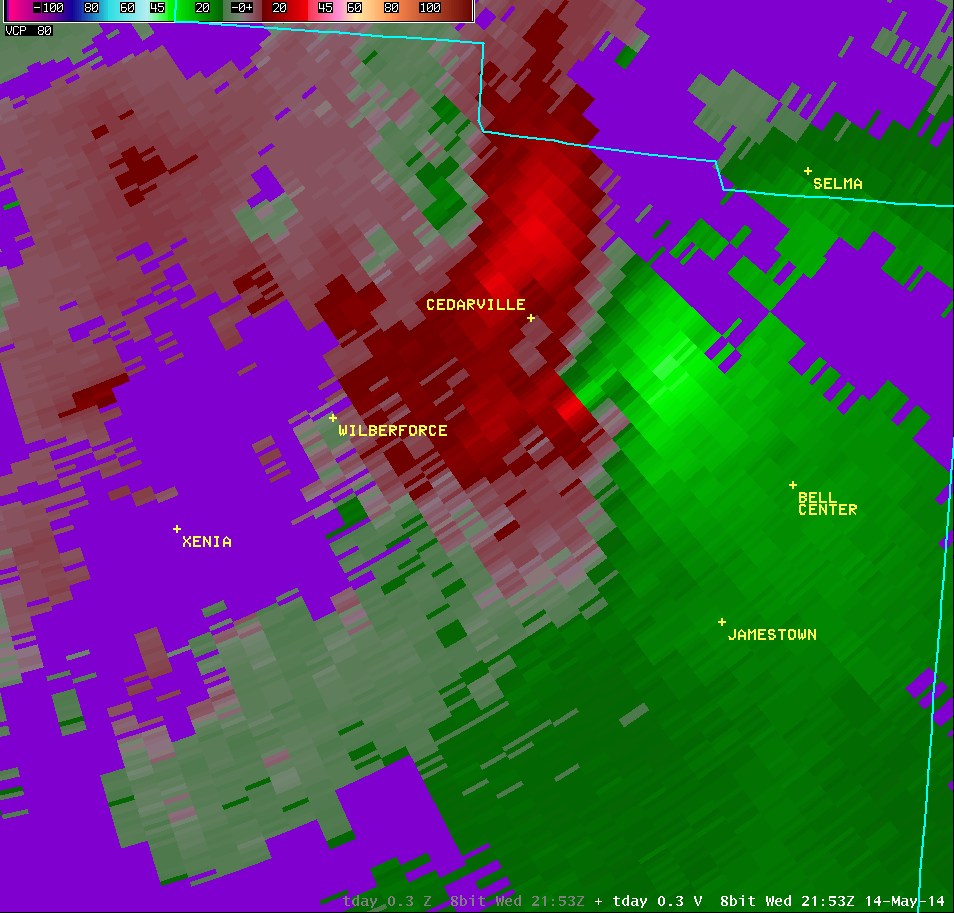

0.3° Reflectivity	0.3° Velocity

1.0° Reflectivity	1.0° Velocity

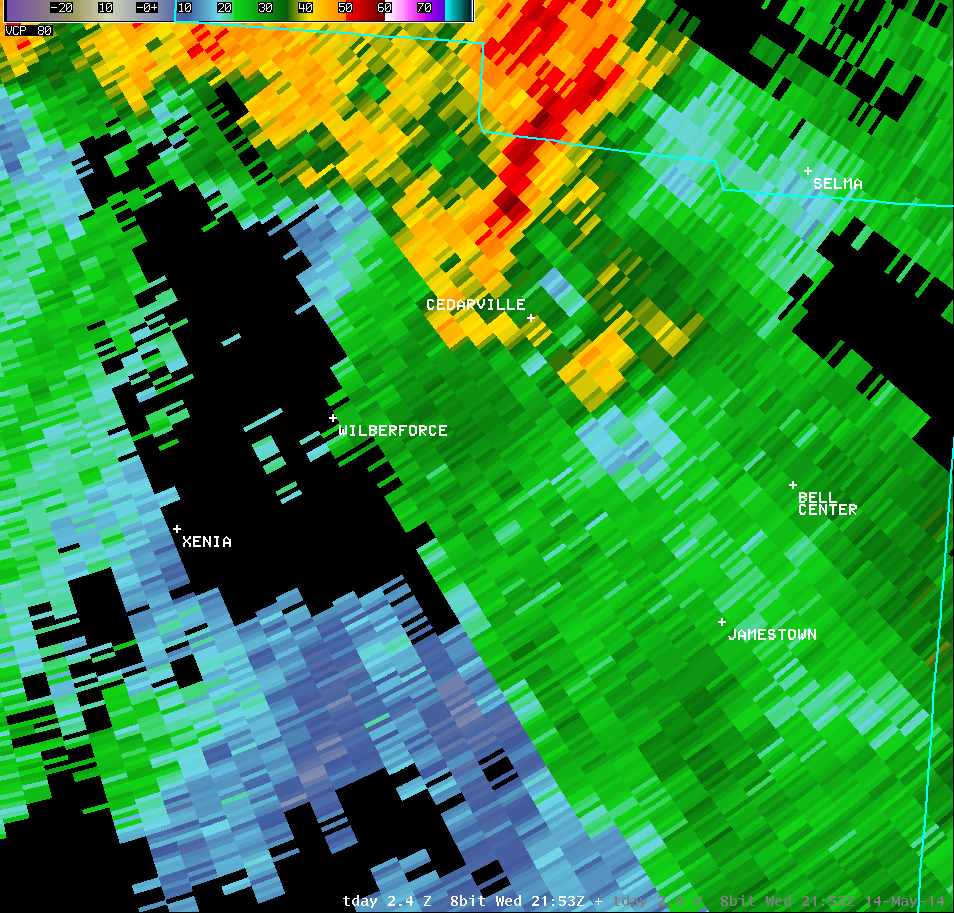

2.4° Reflectivity	2.4° Velocity

Vertical Loop of TDAY Radar Imagery (5:59 PM)

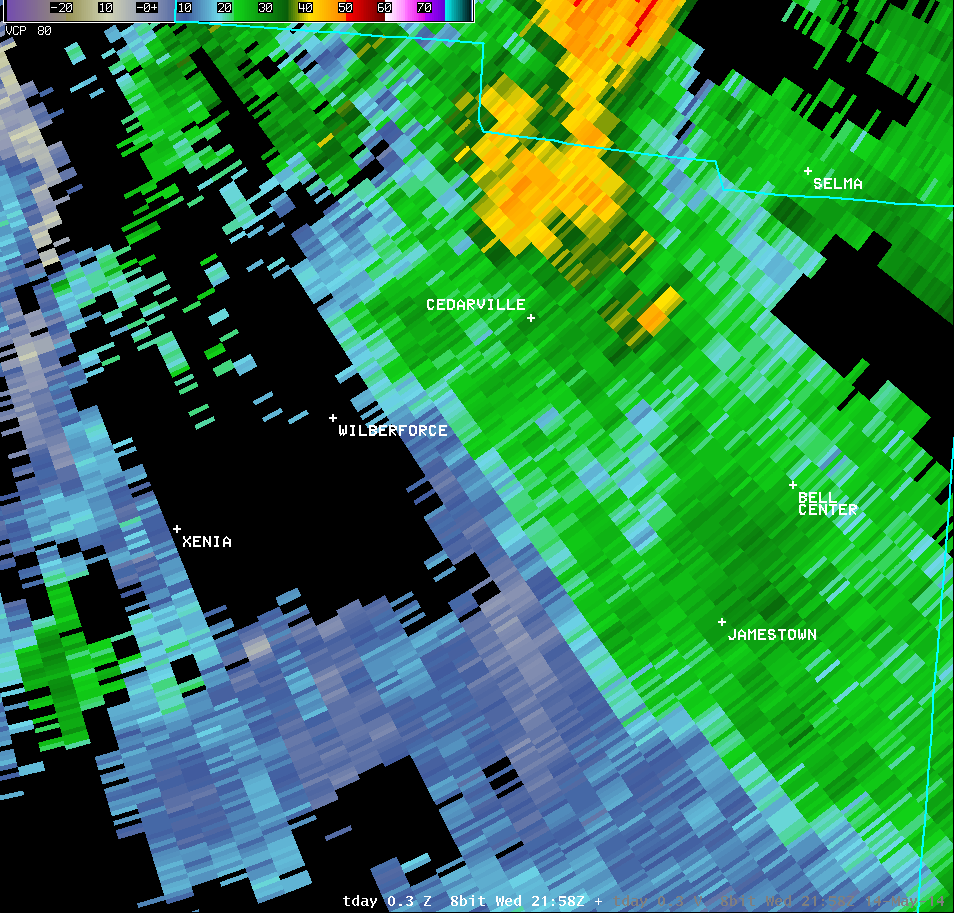

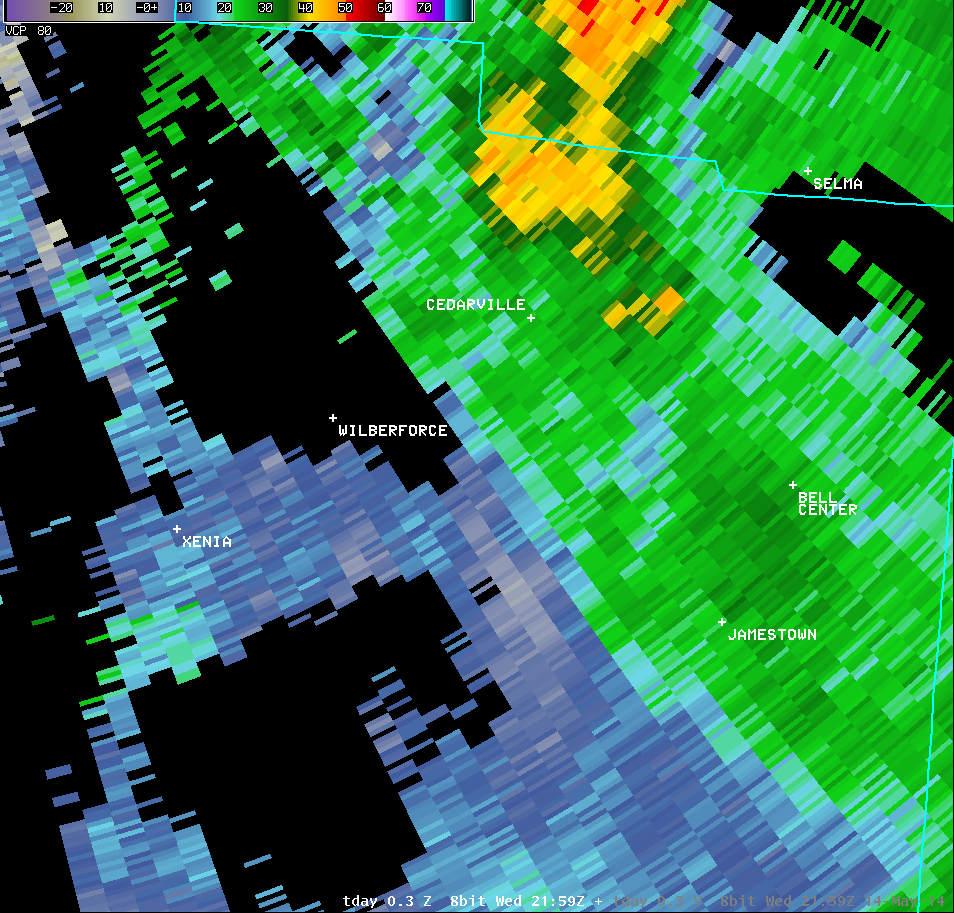

0.3° Reflectivity	0.3° Velocity

1.0° Reflectivity	1.0° Velocity

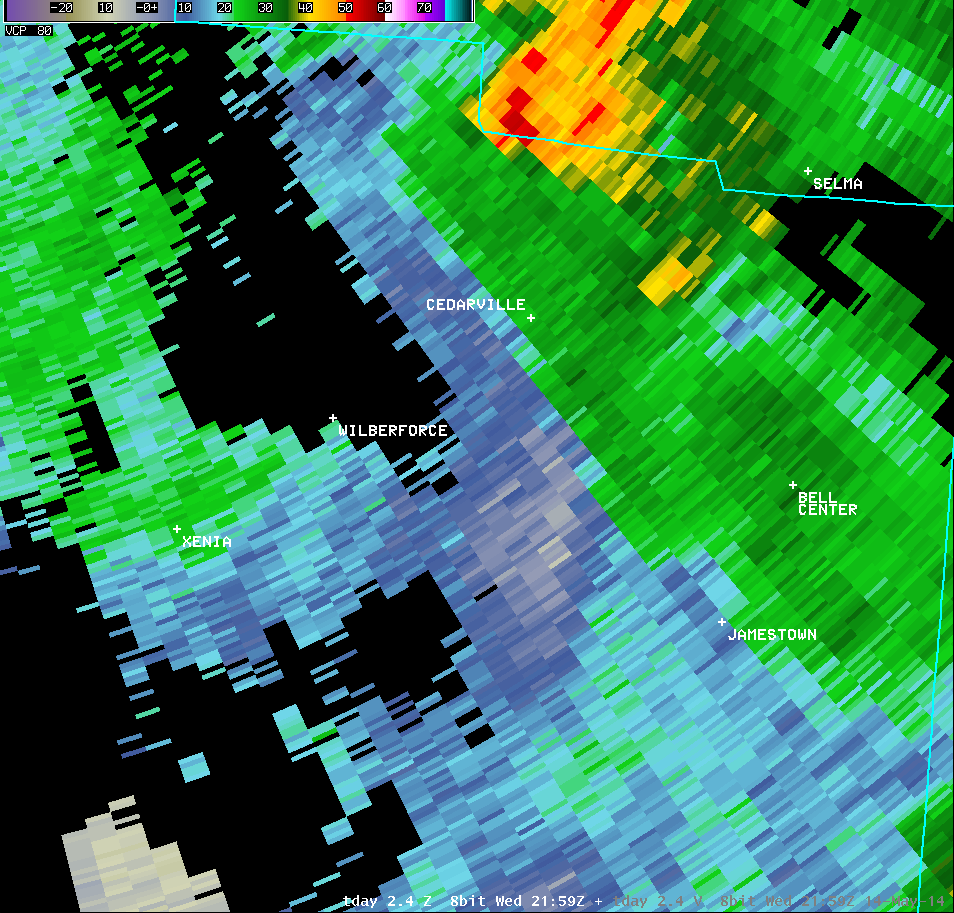

2.4° Reflectivity	2.4° Velocity

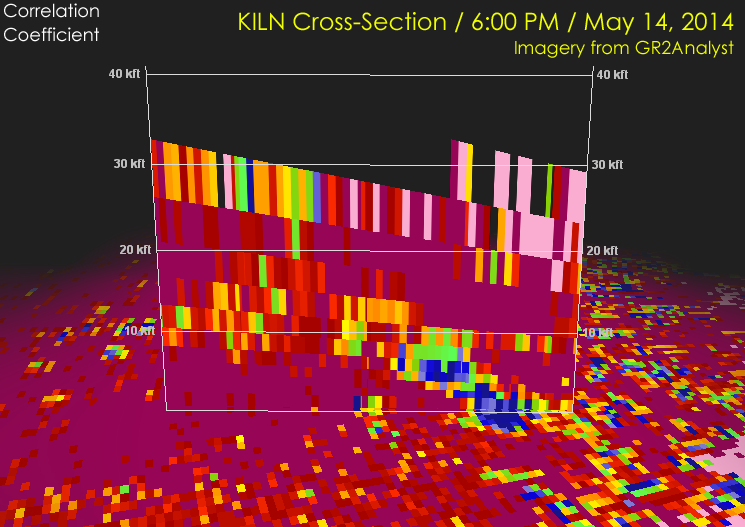

KILN Radar Cross-Sections
Reflectivity / 6:00 PM	Correlation Coefficient / 6:00 PM

Full Radar Loops from the Dayton Terminal Doppler Weather Radar (5:37 PM - 6:06 PM)

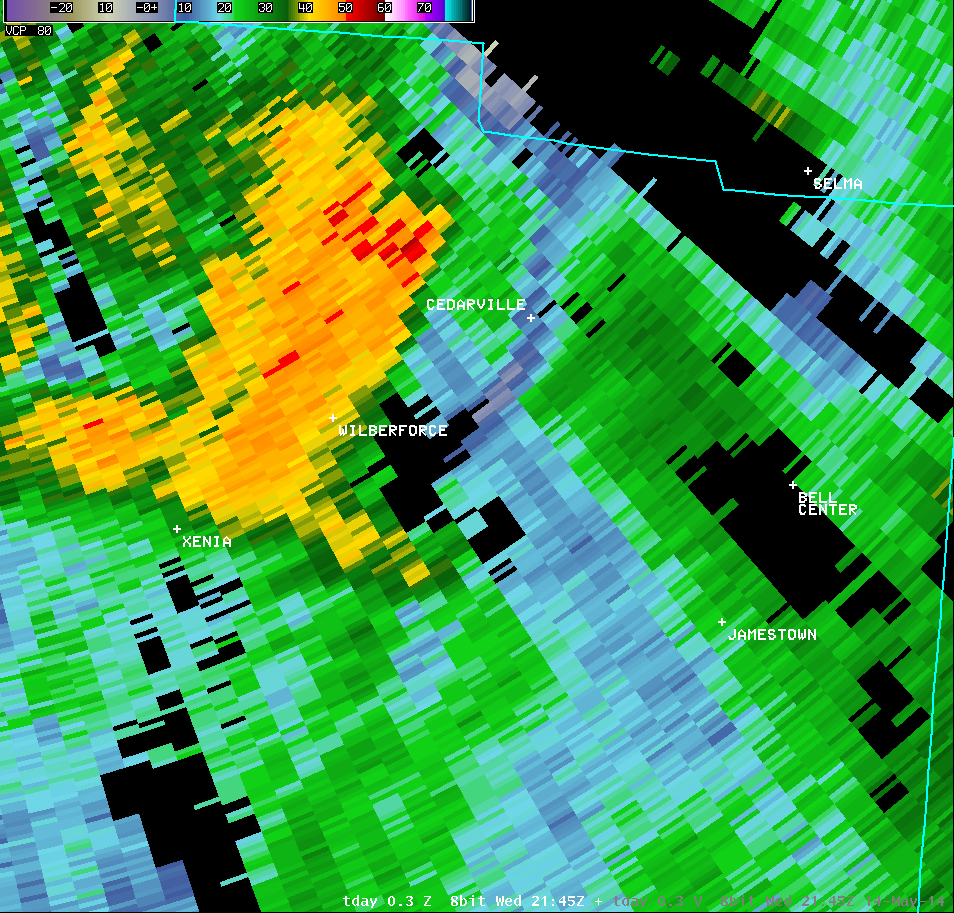

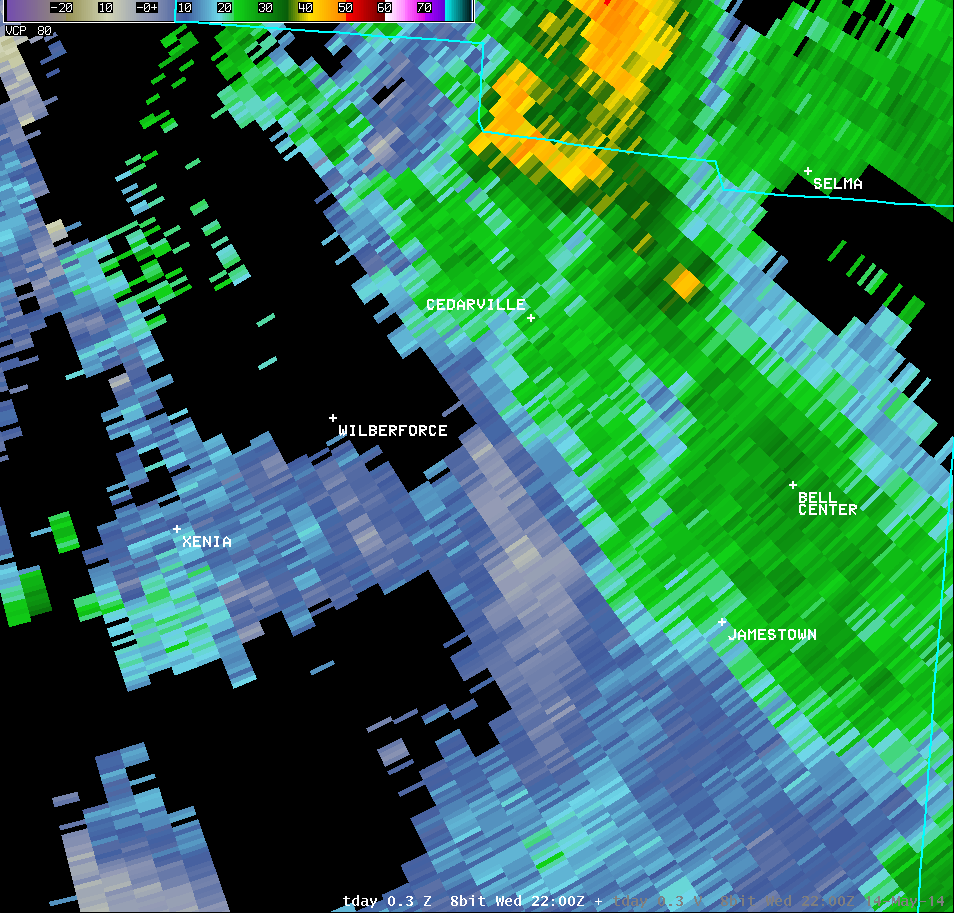

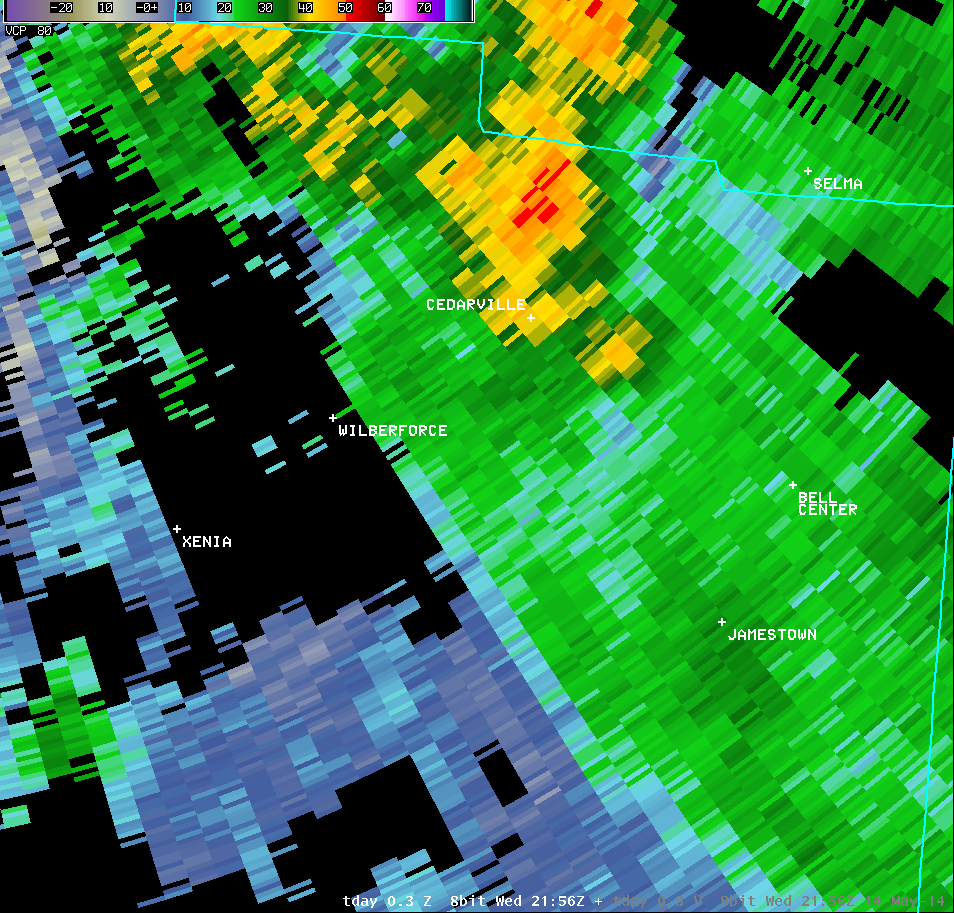

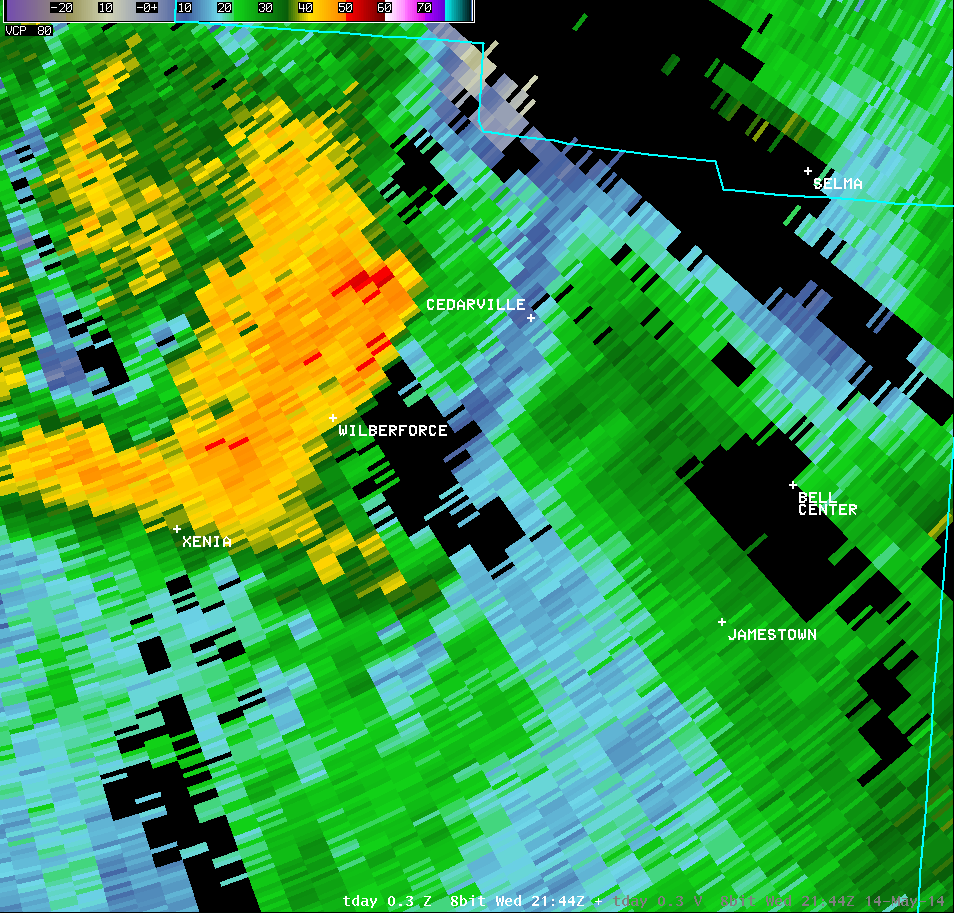

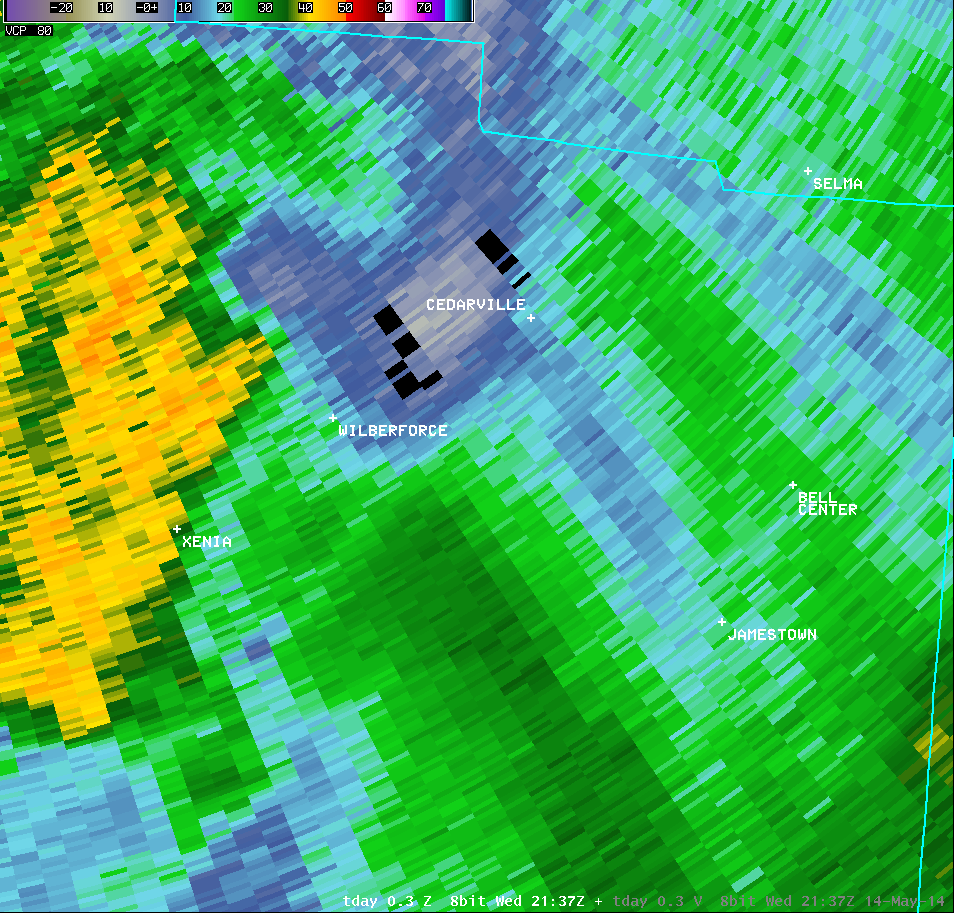

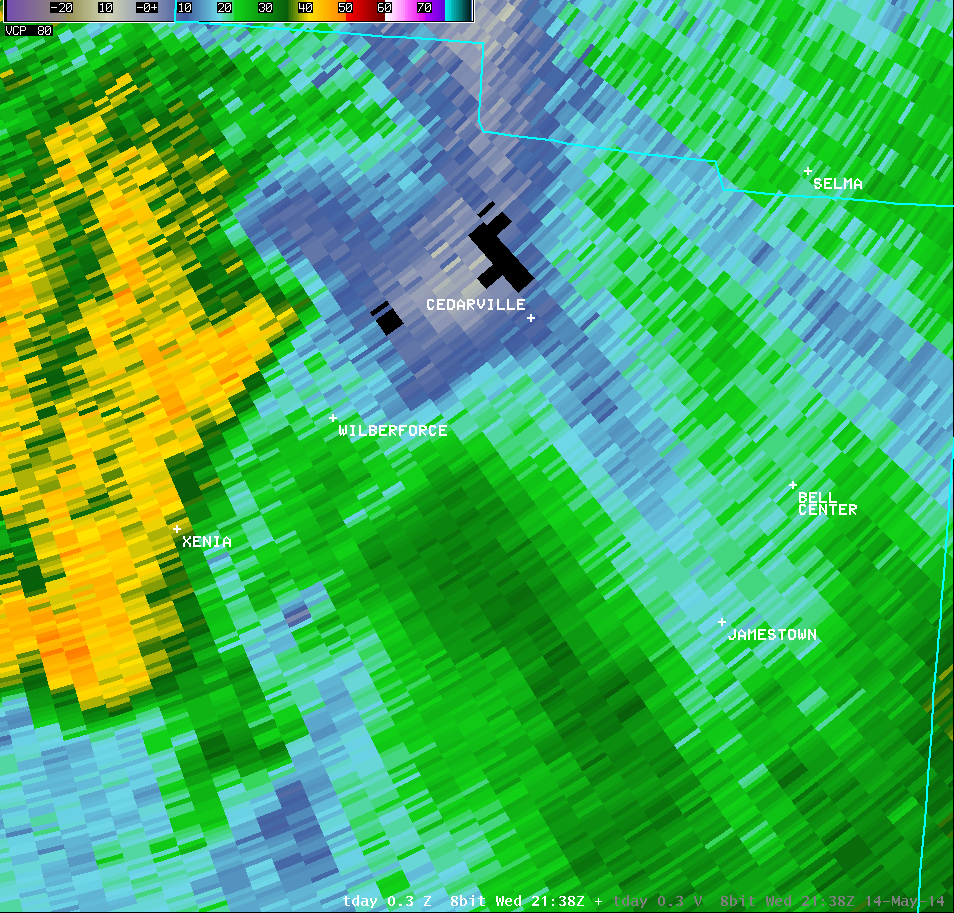

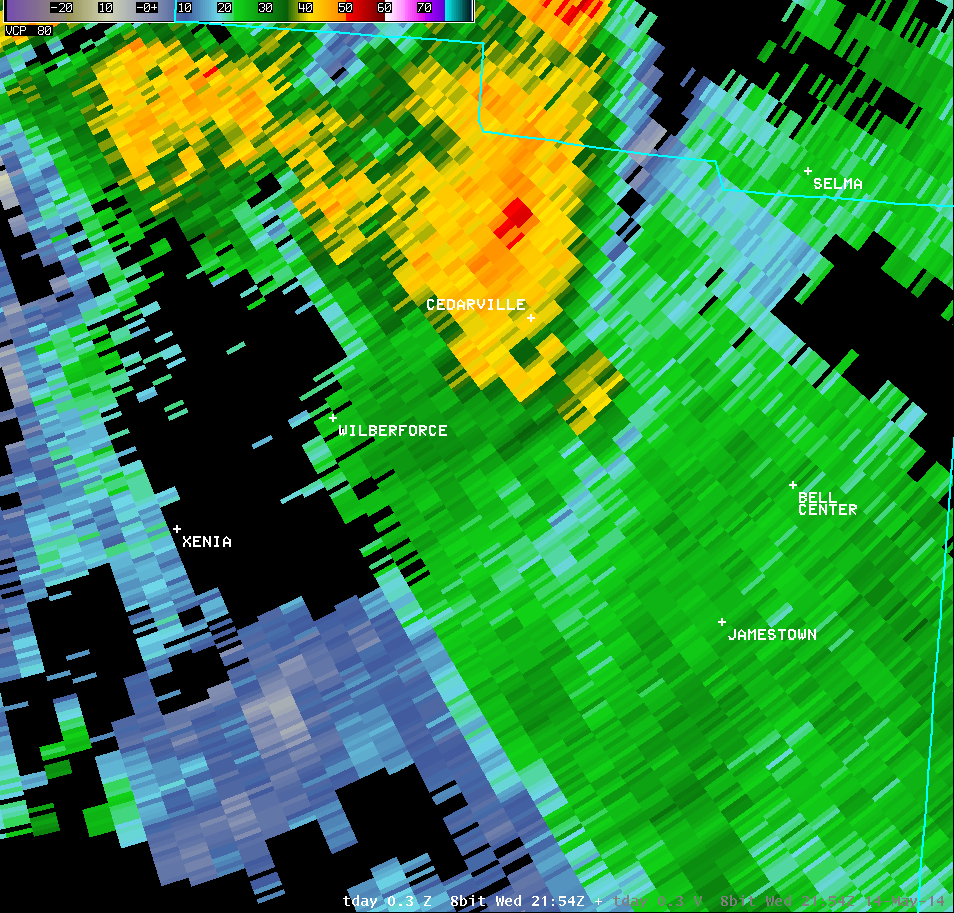

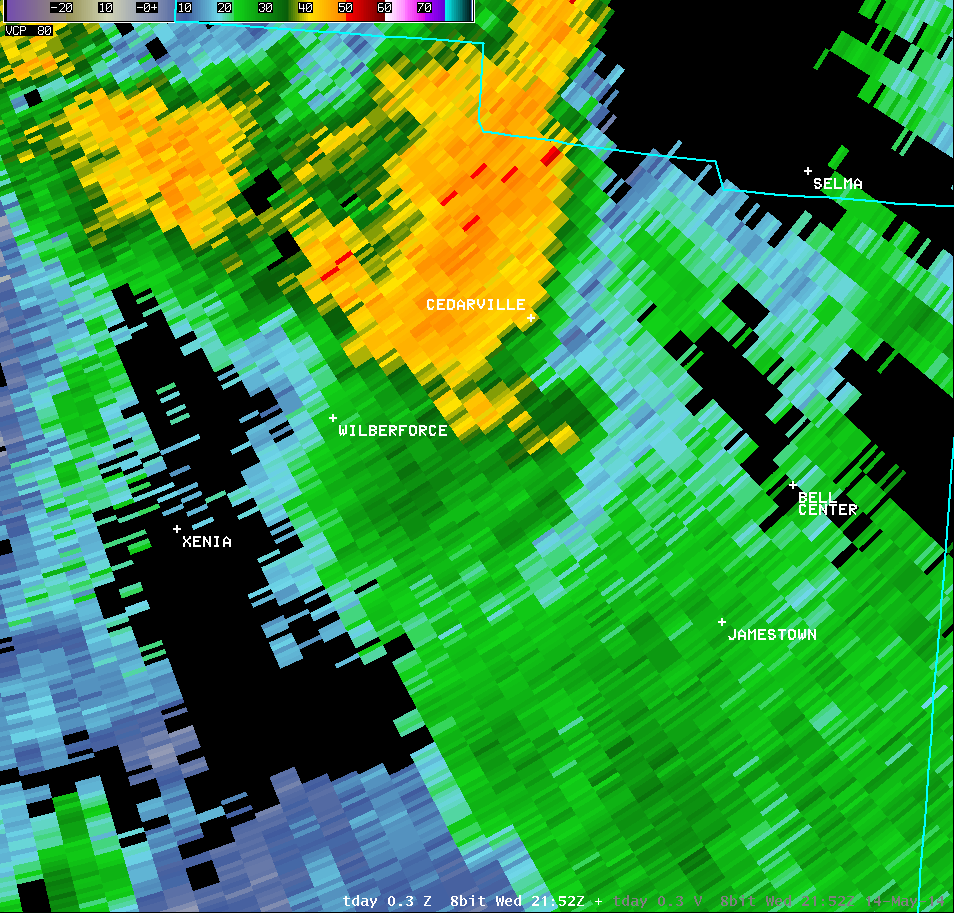

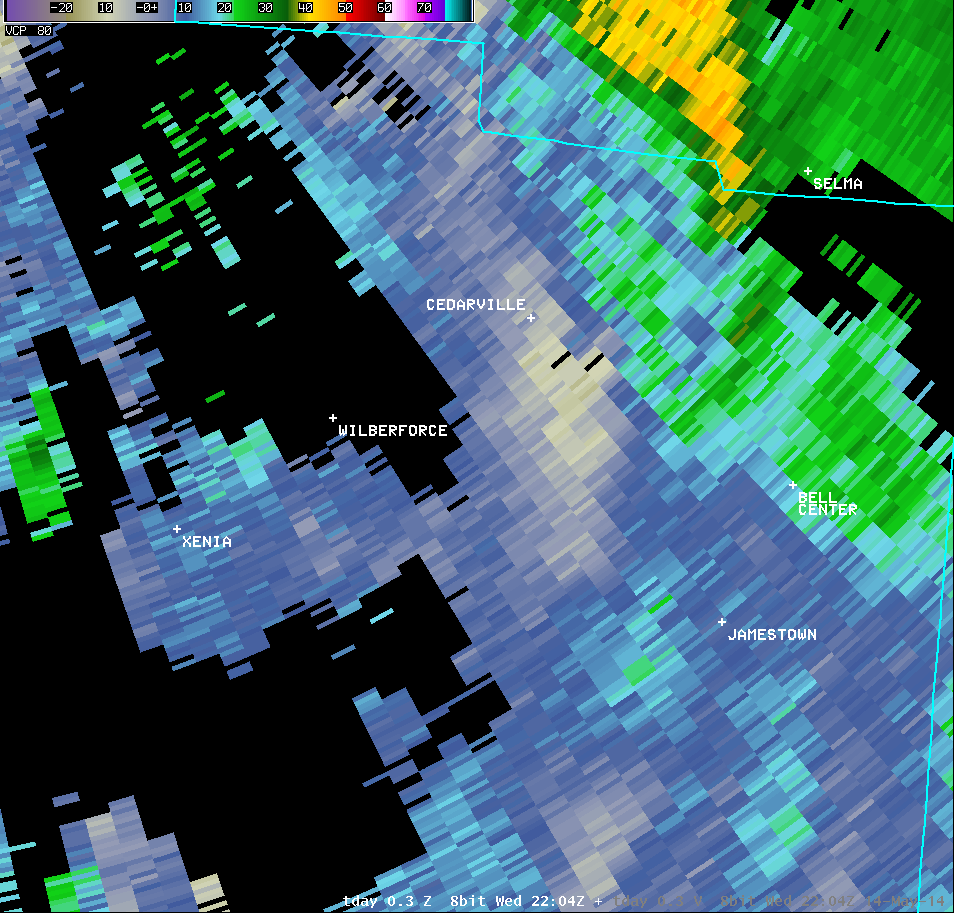

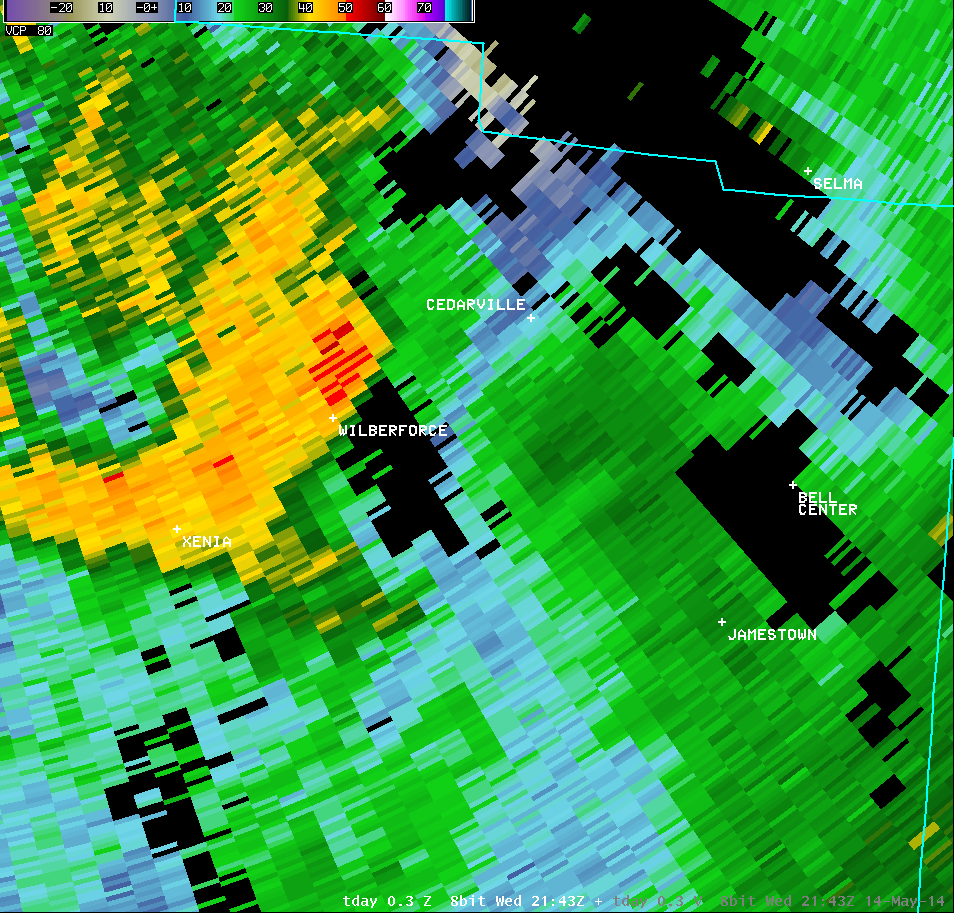

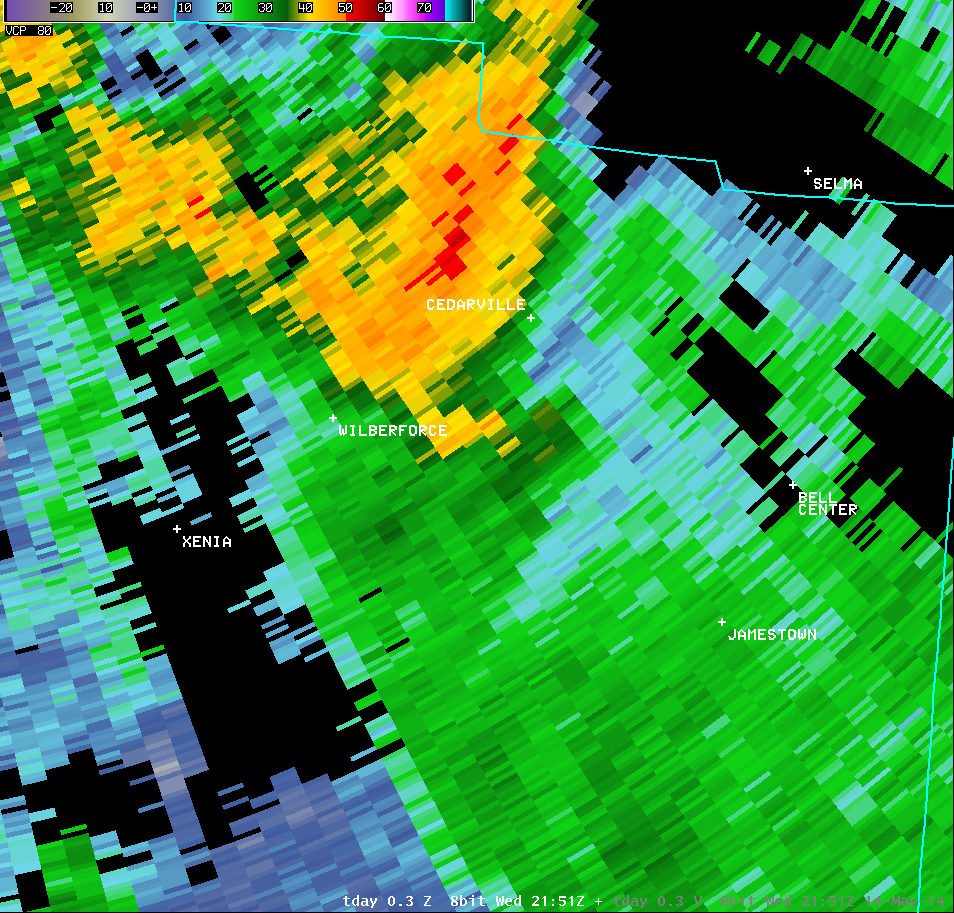

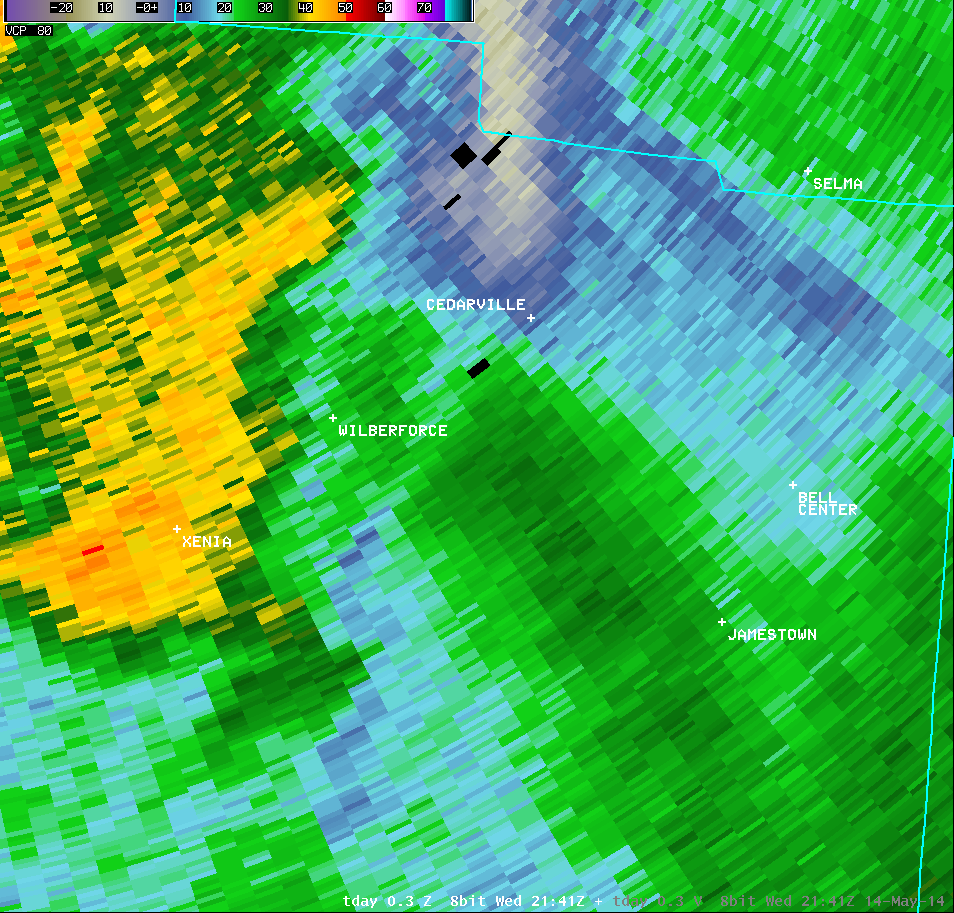

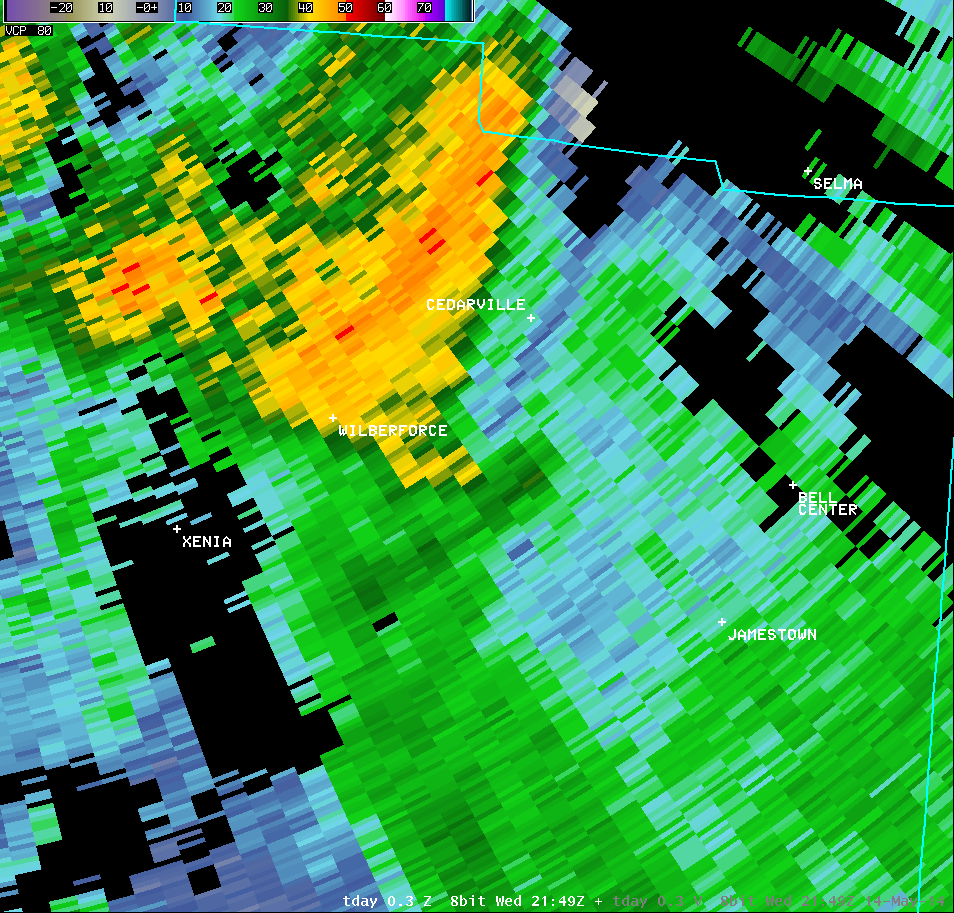

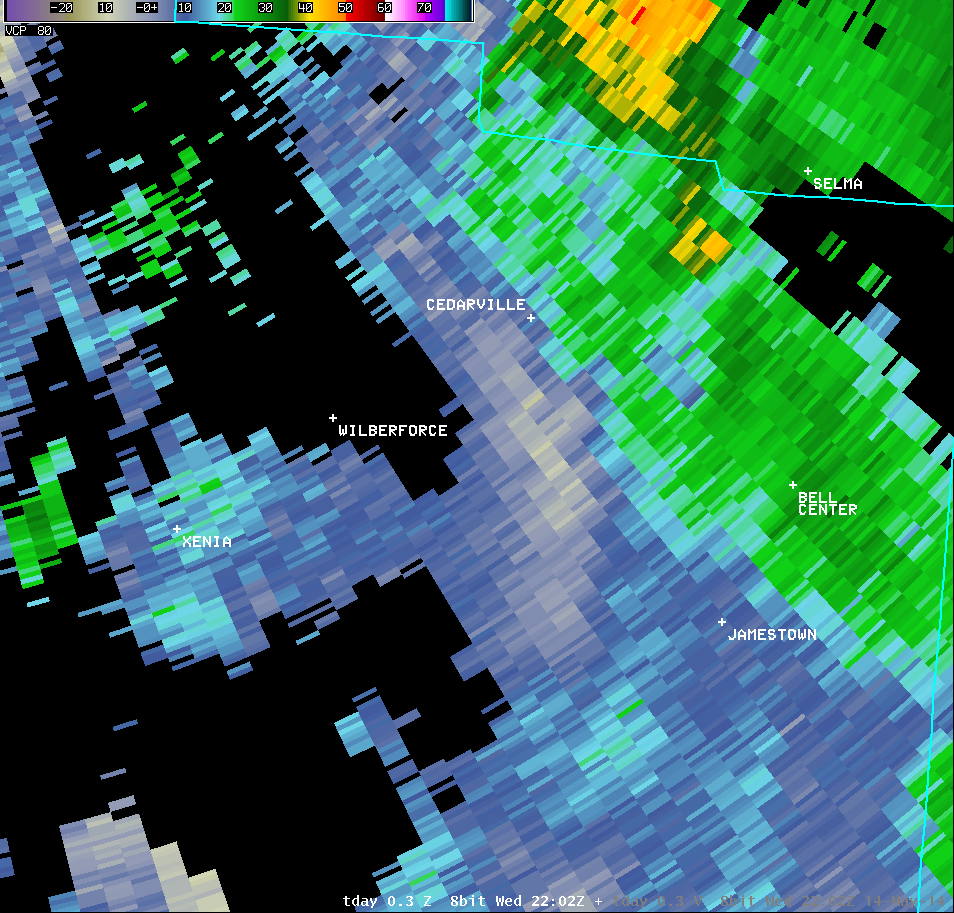

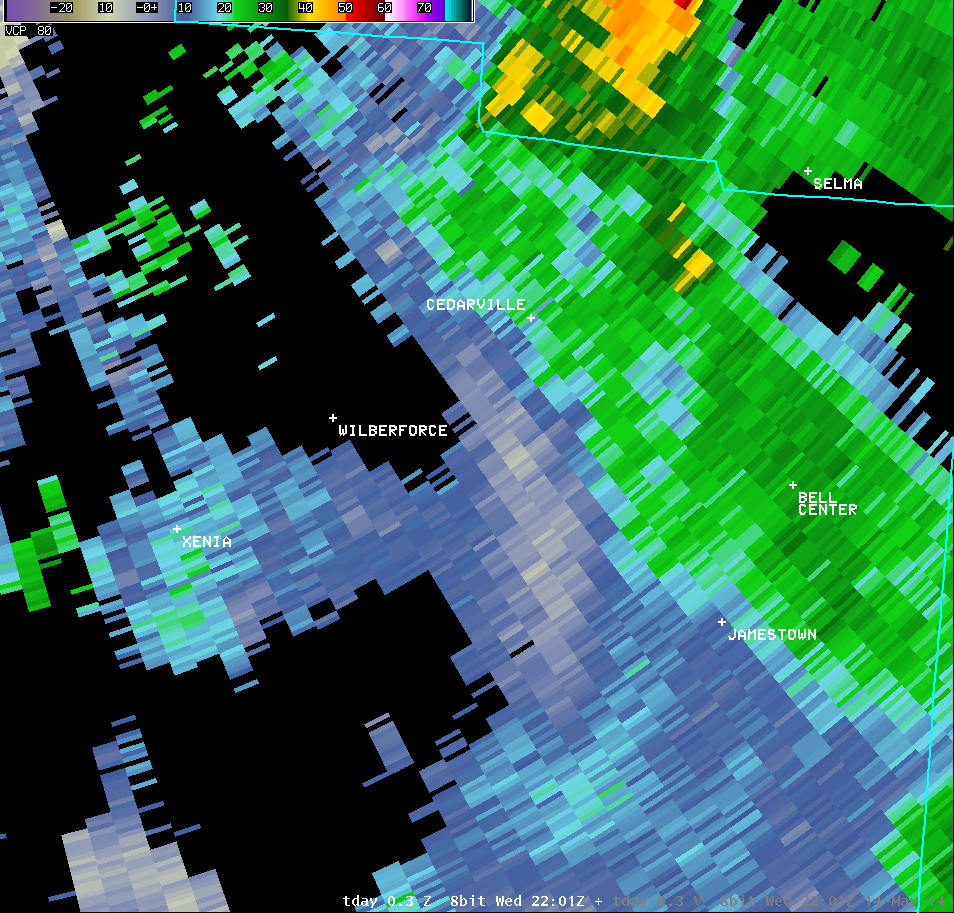

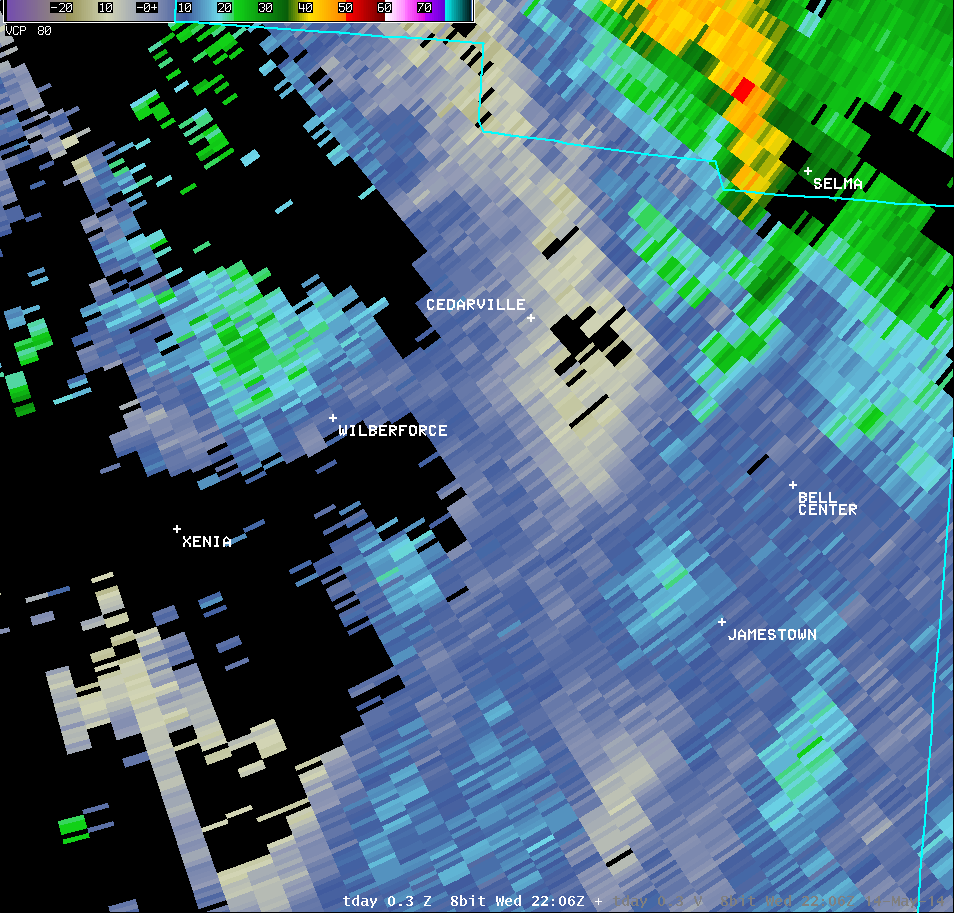

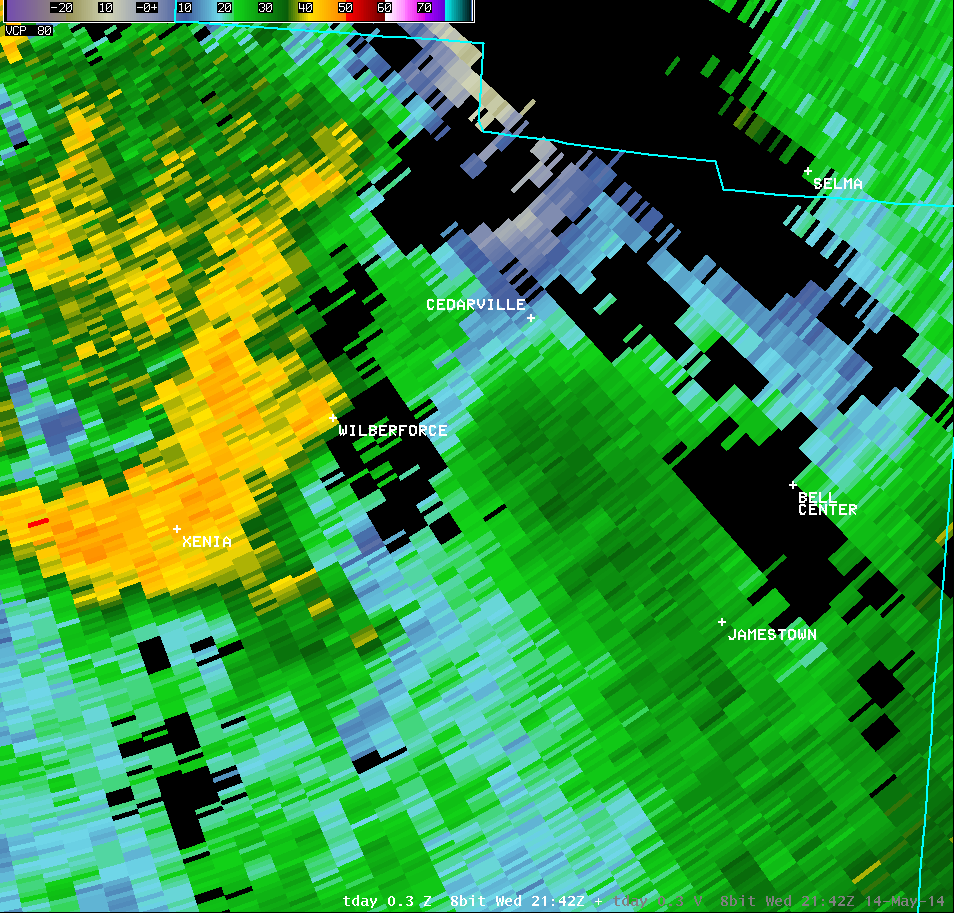

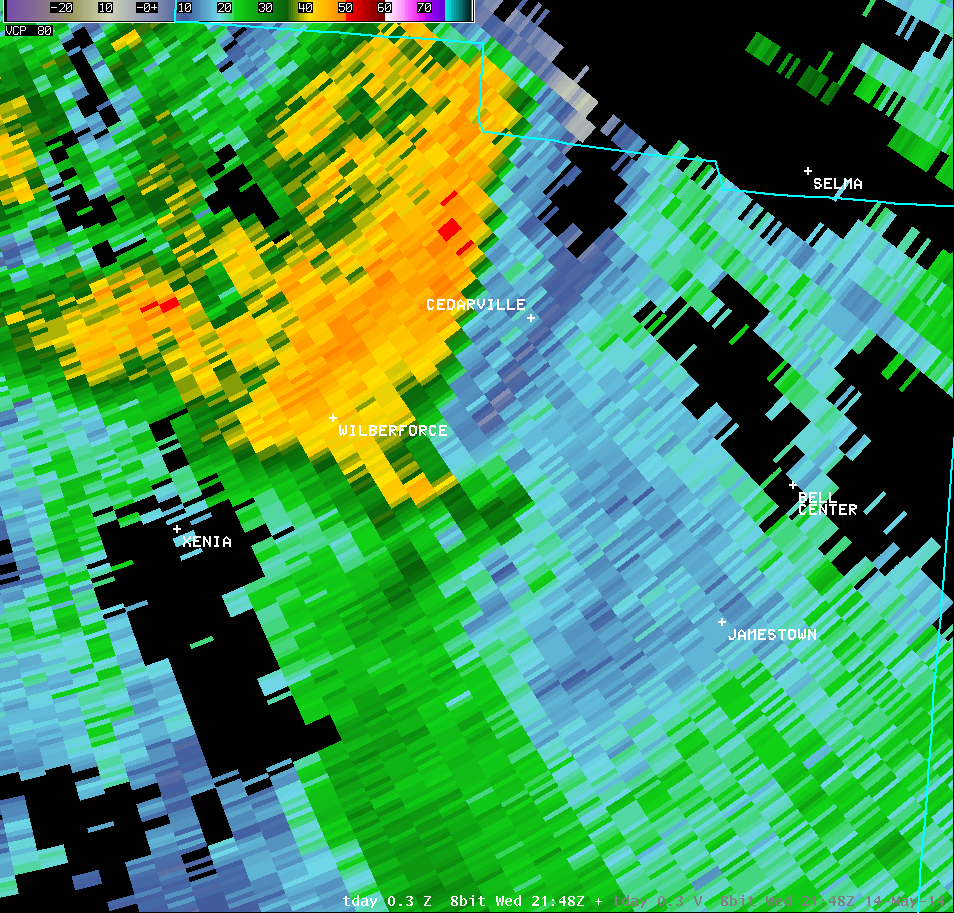

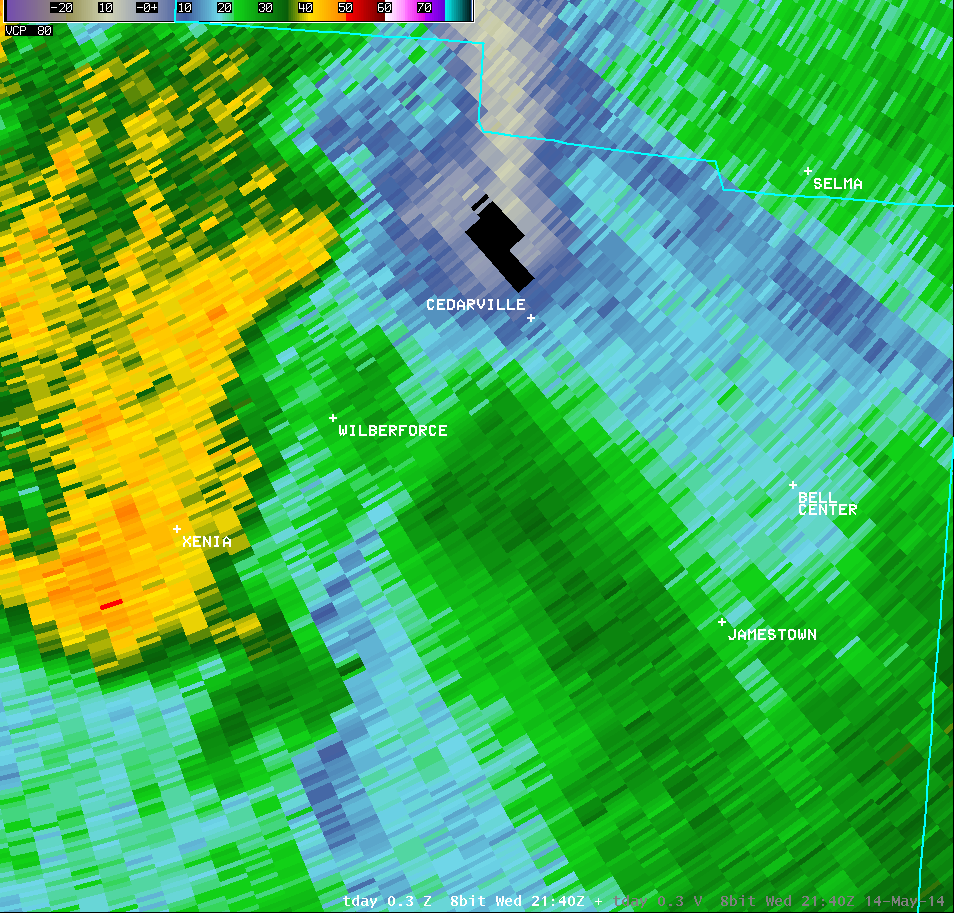

TDAY 0.3° Reflectivity (1000-1200 feet AGL)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 \| Animation

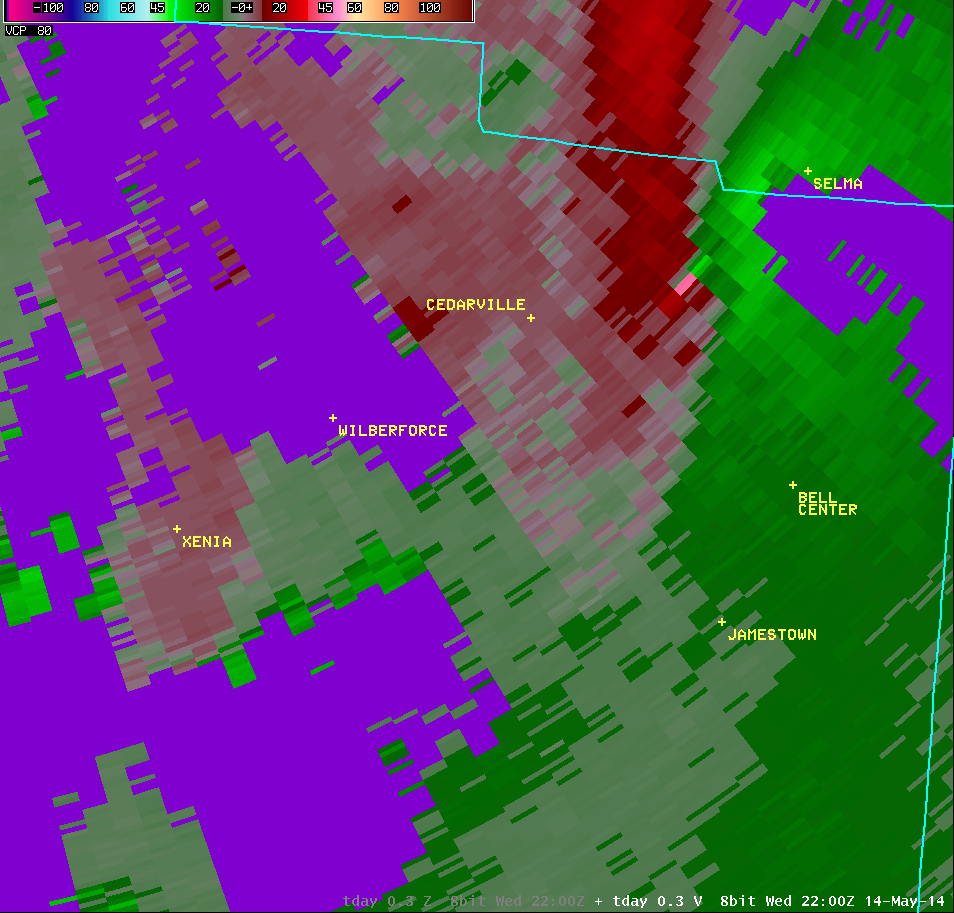

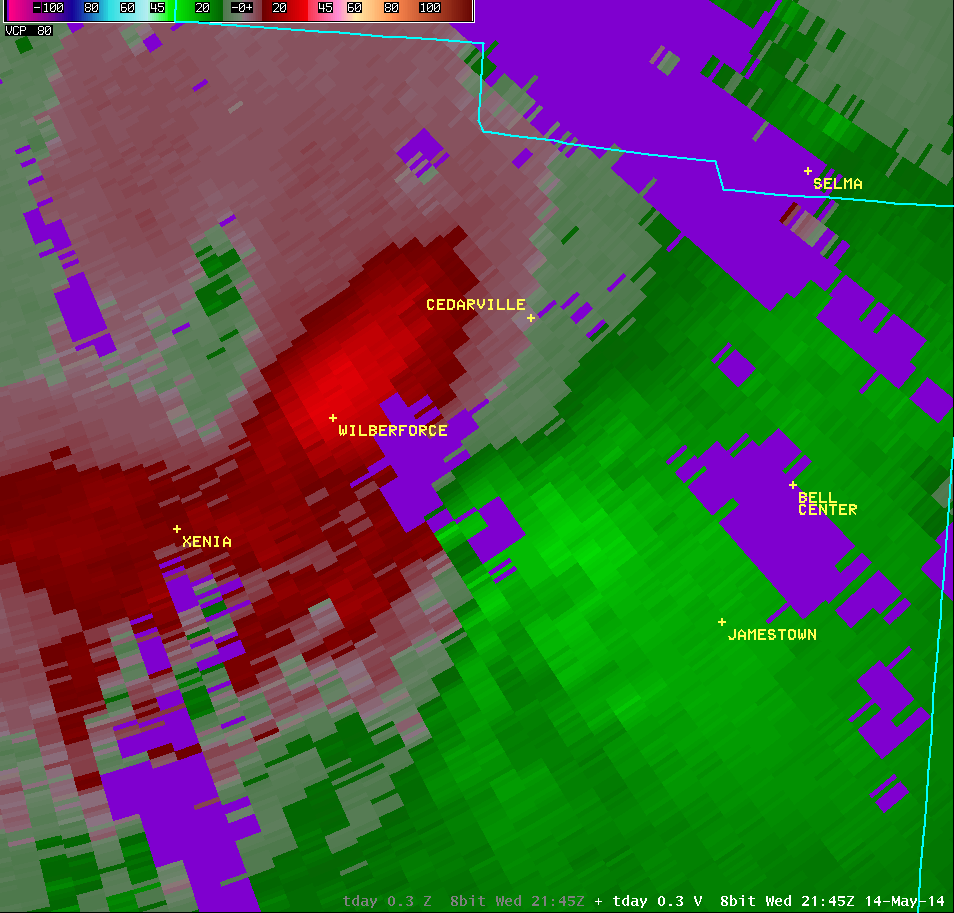

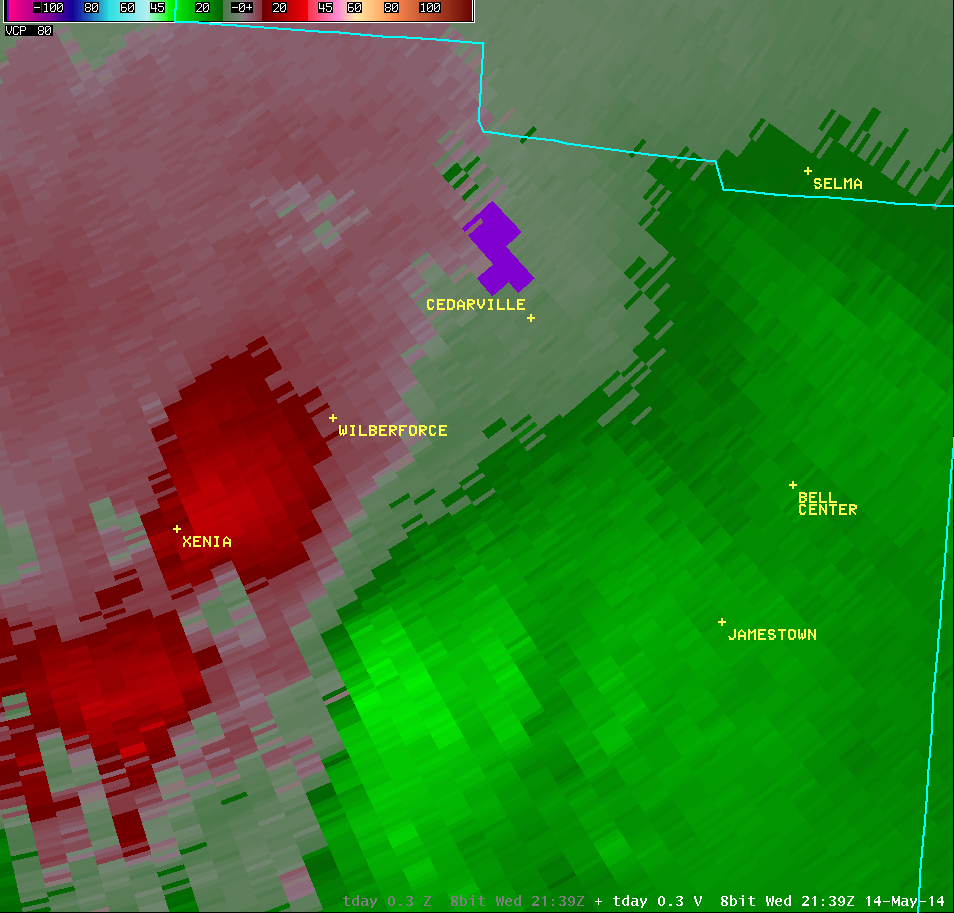

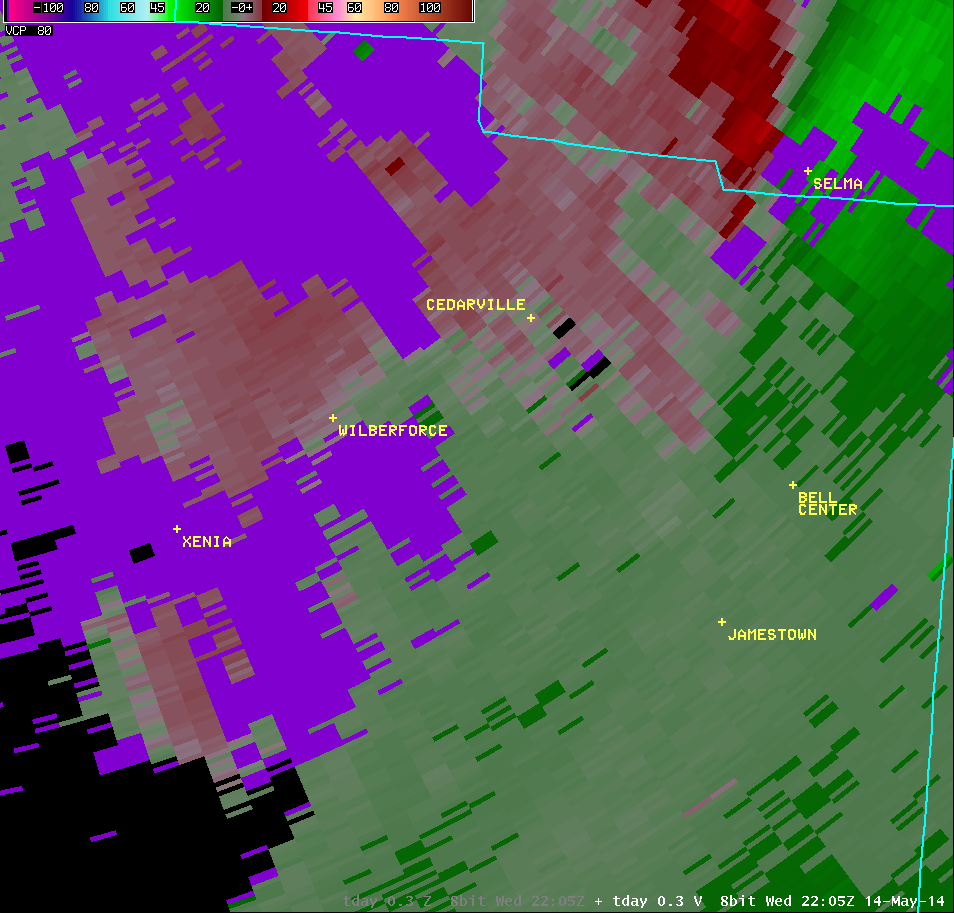

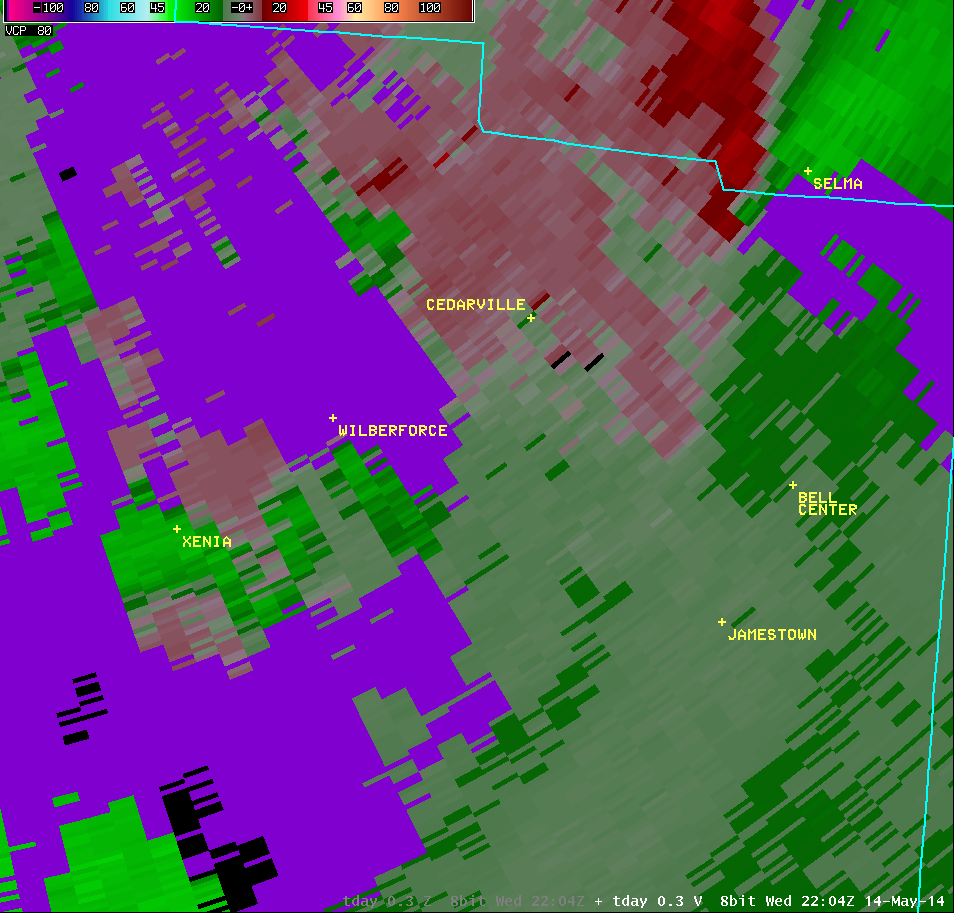

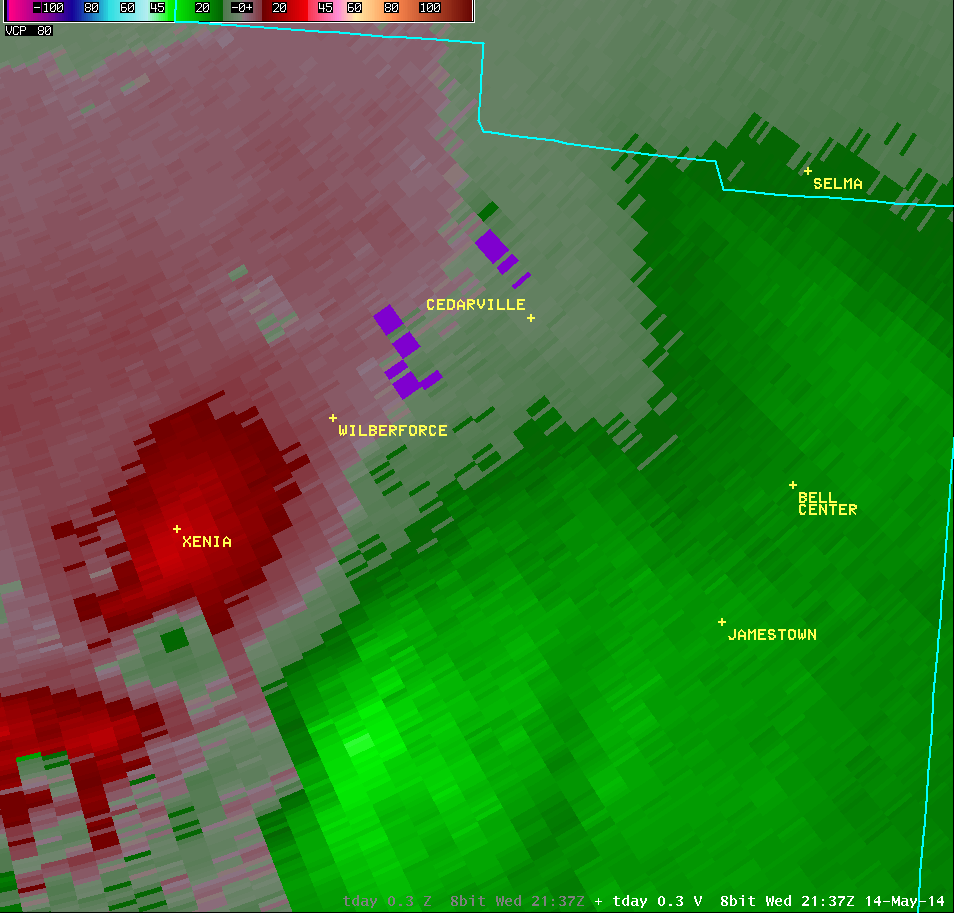

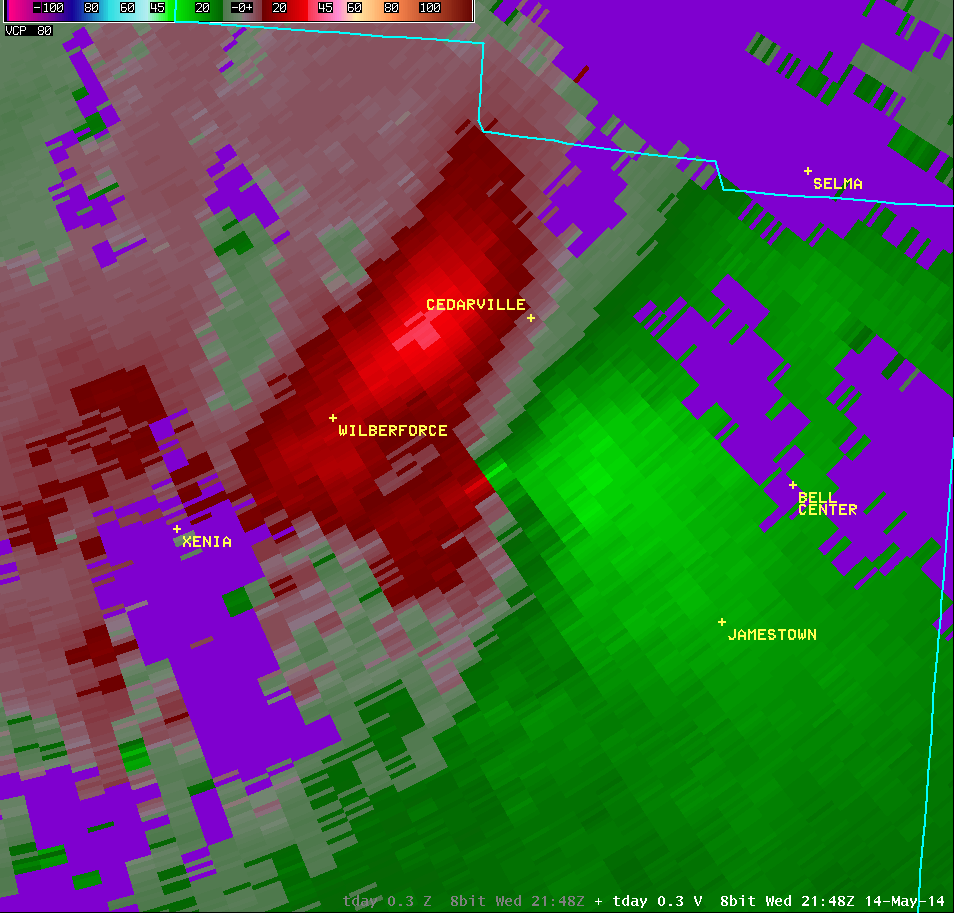

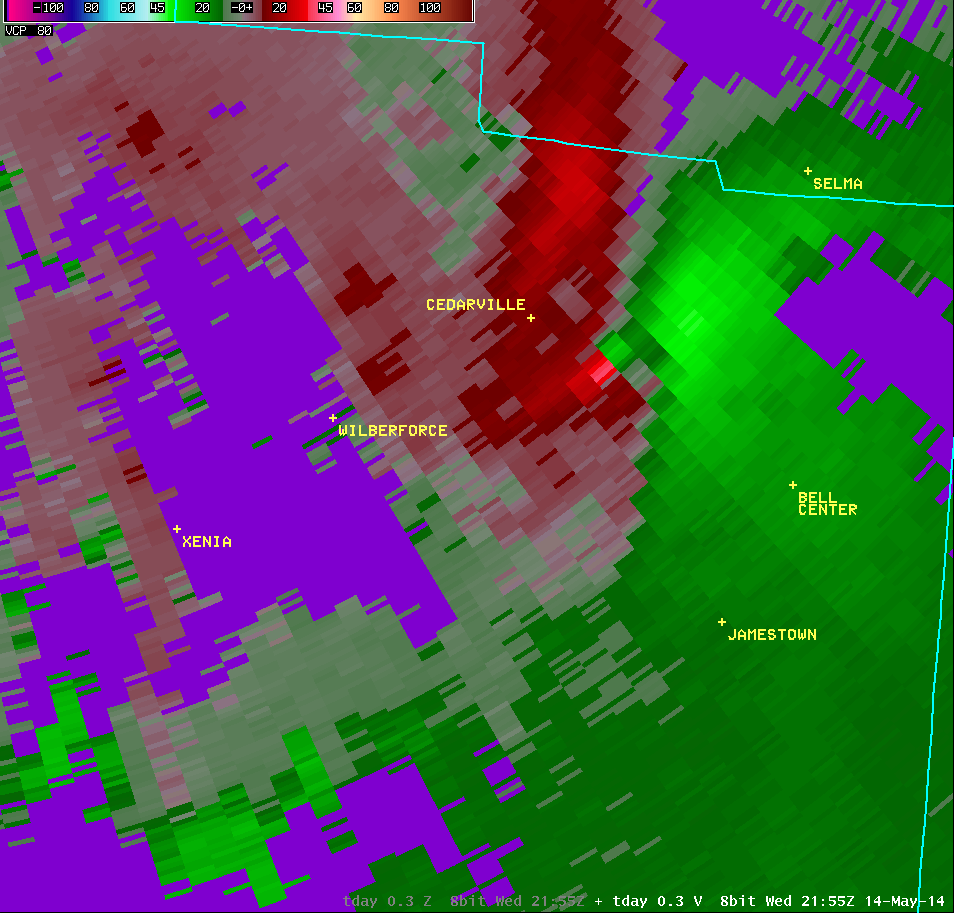

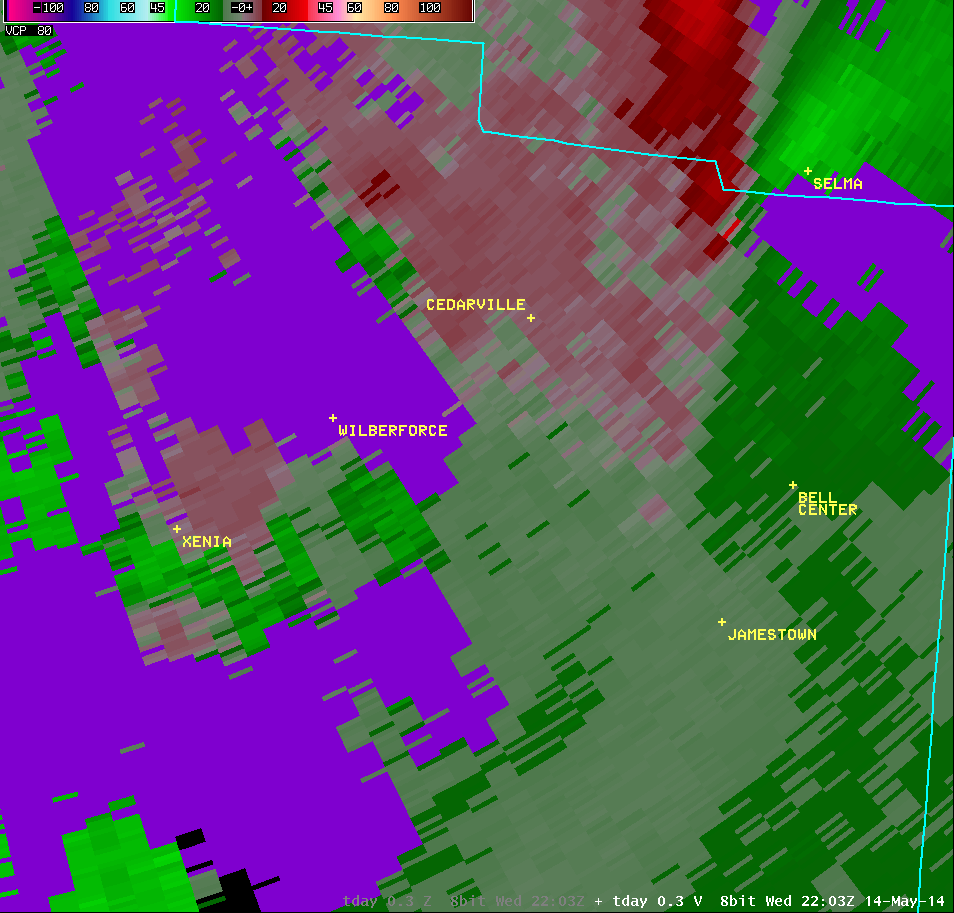

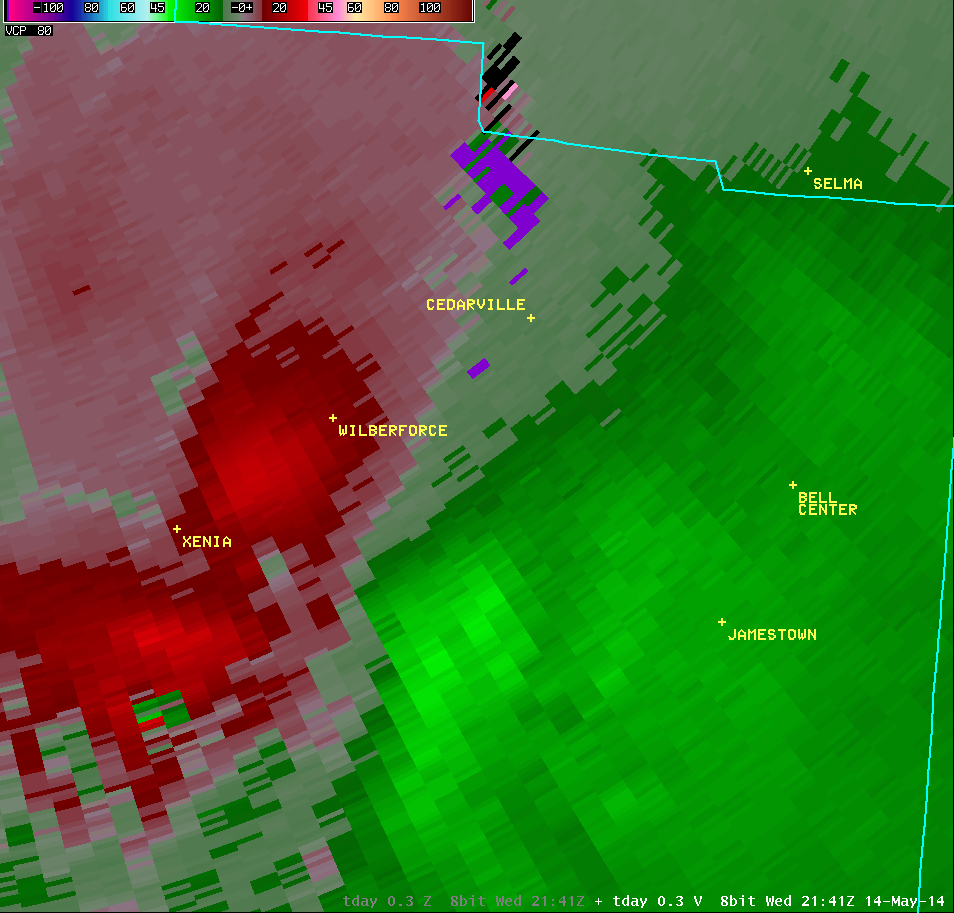

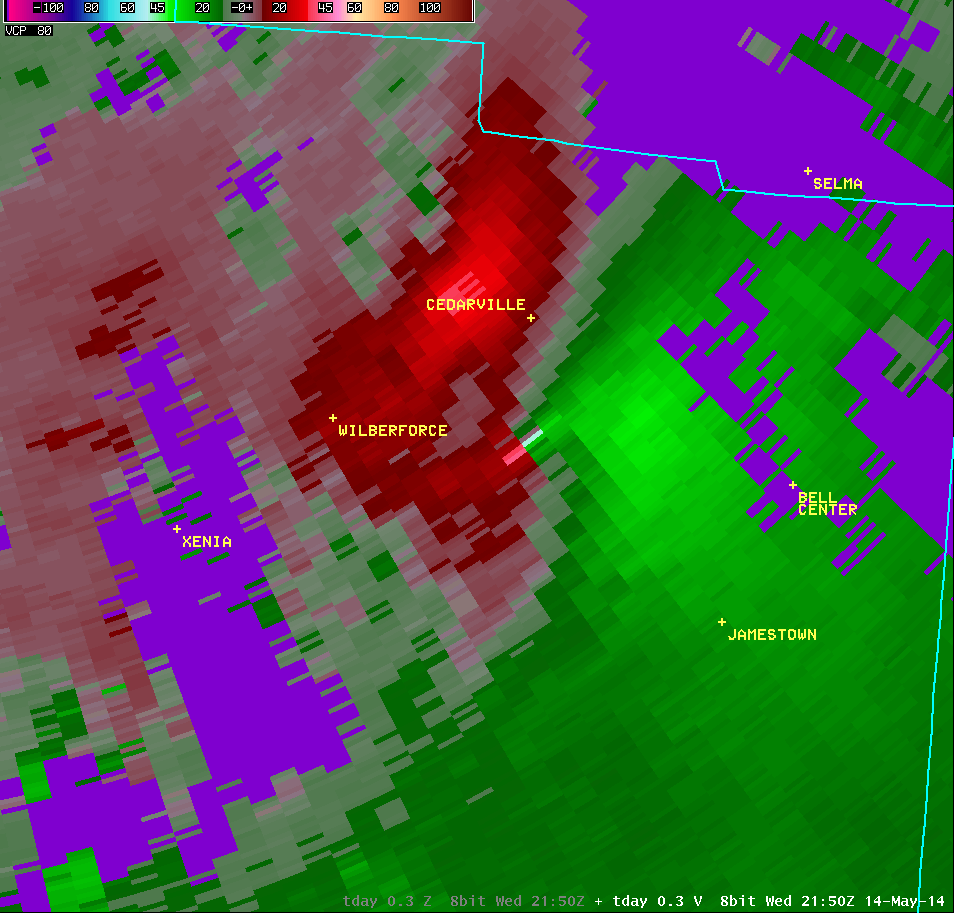

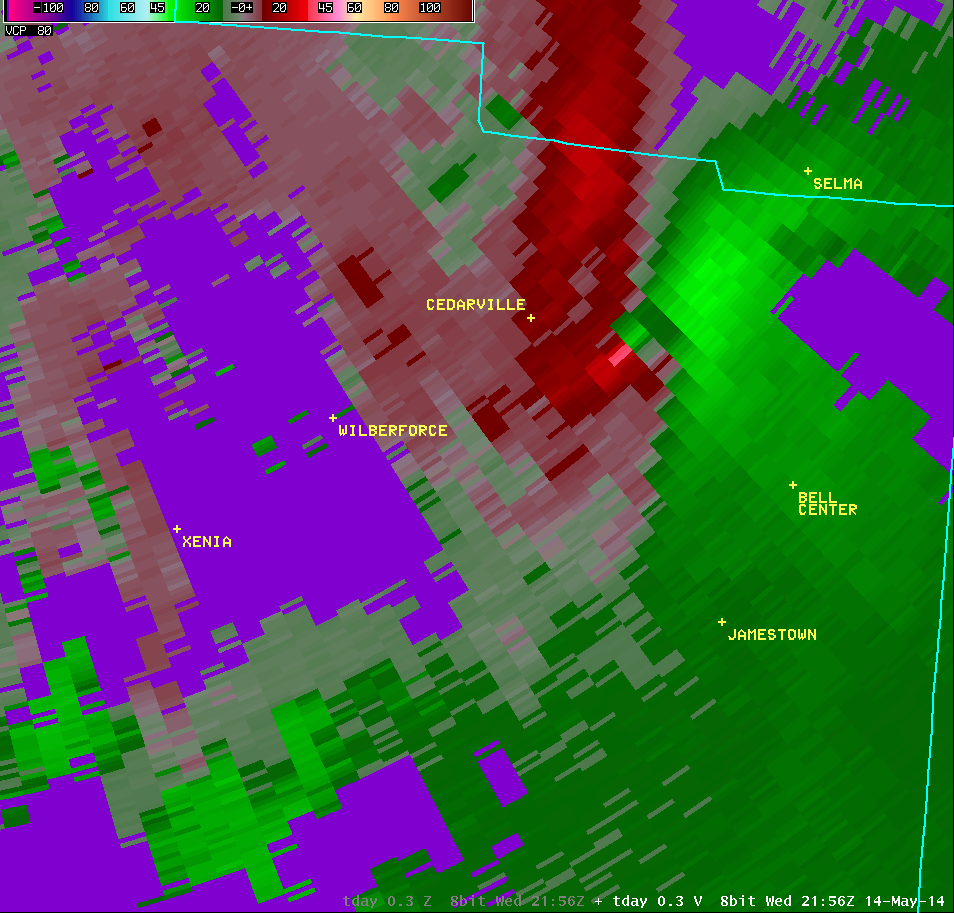

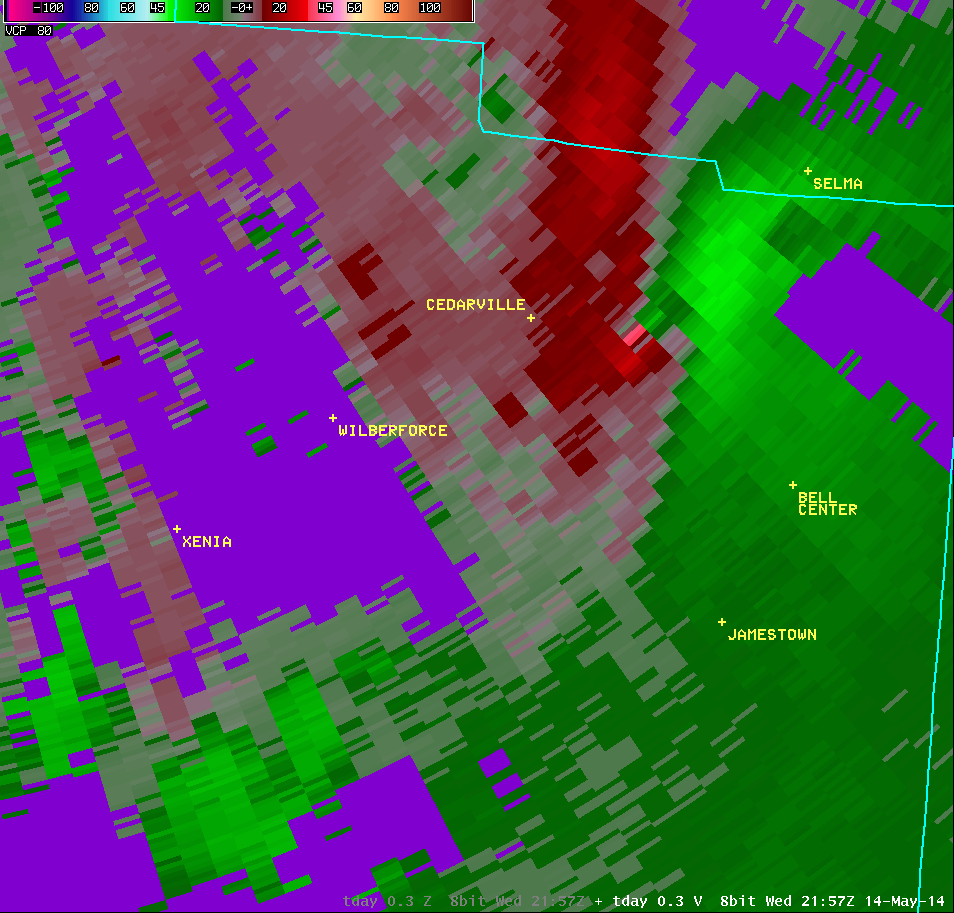

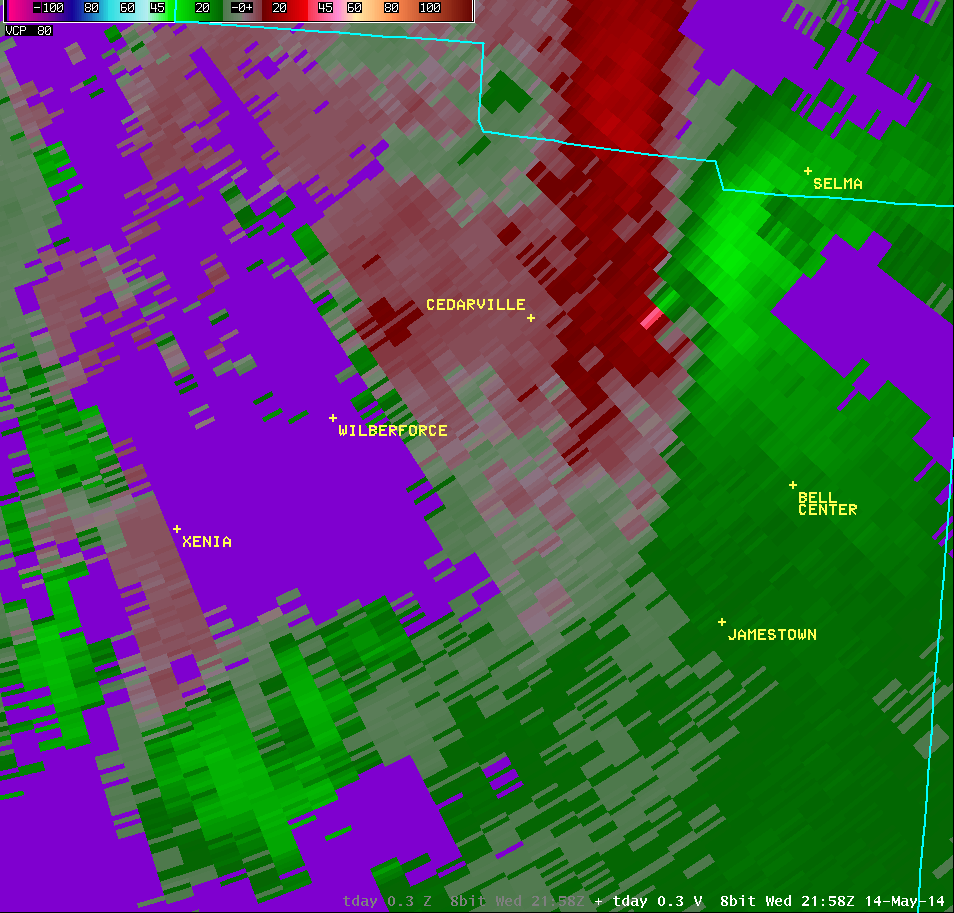

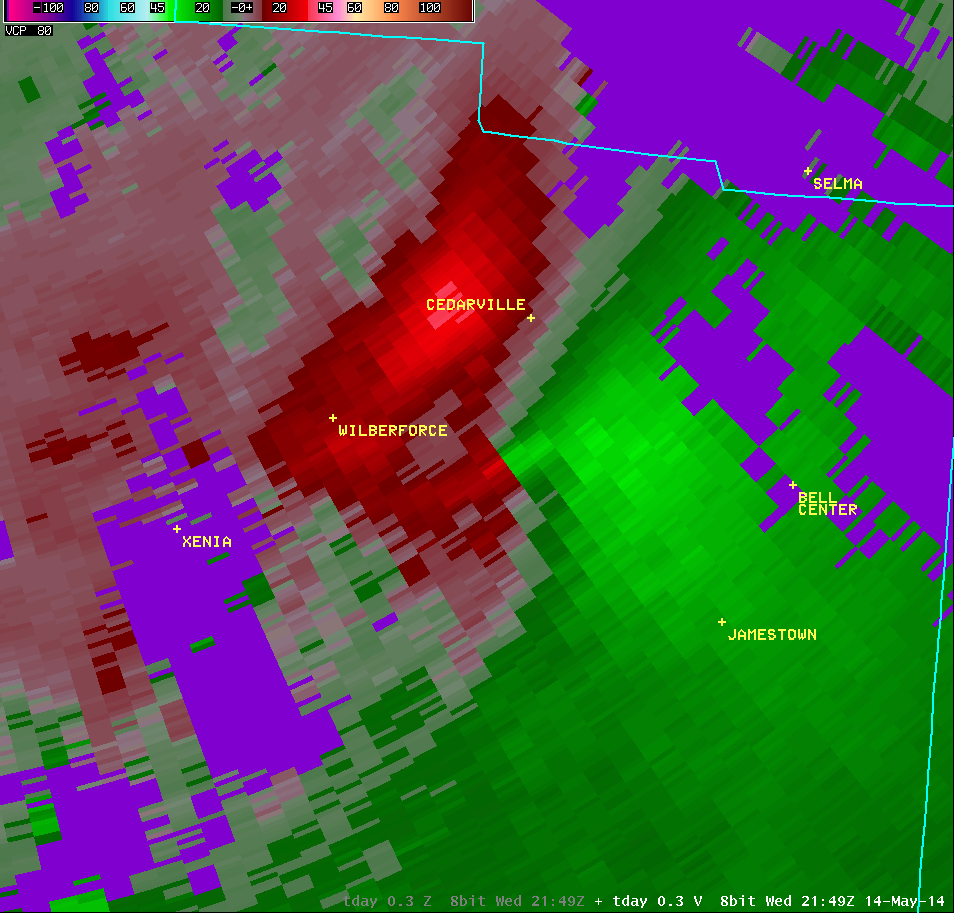

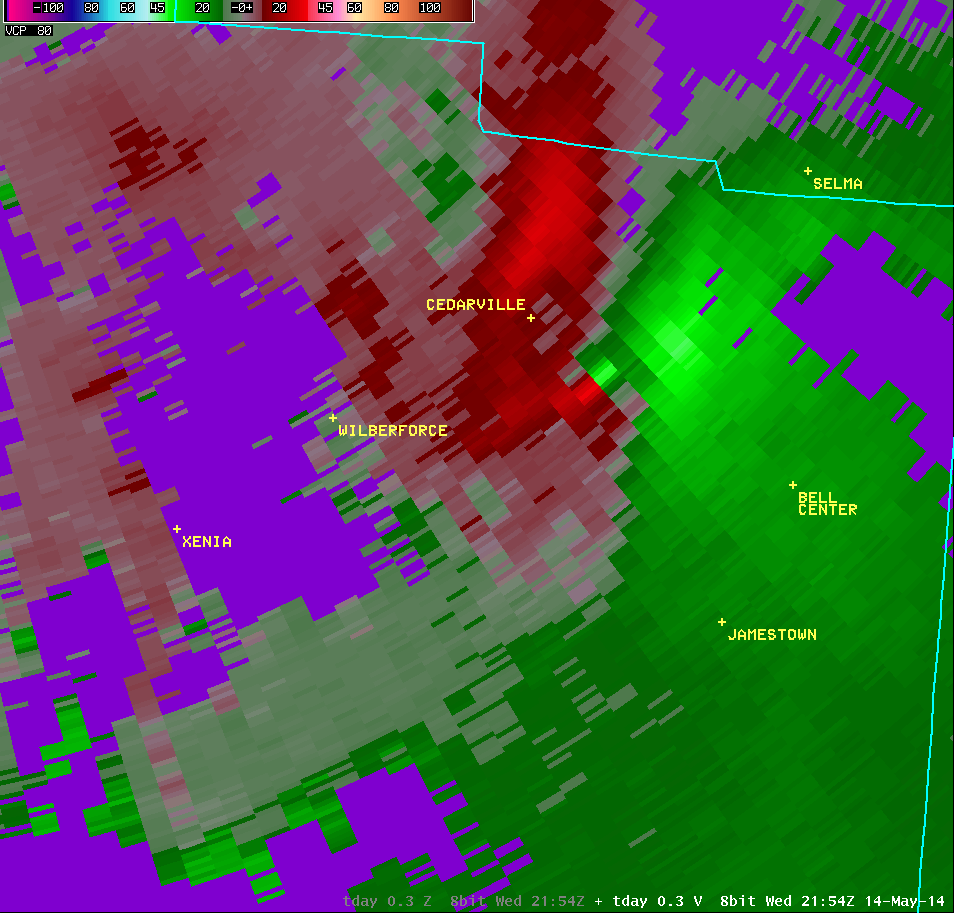

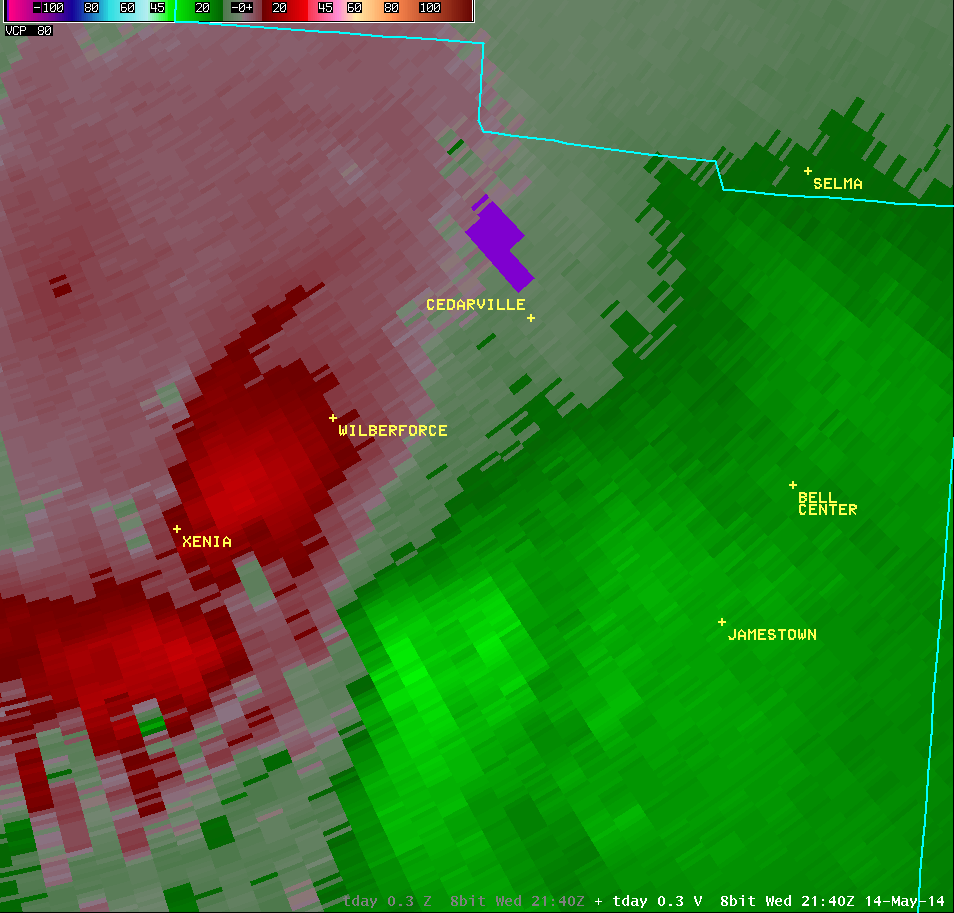

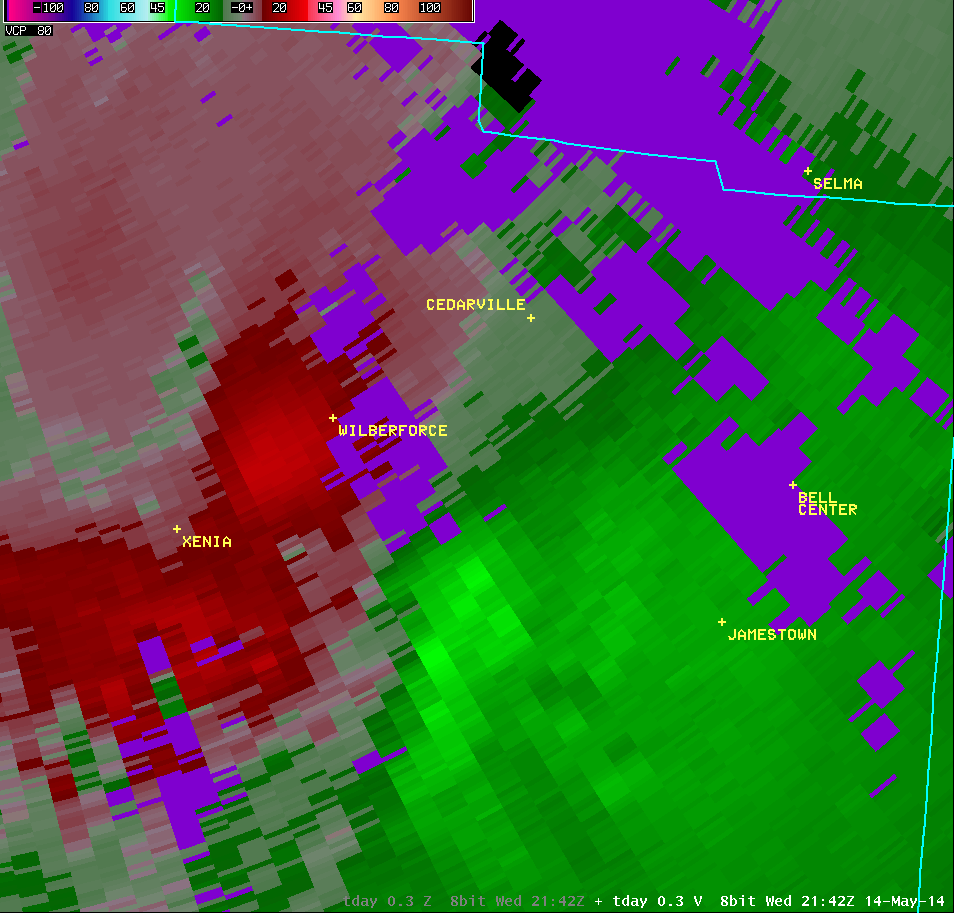

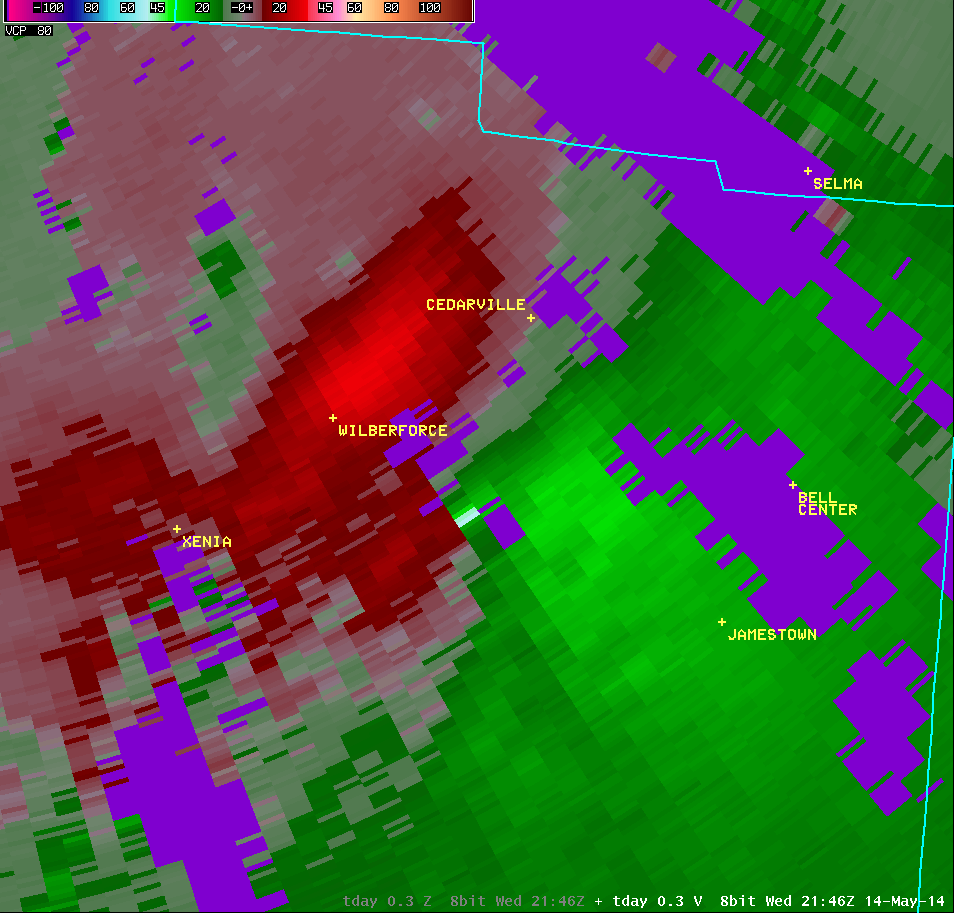

TDAY 0.3° Velocity (1000-1200 feet AGL)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 \| Animation
Full Radar Loops from NWS Wilmington Ohio (5:28 PM - 6:10 PM)

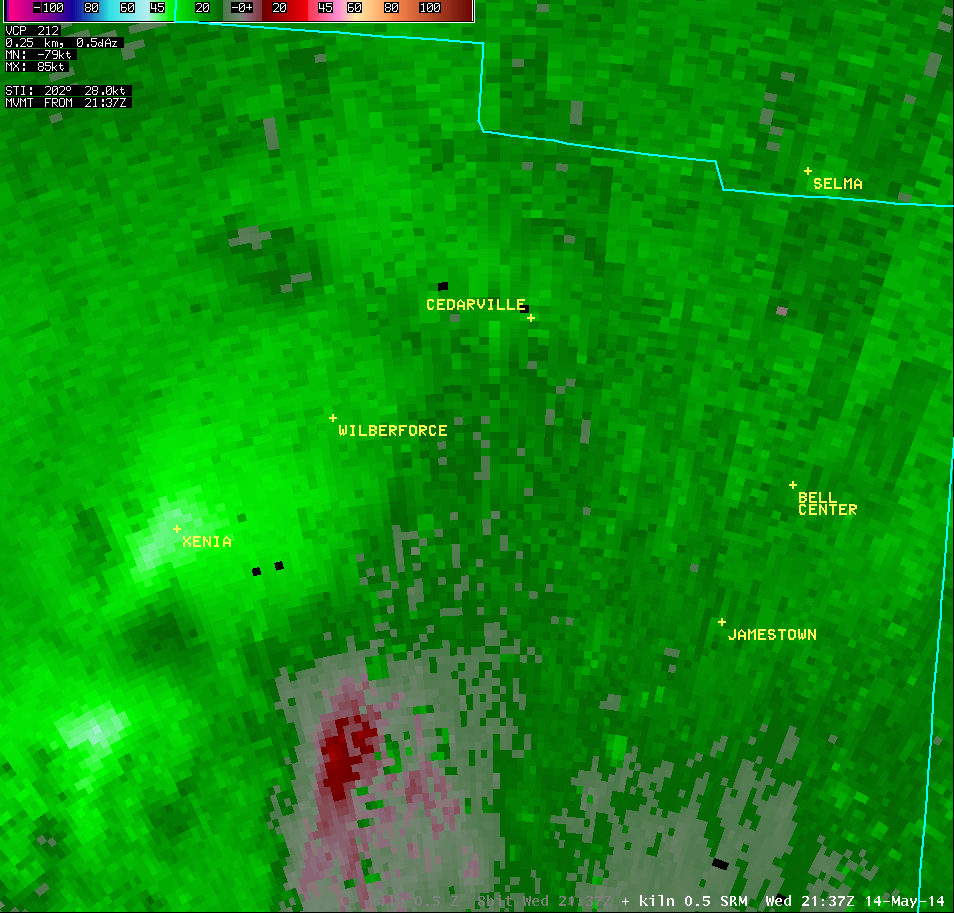

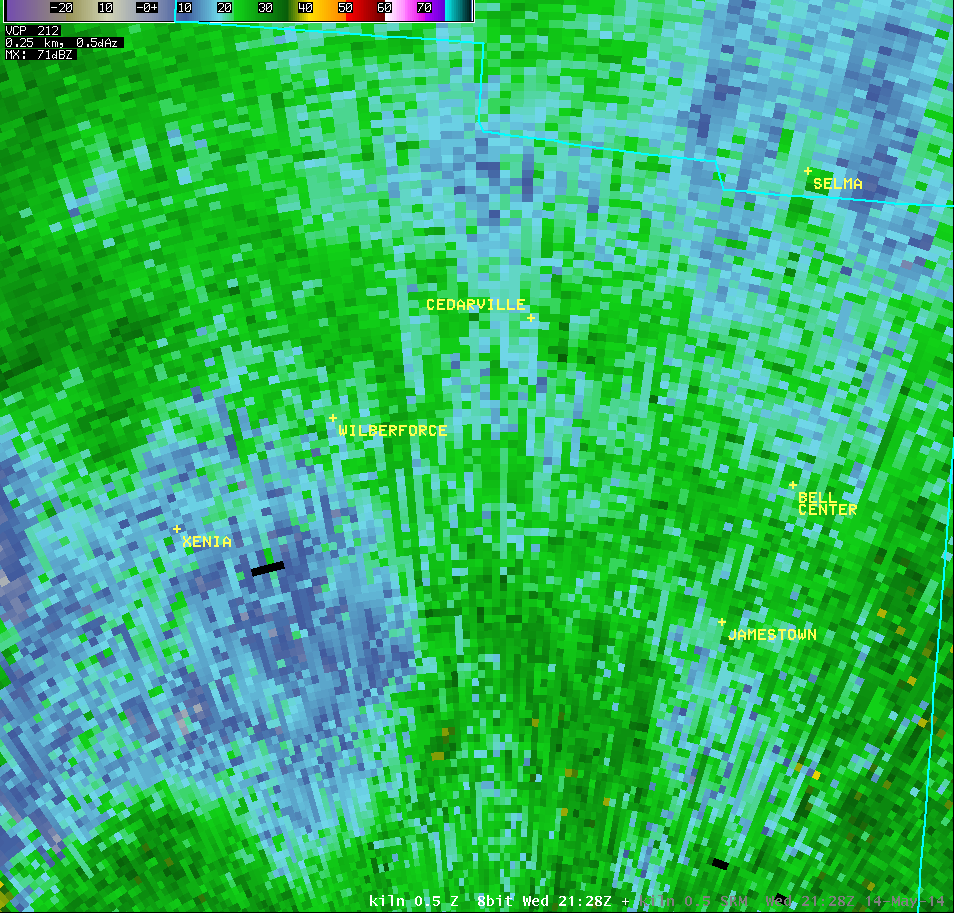

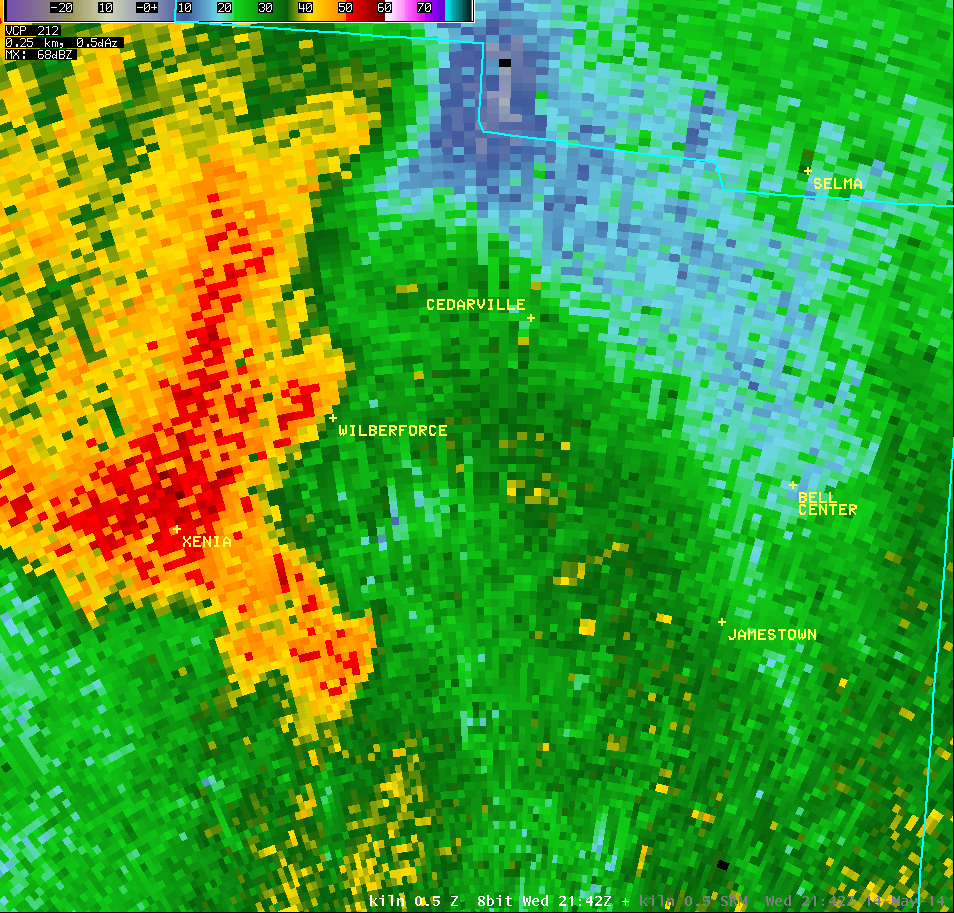

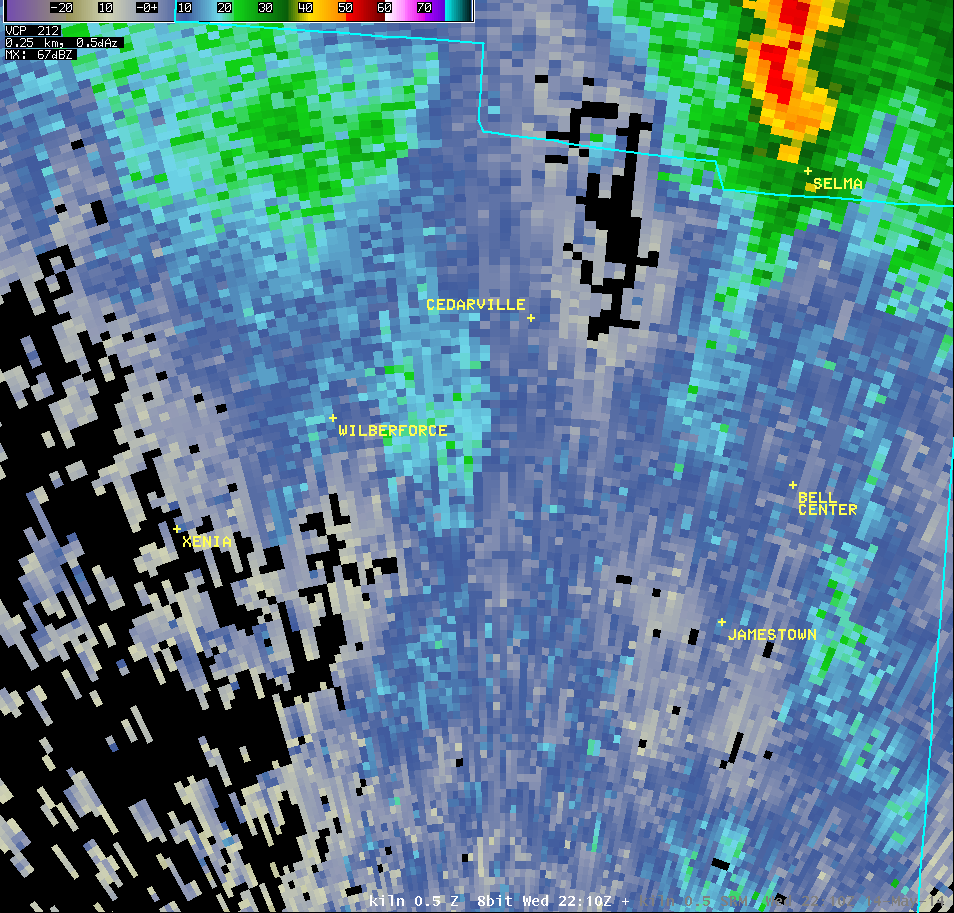

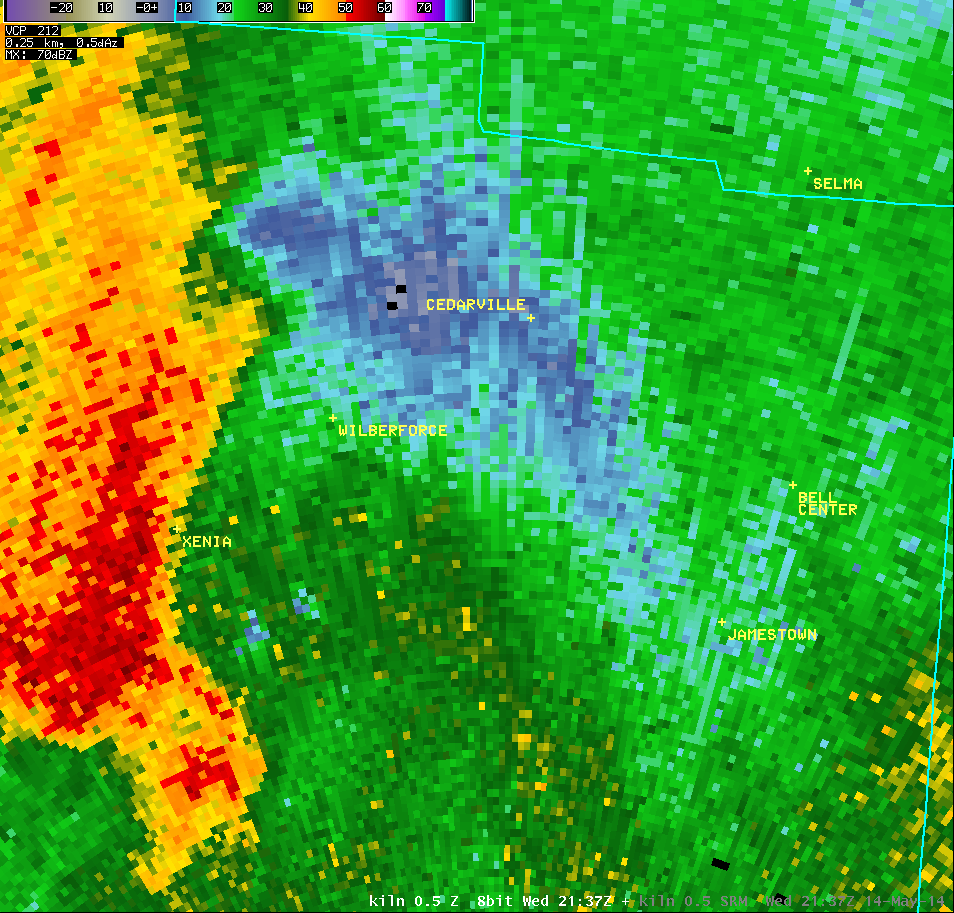

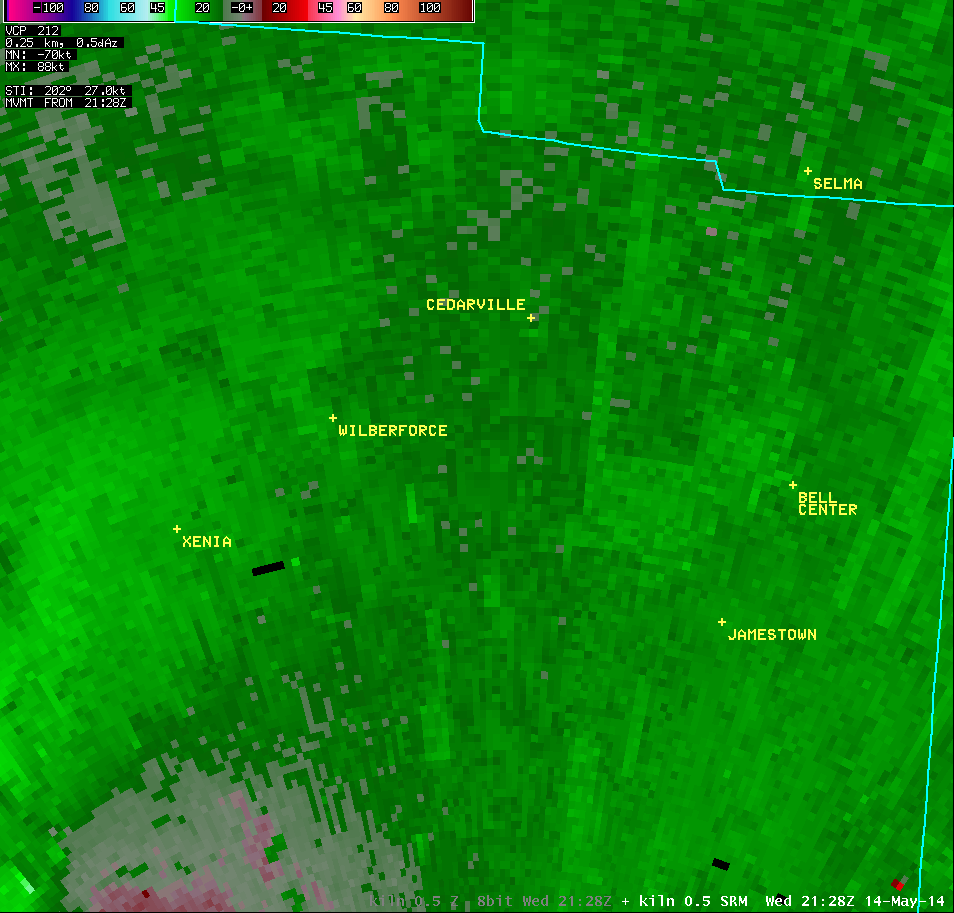

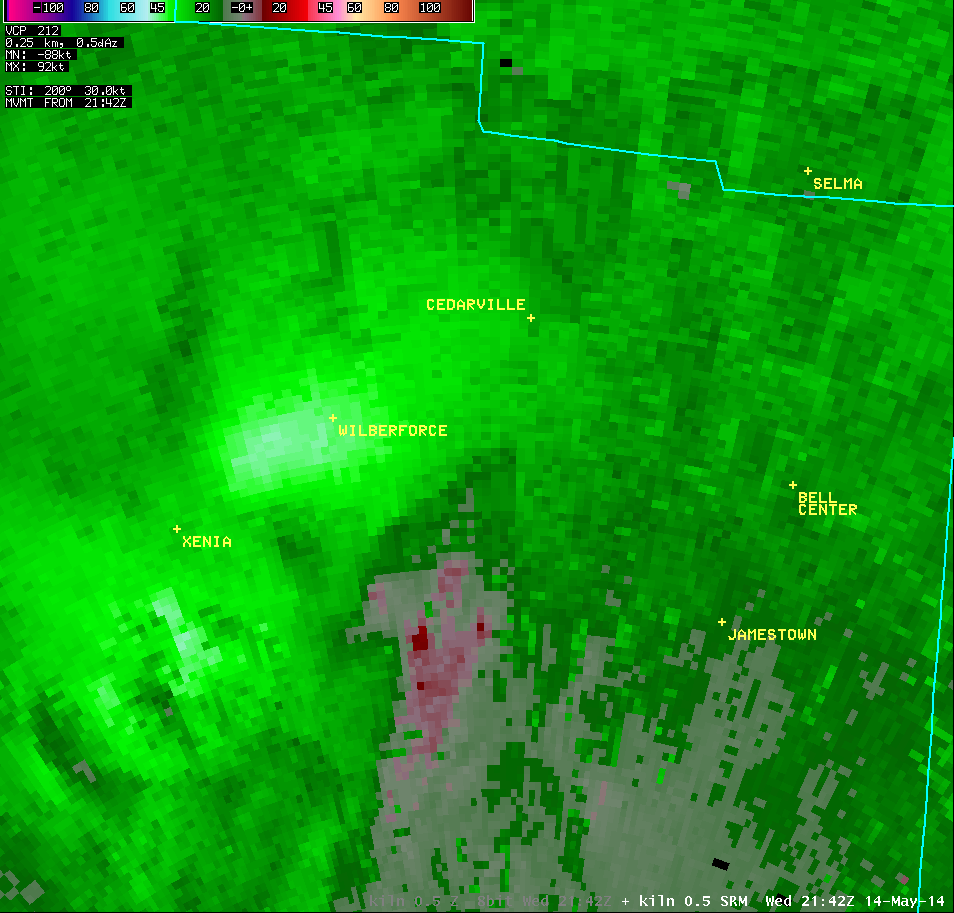

KILN 0.5° Reflectivity (900-1500 feet AGL)	KILN 0.5° Storm-Relative Motion (900-1500 feet AGL)
1 2 3 4 5 6 7 8 9 10	1 2 3 4 5 6 7 8 9 10

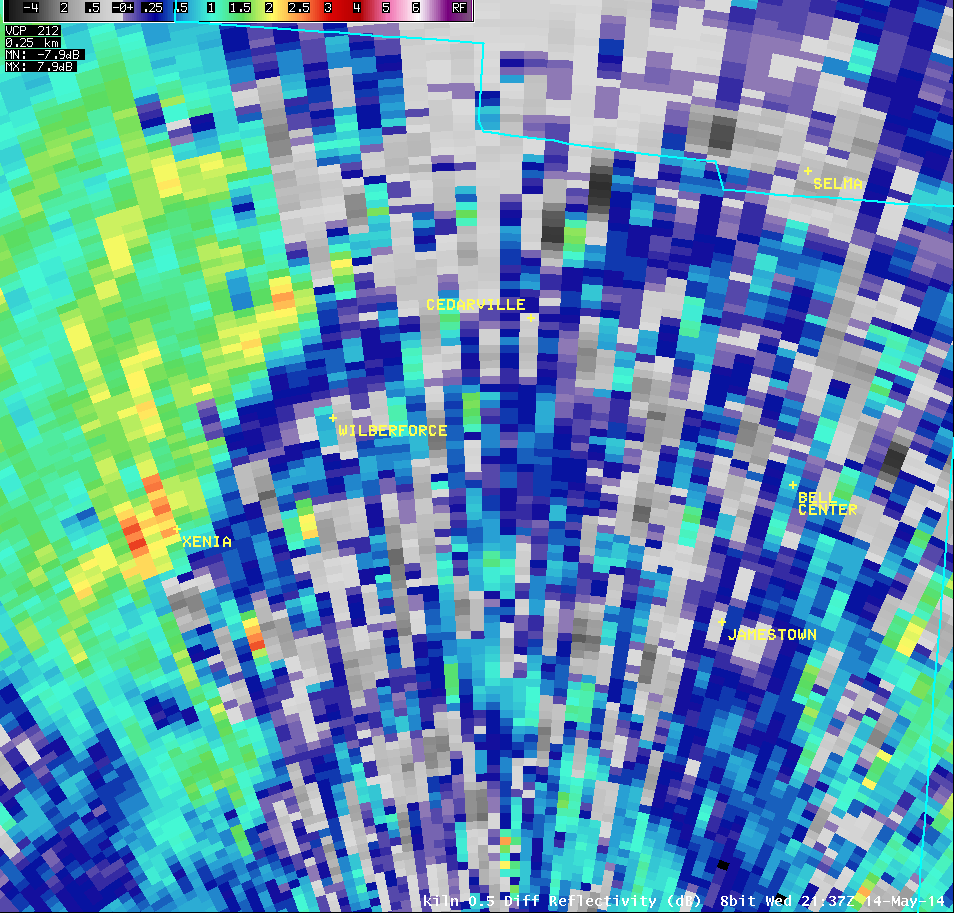

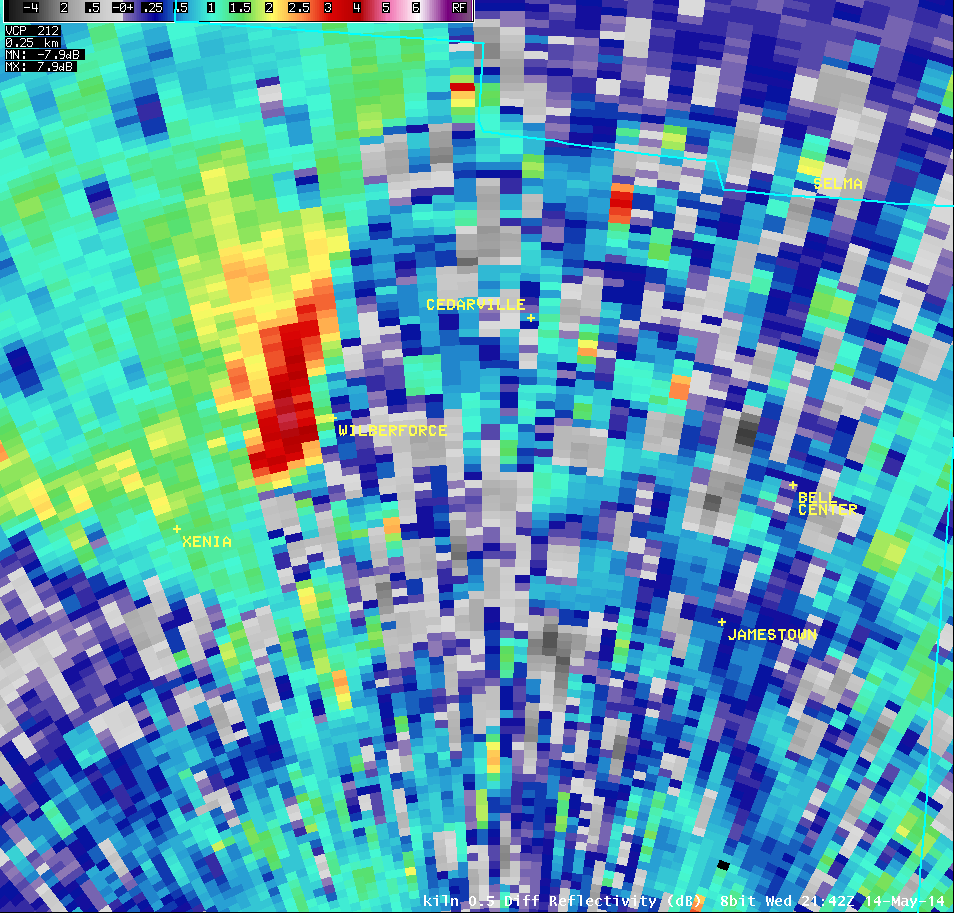

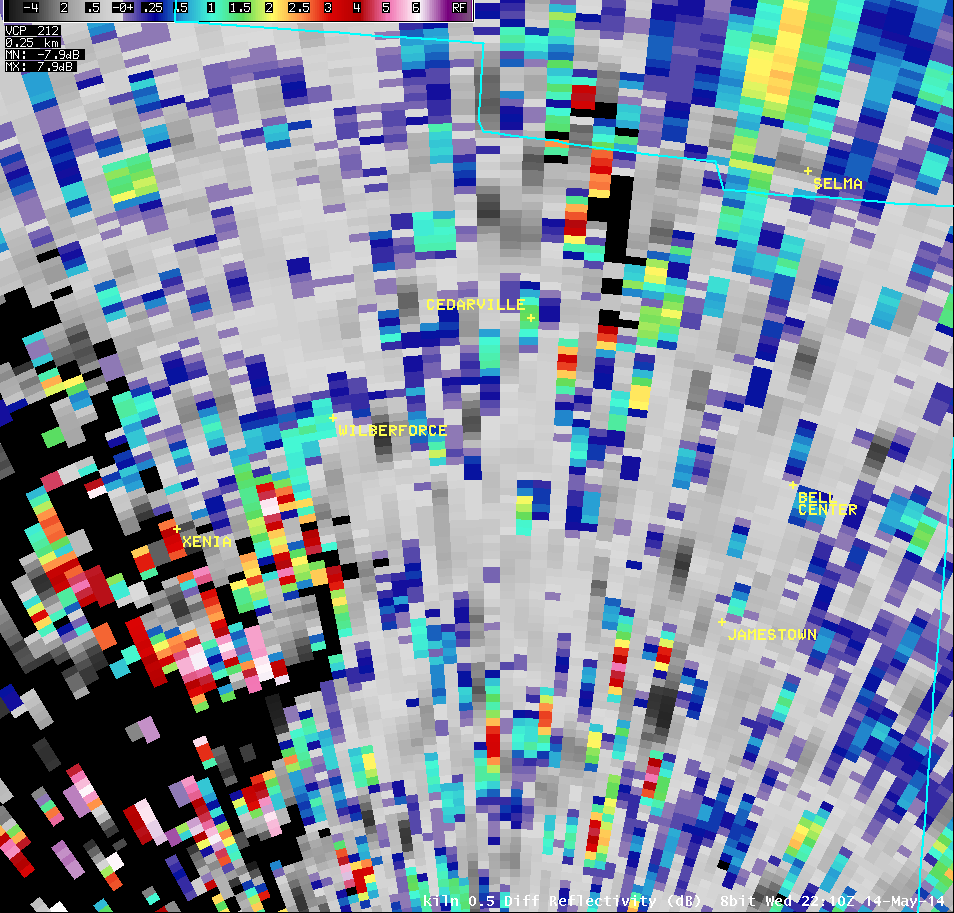

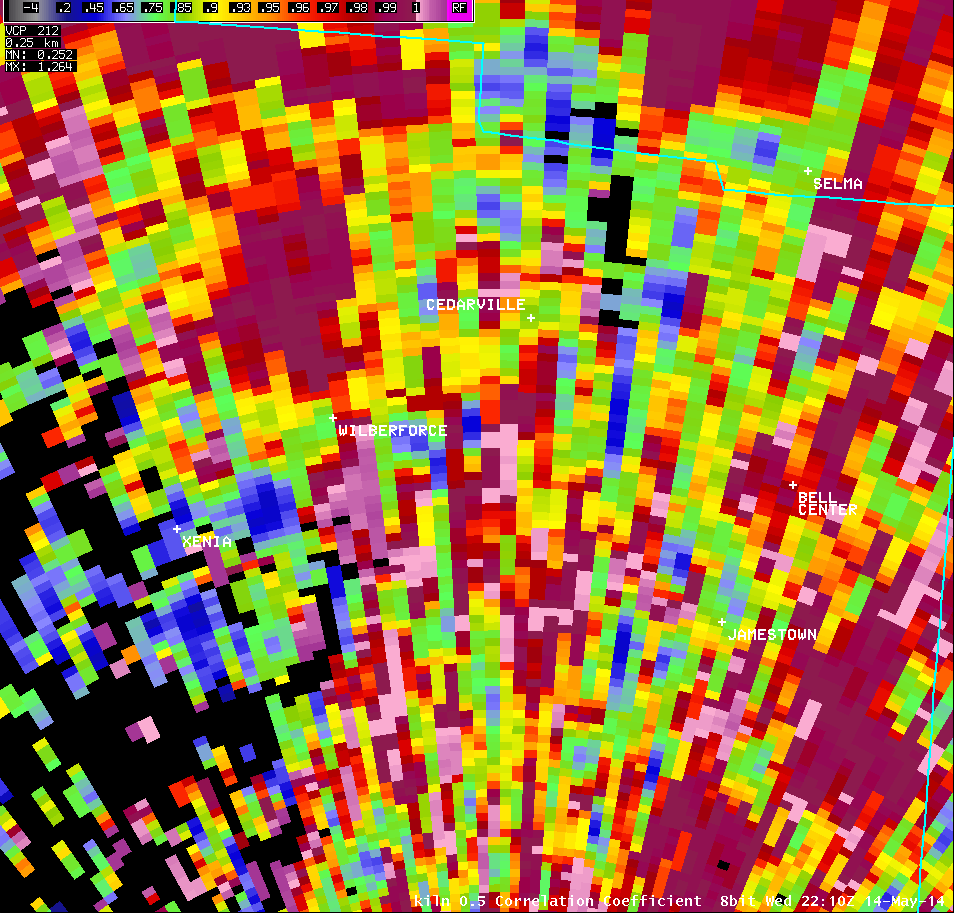

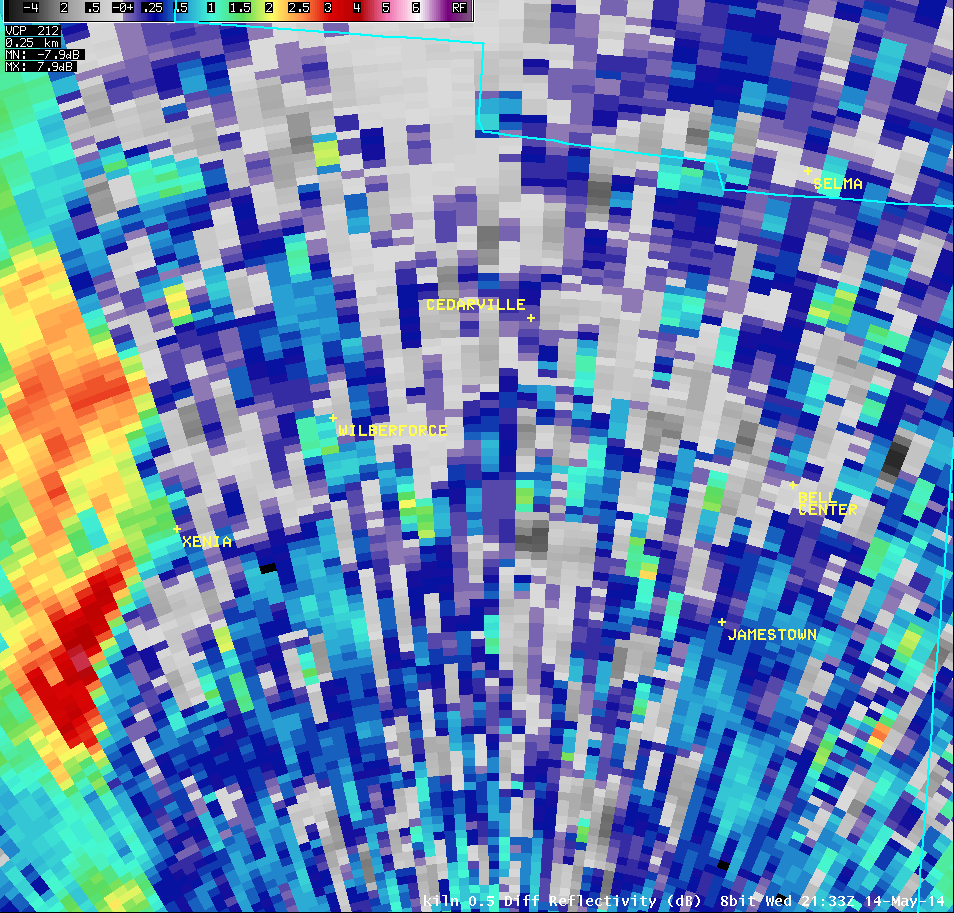

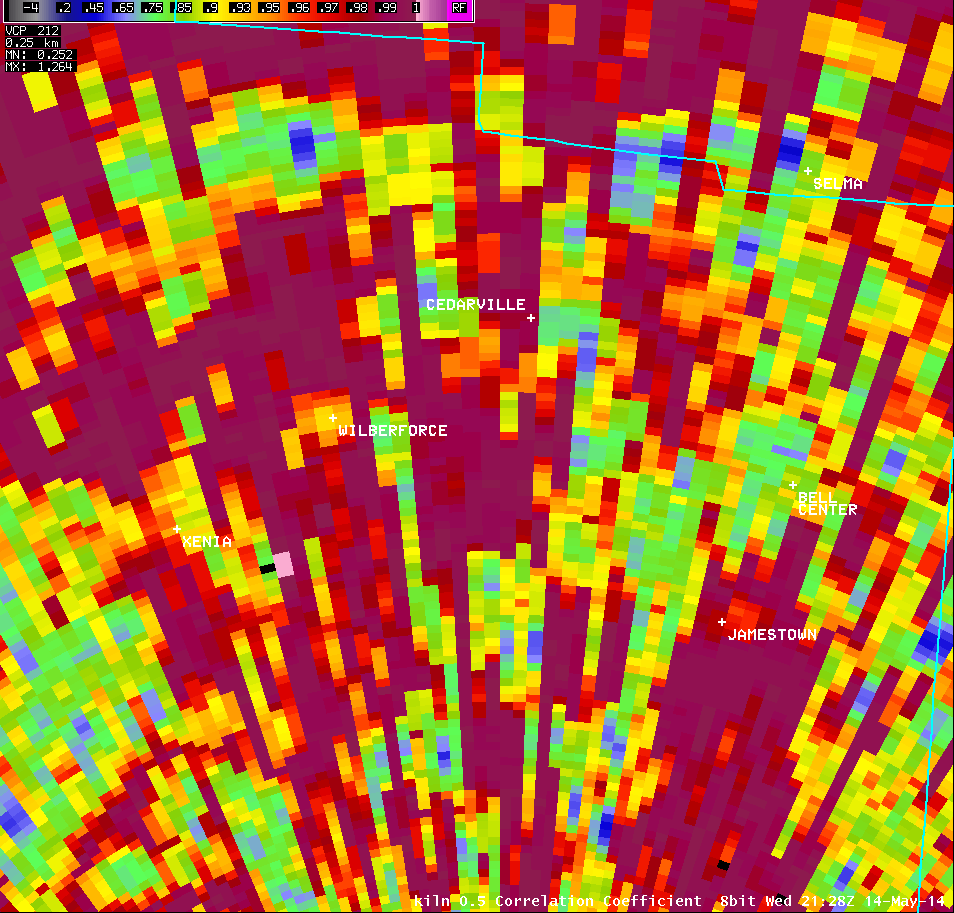

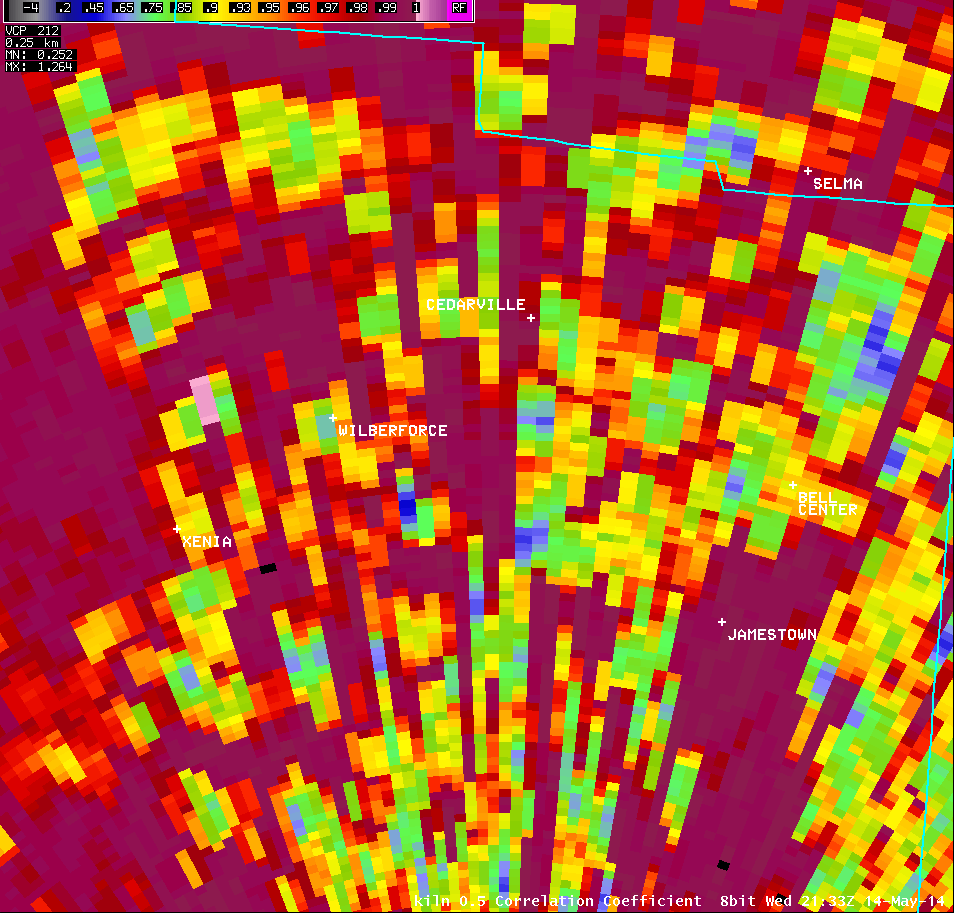

KILN 0.5° Correlation Coefficient (900-1500 feet AGL)	KILN 0.5° Differential Reflectivity (900-1500 feet AGL)
1 2 3 4 5 6 7 8 9 10	1 2 3 4 5 6 7 8 9 10

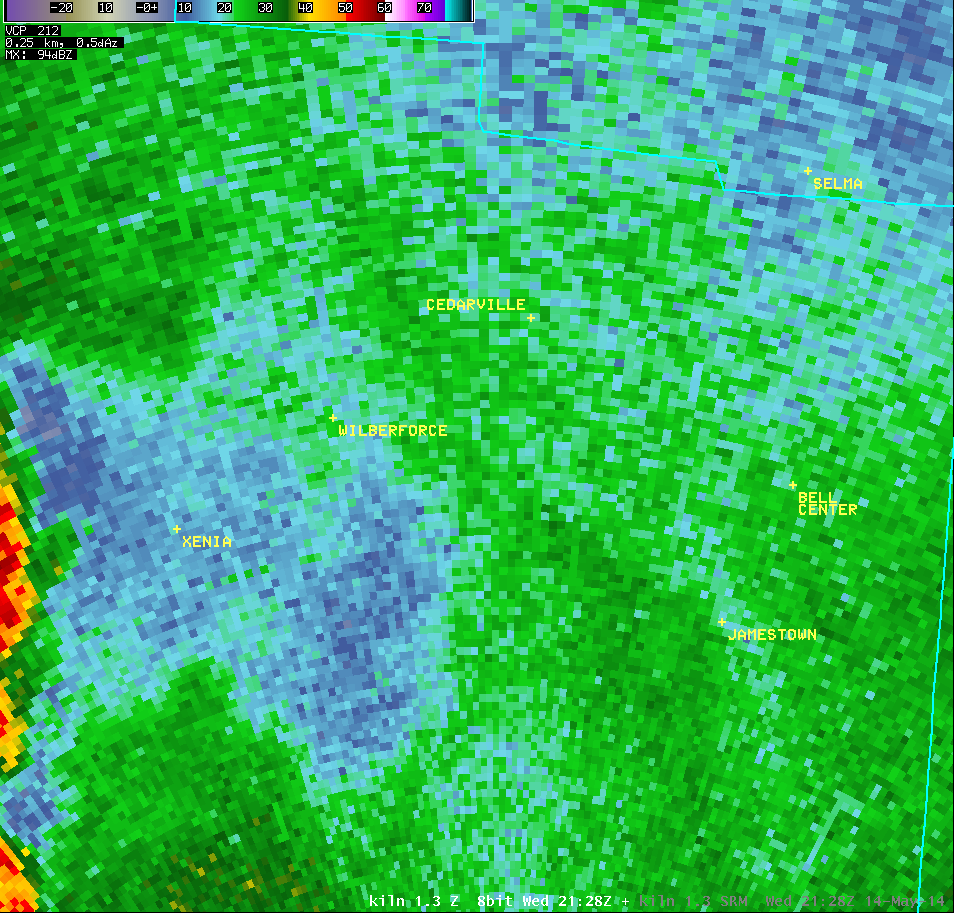

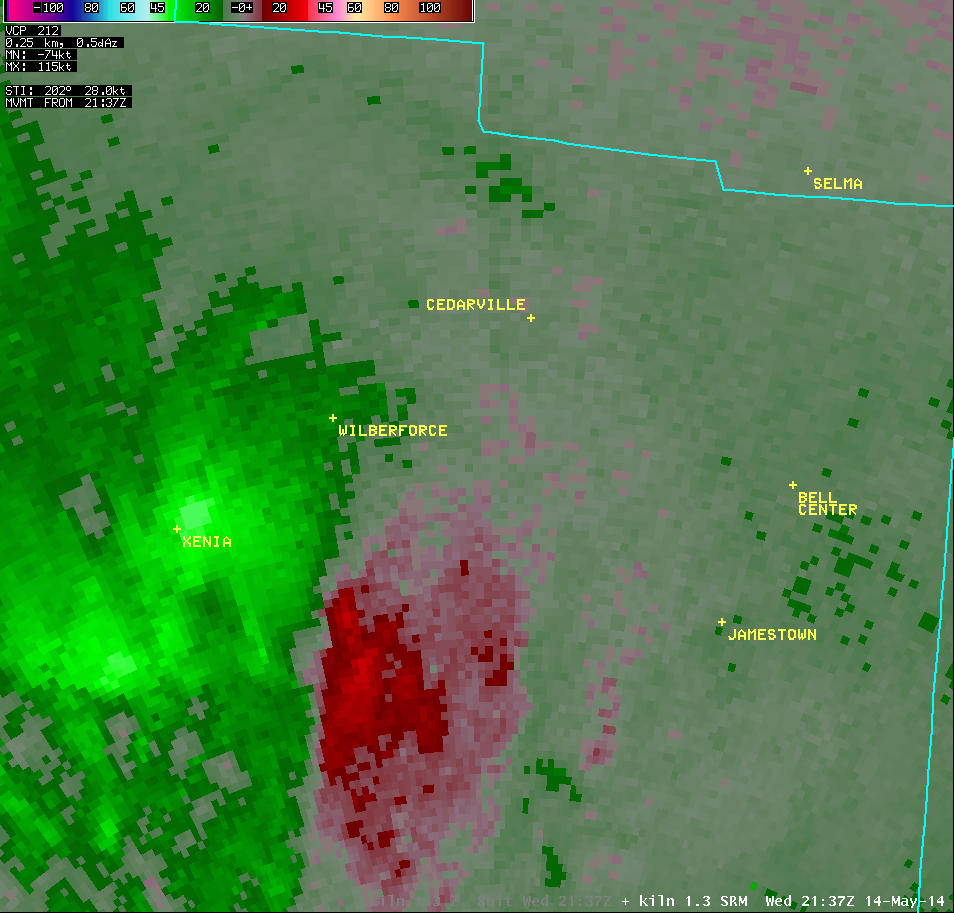

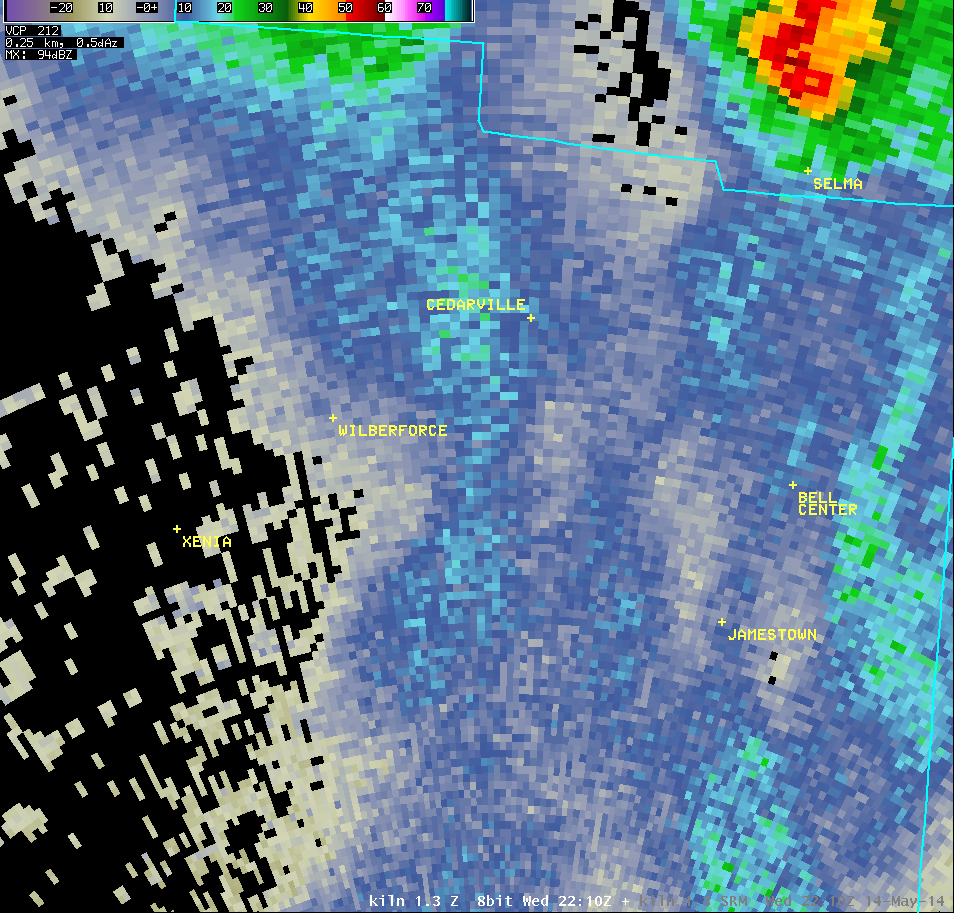

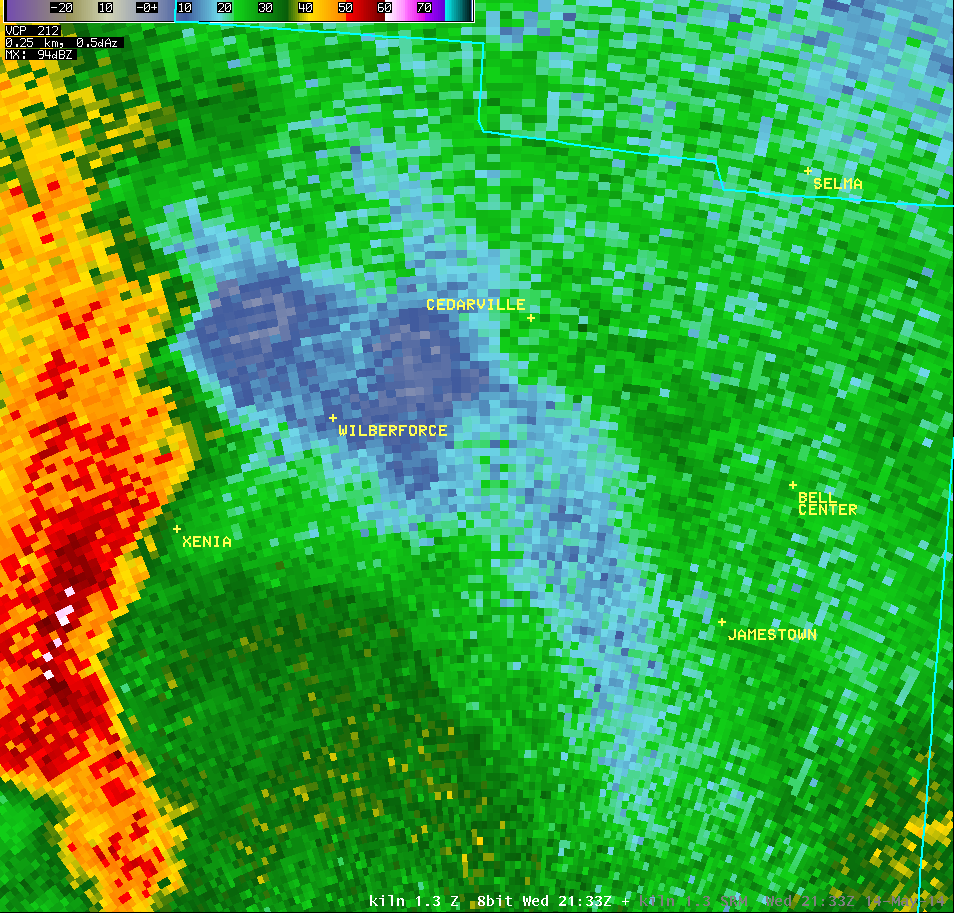

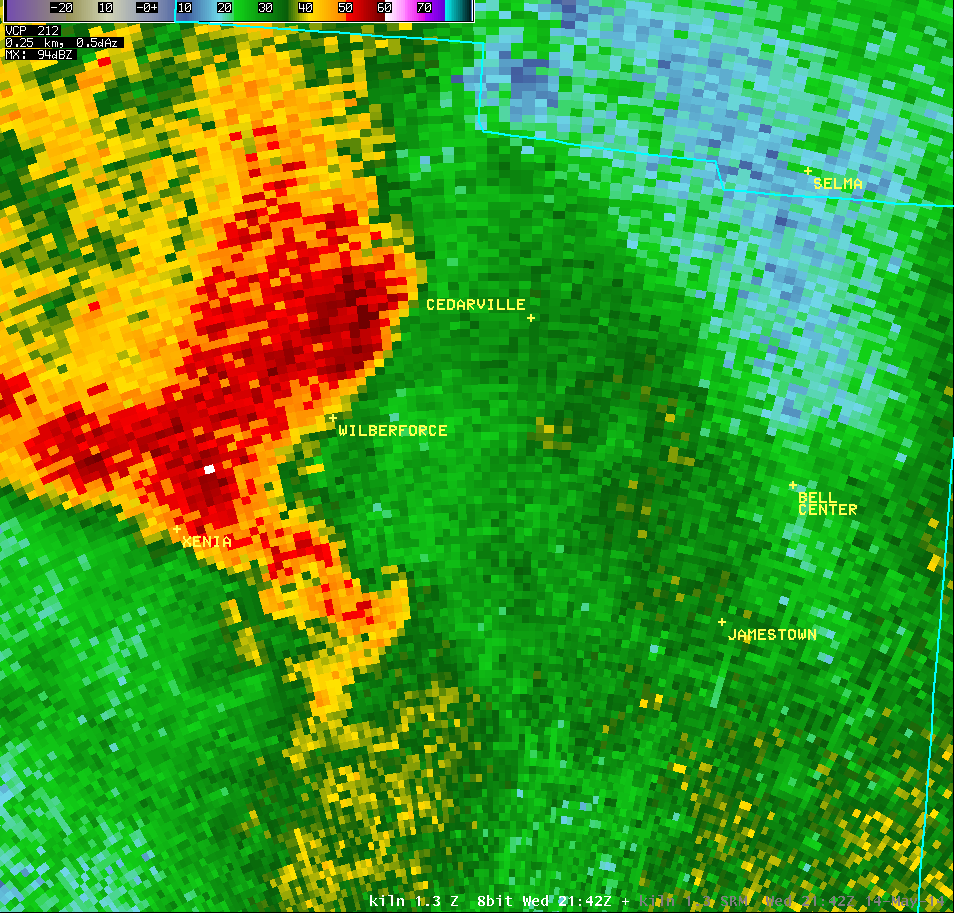

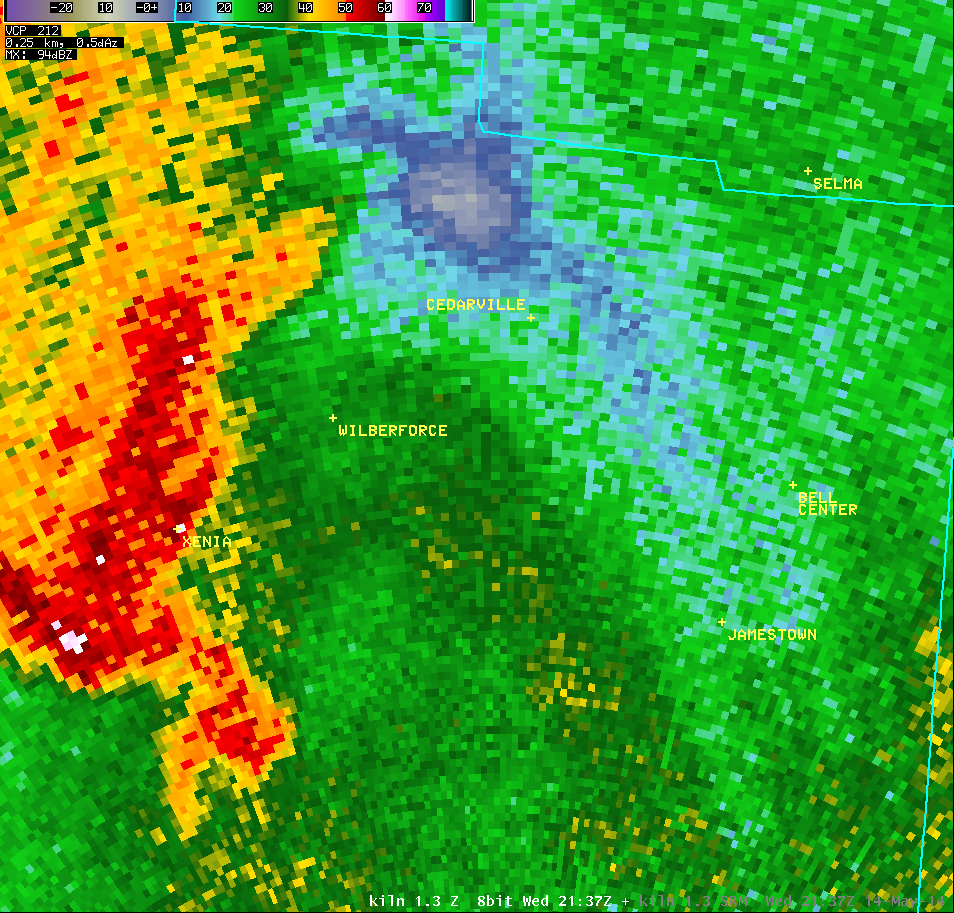

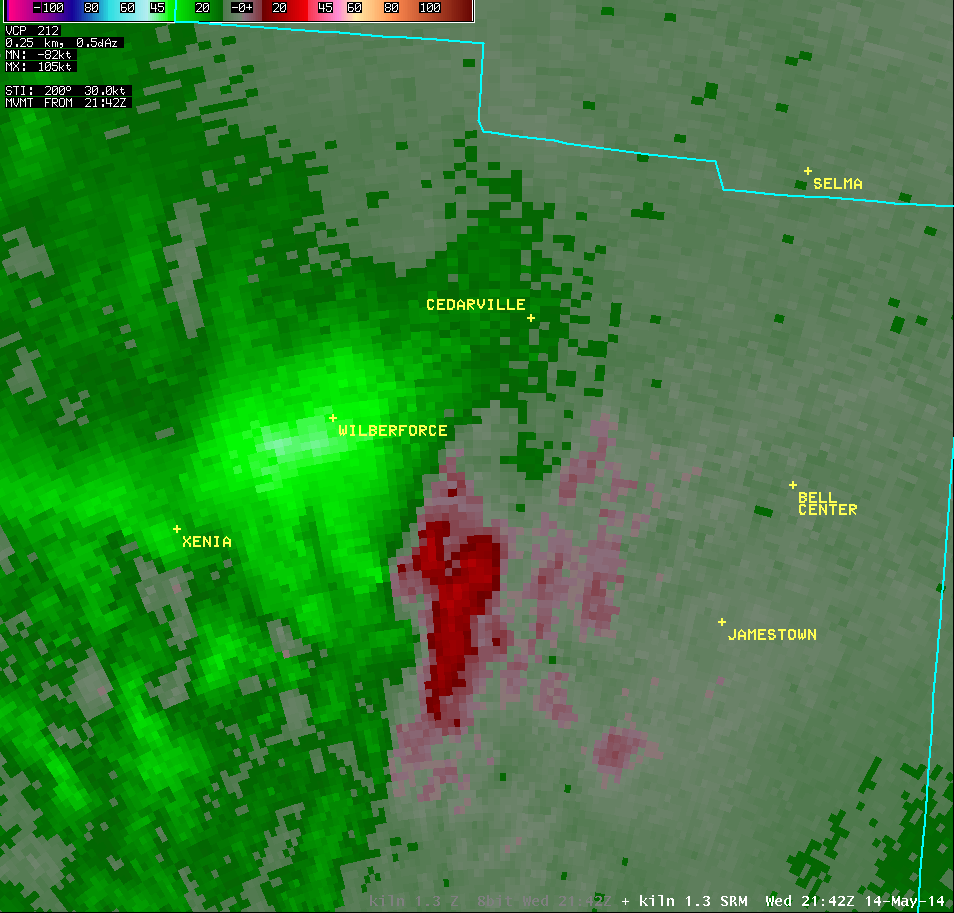

KILN 1.3° Reflectivity (2000-3500 feet AGL)	KILN 1.3° Storm-Relative Motion (2000-3500 feet AGL)
1 2 3 4 5 6 7 8 9 10	1 2 3 4 5 6 7 8 9 10

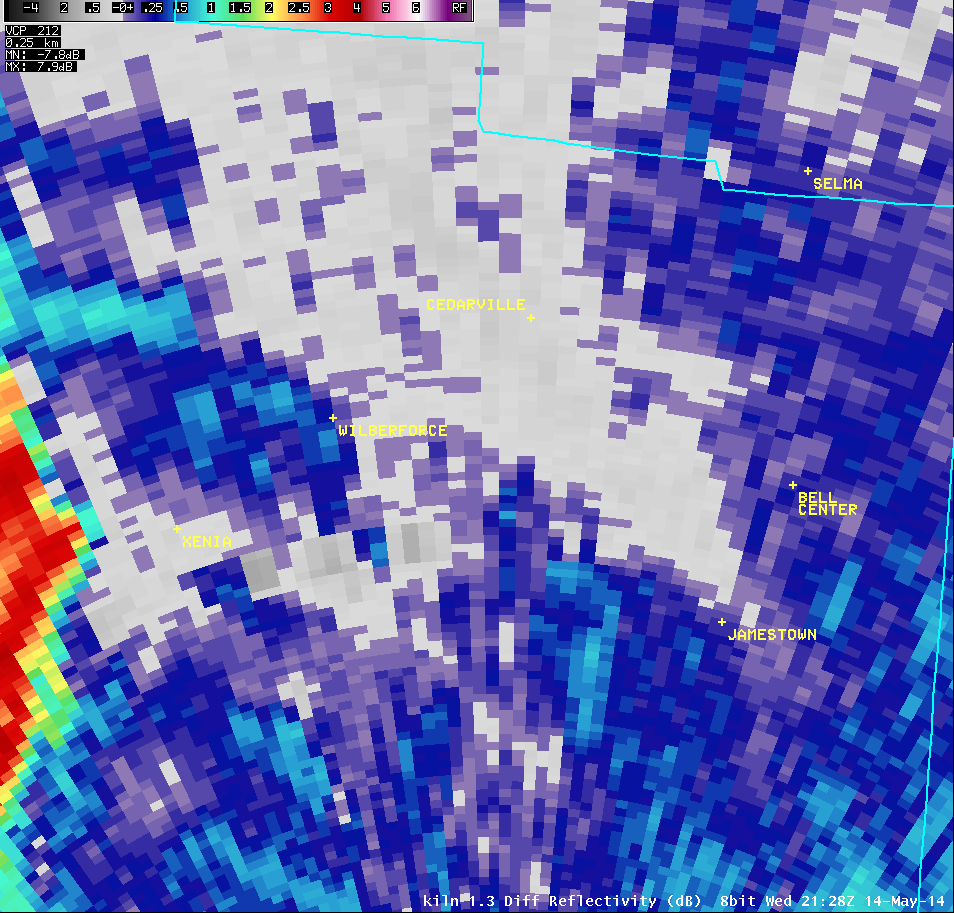

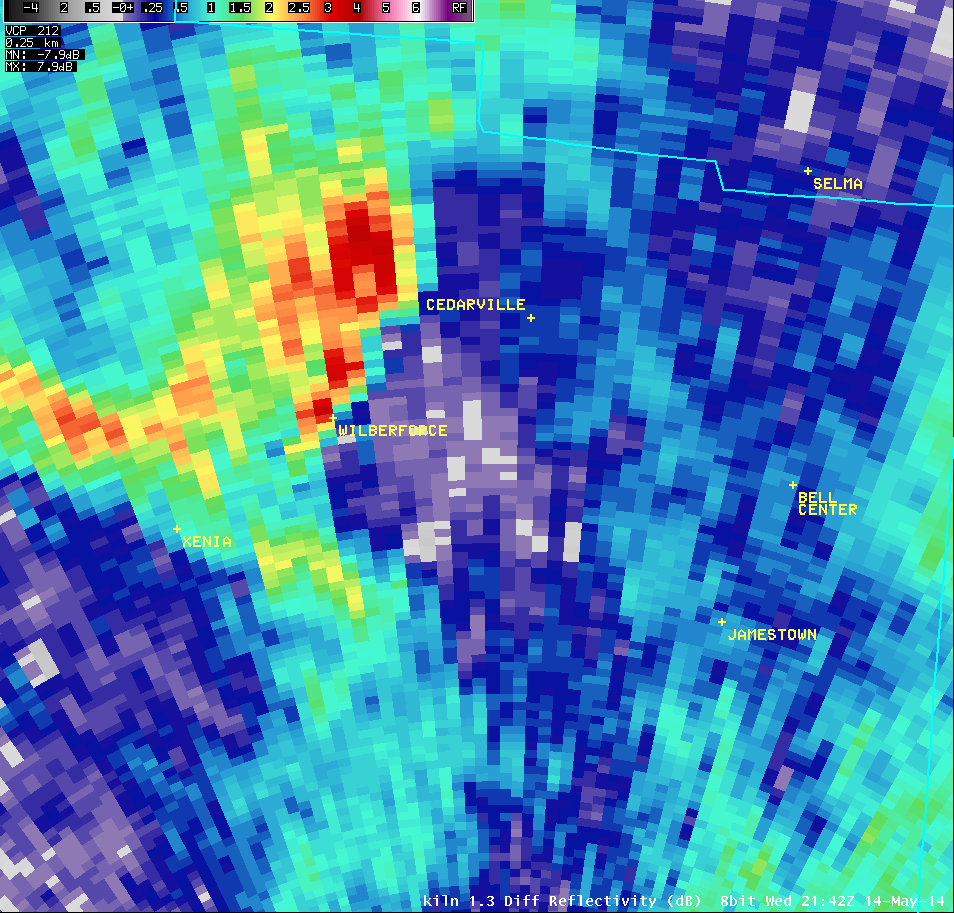

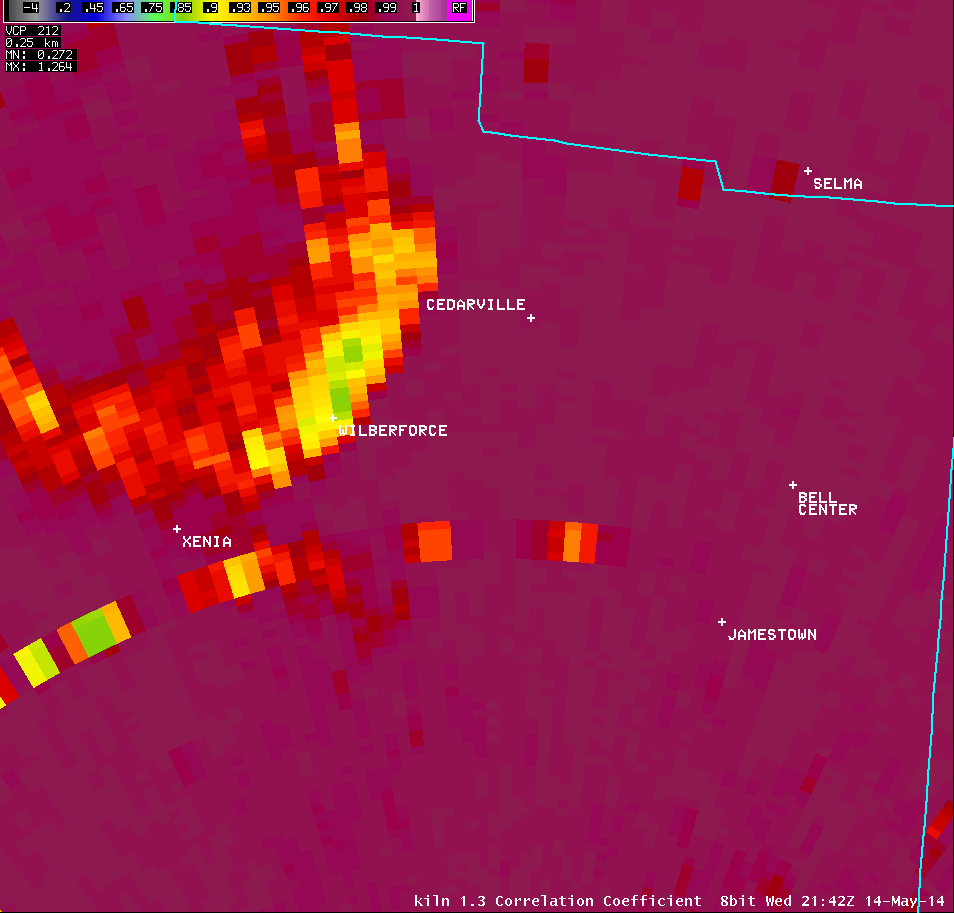

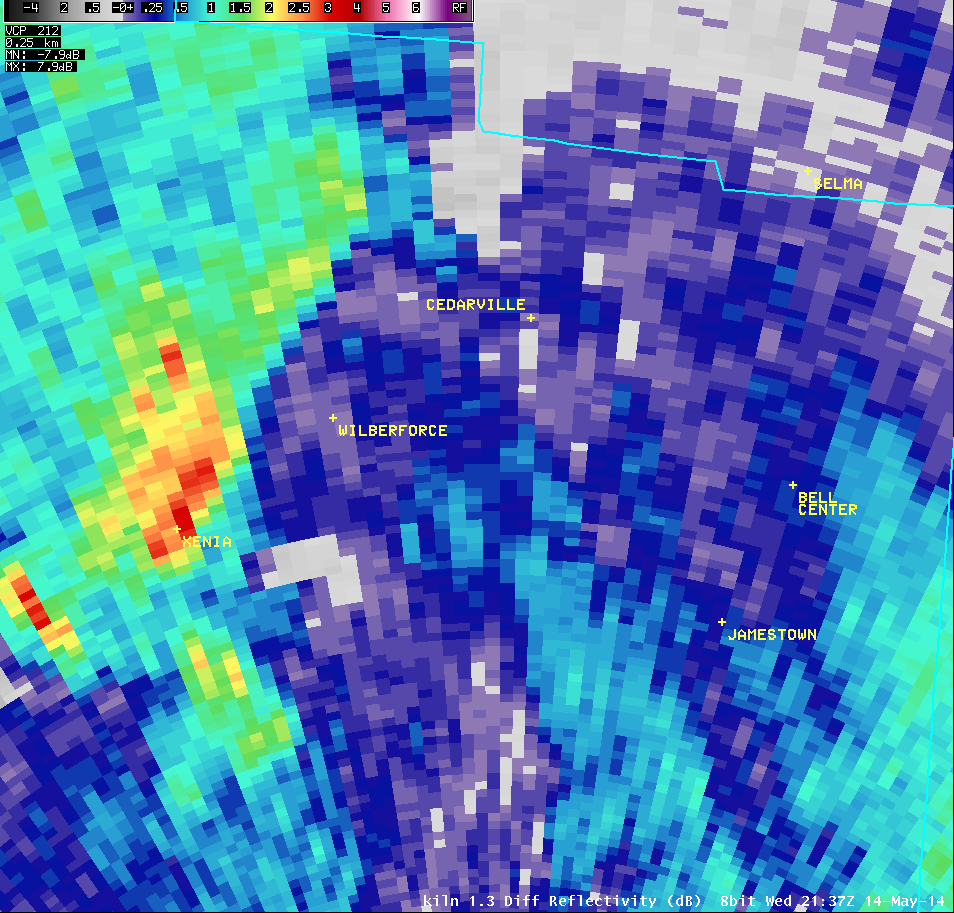

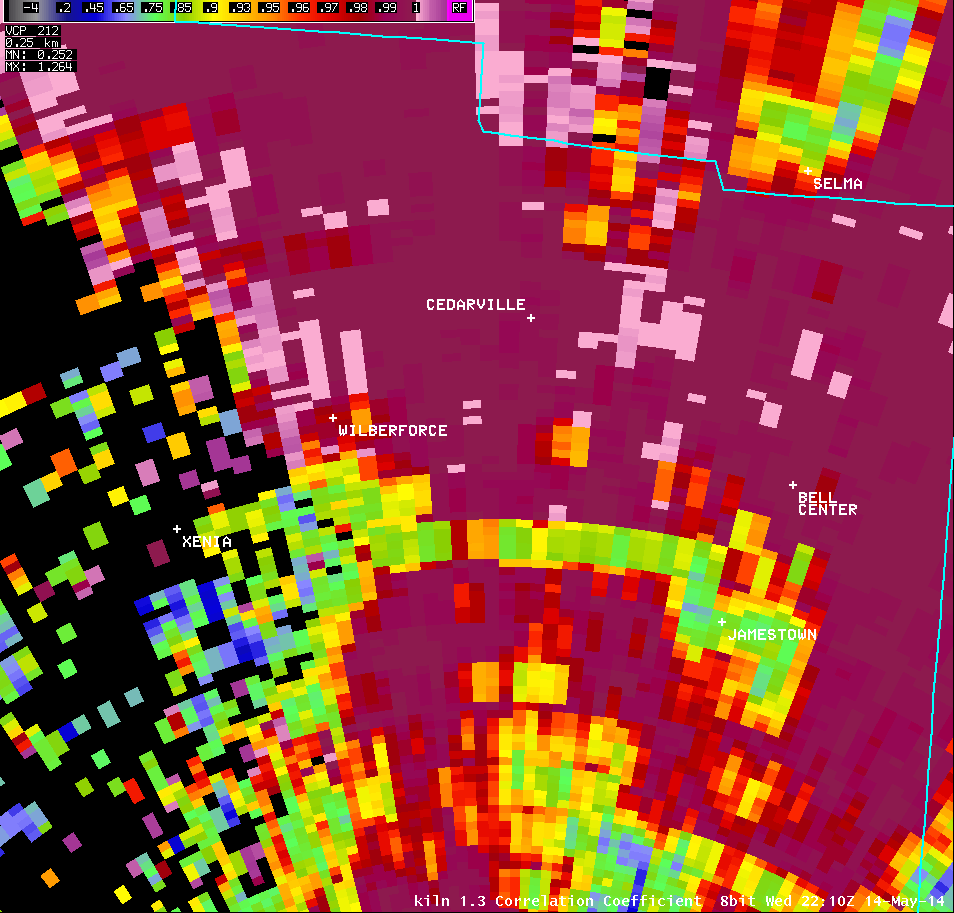

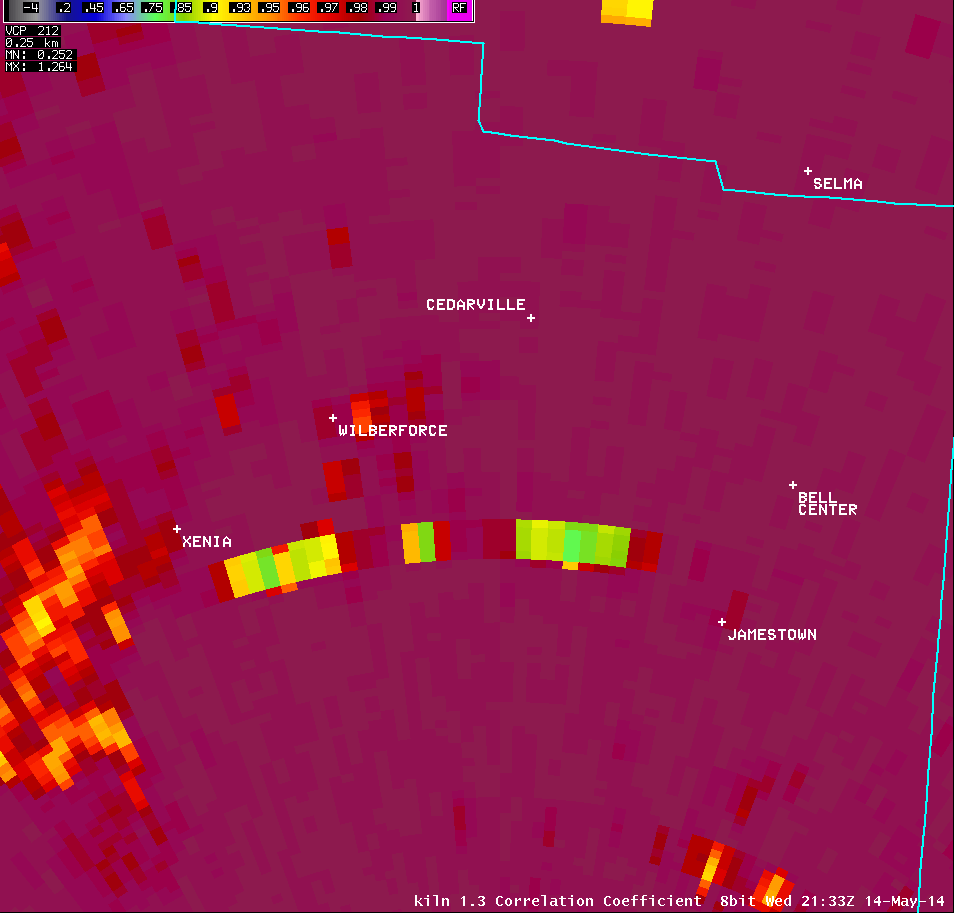

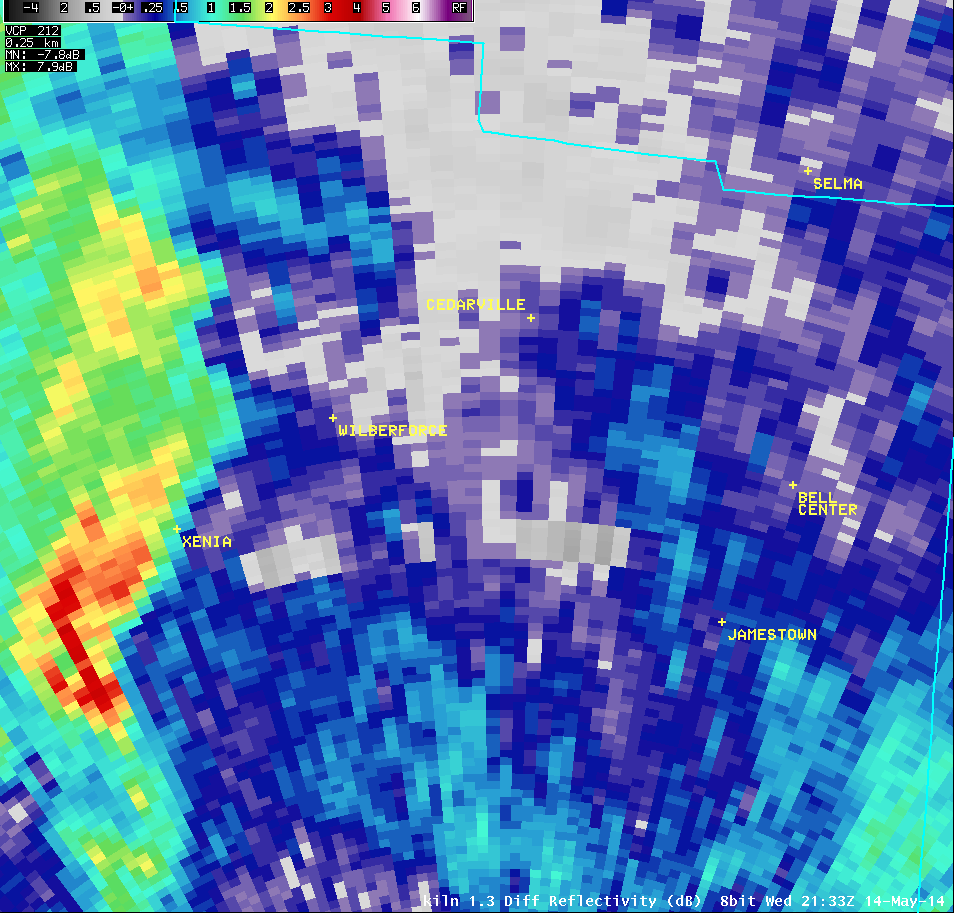

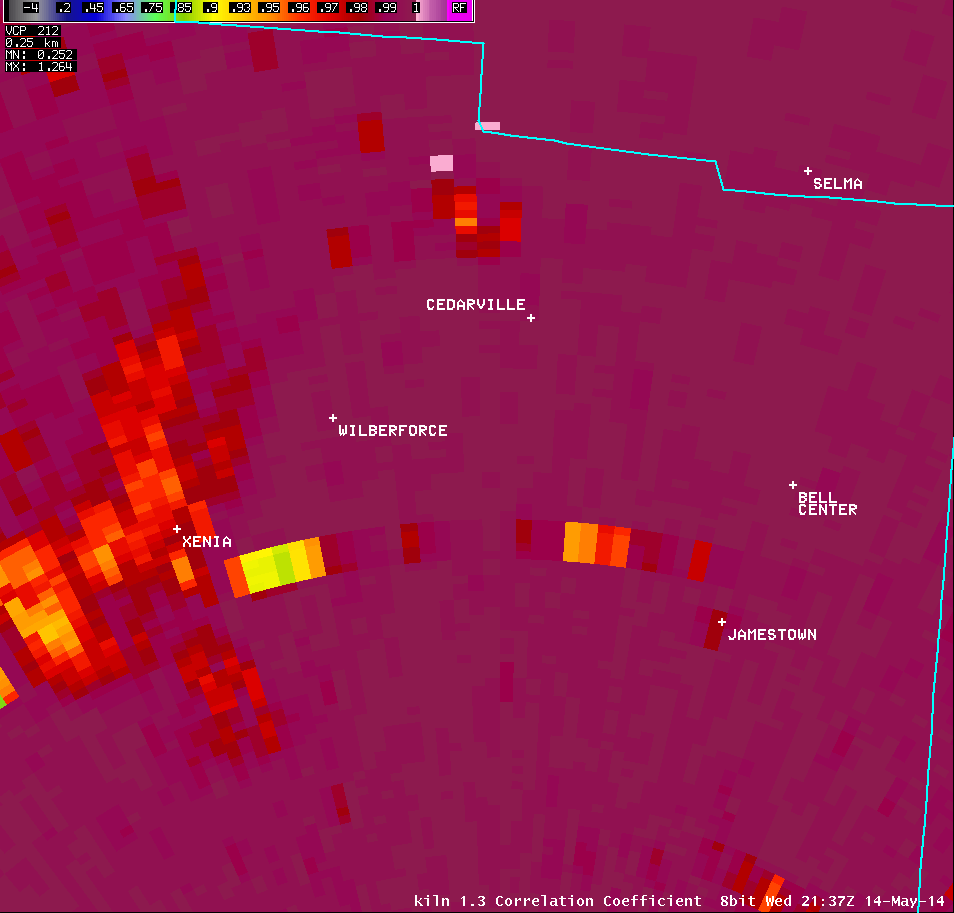

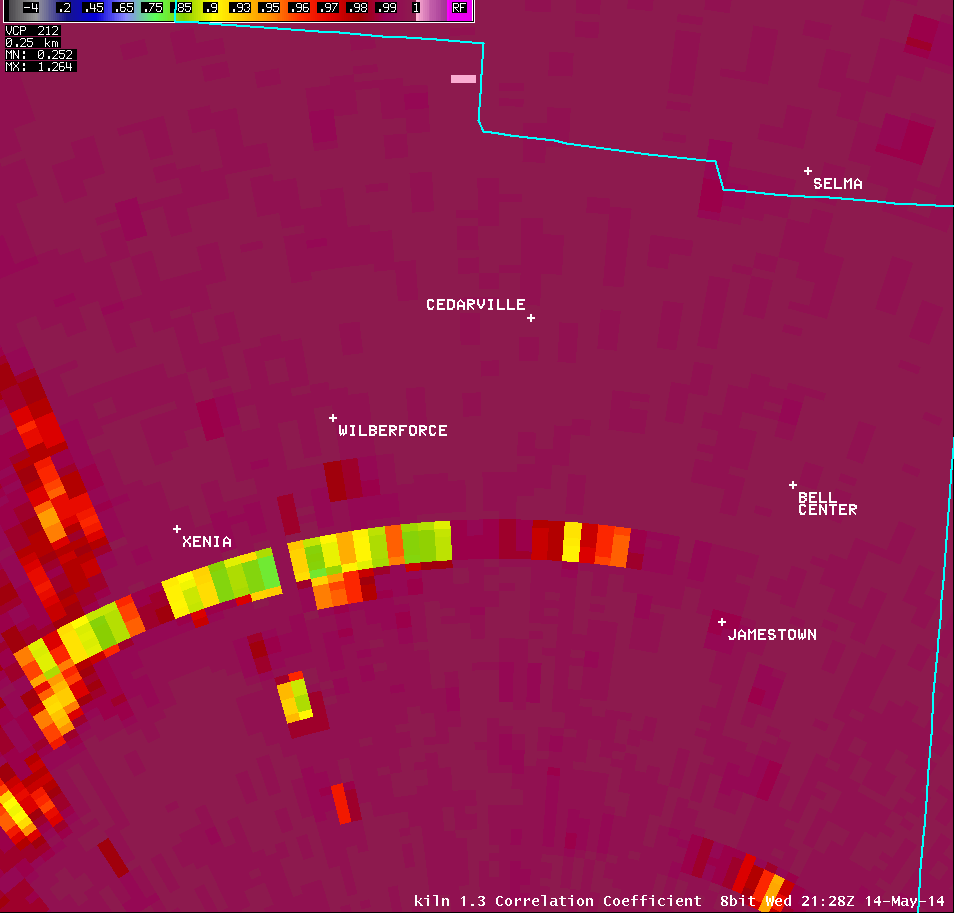

KILN 1.3° Correlation Coefficient (2000-3500 feet AGL)	KILN 1.3° Differential Reflectivity (2000-3500 feet AGL)
1 2 3 4 5 6 7 8 9 10	1 2 3 4 5 6 7 8 9 10
