EF-1 Tornado in Richland County on 11/5/2017

Tornadoes:

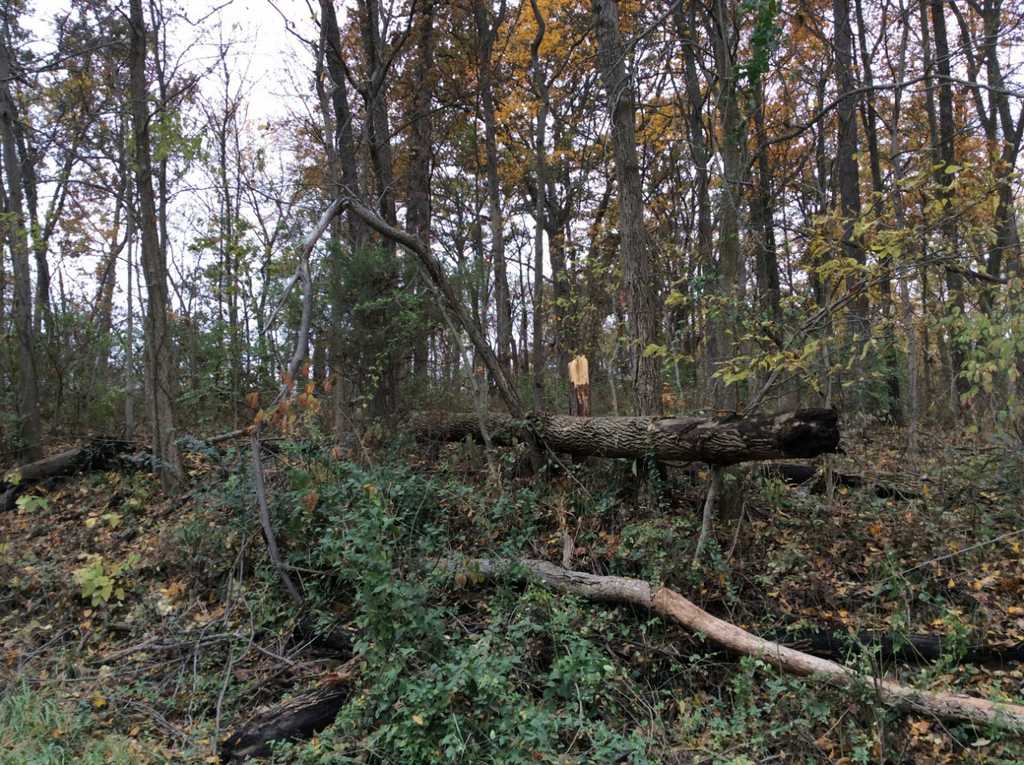

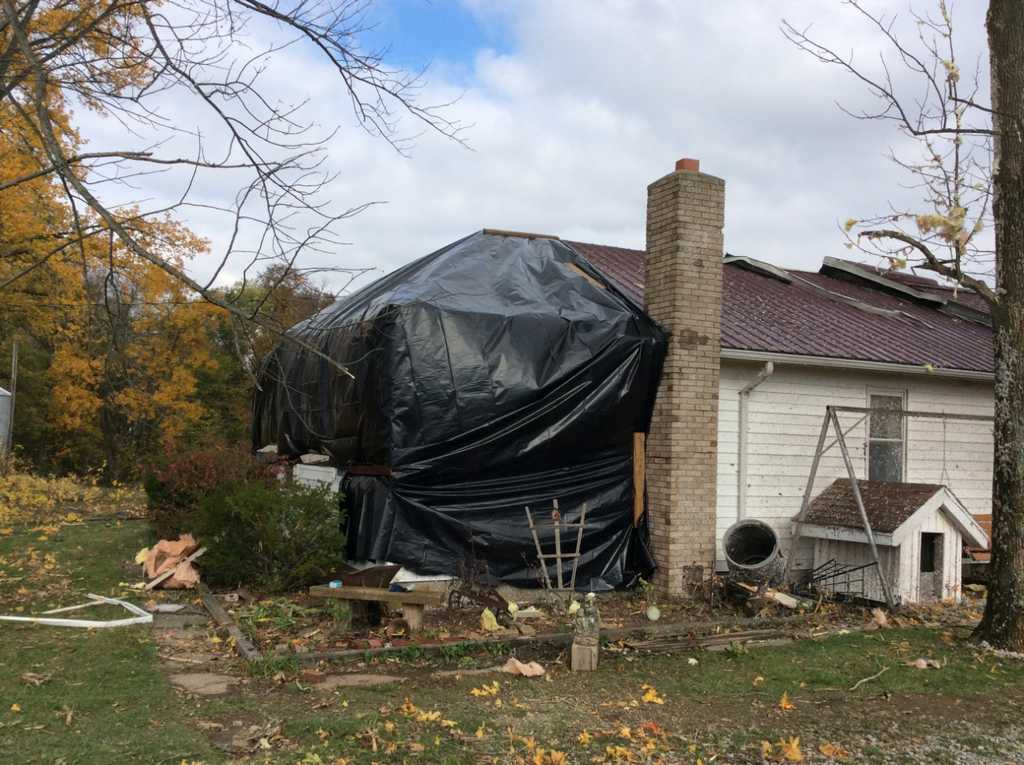

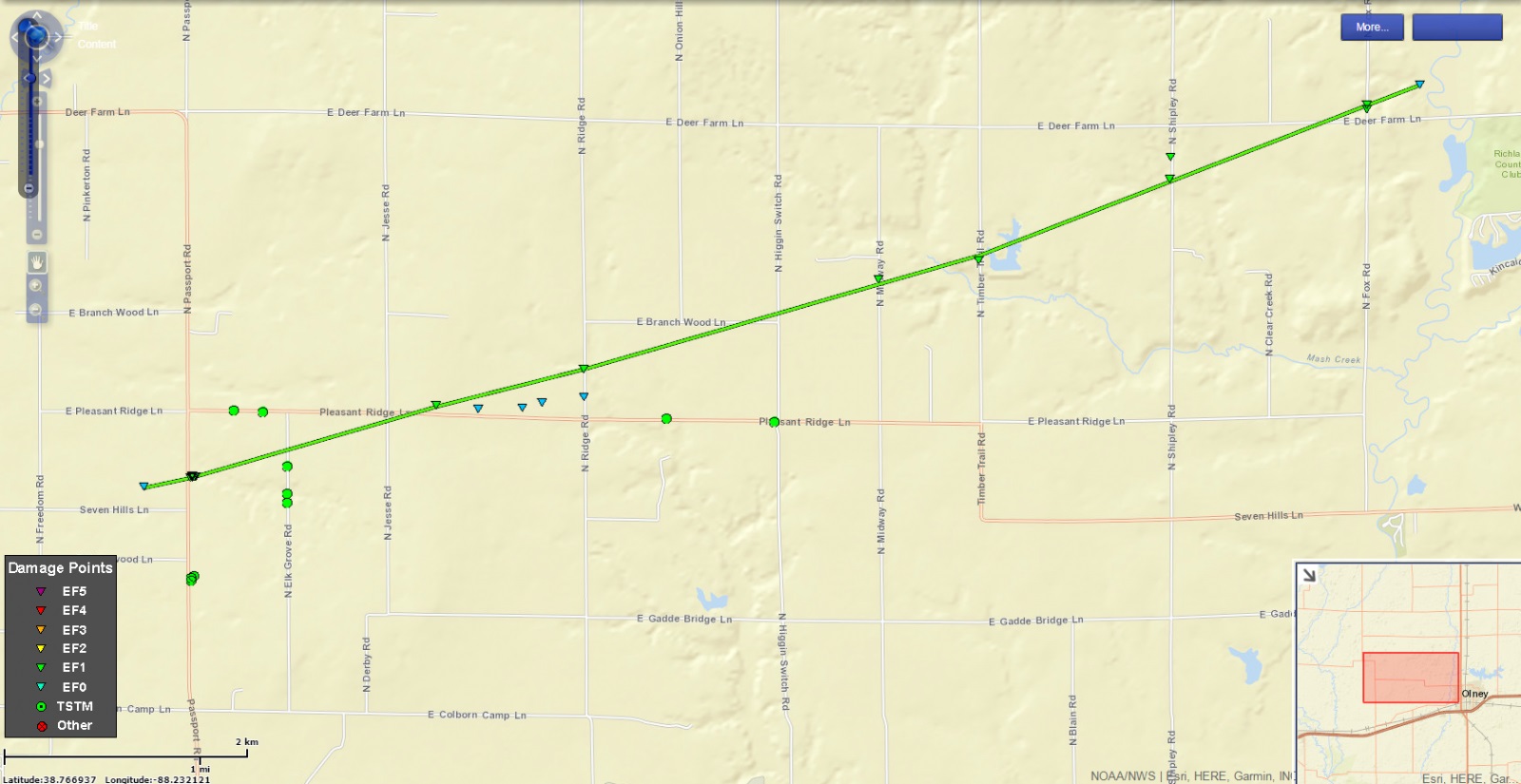

Tornado - 3.4 N Noble, IL RICHLAND COUNTY Date 11/05/2017 Time (Local) 5:24-5:33 pm CST EF Rating EF-1 Est. Peak Winds 105 mph Path Length 6.9 miles Max Width 50 yards Injuries/Deaths 0 / 0 Summary: A tornado touched down in an open field about 3.4 mile north of Noble at 5:24 pm CST. The tornado tracked to the east-northeast and damaged the roof of a house, destroyed a garage, damaged a truck in the garage, and downed several trees. The tornado continued to the east-northeast damaging several trees, before doing damage to barn roof off of Pleasant Ridge Lane around 5:26 pm. The tornado continued to the east-northeast for another 7 minutes primarily damaging trees. The tornado dissipated around 5:33 pm CST, about 3.2 miles north-northwest of Olney about one-half mile northwest of the Richland Country Club.  Track Map Downloadable KMZ File

The Enhanced Fujita (EF) Scale classifies tornadoes into the following categories:

EF0 Weak 65-85 mph	EF1 Moderate 86-110 mph	EF2 Significant 111-135 mph	EF3 Severe 136-165 mph	EF4 Extreme 166-200 mph	EF5 Catastrophic 200+ mph

Radar:

Evansville, IN (KVWX) radar images from November 5th:

5:23 pm	5:27 pm	5:31 pm	5:36 pm

The Doppler radar north of Evansville was able to pick up on the circulation from this tornado. These images each have 4 radar products displayed:

• Top left:  Reflectivity (the standard image you're used to seeing on TV and the Internet)
• Top right:  Storm Relative Motion (SRM). This is from the Doppler part of the radar. SRM shows the wind movement; green represents wind moving toward the radar, and red shows it moving away; the movement of the storm itself is incorporated as well.
• Lower left:  Differential Reflectivity (ZDR). The ZDR compares the horizontal and vertical parts of the radar beam, and is used to help determine locations with hail.
• Lower right:  Correlation Coefficient (CC).  The CC product helps distinguish from echoes caused by precipitation, and those by non-weather targets such as insects, debris, etc.

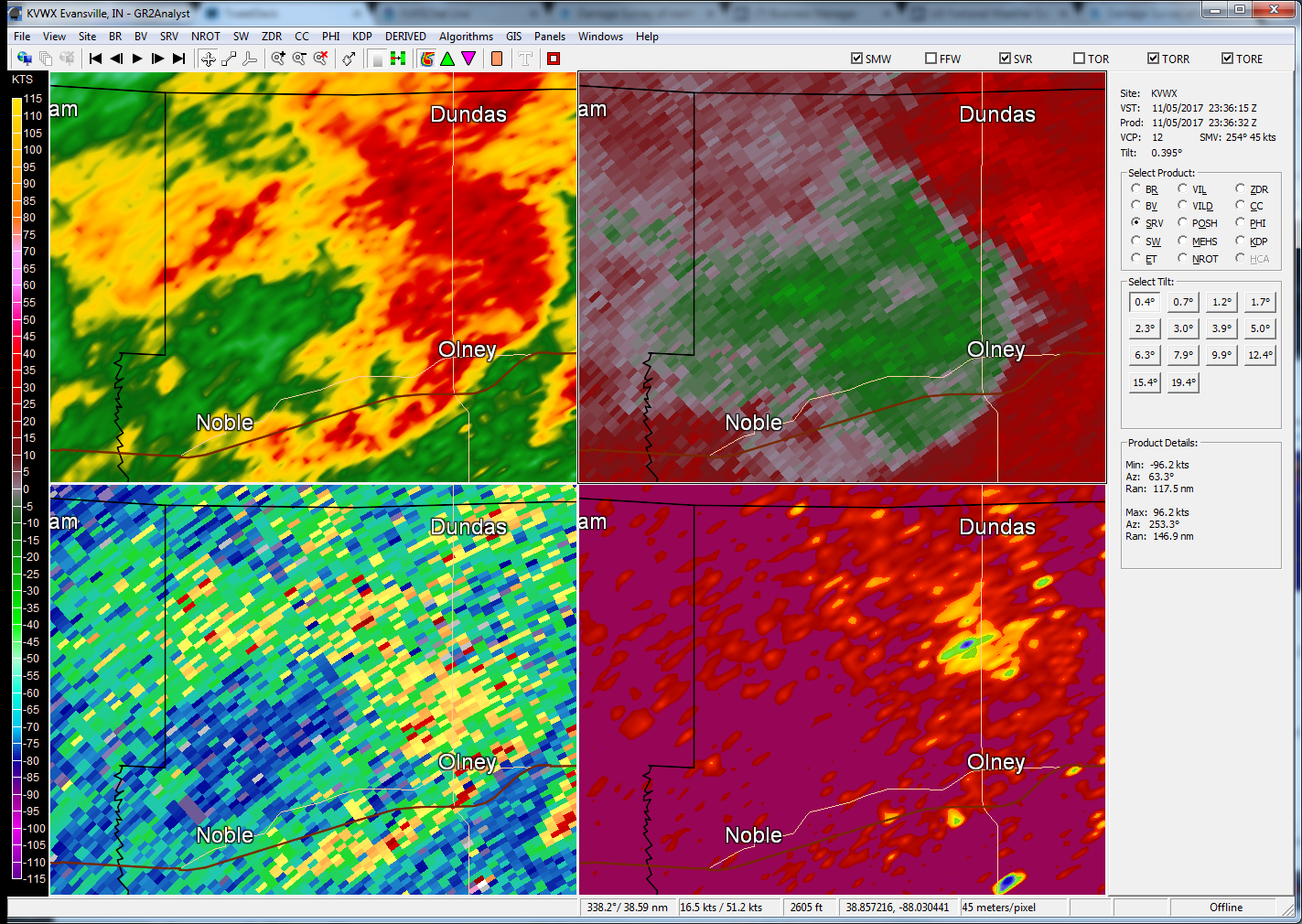

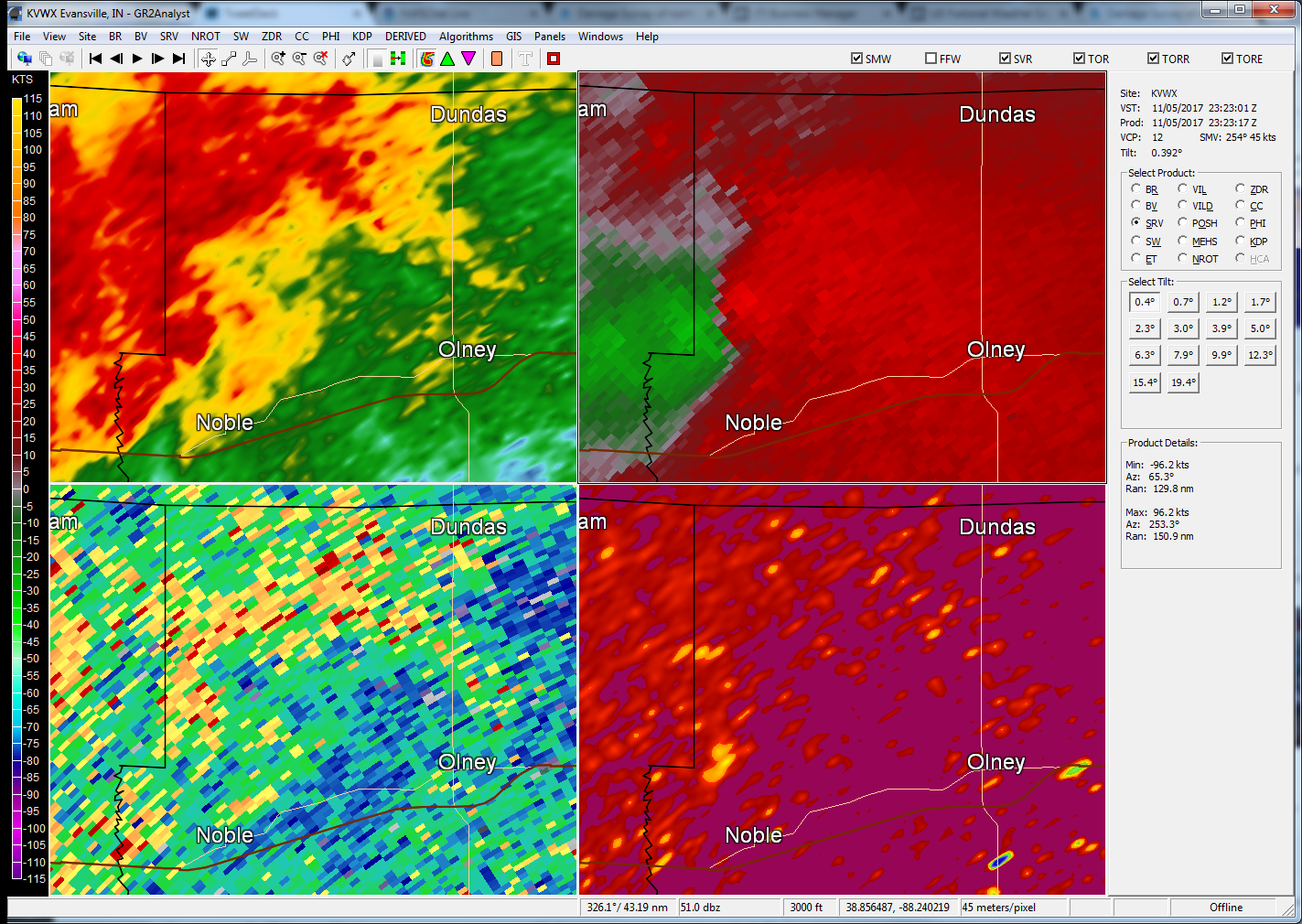

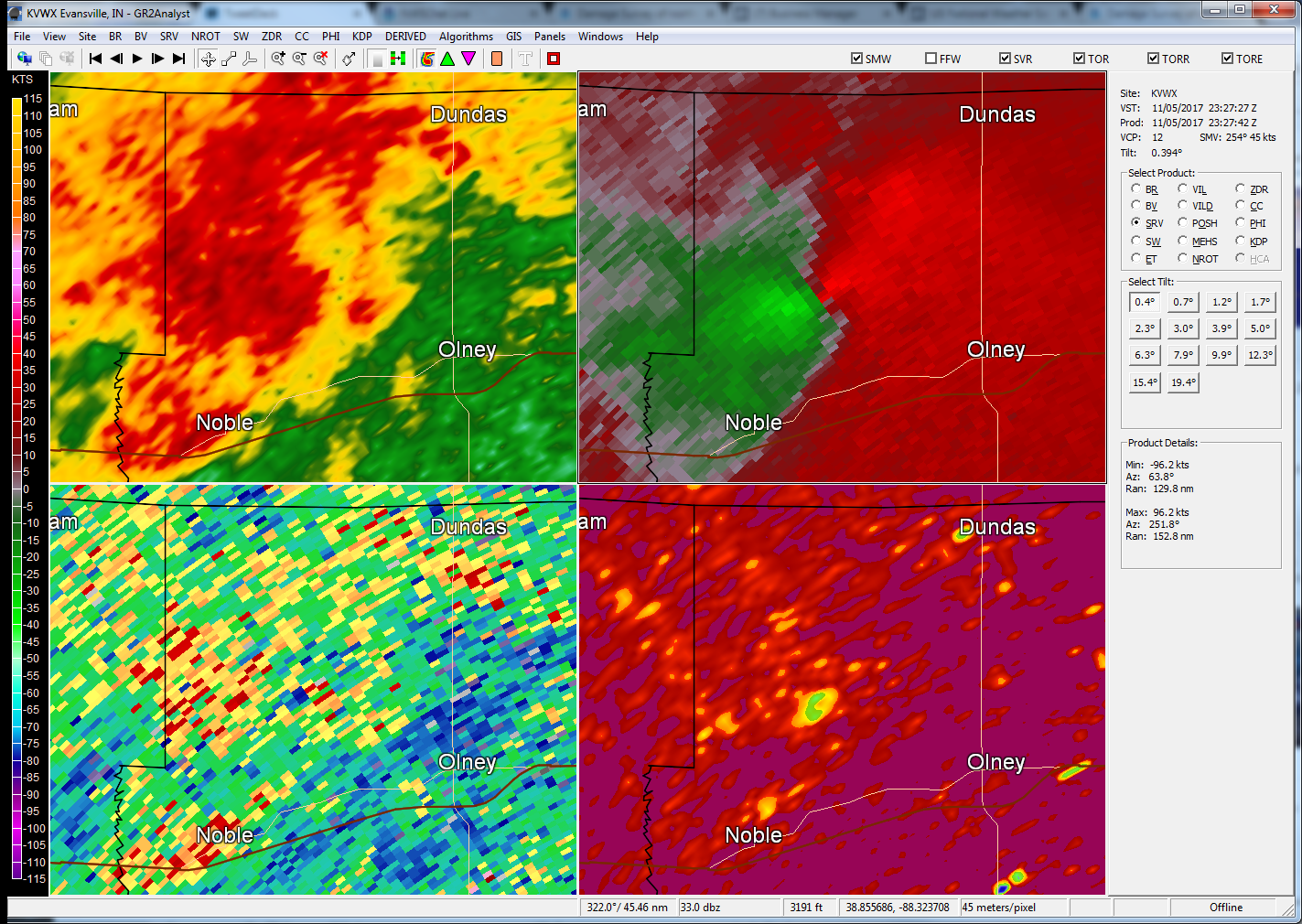

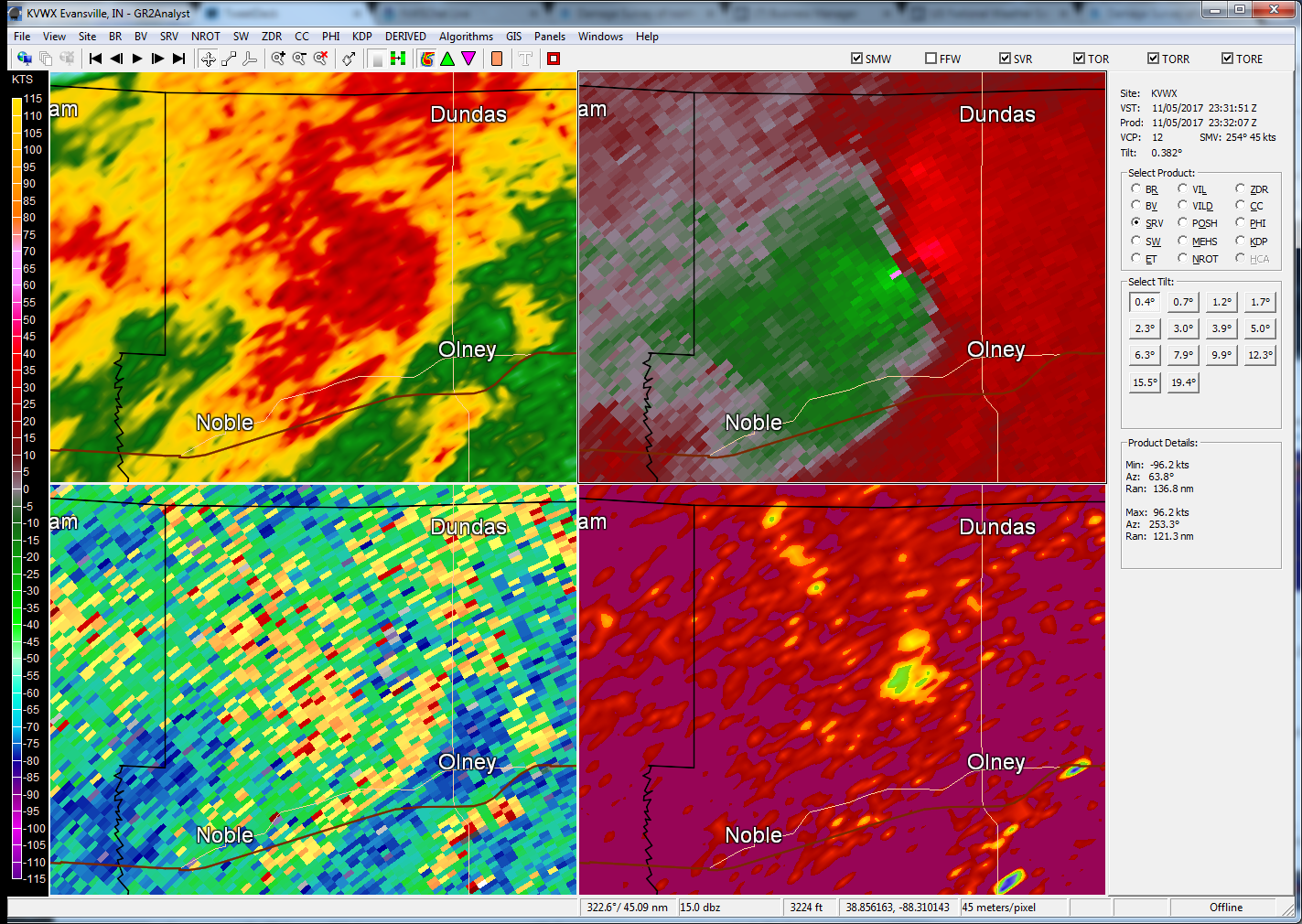

The first image was from 1 minute before the tornado touched down. In the top right quadrant, the circulation is starting to take shape north of Noble, evidenced by the red and green next to each other. This shows up more substantially at 5:27 pm, after it has caused the damage to the initial house and garage. At this point, there is some indication of the tornado in the CC display starting to show up in the lower right quadrant (the greenish area northeast of Noble). This suggests some non-meteorological echoes mixed in. The strongest circulation is shown in the image at 5:31 pm, but is quickly fading at 5:36 pm. However, the CC continues to show some debris present (green and blue area aligned with the circulation).

Storm Reports

PRELIMINARY LOCAL STORM REPORT...SUMMARY
NATIONAL WEATHER SERVICE LINCOLN IL
1242 PM CST MON NOV 06 2017

..TIME...   ...EVENT...      ...CITY LOCATION...     ...LAT.LON...
..DATE...   ....MAG....      ..COUNTY LOCATION..ST.. ...SOURCE....
            ..REMARKS..

0210 PM     TSTM WND DMG     ARTHUR                  39.72N 88.47W
11/05/2017                   DOUGLAS            IL   LAW ENFORCEMENT

            DELAYED REPORT. POWER LINE BLOWN DOWN ON THE NORTHWEST
            SIDE OF TOWN. TIME ESTIMATED.

0210 PM     HAIL             ARTHUR                  39.72N 88.47W
11/05/2017  M0.75 INCH       DOUGLAS            IL   LAW ENFORCEMENT

            DELAYED REPORT. TIME ESTIMATED.

0215 PM     HAIL             TAYLORVILLE AIRPORT     39.53N 89.33W
11/05/2017  E0.88 INCH       CHRISTIAN          IL   PUBLIC

0340 PM     TSTM WND DMG     SHUMWAY                 39.18N 88.65W
11/05/2017                   EFFINGHAM          IL   LAW ENFORCEMENT

            DELAYED REPORT. POWER POLE AND POWER LINES BLOWN DOWN.
            SEVERAL TREE LIMBS BLOWN DOWN. TIME ESTIMATED.

0419 PM     TSTM WND DMG     CASEY                   39.30N 87.99W
11/05/2017                   CLARK              IL   CO-OP OBSERVER

            DELAYED REPORT. A FEW SMALL TREES AND NUMEROUS LARGE TREE
            BRANCHES BLOWN DOWN. TIME ESTIMATED.

0522 PM     TORNADO          3 N NOBLE               38.74N 88.22W
11/05/2017  F1               RICHLAND           IL   NWS STORM SURVEY

            PATH LENGTH 6.9 MILES, MAX WIDTH 50 YARDS. ESTIMATED MAX
            WIND 105 MPH. MAIN DAMAGE TO A RESIDENCE NEAR THE START
            OF THE TRACK, DAMAGING THE ROOF OF A HOUSE, DESTROYING A
            GARAGE AND DAMAGING A TRUCK INSIDE, AND DOWNING SEVERAL
            LARGE TREES. ONE BARN LOST PART OF ITS ROOF ALONG
            PLEASANT RIDGE LANE. OTHER DAMAGE LIMITED MAINLY TO
            SNAPPED TREES.

0524 PM     TSTM WND DMG     3 N NOBLE               38.74N 88.22W
11/05/2017                   RICHLAND           IL   NWS STORM SURVEY

            SOUTH OF TORNADO TOUCHDOWN AREA, METAL SIDING PEELED OFF
            HOME AND ROTTED TREE UPROOTED.

            DAMAGE TO ROOF AND TREES.
0537 PM     TSTM WND DMG     4 NE OLNEY              38.78N 88.04W
11/05/2017                   RICHLAND           IL   NWS STORM SURVEY

            3 POWER POLES LEANING

0532 PM     TSTM WND DMG     5 WNW OLNEY             38.75N 88.17W
11/05/2017                   RICHLAND           IL   NWS STORM SURVEY

            VEHICLE WINDOW BROKEN

0600 AM     HEAVY RAIN       OLNEY                   38.73N 88.09W
11/06/2017  M1.83 INCH       RICHLAND           IL   CO-OP OBSERVER

            24 HOUR TOTAL

0600 AM     HEAVY RAIN       3 W ROBINSON            39.01N 87.80W
11/06/2017  M1.30 INCH       CRAWFORD           IL   MESONET

            24 HOUR TOTAL

0600 AM     HEAVY RAIN       2 S MOWEAQUA            39.60N 89.02W
11/06/2017  M1.90 INCH       SHELBY             IL   CO-OP OBSERVER

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       1 NE CHAMPAIGN          40.12N 88.25W
11/06/2017  M1.40 INCH       CHAMPAIGN          IL   COCORAHS

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       DANVILLE                40.14N 87.62W
11/06/2017  M1.46 INCH       VERMILION          IL   COCORAHS

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       TUSCOLA                 39.80N 88.28W
11/06/2017  M1.37 INCH       DOUGLAS            IL   CO-OP OBSERVER

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       ARTHUR                  39.72N 88.47W
11/06/2017  M1.32 INCH       DOUGLAS            IL   CO-OP OBSERVER

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       2 WSW LAWRENCEVILLE     38.72N 87.72W
11/06/2017  M1.12 INCH       LAWRENCE           IL   CO-OP OBSERVER

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       CASEY                   39.30N 87.99W
11/06/2017  M1.14 INCH       CLARK              IL   CO-OP OBSERVER

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       1 S FLORA               38.66N 88.48W
11/06/2017  M1.48 INCH       CLAY               IL   MESONET

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       7 N EFFINGHAM           39.22N 88.55W
11/06/2017  M1.28 INCH       SHELBY             IL   COCORAHS

            24 HOUR TOTAL

0700 AM     HEAVY RAIN       4 N SIDELL              39.97N 87.82W
11/06/2017  M1.28 INCH       VERMILION          IL   CO-OP OBSERVER

            24 HOUR TOTAL
